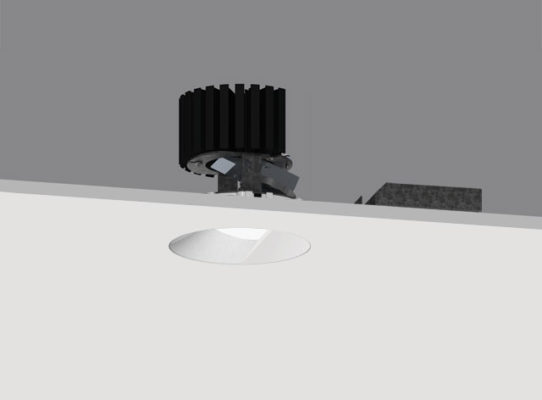

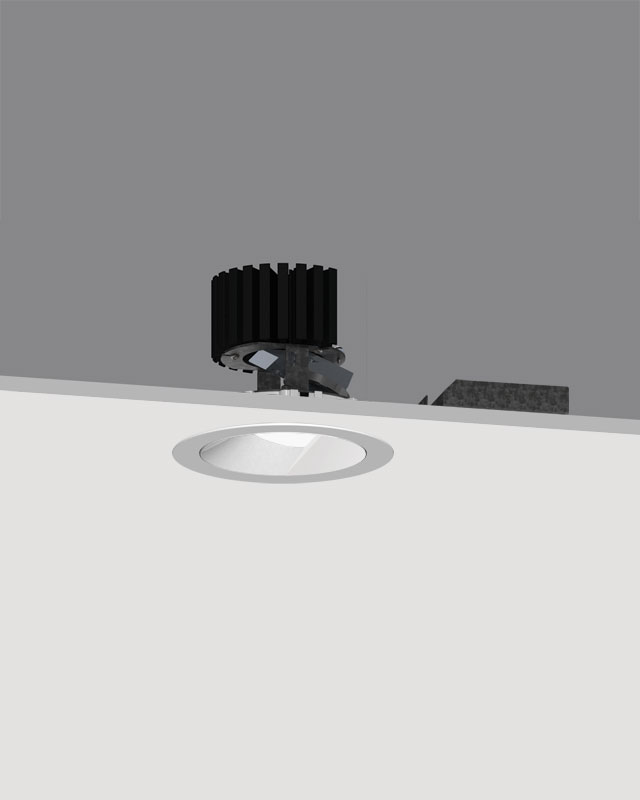

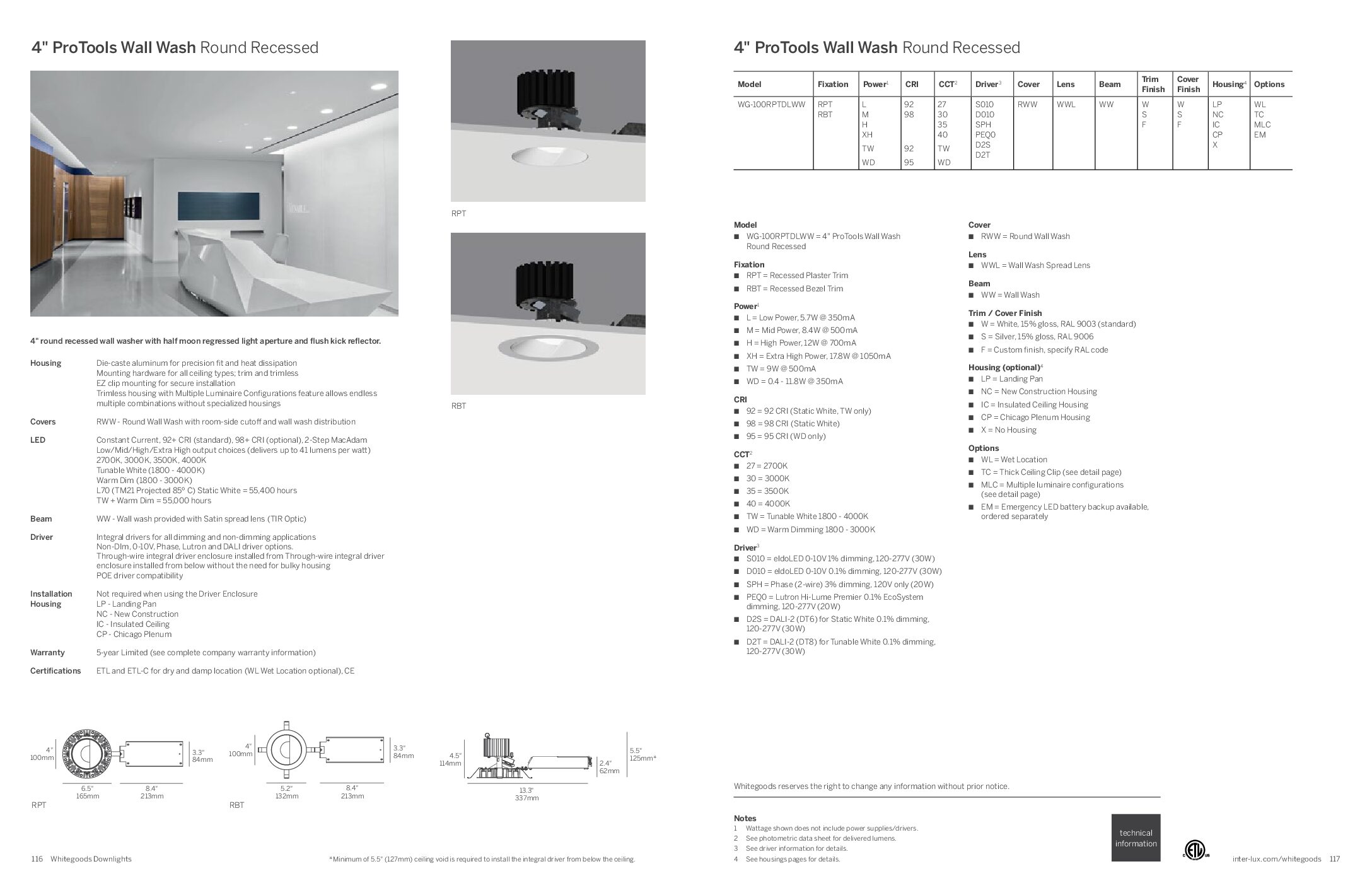

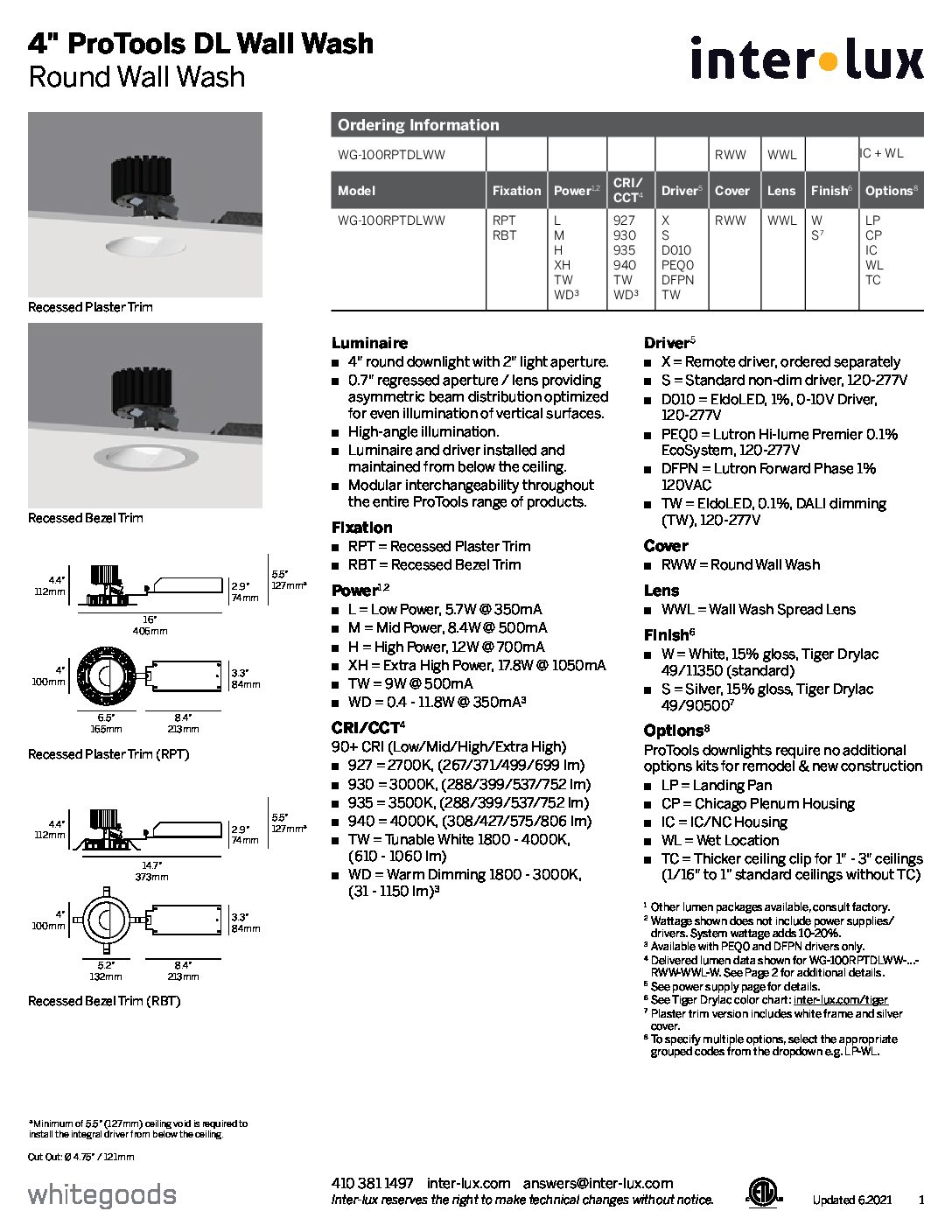

4″ ProTools DL Wall Wash Round Wall Wash (PTD4)

Dedicated Wall Wash Luminaire for Even Illumination of Vertical Surfaces

  • 4″ round downlight with 2″ light aperture.
  • 0.7″ regressed aperture / lens providing asymmetric beam distribution optimized for even illumination of vertical surfaces.
  • High-angle illumination.
  • Luminaire and driver installed and maintained from below the ceiling.
  • Mounts in 1/16″ to 1″ surface.
  • Tunable White and Warm Dim.
  • Modular interchangeability throughout the entire ProTools range of products.
  • Wet Location as standard option (WL).
  • Available 2700 to 4000 K (267 to 806 lm).
Selections download as one PDF

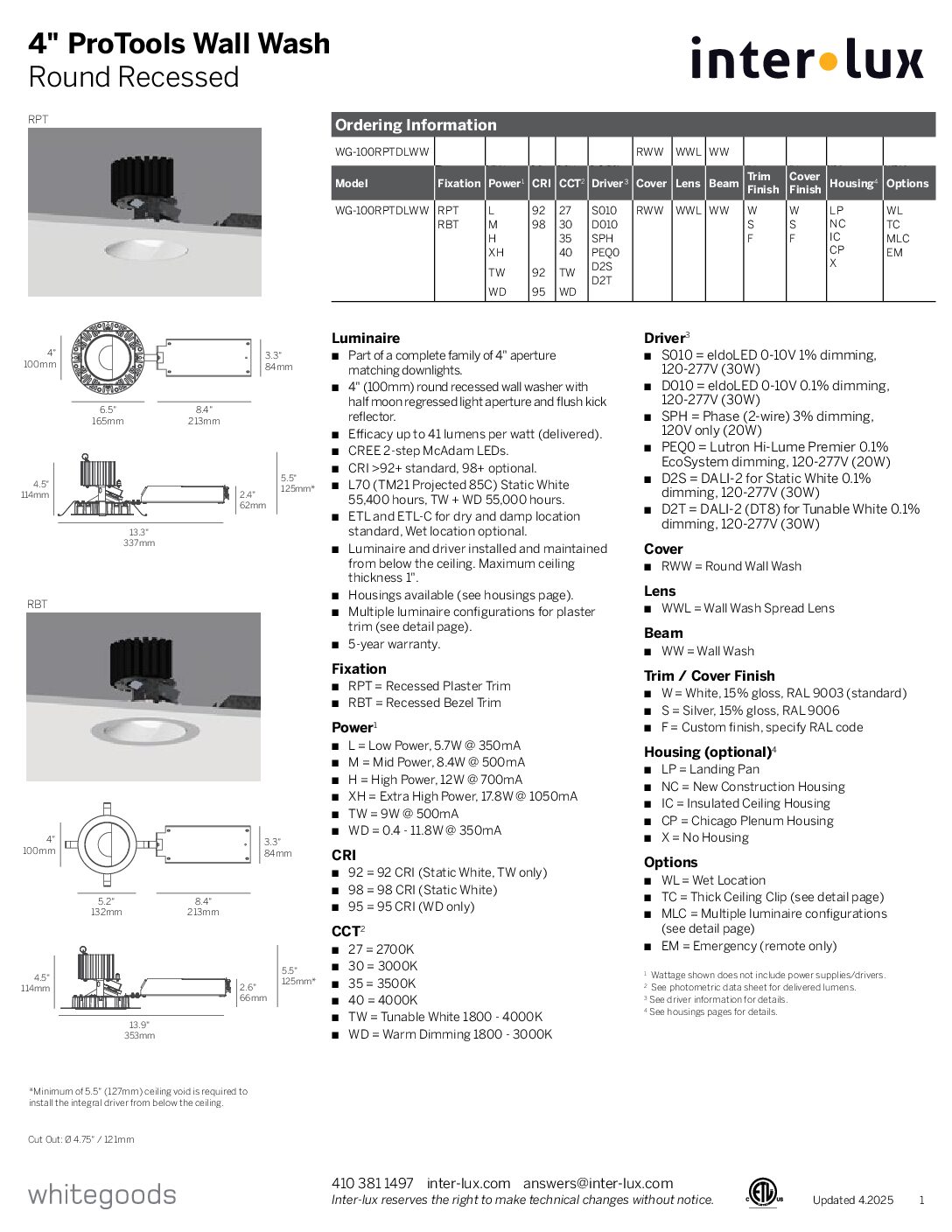

  • Spec Page
  • New Construction Housing
  • IC/CP Housings

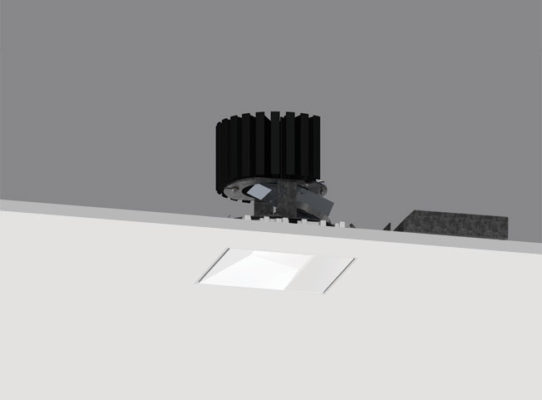

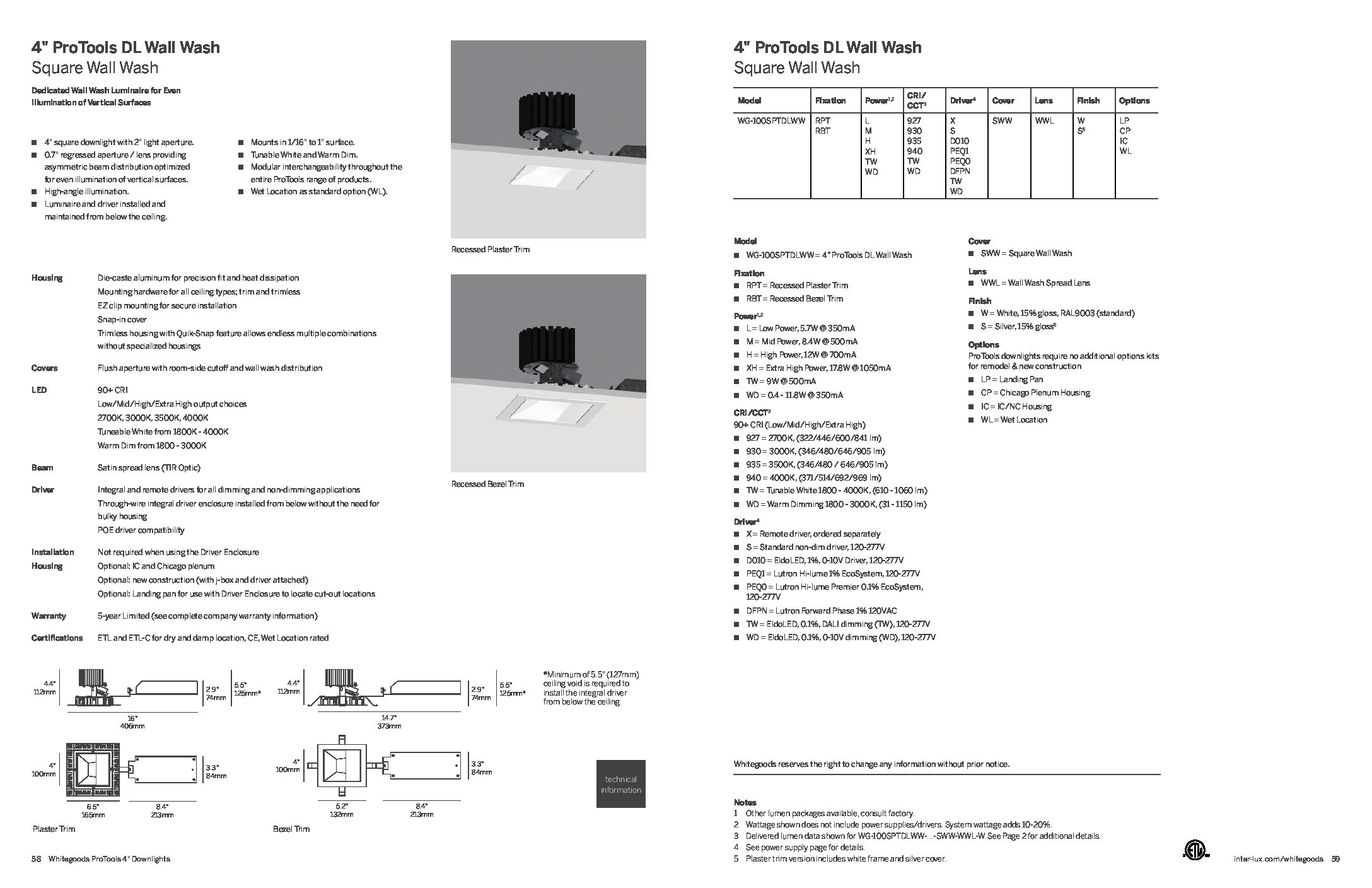

4″ ProTools DL Wall Wash Square Wall Wash (PTD4)

Dedicated Wall Wash Luminaire for Even Illumination of Vertical Surfaces

  • 4″ square downlight with 2″ light aperture.
  • 0.7″ regressed aperture / lens providing asymmetric beam distribution optimized for even illumination of vertical surfaces.
  • High-angle illumination.
  • Luminaire and driver installed and maintained from below the ceiling.
  • Mounts in 1/16″ to 1″ surface.
  • Tunable White and Warm Dim.
  • Modular interchangeability throughout the entire ProTools range of products.
  • Wet Location as standard option (WL).
  • Available 2700 to 4000 K (322 to 969 lm).
Selections download as one PDF

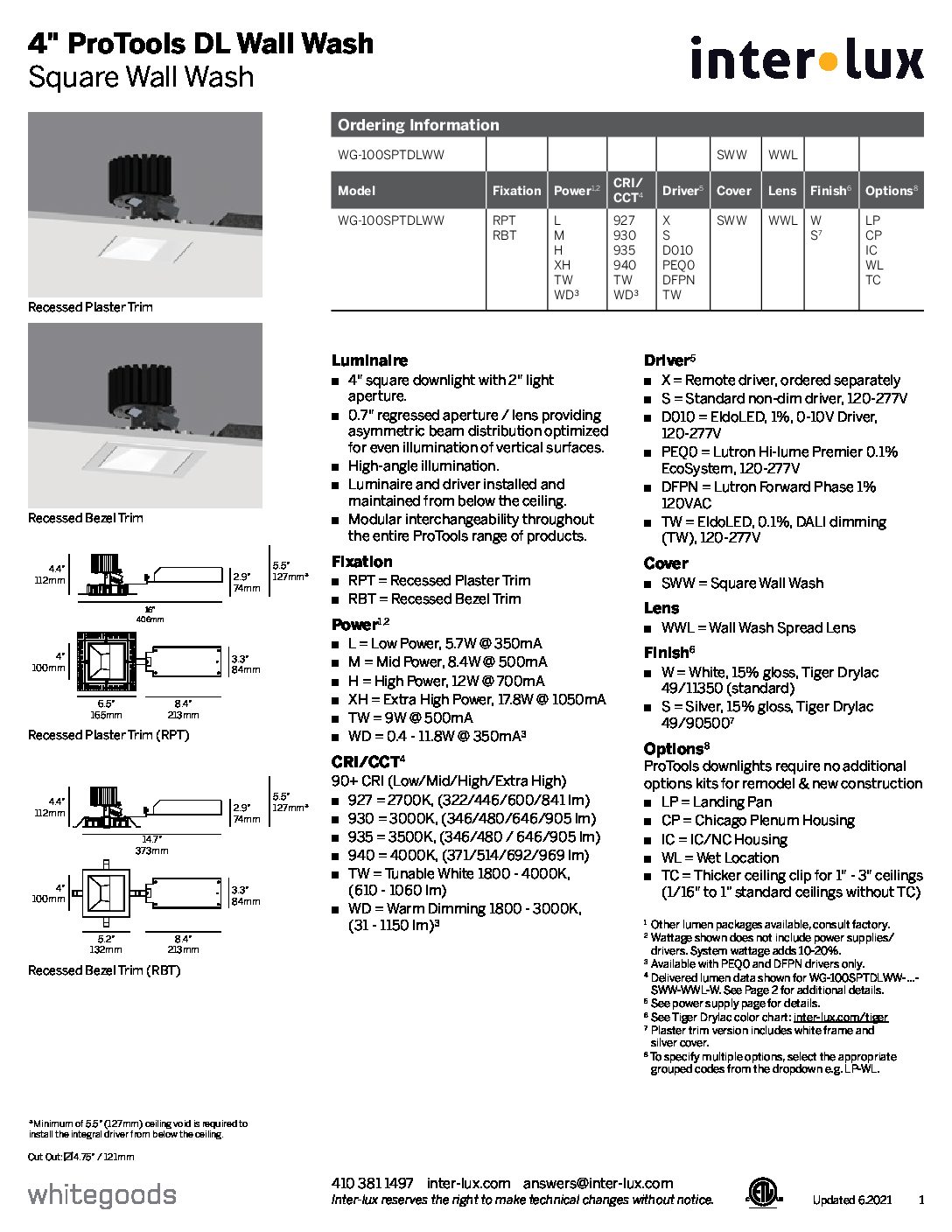

  • Spec Page
  • New Construction Housing
  • IC/CP Housings
