ProTools 4 Inch Downlights DLX Adjustable
-
4" ProTools DLX AdjustableRound Recessed Cone -
4″ ProTools DLX AdjustableRound Recessed Cone – Narrow
-
4" ProTools DLX AdjustableRound Recessed Cone - Adjustable Beam
-
4" ProTools DLX AdjustableSquare Recessed Cone
-
4" ProTools DLX AdjustableSquare Recessed Cone - Narrow
-
4" ProTools DLX AdjustableSquare Recessed Cone - Adjustable Beam
-
4" ProTools DLX AdjustableRound Regressed Pinhole
-
4" ProTools DLX AdjustableRound Regressed Pinhole – Narrow
-
4" ProTools DLX AdjustableRound Regressed Pinhole – Adjustable Beam
-
4" ProTools DLX AdjustableSquare Regressed Pinhole
-
4" ProTools DLX AdjustableSquare Regressed Pinhole - Narrow
-

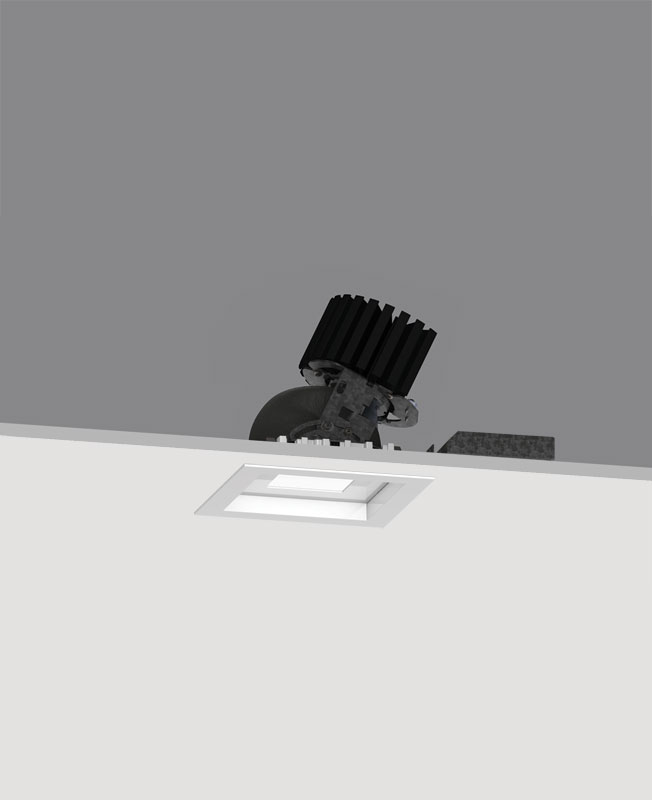

4" ProTools DLX AdjustableSquare Regressed Pinhole - Adjustable Beam
-

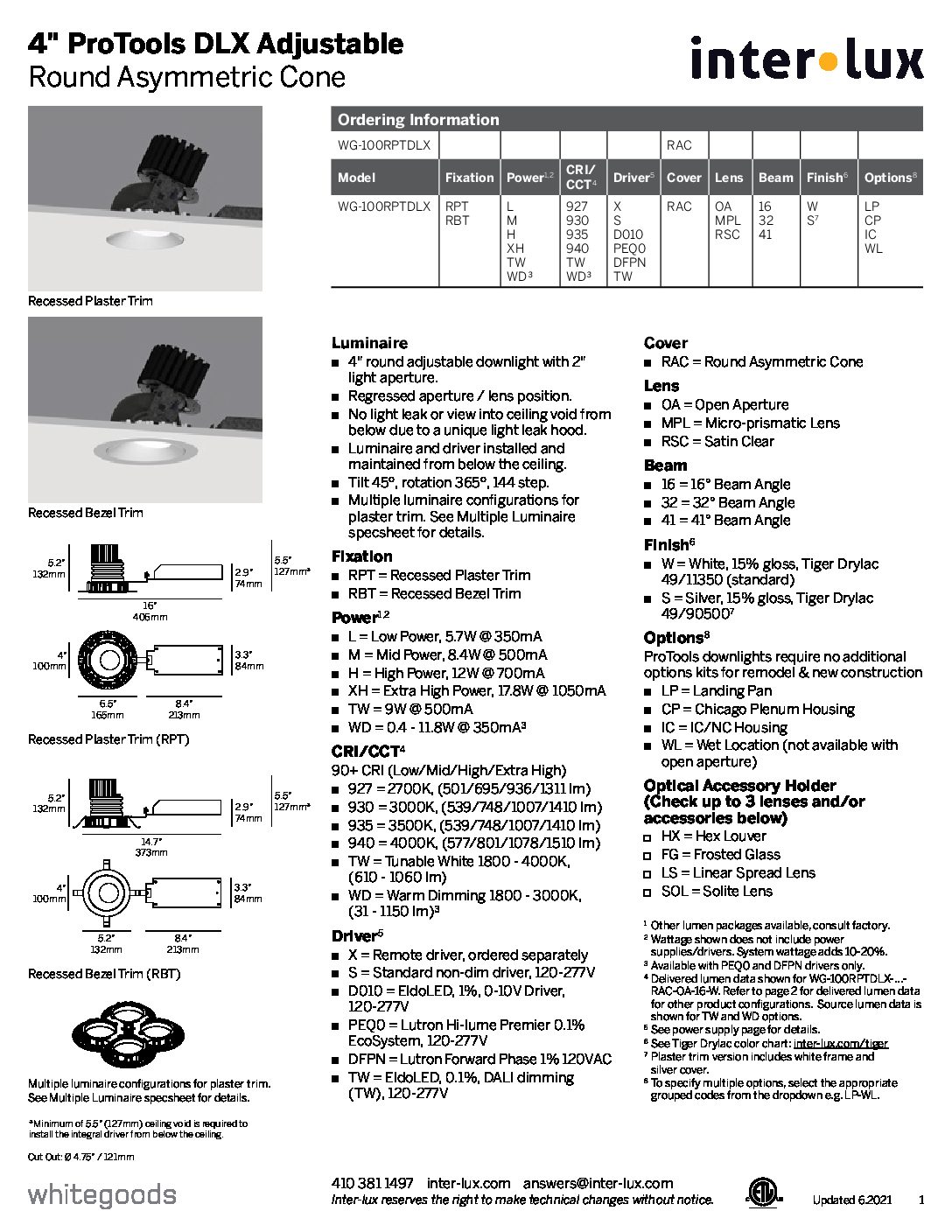

4" ProTools DLX AdjustableRound Asymmetric Cone
-

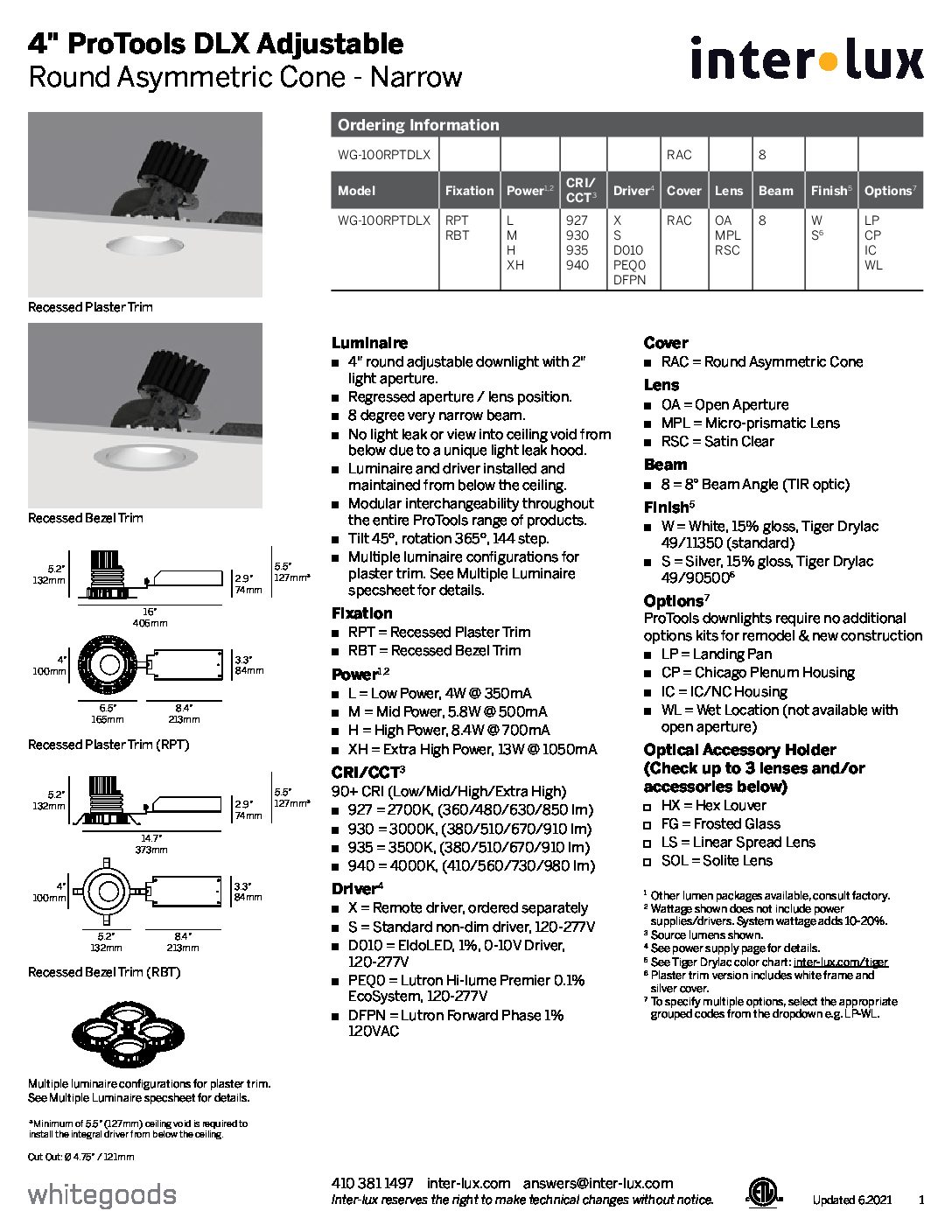

4" ProTools DLX AdjustableRound Asymmetric Cover - Narrow
-

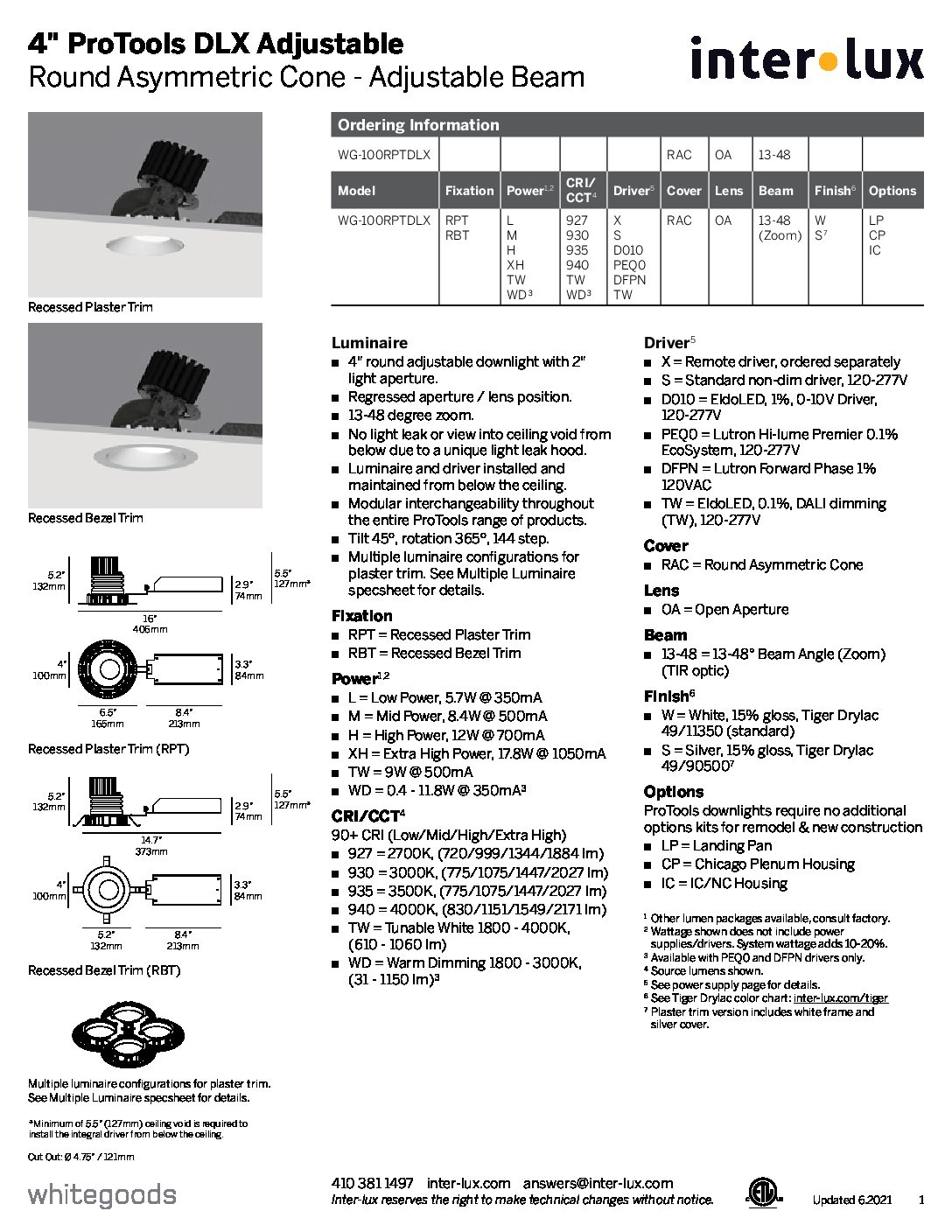

4" ProTools DLX AdjustableRound Asymmetric Cover - Adjustable Beam
-

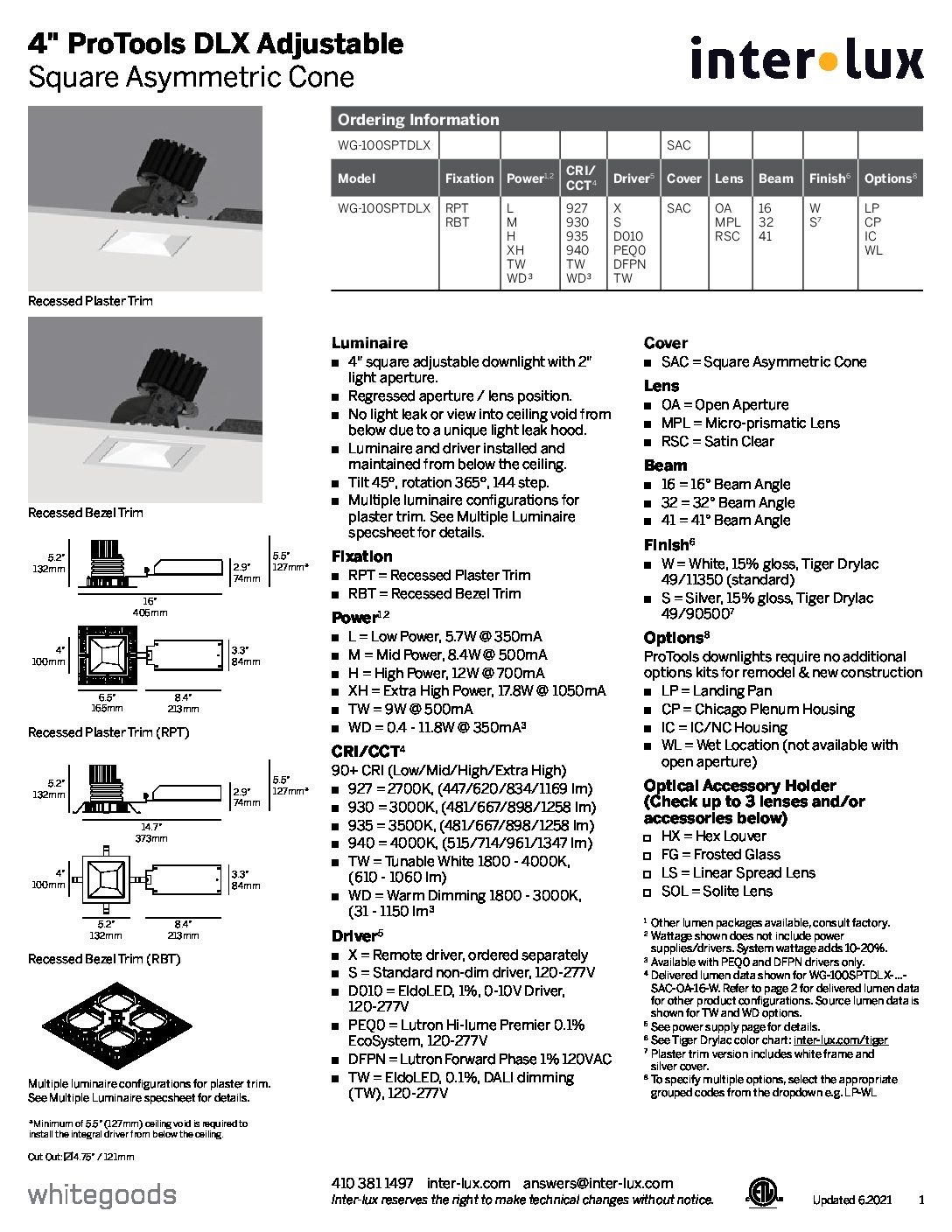

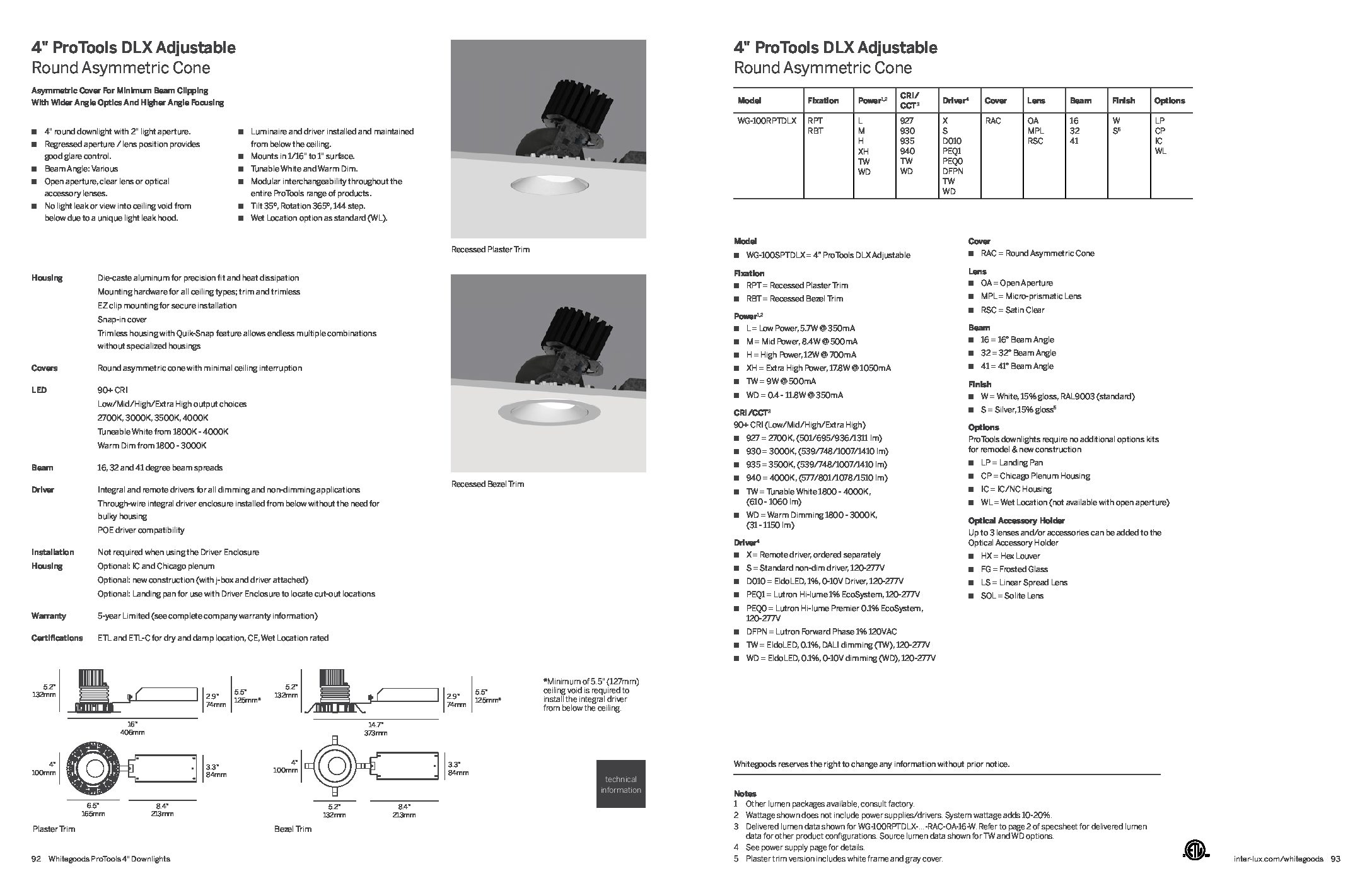

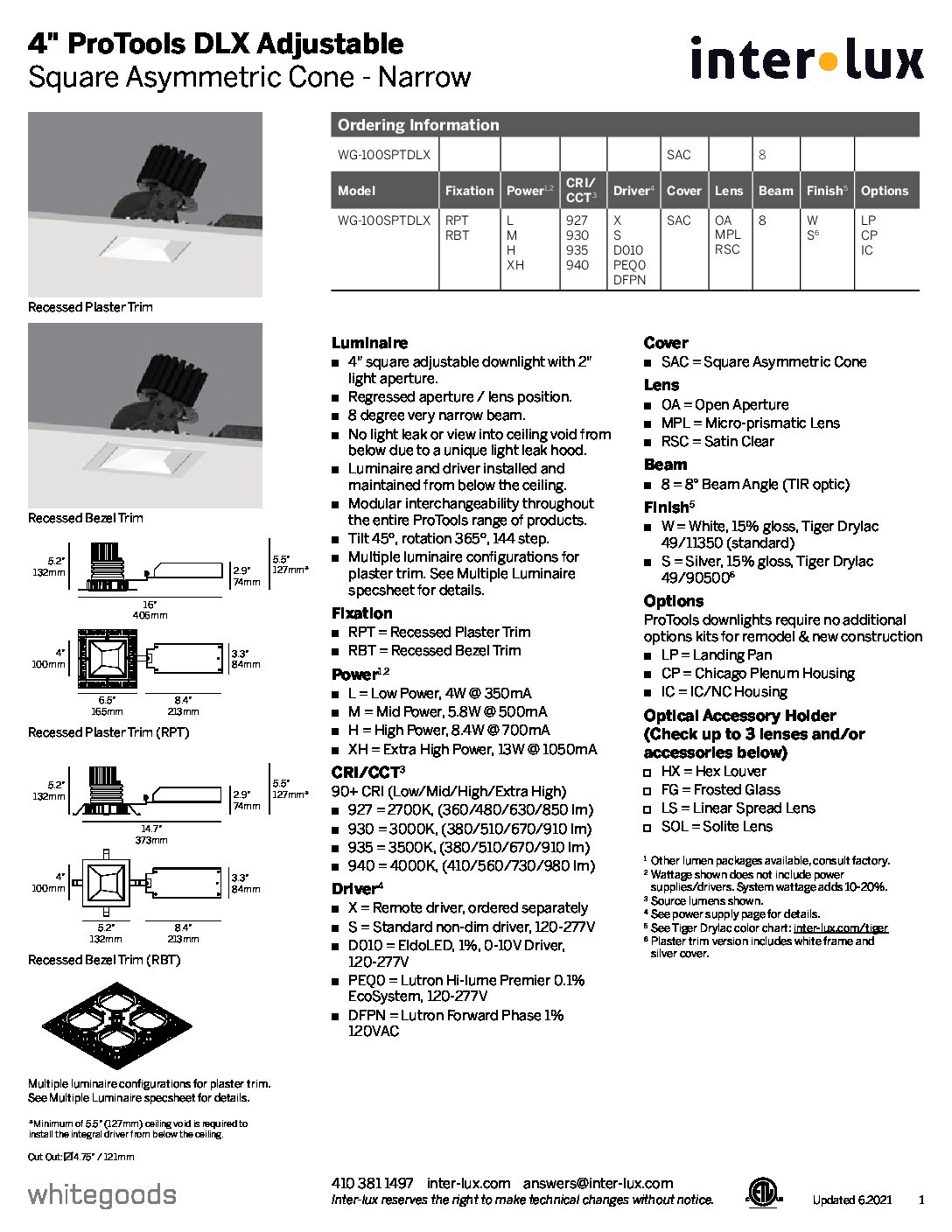

4" ProTools DLX AdjustableSquare Asymmetric Cone
-

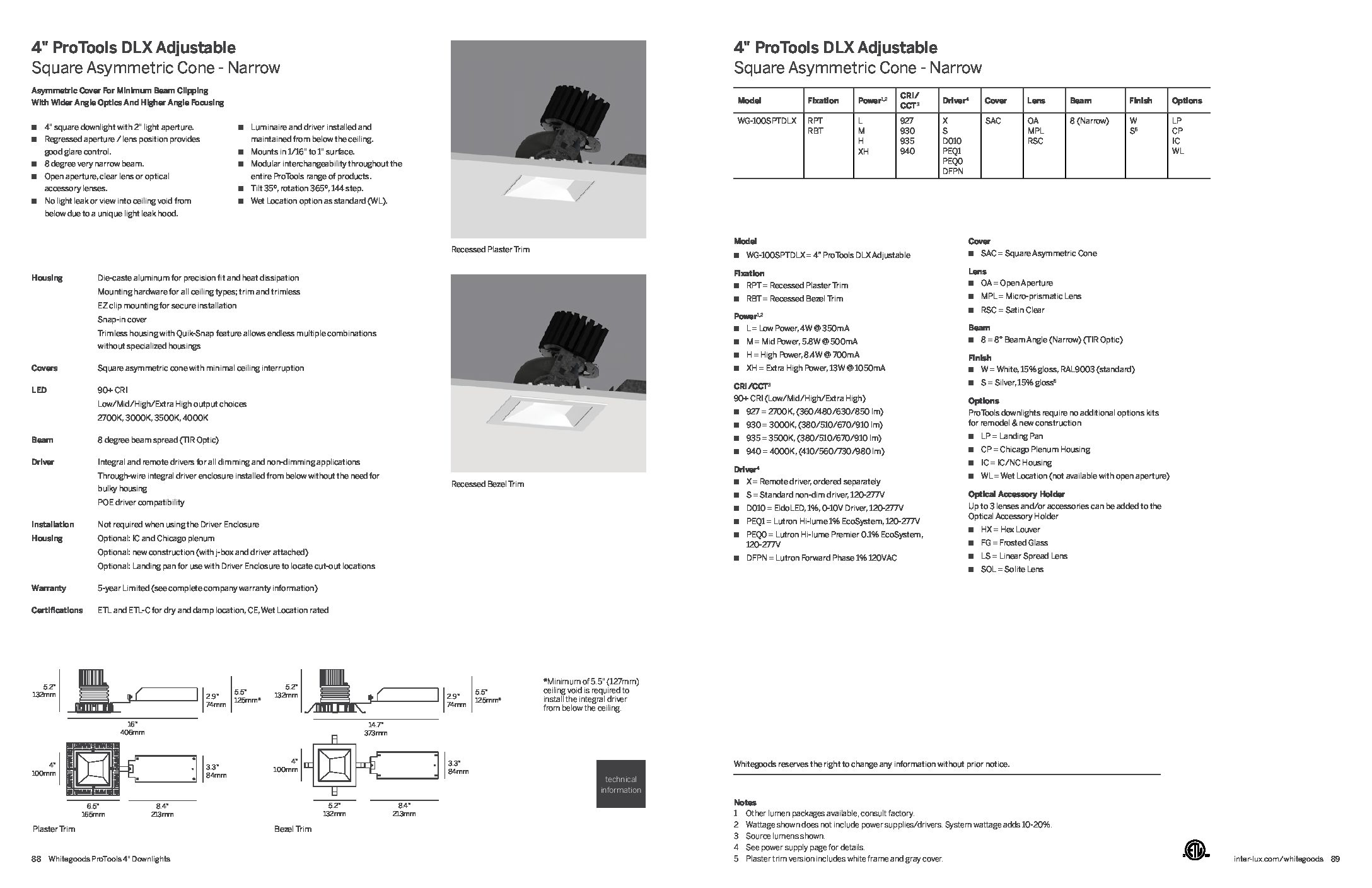

4" ProTools DLX AdjustableSquare Asymmetric Cone – Narrow
-

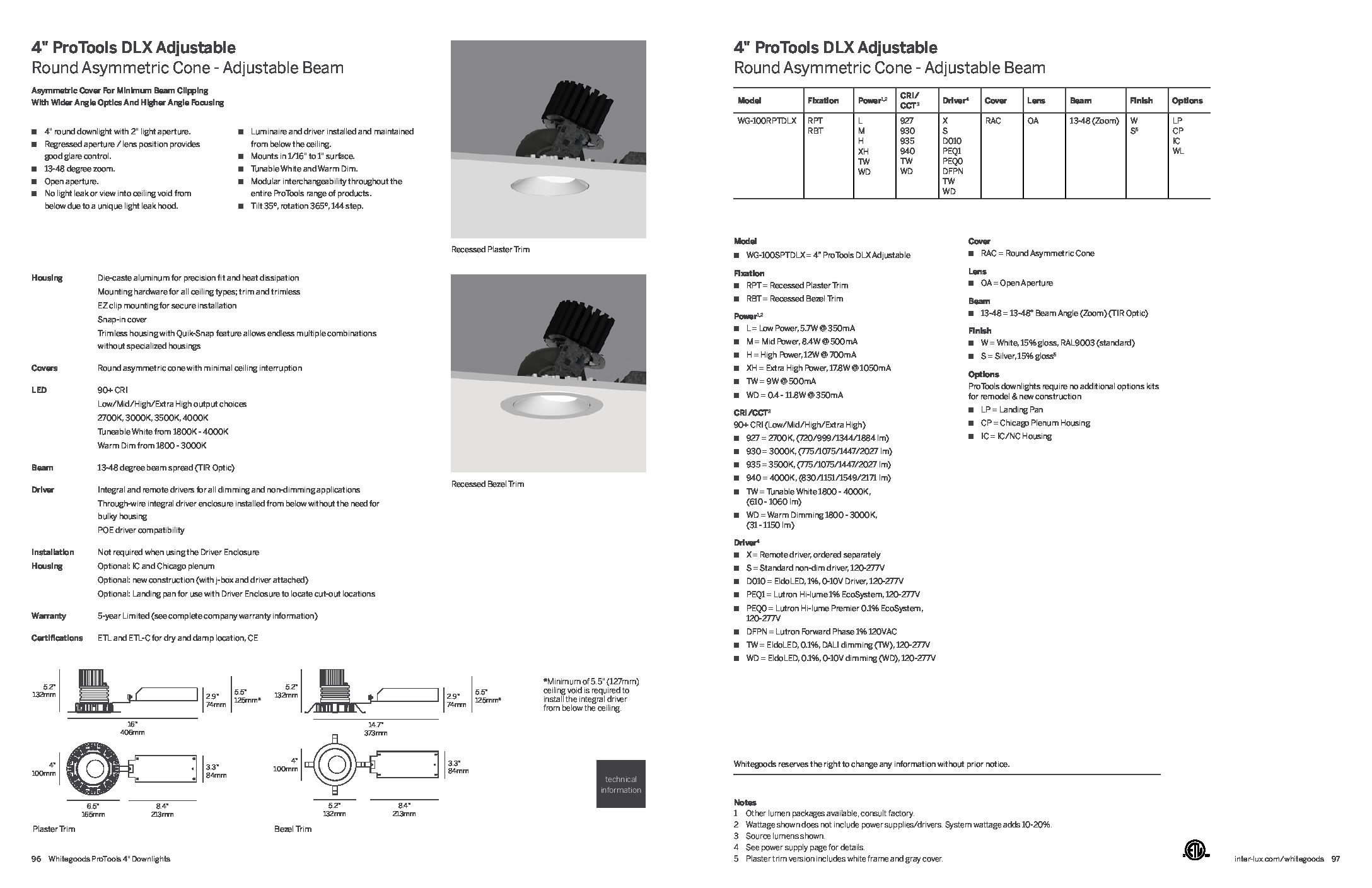

4" ProTools DLX AdjustableSquare Asymmetric Cone – Adjustable Beam

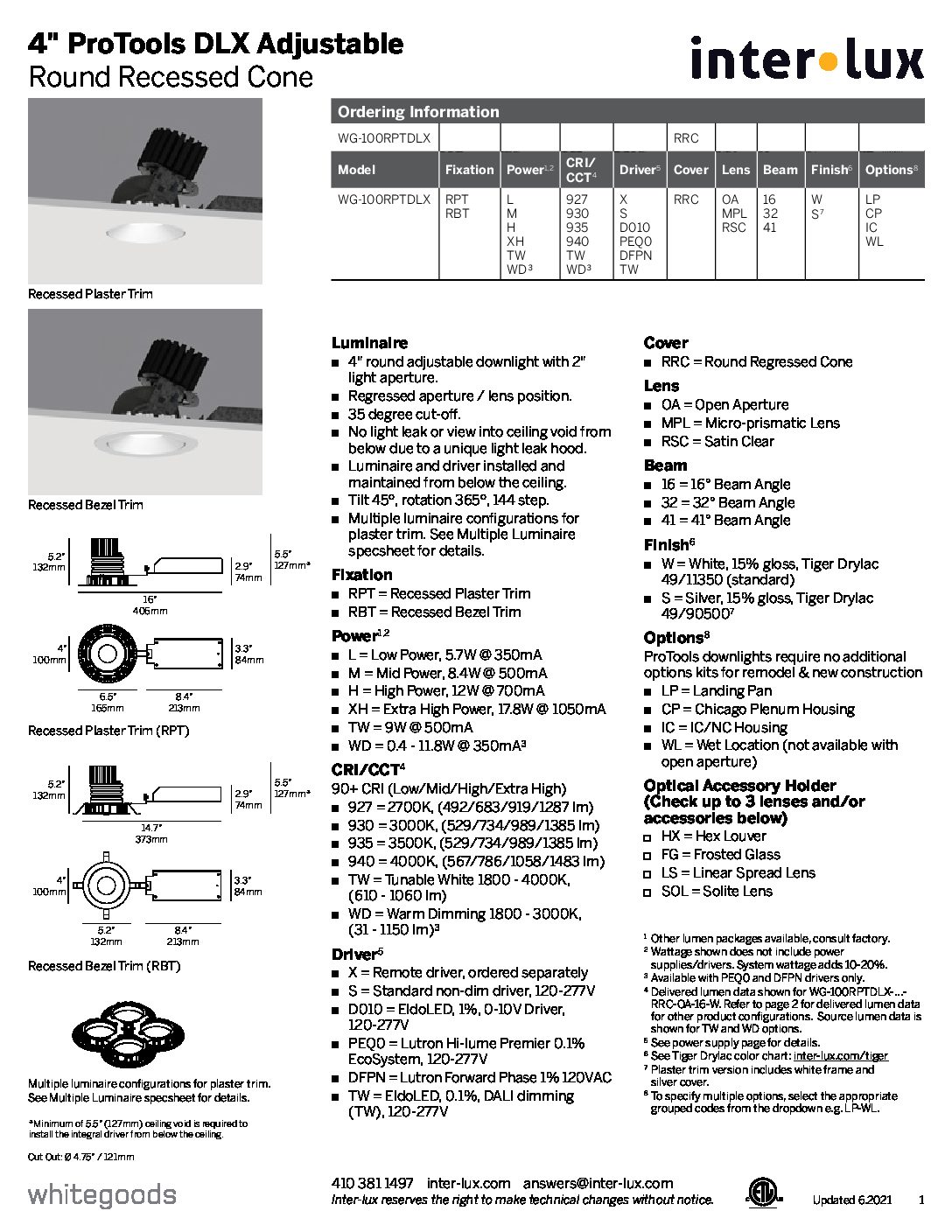

4″ ProTools DLX Adjustable Round Recessed Cone
Full Featured With Accessory Holder And Ceiling Void Light Leak Hood
- 4″ round downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- Beam Angle: Various, Cut Off: 25°.
- Open aperture, clear lens or optical accessory lenses.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 45º, rotation 365º, 144 step.
- Wet Location option as standard (WL).
- Available 2700 to 4000 K (720 to 2171 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Round Recessed Cone Catalog Page
- 4“ ProTools DLX Adjustable Round Recessed Cone Specsheet
Application Guides
Installation Instructions
- ProTools DLX Round Bezel Instructions
- ProTools DLX Round Plaster Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites

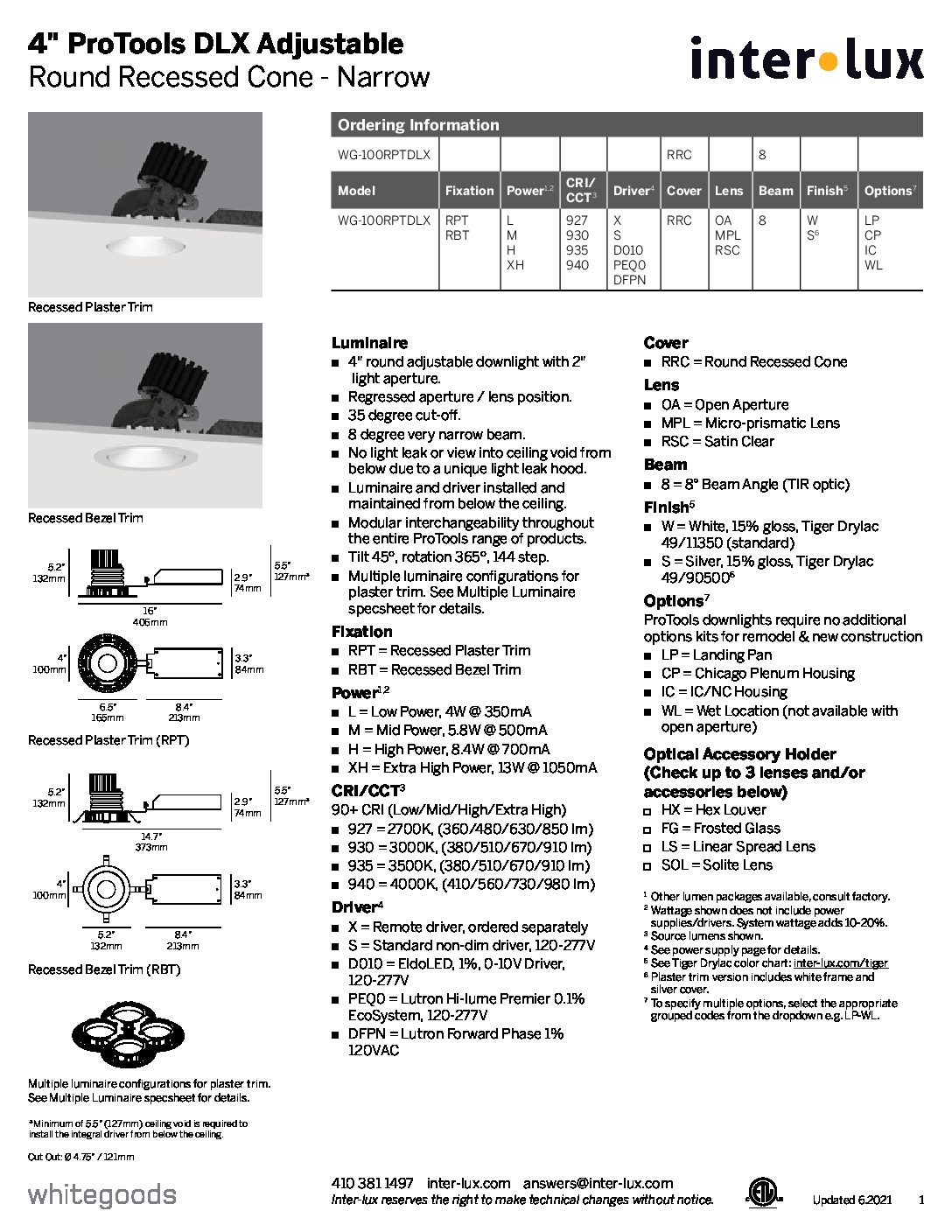

4″ ProTools DLX Adjustable Round Recessed Cone – Narrow
Full Featured With Accessory Holder And Ceiling Void Light Leak Hood
- 4″ round downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- 8 degree very narrow beam.
- Open aperture, clear lens or optical accessory lenses.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 45º, rotation 365º, 144 step.
- Wet Location option as standard (WL).
- Available 2700 to 4000 K (720 to 2171 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Round Recessed Cone – Narrow Specsheet
- 4“ ProTools DLX Adjustable Round Recessed Cone – Narrow Catalog Page
Application Guides
Installation Instructions
- ProTools DLX Round Plaster Instructions
- ProTools DLX Round Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites

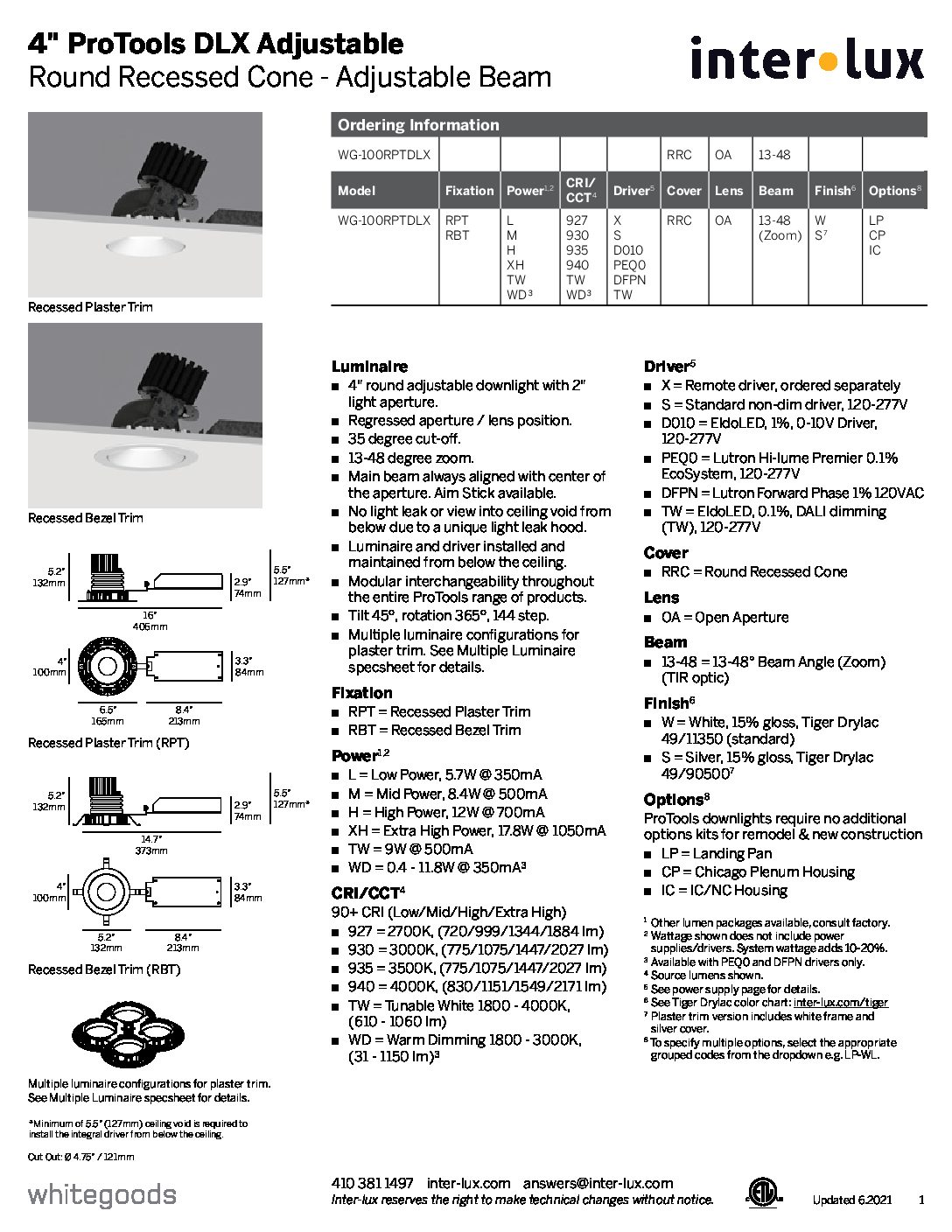

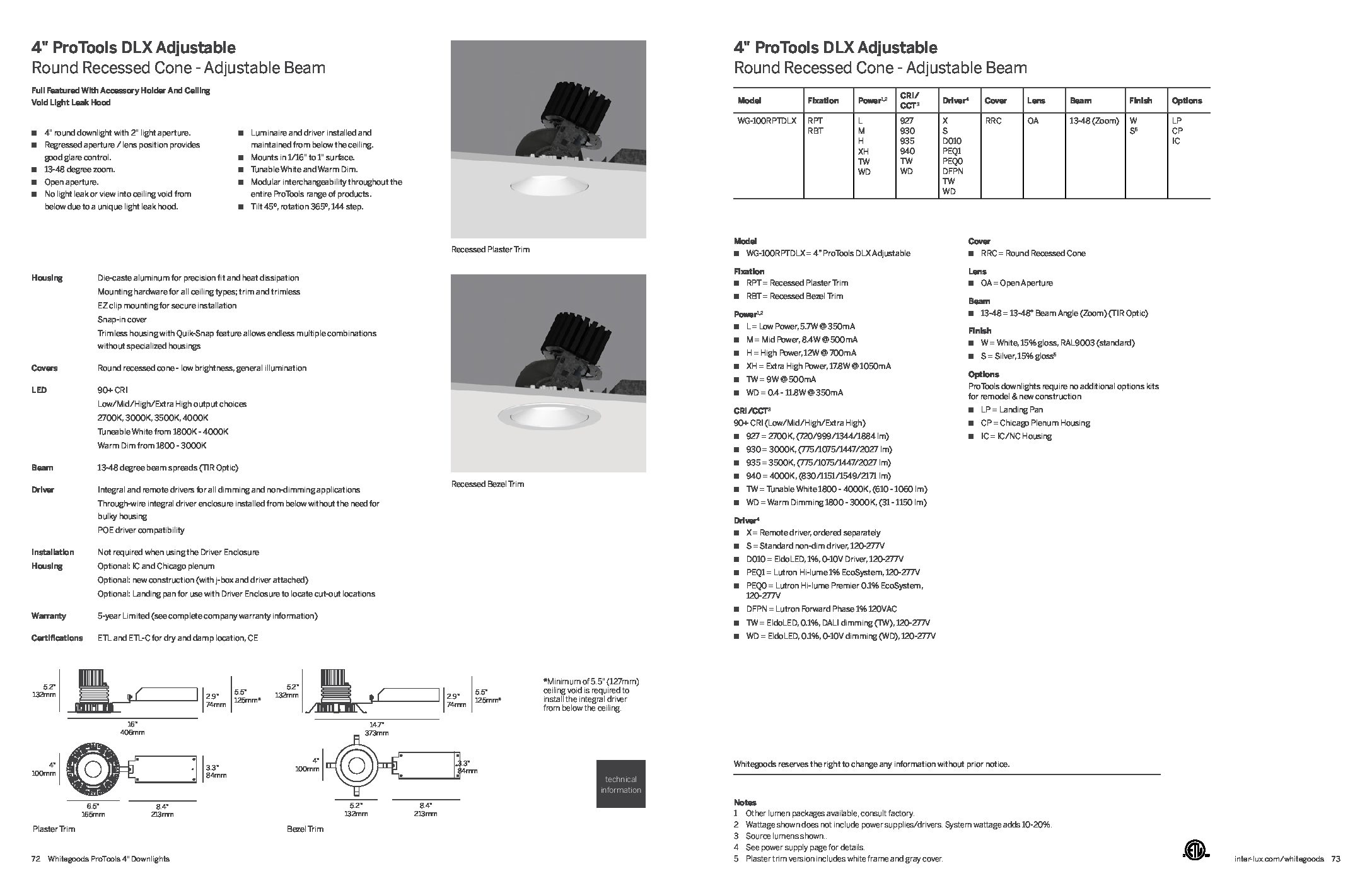

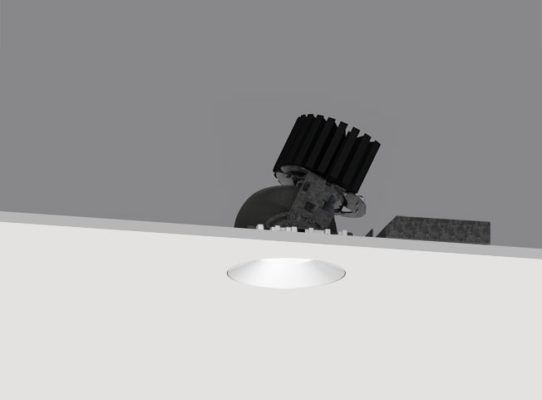

4″ ProTools DLX Adjustable Round Recessed Cone – Adjustable Beam
Full Featured With Accessory Holder And Ceiling Void Light Leak Hood
- 4″ round downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- 13-48 degree zoom.
- Open aperture.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 45º, rotation 365º, 144 step.
- Available 2700 to 4000 K (720 to 2171 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Round Recessed Cone – Adjustable Beam Specsheet
- 4“ ProTools DLX Adjustable Round Recessed Cone – Adjustable Beam Catalog Page
Application Guides
Installation Instructions
- ProTools DLX Round Bezel Instructions
- ProTools DLX Round Plaster Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites

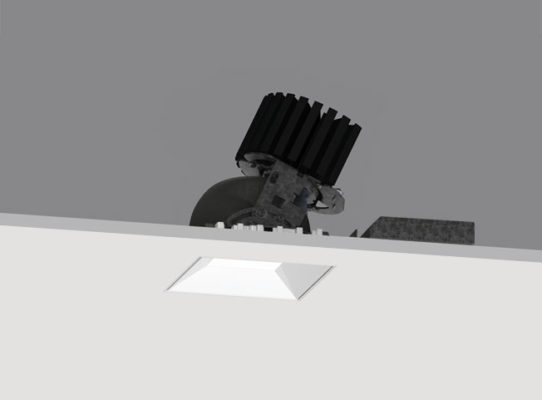

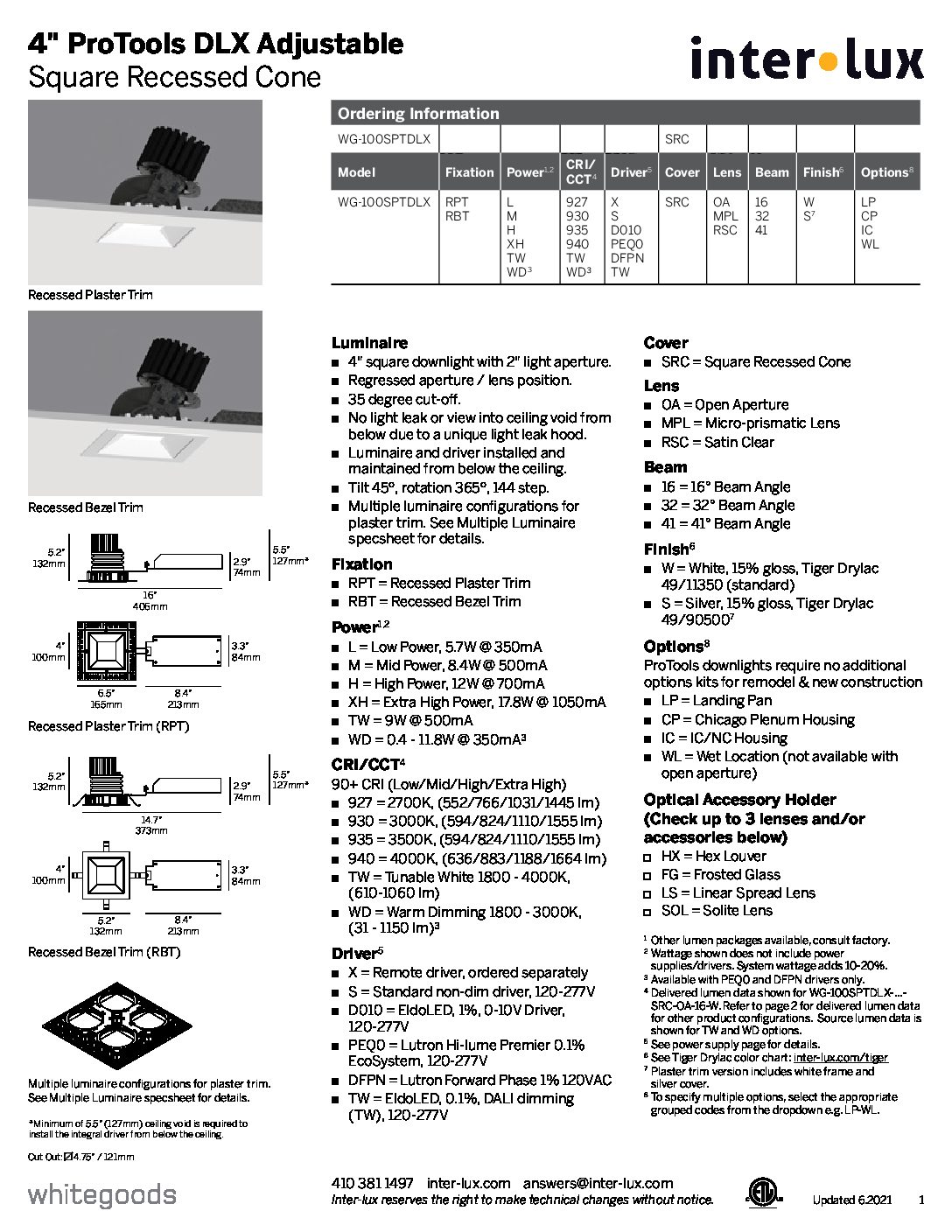

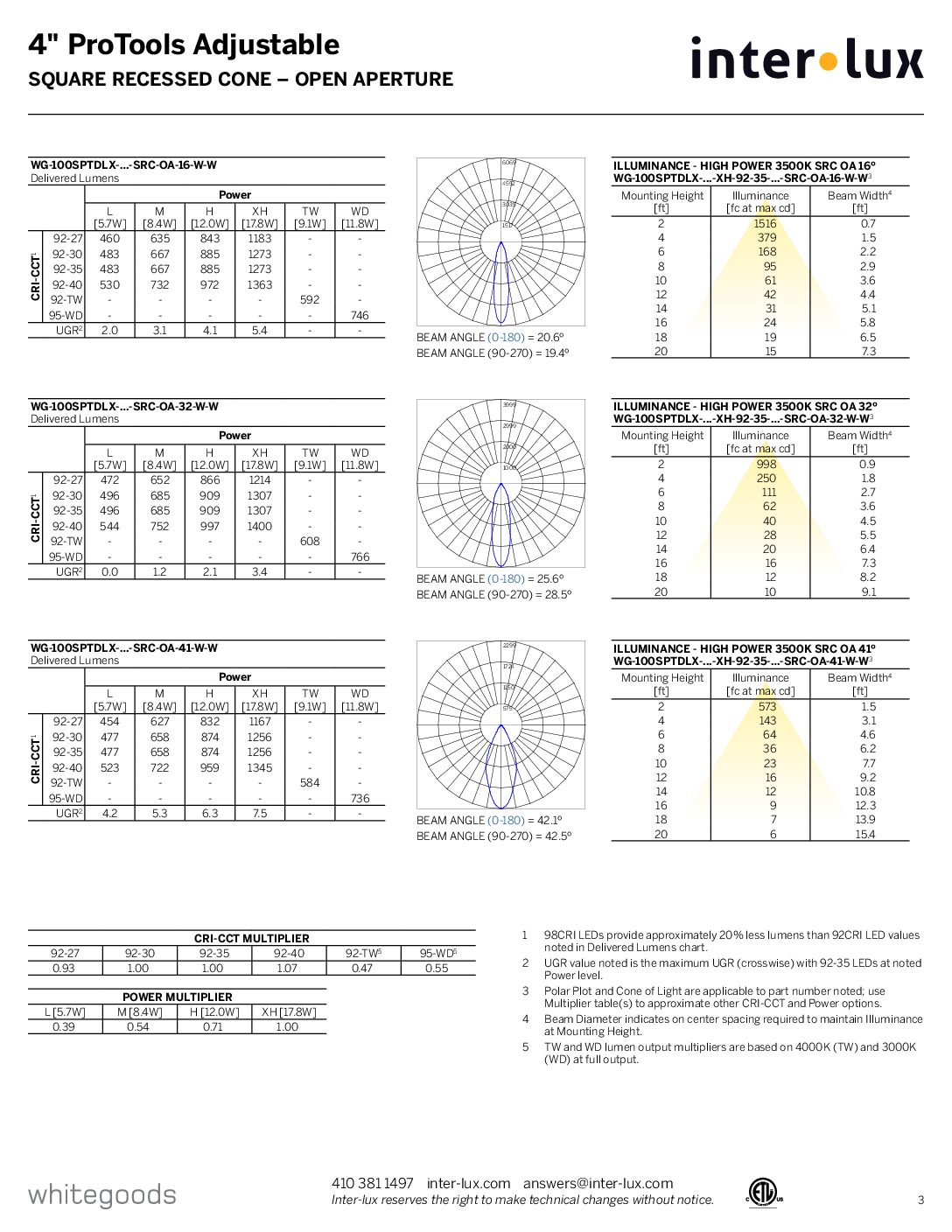

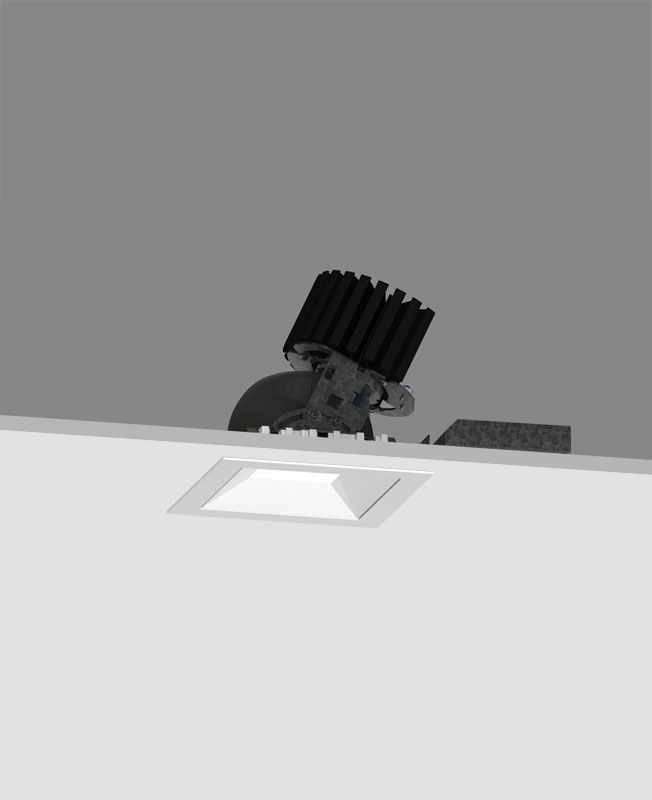

4″ ProTools DLX Adjustable Square Recessed Cone
Full Featured With Accessory Holder And Ceiling Void Light Leak Hood
- 4″ square downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- Beam Angle: Various, Cut Off: 35°.
- Open aperture, clear lens or optical accessory lenses.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 45º, rotation 365º, 144 step.
- Wet Location option as standard (WL).
- Available 2700 to 4000 K (720 to 2171 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Square Recessed Cone Specsheet
- 4“ ProTools DLX Adjustable Square Recessed Cone Catalog Page
Application Guides
Installation Instructions

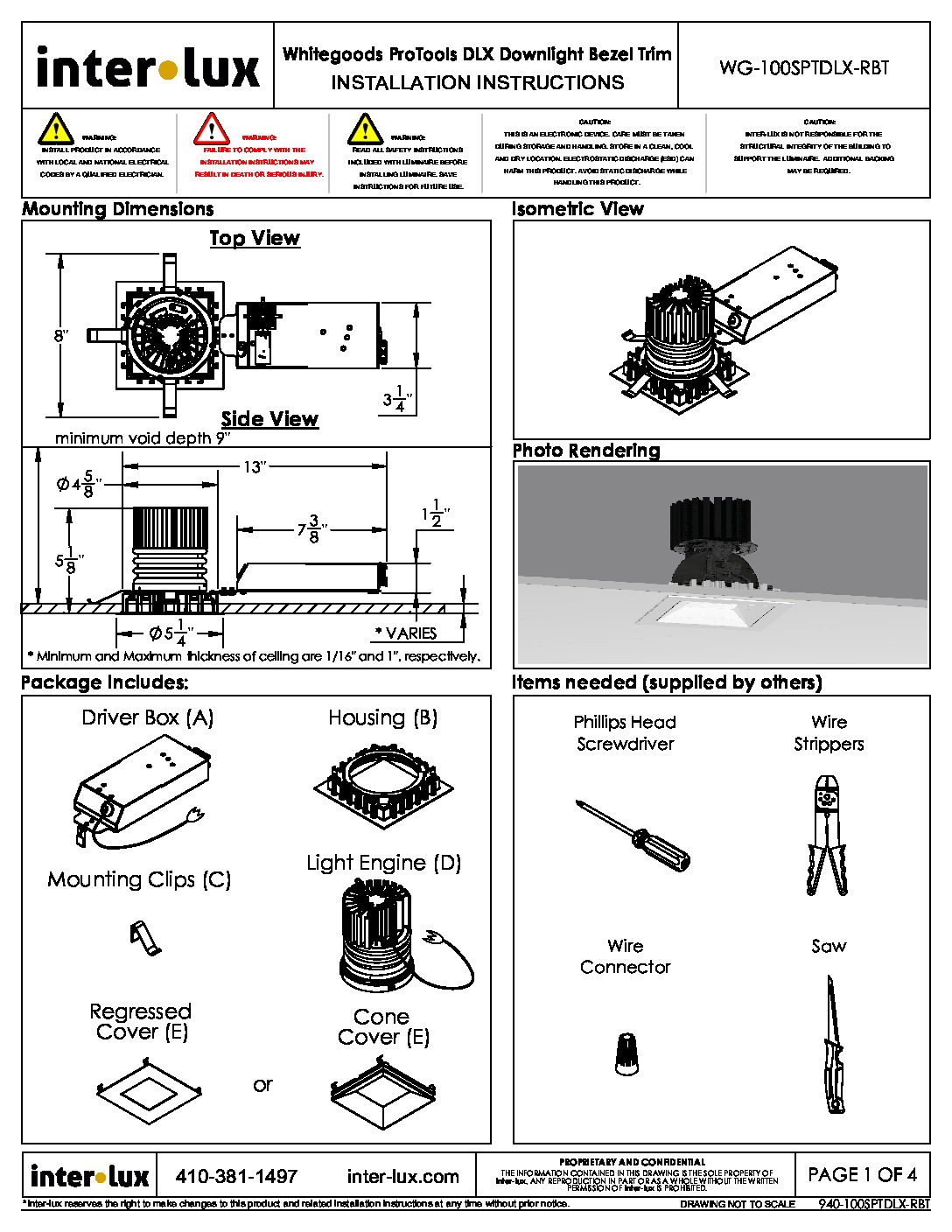

- ProTools DLX Square Bezel Instructions

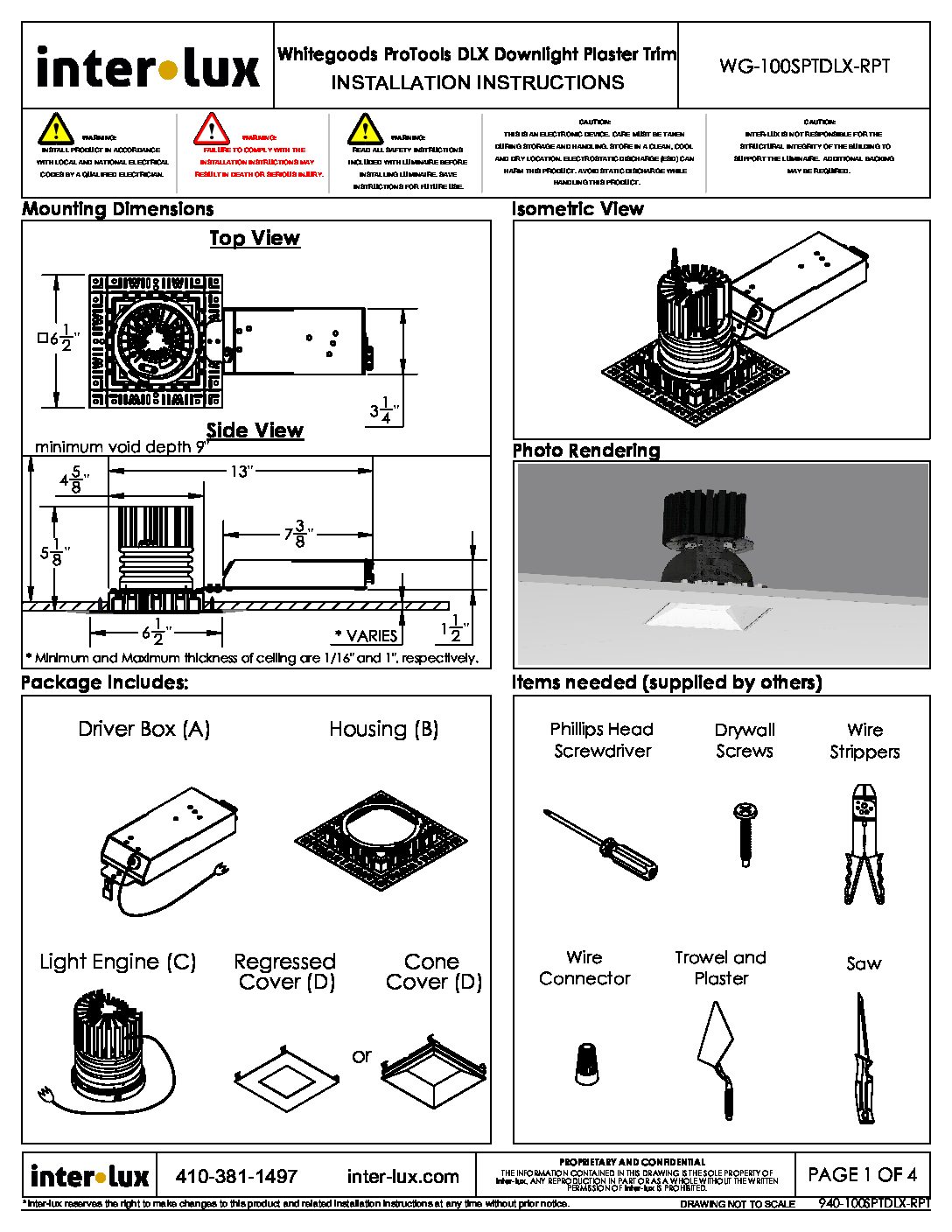

- ProTools DLX Square Plaster Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites

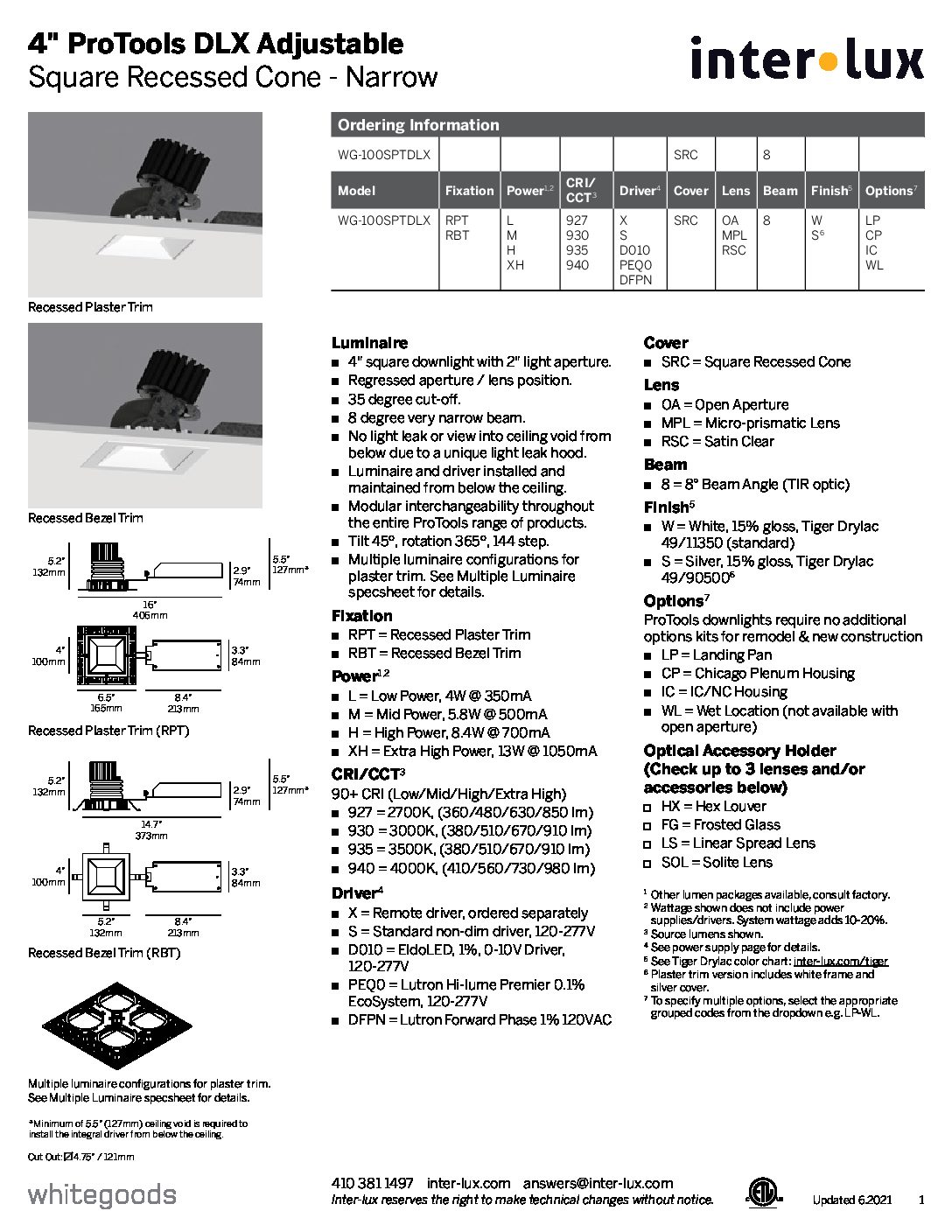

4″ ProTools DLX Adjustable Square Recessed Cone – Narrow
Full Featured With Accessory Holder And Ceiling Void Light Leak Hood
- 4″ square downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- 8 degree very narrow beam..
- Open aperture, clear lens or optical accessory lenses.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 45º, rotation 365º, 144 step.
- Wet Location option as standard (WL).
- Available 2700 to 4000 K (360 to 980 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Square Recessed Cone – Narrow Specsheet
- 4“ ProTools DLX Adjustable Square Recessed Cone – Narrow Catalog Page
Application Guides
Installation Instructions
- ProTools DLX Square Bezel Instructions
- ProTools DLX Square Plaster Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites

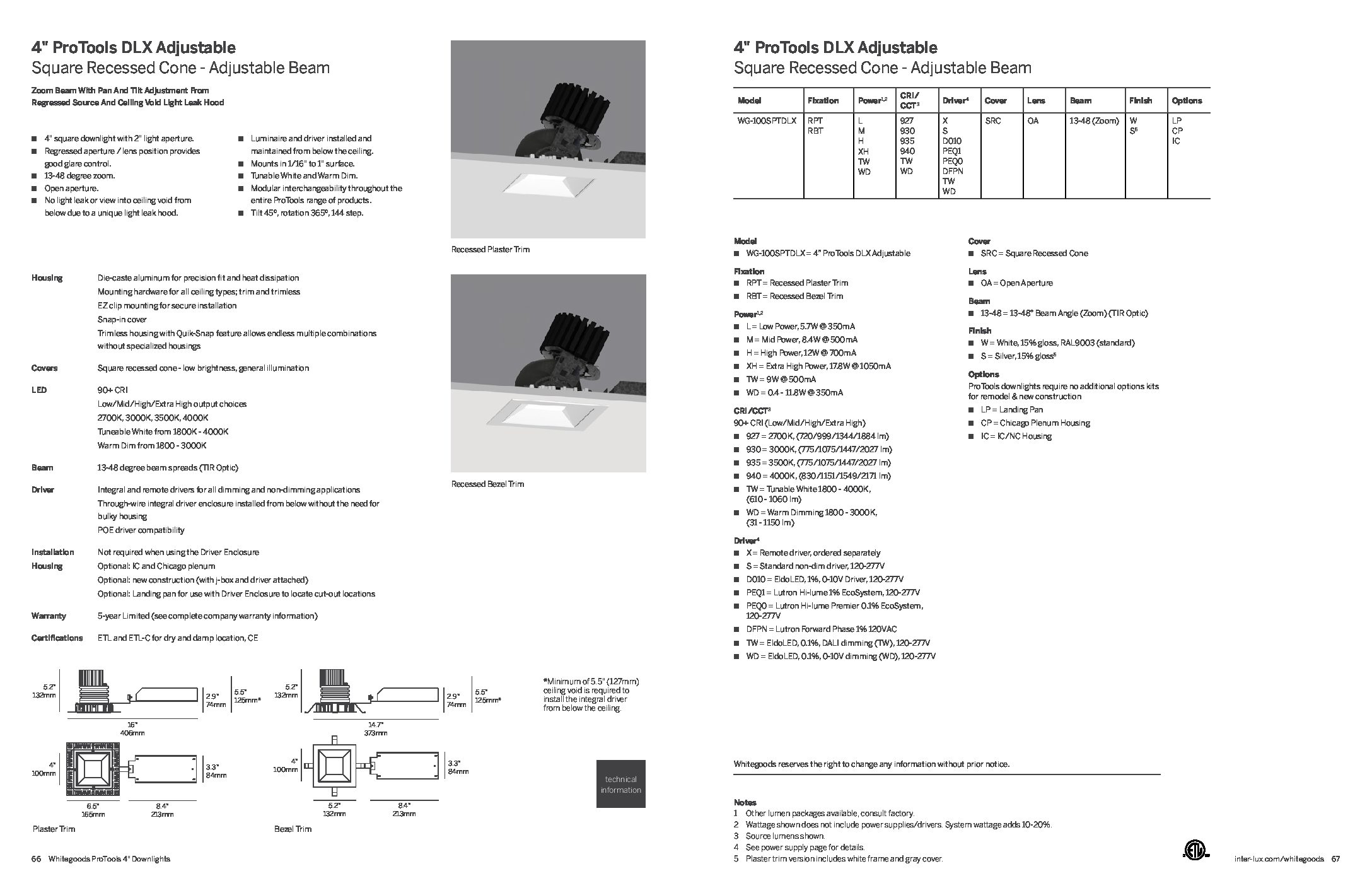

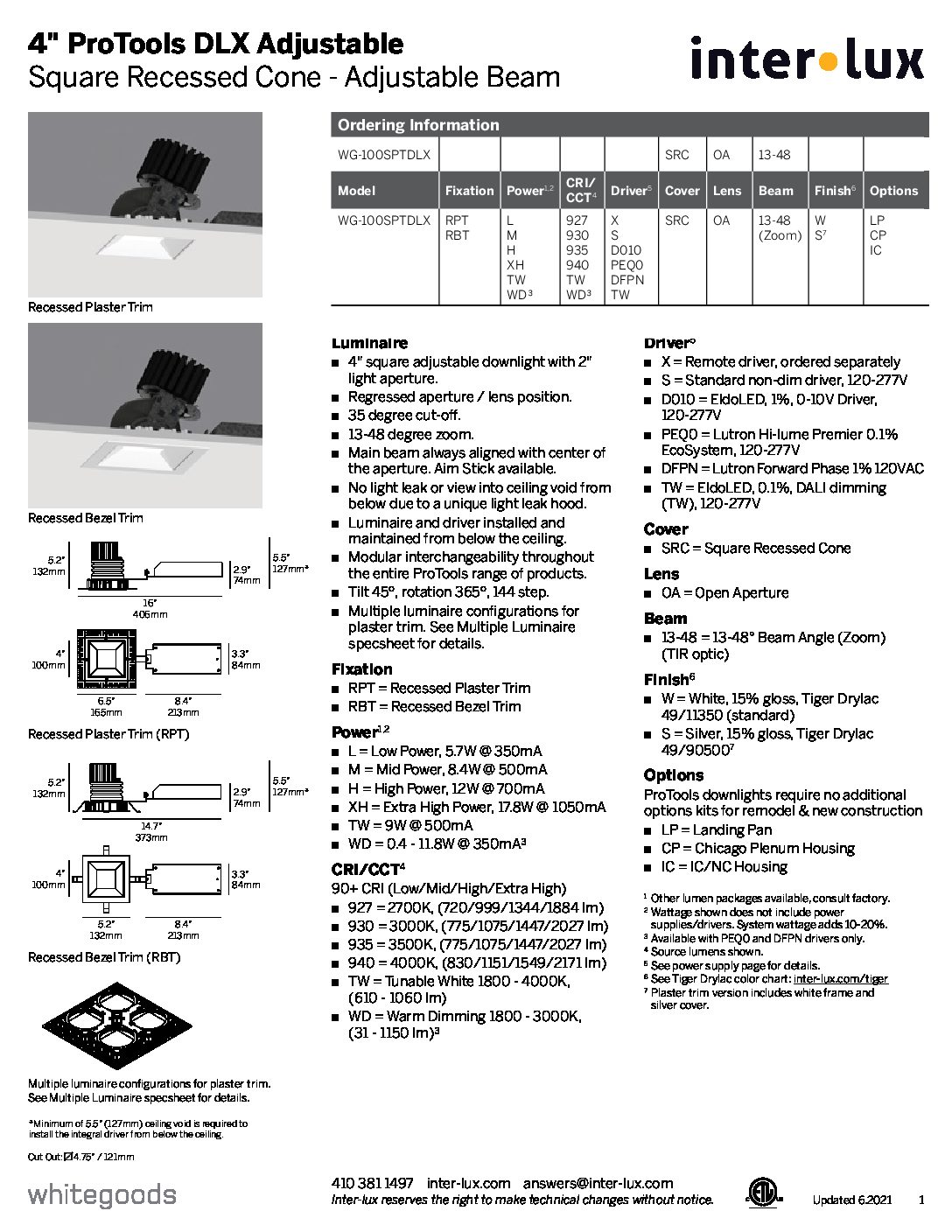

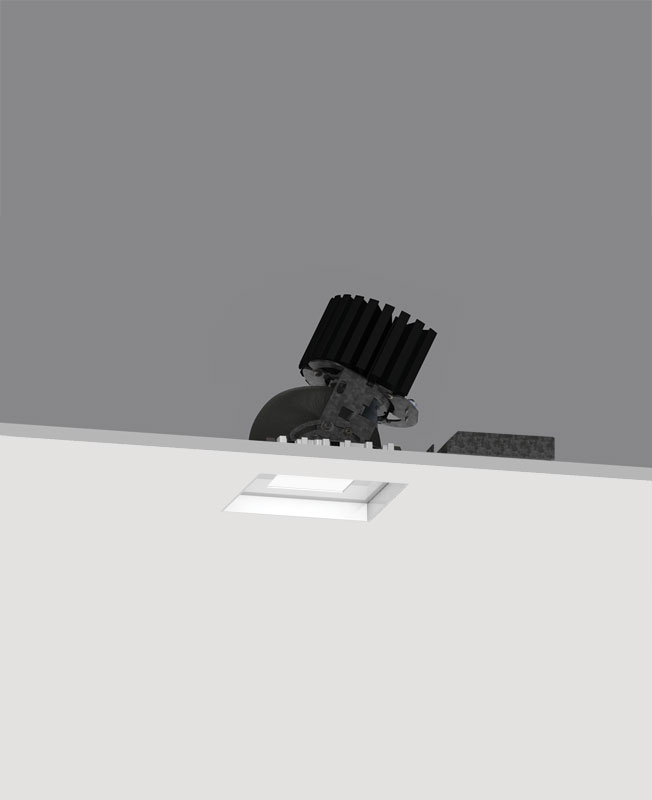

4″ ProTools DLX Adjustable Square Recessed Cone – Adjustable Beam
Zoom Beam With Pan And Tilt Adjustment From Regressed Source And Ceiling Void Light Leak Hood
- 4″ square downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- 13-48 degree zoom.
- Open aperture.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 45º, rotation 365º, 144 step.
- Available 2700 to 4000 K (360 to 980 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Square Recessed Cone – Adjustable Beam Specsheet
- 4“ ProTools DLX Adjustable Square Recessed Cone – Adjustable Beam Catalog Page
Application Guides
Installation Instructions
- ProTools DLX Square Plaster Instructions
- ProTools DLX Square Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites

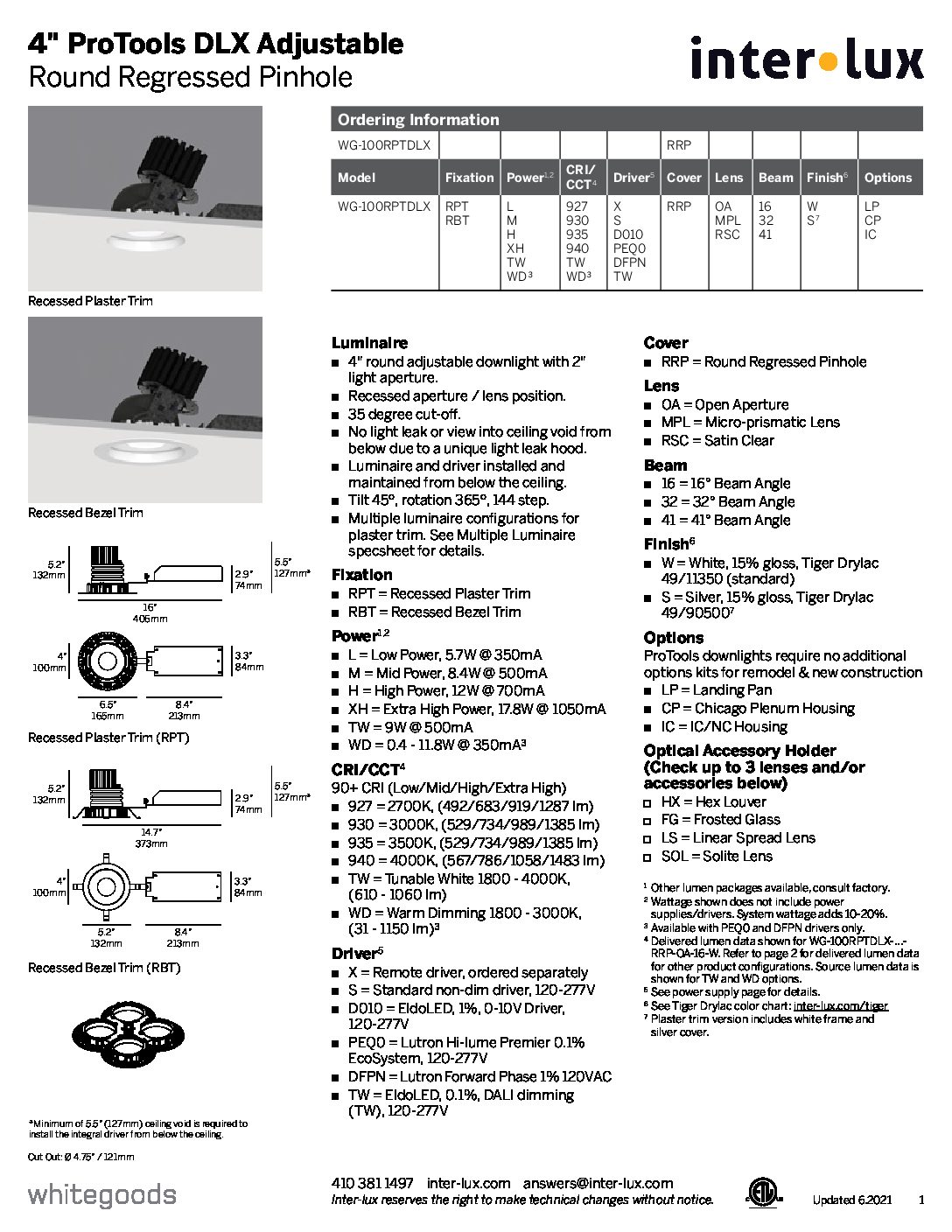

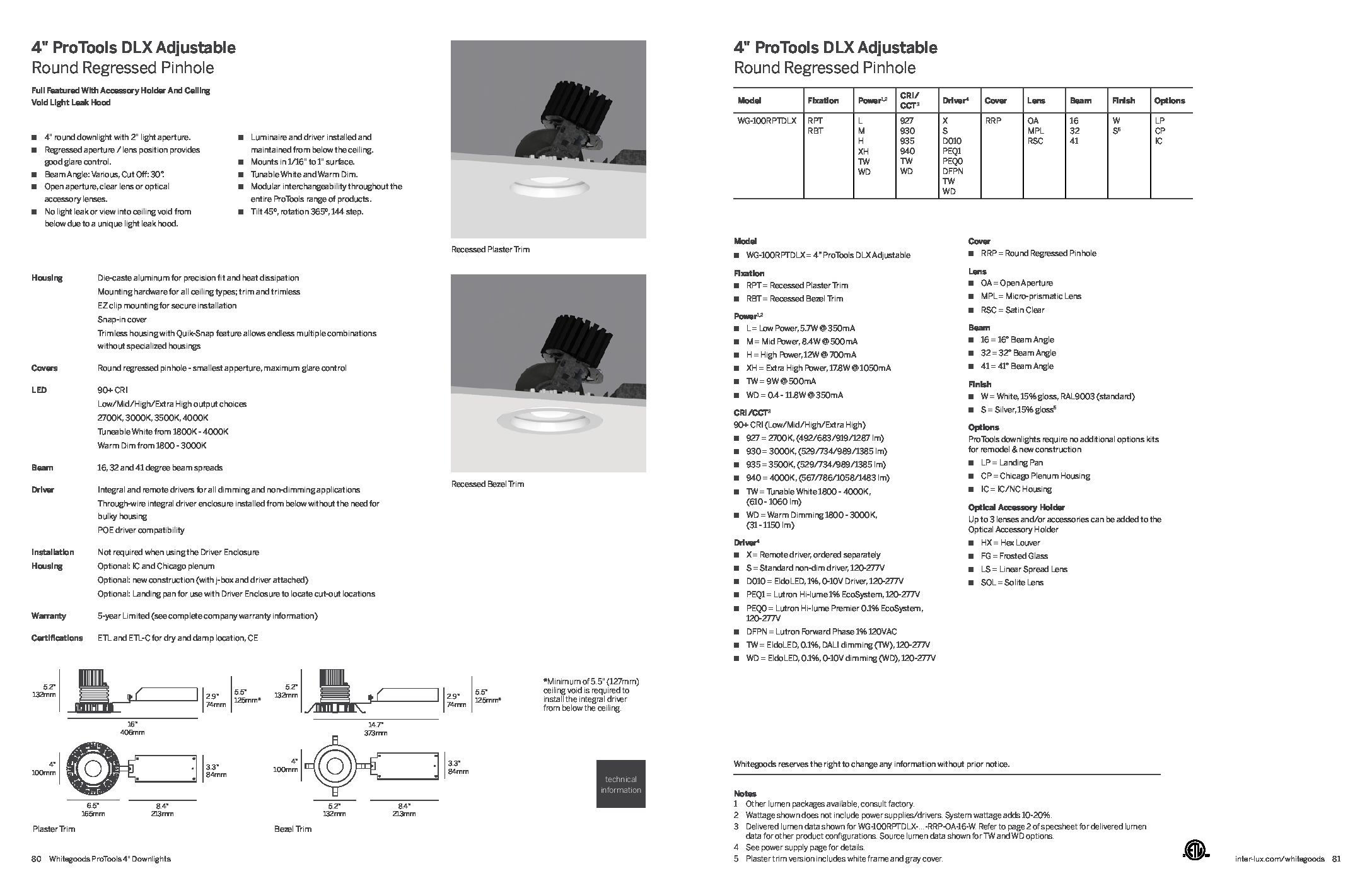

4″ ProTools DLX Adjustable Round Regressed Pinhole
Full Featured With Accessory Holder And Ceiling Void Light Leak Hood
- 4″ round downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- Beam Angle: Various, Cut Off: 30°.
- Open aperture, clear lens or optical accessory lenses.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 45º, rotation 365º, 144 step.
- Available 2700 to 4000 K (720 to 2171 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Round Regressed Pinhole Specsheet
- 4“ ProTools DLX Adjustable Round Regressed Pinhole Catalog Page
Application Guides
Installation Instructions
- ProTools DLX Round Plaster Instructions
- ProTools DLX Round Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools DLX Adjustable Round Regressed Pinhole – Narrow
Full Featured With Accessory Holder And Ceiling Void Light Leak Hood
- 4″ round downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- 8 degree very narrow beam.
- Open aperture, clear lens or optical accessory lenses.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 45º, rotation 365º, 144 step.
- Available 2700 to 4000 K (360 to 980 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Round Regressed Pinhole – Narrow Specsheet
- 4“ ProTools DLX Adjustable Round Regressed Pinhole – Narrow Catalog
- Chicago Plenum Ins. Integral
Application Guides
Installation Instructions
- ProTools DLX Round Plaster Instructions
- ProTools DLX Round Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
Downloads
Add To My Favorites

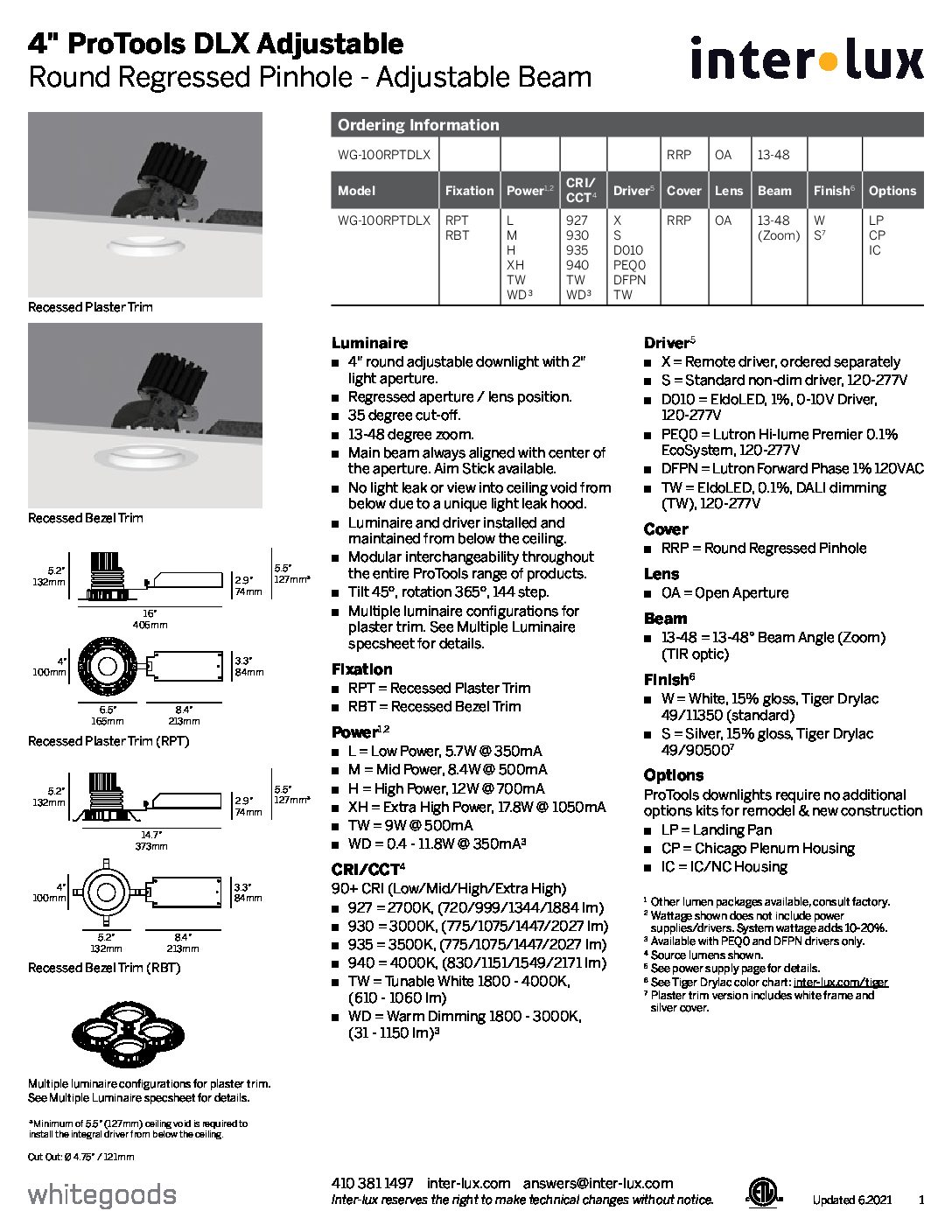

4″ ProTools DLX Adjustable Round Regressed Pinhole – Adjustable Beam
Full Featured With Accessory Holder And Ceiling Void Light Leak Hood
- 4″ round downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- 13-48 degree zoom.
- Open aperture.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 45º, rotation 365º, 144 step.
- Available 2700 to 4000 K (360 to 980 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Round Regressed Pinhole – Adjustable Beam Specsheet
- 4“ ProTools DLX Adjustable Round Regressed Pinhole – Adjustable Beam Catalog Page
- Chicago Plenum Ins. Integral
Application Guides
Installation Instructions
- ProTools DLX Round Bezel Instructions
- ProTools DLX Round Plaster Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
Downloads
Add To My Favorites

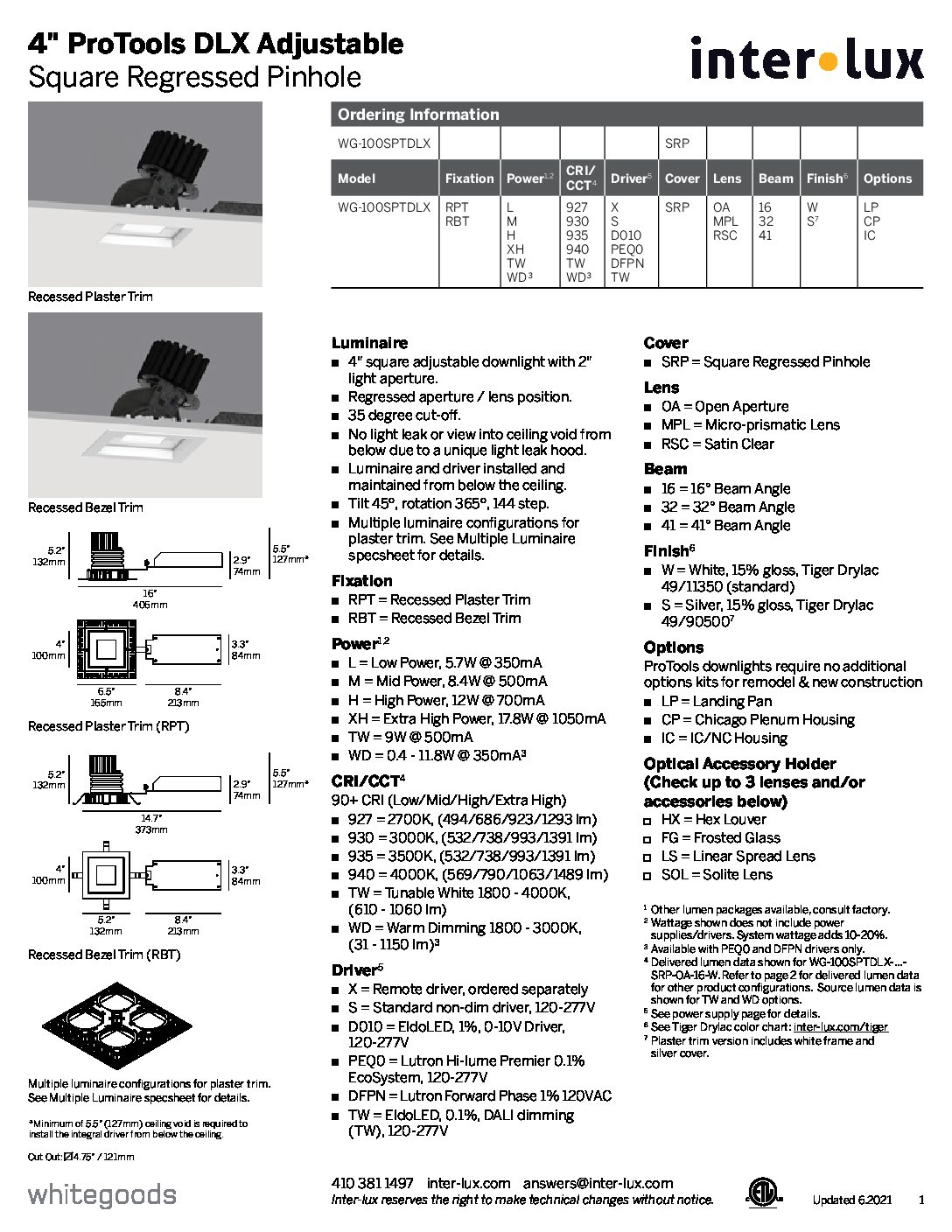

4″ ProTools DLX Adjustable Square Regressed Pinhole
Full Featured With Accessory Holder And Ceiling Void Light Leak Hood
- 4″ square downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- Beam Angle: Various, Cut Off: 35°.
- Open aperture, clear lens or optical accessory lenses.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 45º, rotation 365º, 144 step.
- Available 2700 to 4000 K (720 to 2171 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Square Regressed Pinhole Specsheet
- 4“ ProTools DLX Adjustable Square Regressed Pinhole Catalog Page
Application Guides
Installation Instructions
- ProTools DLX Square Plaster Instructions
- ProTools DLX Square Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools DLX Adjustable Square Regressed Pinhole – Narrow
Full Featured With Accessory Holder And Ceiling Void Light Leak Hood
- 4″ square downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- 8 degree very narrow beam.
- Open aperture, clear lens or optical accessory lenses.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 45º, rotation 365º, 144 step.
- Available 2700 to 4000 K (360 to 980 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Square Regressed Pinhole – Narrow Specsheet
- 4“ ProTools DLX Adjustable Square Regressed Pinhole – Narrow Catalog Page
Application Guides
Installation Instructions
- ProTools DLX Square Plaster Instructions
- ProTools DLX Square Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools DLX Adjustable Square Regressed Pinhole – Adjustable Beam
Zoom Beam With Pan And Tilt Adjustment From Regressed Source And Ceiling Void Light Leak Hood
- 4″ square downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- 13-48 degree zoom.
- Open aperture.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 45º, rotation 365º, 144 step.
- Available 2700 to 4000 K (360 to 980 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Square Regressed Pinhole – Adjustable Beam Specsheet
- 4“ ProTools DLX Adjustable Square Regressed Pinhole – Adjustable Beam Catalog Page
Application Guides
Installation Instructions
- ProTools DLX Square Plaster Instructions
- ProTools DLX Square Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools DLX Adjustable Round Asymmetric Cone
Asymmetric Cover For Minimum Beam Clipping With Wider Angle Optics And Higher Angle Focusing
- 4″ round downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- Beam Angle: Various
- Open aperture, clear lens or optical accessory lenses.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 35º, Rotation 365º, 144 step.
- Wet Location option as standard (WL).
- Available 2700 to 4000 K (720 to 2171 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Round Asymmetric Cone Specsheet
- 4“ ProTools DLX Adjustable Round Asymmetric Cone Catalog Page
Application Guides
Installation Instructions
- ProTools DLX Round Plaster Instructions
- ProTools DLX Round Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools DLX Adjustable Round Asymmetric Cone – Narrow
Asymmetric Cover For Minimum Beam Clipping With Wider Angle Optics And Higher Angle Focusing
- 4″ round downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- 8 degree very narrow beam.
- Open aperture, clear lens or optical accessory lenses.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 35º, rotation 365º, 144 step.
- Wet Location option as standard (WL).
- Available 2700 to 4000 K (360 to 980 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Round Asymmetric Cone – Narrow Specsheet
- 4“ ProTools DLX Adjustable Round Asymmetric Cone – Narrow Catalog
Application Guides
Installation Instructions
- ProTools DLX Round Plaster Instructions
- ProTools DLX Round Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools DLX Adjustable Round Asymmetric Cone – Adjustable Beam
Asymmetric Cover For Minimum Beam Clipping With Wider Angle Optics And Higher Angle Focusing
- 4″ round downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- 13-48 degree zoom.
- Open aperture.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 35º, rotation 365º, 144 step.
- Available 2700 to 4000 K (360 to 980 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Round Asymmetric Cone – Adjustable Beam Specsheet
- 4“ ProTools DLX Adjustable Round Asymmetric Cone – Adjustable Beam Catalog Page
Application Guides
Installation Instructions
- ProTools DLX Round Plaster Instructions
- ProTools DLX Round Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools DLX Adjustable Square Asymmetric Cone
Asymmetric Cover For Minimum Beam Clipping With Wider Angle Optics And Higher Angle Focusing
- 4″ square downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- Beam Angle: Various
- Open aperture, clear lens or optical accessory lenses.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 35º, rotation 365º, 144 step.
- Wet Location option as standard (WL).
- Available 2700 to 4000 K (720 to 2171 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Square Asymmetric Cone Specsheet
- 4“ ProTools DLX Adjustable Square Asymmetric Cone Catalog Page
Application Guides
Installation Instructions
- ProTools DLX Square Plaster Instructions
- ProTools DLX Square Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools DLX Adjustable Square Asymmetric Cone – Narrow
Asymmetric Cover For Minimum Beam Clipping With Wider Angle Optics And Higher Angle Focusing
- 4″ square downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- 8 degree very narrow beam.
- Open aperture, clear lens or optical accessory lenses.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 35º, rotation 365º, 144 step.
- Wet Location option as standard (WL).
- Available 2700 to 4000 K (360 to 980 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Square Asymmetric Cone – Narrow Specsheet
- 4“ ProTools DLX Adjustable Square Asymmetric Cone – Narrow Catalog Page
Application Guides
Installation Instructions
- ProTools DLX Square Plaster Instructions
- ProTools DLX Square Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools DLX Adjustable Square Asymmetric Cone – Adjustable Beam
Asymmetric Cover For Minimum Beam Clipping With Wider Angle Optics And Higher Angle Focusing
- 4″ square downlight with 2″ light aperture.
- Regressed aperture / lens position provides good glare control.
- 13-48 degree zoom.
- Open aperture.
- No light leak or view into ceiling void from below due to a unique light leak hood.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 35º, rotation 365º, 144 step.
- Available 2700 to 4000 K (360 to 980 lm)
Downloads
Specsheets
- 4“ ProTools DLX Adjustable Square Asymmetric Cone – Adjustable Beam Specsheet
- 4“ ProTools DLX Adjustable Square Asymmetric Cone – Adjustable Beam Catalog Page
Application Guides
Installation Instructions
- ProTools DLX Square Plaster Instructions
- ProTools DLX Square Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
