InstructionsArchiline is a family of high-output, low glare linear LED in-grade and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (15 μm), Black finish
Trim: Frameless, ideal for continuous runs. Extra clear glass – Tempered
Mounting/Housing: Anodized Black (15 μm) Aluminum 6060 housing (required for in ground installations).
Drive-over: Up to 11,023 lbs.

Driver: Integral, 120-277V Dimmable 0-10V or Non-Dim.
Wattages/Sizes: 14.5W (12.6″) – 22W (20.1″) – 44W (39.4″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed or Adjustable. Available in Narrow Spot – Spot – Flood – Wide Flood – Elliptic, Asymmetric Wall Washer. Most Fixed variants are also available with Dark Light (Anti-glare) system.
Color temperatures: 2700K – 3000K – 3500K – 4000K.

Quickship Housings Available: add QS in front of part number

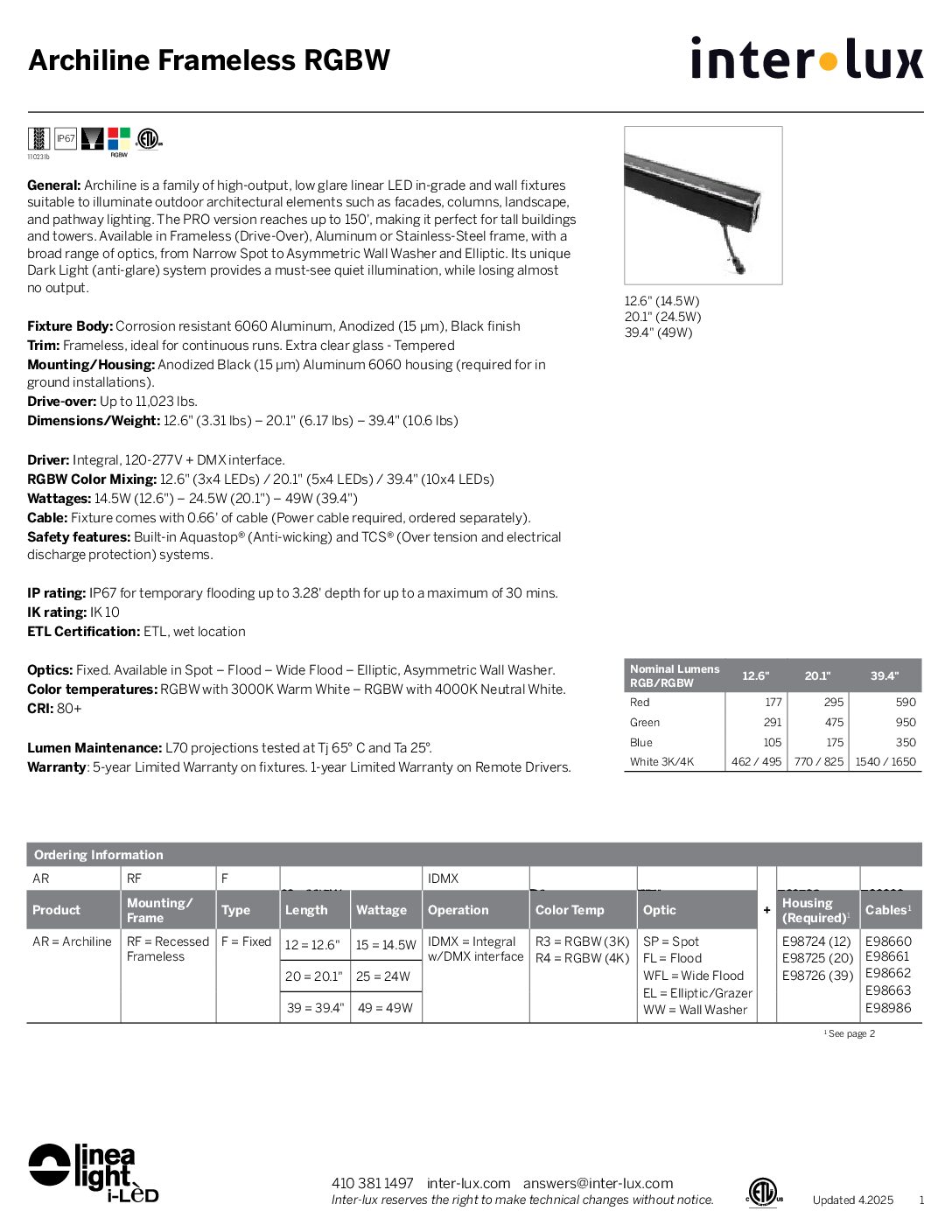

Archiline is a family of high-output, low glare linear LED in-grade and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (15 μm), Black finish
Trim: Frameless, ideal for continuous runs. Extra clear glass – Tempered
Mounting/Housing: Anodized Black (15 μm) Aluminum 6060 housing (required for in ground installations).
Drive-over: Up to 11,023 lbs.

Driver: Integral, 120-277V + DMX interface.
Wattages/Sizes: 14.5W (12.6″) – 24.5W (20.1″) – 49W (39.4″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed. Available in Spot – Flood – Wide Flood – Elliptic, Asymmetric Wall Washer.
Color temperatures: RGBW with 3000K Warm White – RGBW with 4000K Neutral White.

Quickship Housings Available: add QS in front of part number

Archiline is a family of high-output, low glare linear LED in-grade and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. The PRO version reaches up to 150′, making it perfect for tall buildings and towers.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (15 μm), Black finish
Trim: Frameless, ideal for continuous runs. Anti-slip, Tempered Glass.
Mounting/Housing: Anodized Black (15 μm) Aluminum 6060 housing (required for in ground installations).
Drive-over: Up to 11,023 lbs.

Driver: Integral, 120-277V Dimmable 0-10V or Non-Dim.
Wattages/Sizes: 5W (12.6″) – 8.6W (20.1″) – 14.3W (39.4″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed Frosted.
Color temperatures: 2700K – 3000K – 3500K – 4000K.
Quickship Housings Available: add QS in front of part number

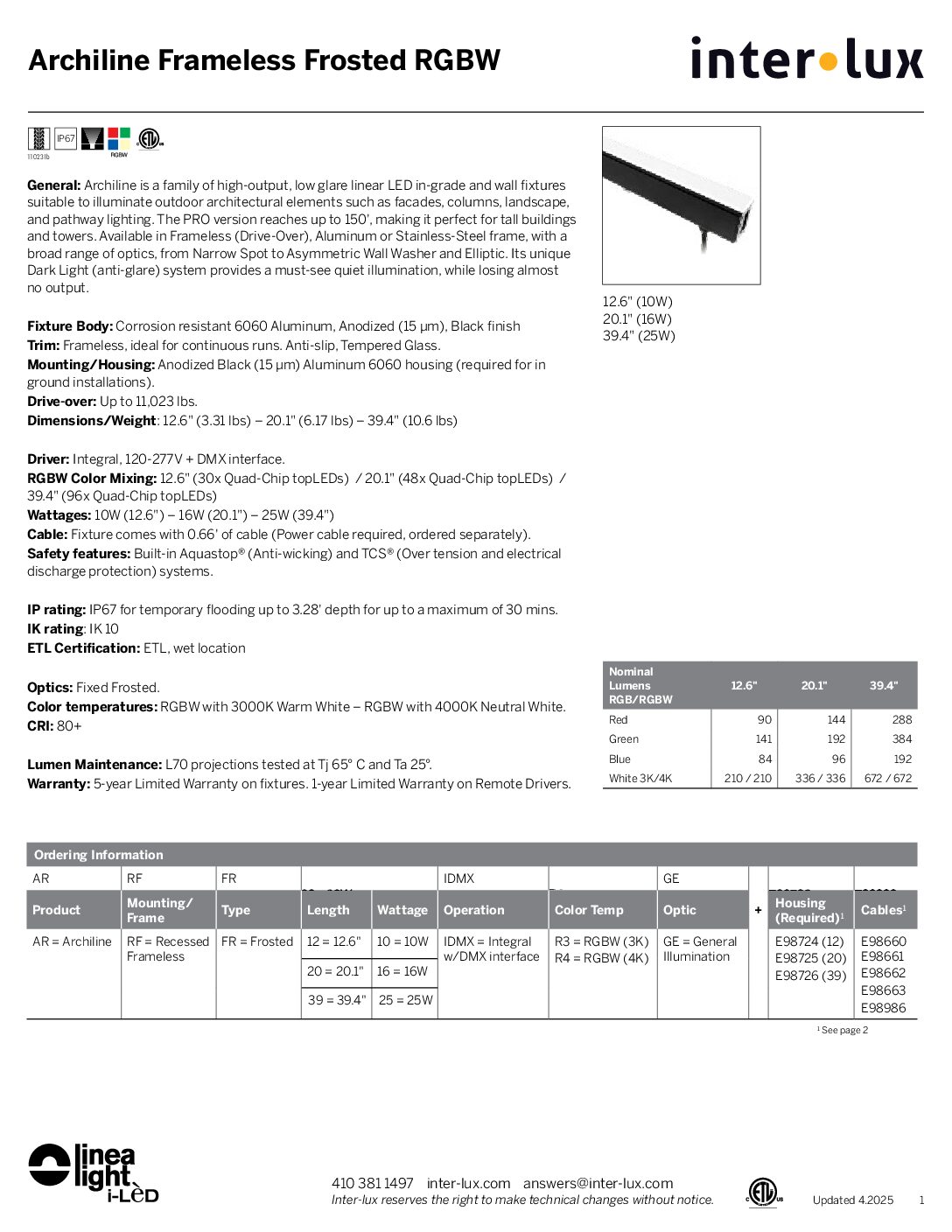

Archiline is a family of high-output, low glare linear LED in-grade and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (15 μm), Black finish
Trim: Frameless, ideal for continuous runs. Anti-slip, Tempered Glass.
Mounting/Housing: Anodized Black (15 μm) Aluminum 6060 housing (required for in ground installations).
Drive-over: Up to 11,023 lbs.

Driver: Integral, 120-277V + DMX interface.
Wattages/Sizes: 10W (12.6″) – 16W (20.1″) – 25W (39.4″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed Frosted.
Color temperatures: RGBW with 3000K Warm White – RGBW with 4000K Neutral White.

Quickship Housings Available: add QS in front of part number

Archiline is a family of high-output, low glare linear LED in-grade and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm), Aluminum finish
Trim: 6060 Anodized Aluminum. Extra clear glass – Tempered
Mounting/Housing: Galvanized Steel (required for in ground installations).
Drive-over: Walk-Over only.

Driver: Integral, 120-277V Dimmable 0-10V or Non-Dim.
Wattages/Sizes: 14.5W (14.6″) – 22W (22.1″) – 44W (41.4″) – 65W (60.7″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed. Available in Narrow Spot – Spot – Flood – Wide Flood – Elliptic, Asymmetric Wall Washer. Most variants are also available with Dark Light (Anti-glare) system.
Color temperatures: 2700K – 3000K – 3500K – 4000K.

Quickship Housings Available: add QS in front of part number

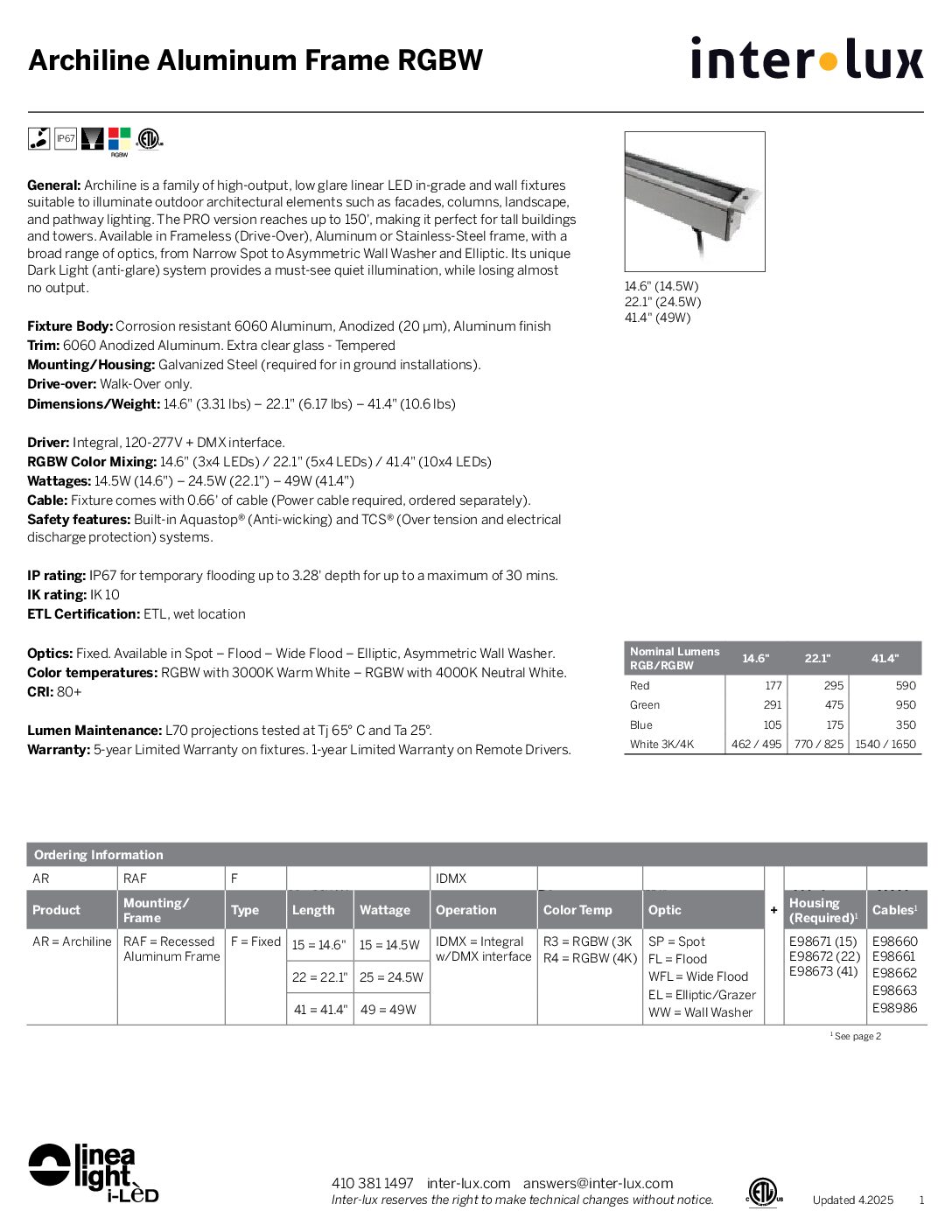

Archiline is a family of high-output, low glare linear LED in-grade and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm), Aluminum finish
Trim: 6060 Anodized Aluminum. Extra clear glass – Tempered
Mounting/Housing: Galvanized Steel (required for in ground installations).
Drive-over: Walk-Over only.

Driver: Integral, 120-277V + DMX interface.
Wattages/Sizes: 14.5W (14.6”) – 24.5W (22.1”) – 49W (41.4”)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP67 for temporary flooding up to 3.28’ depth for up to a maximum of 30 mins.
ETL Certification: ETL, wet location

Optics: Fixed. Available in Spot – Flood – Wide Flood – Elliptic, Asymmetric Wall Washer.
Color temperatures: RGBW with 3000K Warm White – RGBW with 4000K Neutral White.

Quickship Housings Available: add QS in front of part number

Archiline is a family of high-output, low glare linear LED in-grade and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (15 μm), Black finish
Trim: 316 Marine Grade Stainless Steel, Brushed. Extra clear glass – Tempered
Mounting/Housing: Galvanized Steel (required for in ground installations).
Drive-over: Walk-Over only.

Driver: Integral, 120-277V Dimmable 0-10V or Non-Dim.
Wattages/Size: 15W (14.8″) – 22W (22.2″) – 44W (41.6″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed. Available in Narrow Spot – Spot – Flood – Wide Flood – Elliptic, Asymmetric Wall Washer. Most variants are also available with Dark Light (Anti-glare) system.
Color temperatures: 2700K – 3000K – 3500K – 4000K.

Quickship Housings Available: add QS in front of part number

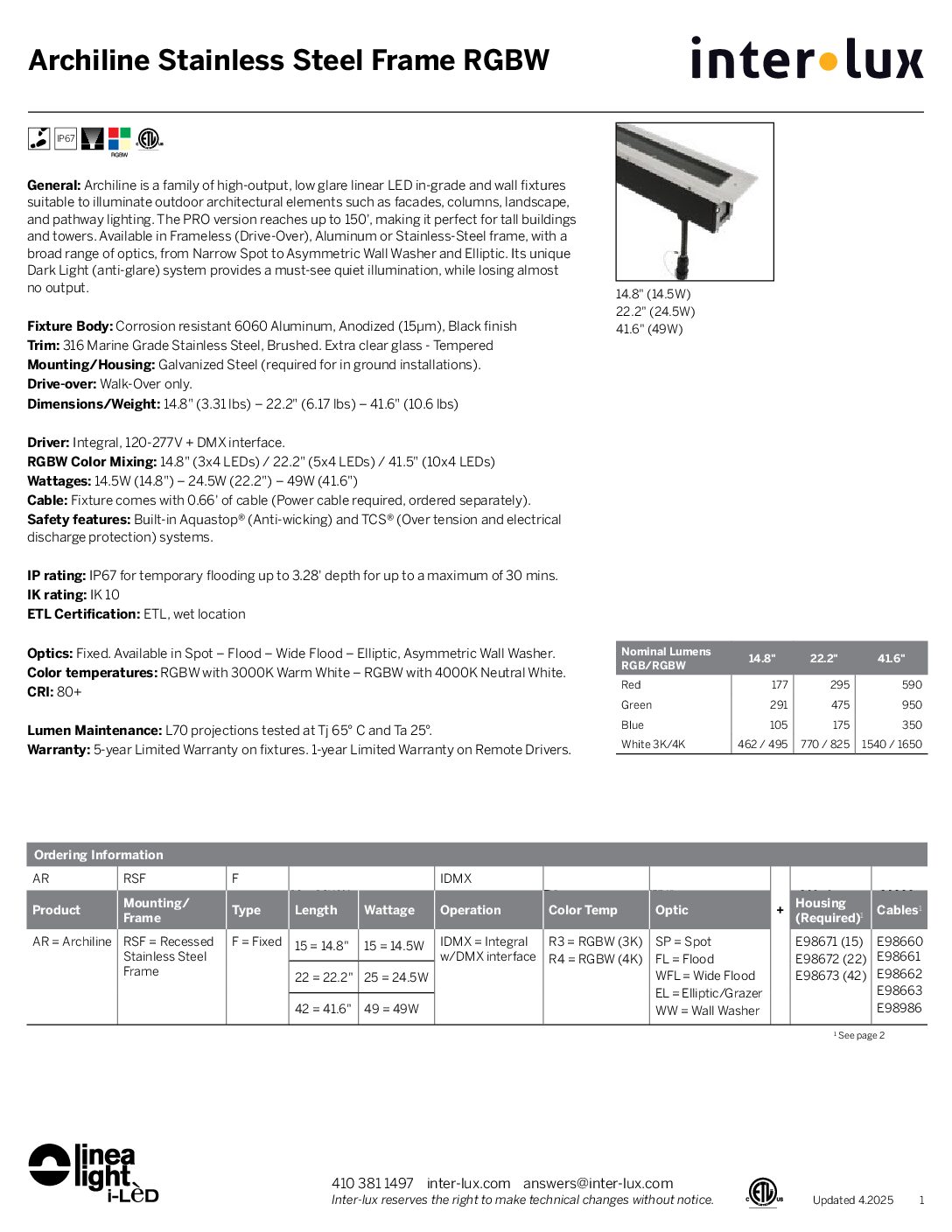

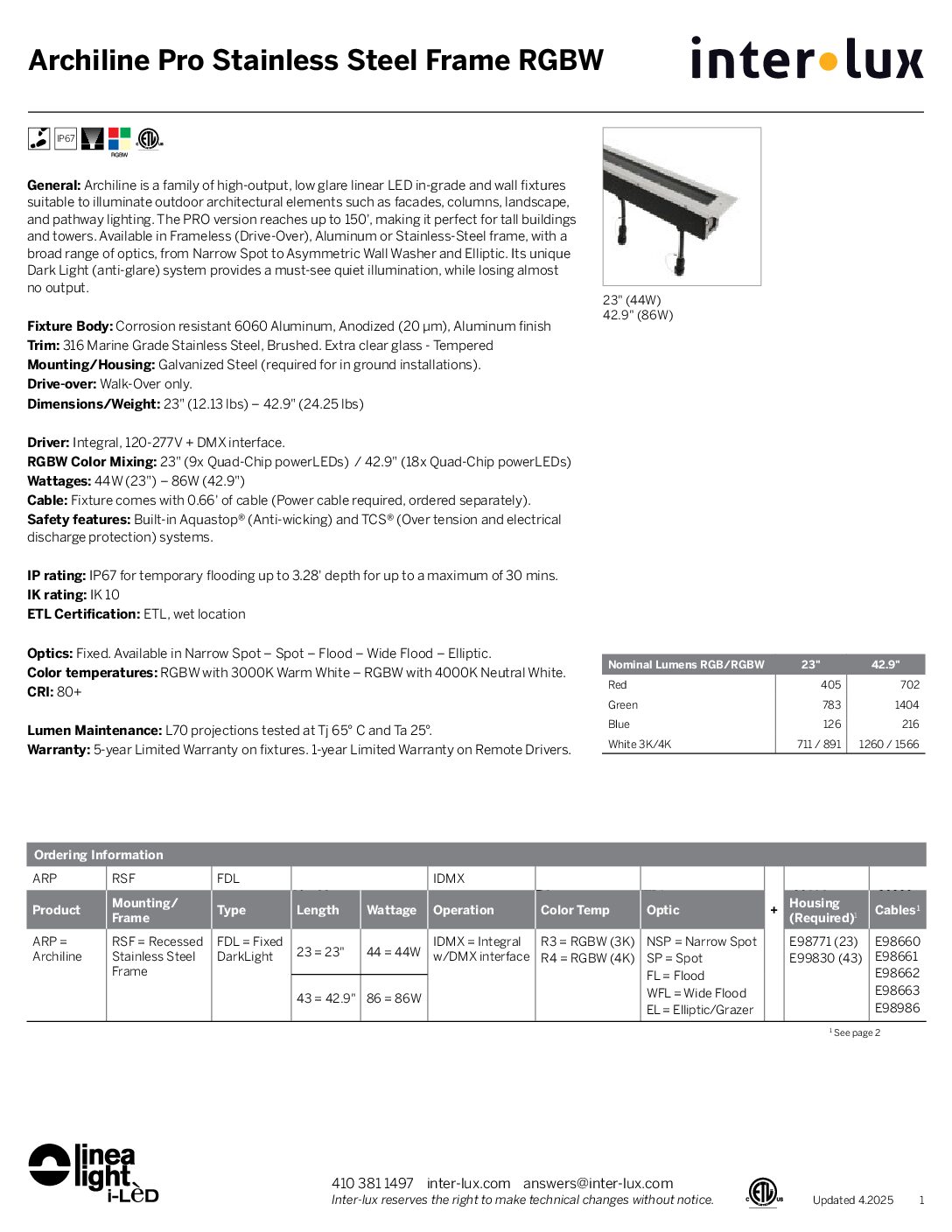

Archiline is a family of high-output, low glare linear LED in-grade and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (15μm), Black finish
Trim: 316 Marine Grade Stainless Steel, Brushed. Extra clear glass – Tempered
Mounting/Housing: Galvanized Steel (required for in ground installations).
Drive-over: Walk-Over only.

Driver: Integral, 120-277V + DMX interface.
Wattages/Sizes: 14.5W (14.8″) – 24.5W (22.2″) – 49W (41.6″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed. Available in Spot – Flood – Wide Flood – Elliptic, Asymmetric Wall Washer.
Color temperatures: RGBW with 3000K Warm White – RGBW with 4000K Neutral White.


Quickship Housings Available: add QS in front of part number
