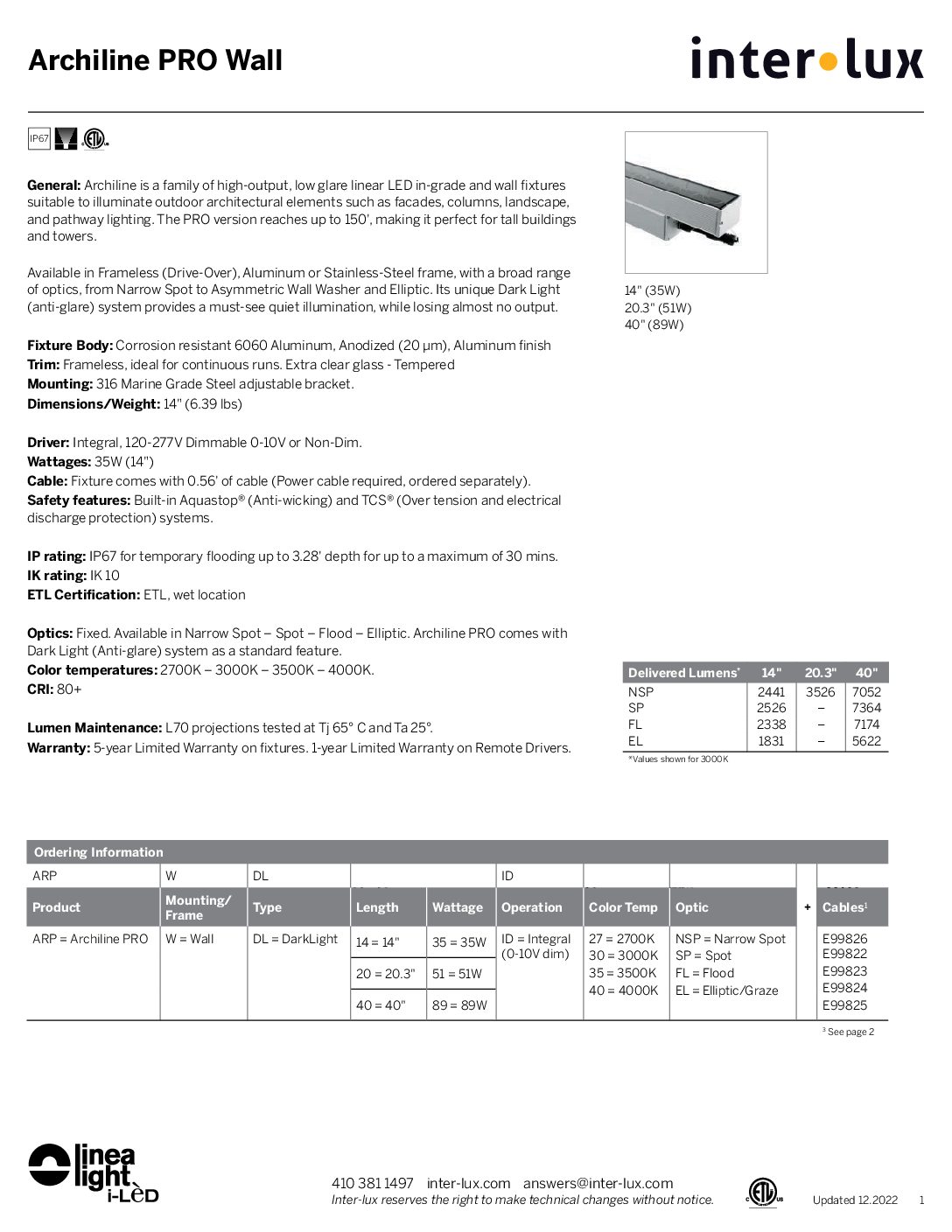

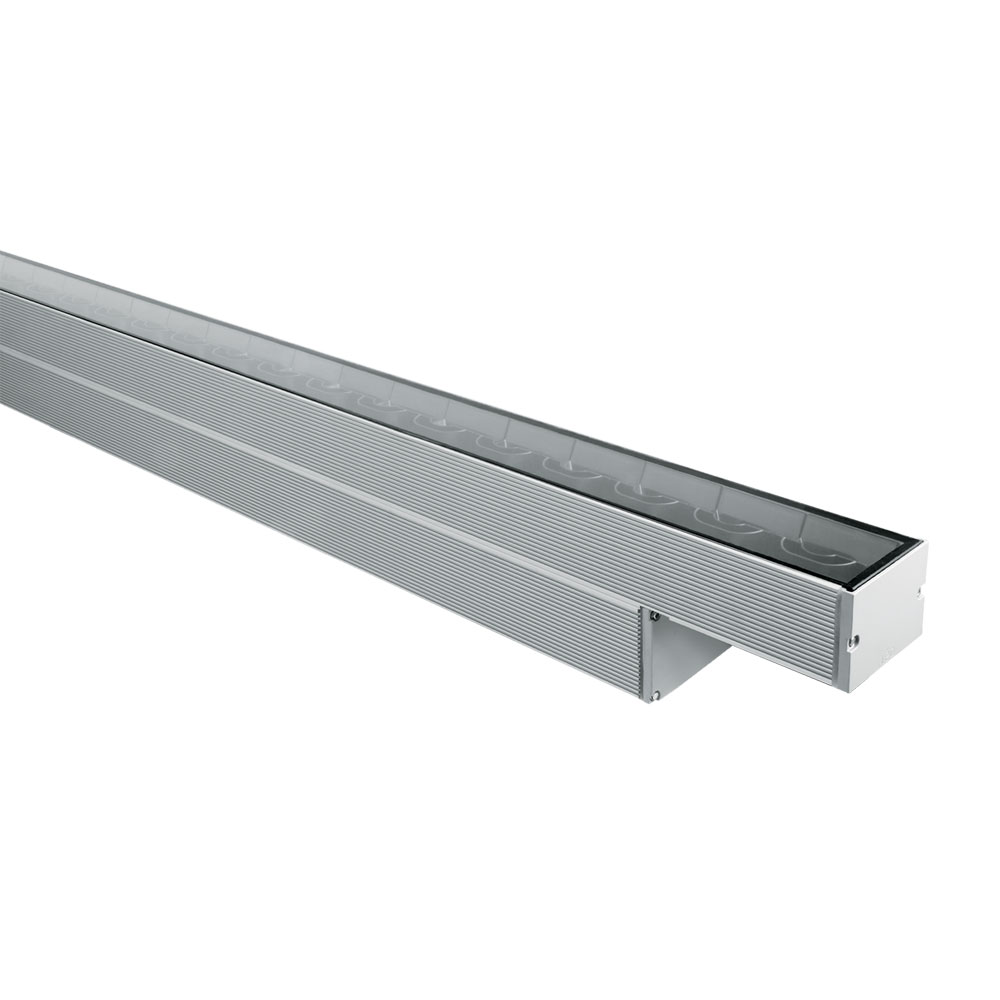

Archiline Pro Wall

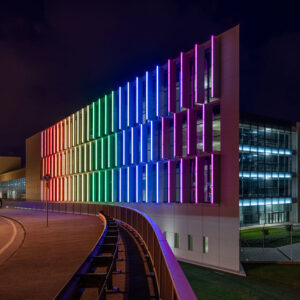

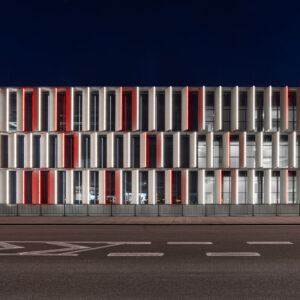

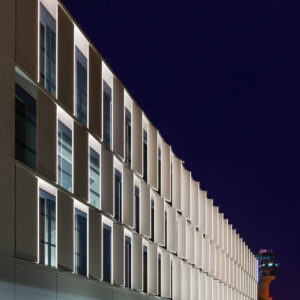

Archiline is a family of high-output, low glare linear LED in-grade and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. The PRO version reaches up to 150′, making it perfect for tall buildings and towers.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm), Aluminum finish
Trim: Frameless, ideal for continuous runs. Extra clear glass – Tempered
Mounting: 316 Marine Grade Steel adjustable bracket.

Driver: Integral, 120-277V Dimmable 0-10V or Non-Dim.
Wattage/Size: 35W (14″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP67
ETL Certification: ETL, wet location

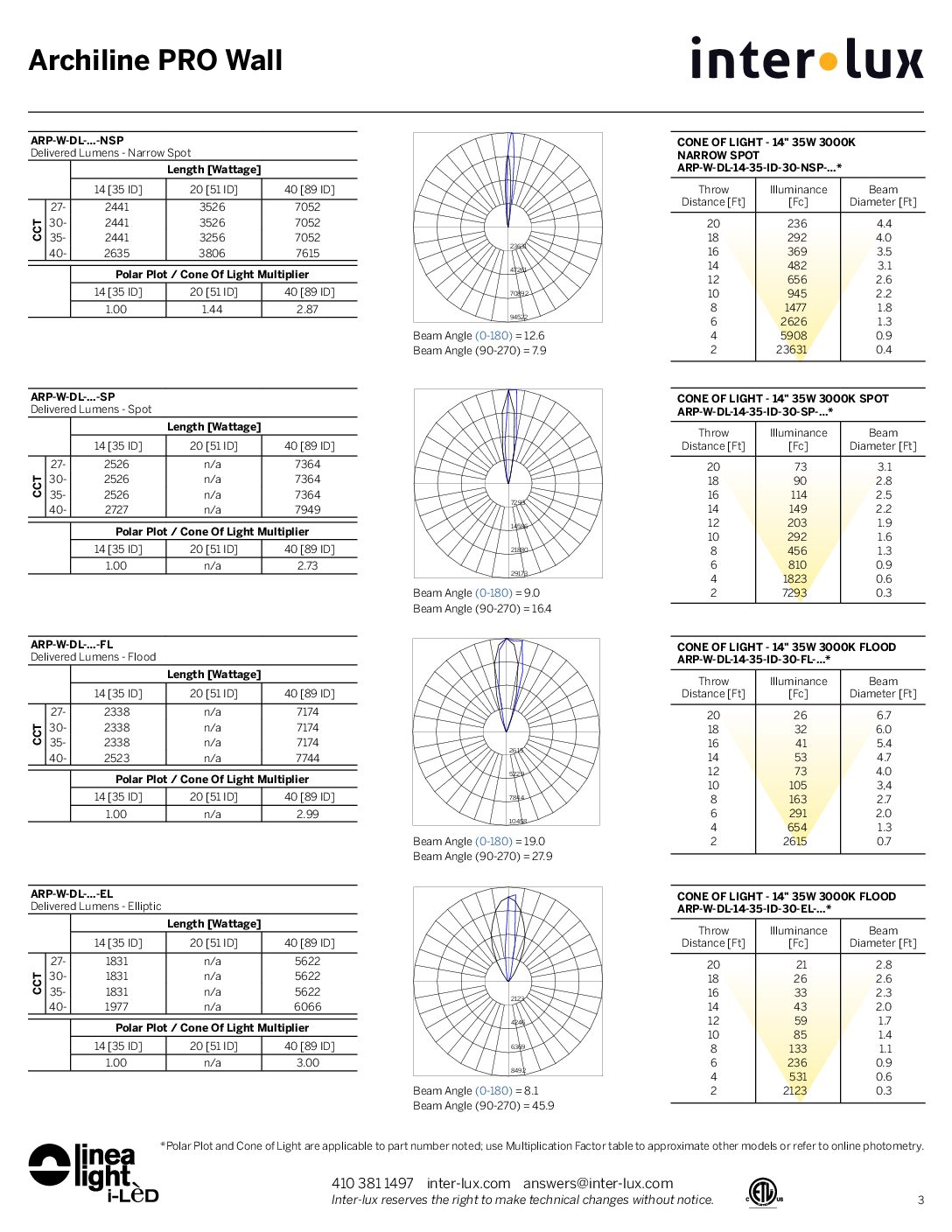

Optics: Fixed. Available in Narrow Spot – Spot – Flood – Elliptic. Archiline PRO comes with Dark Light (Anti-glare) system as a standard feature.
Color temperatures: 2700K – 3000K – 3500K – 4000K.


Quickship Housings Available: add QS in front of part number
