Archiline Aluminum Frame

Archiline is a family of high-output, low glare linear LED in-grade and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm), Aluminum finish
Trim: 6060 Anodized Aluminum. Extra clear glass – Tempered

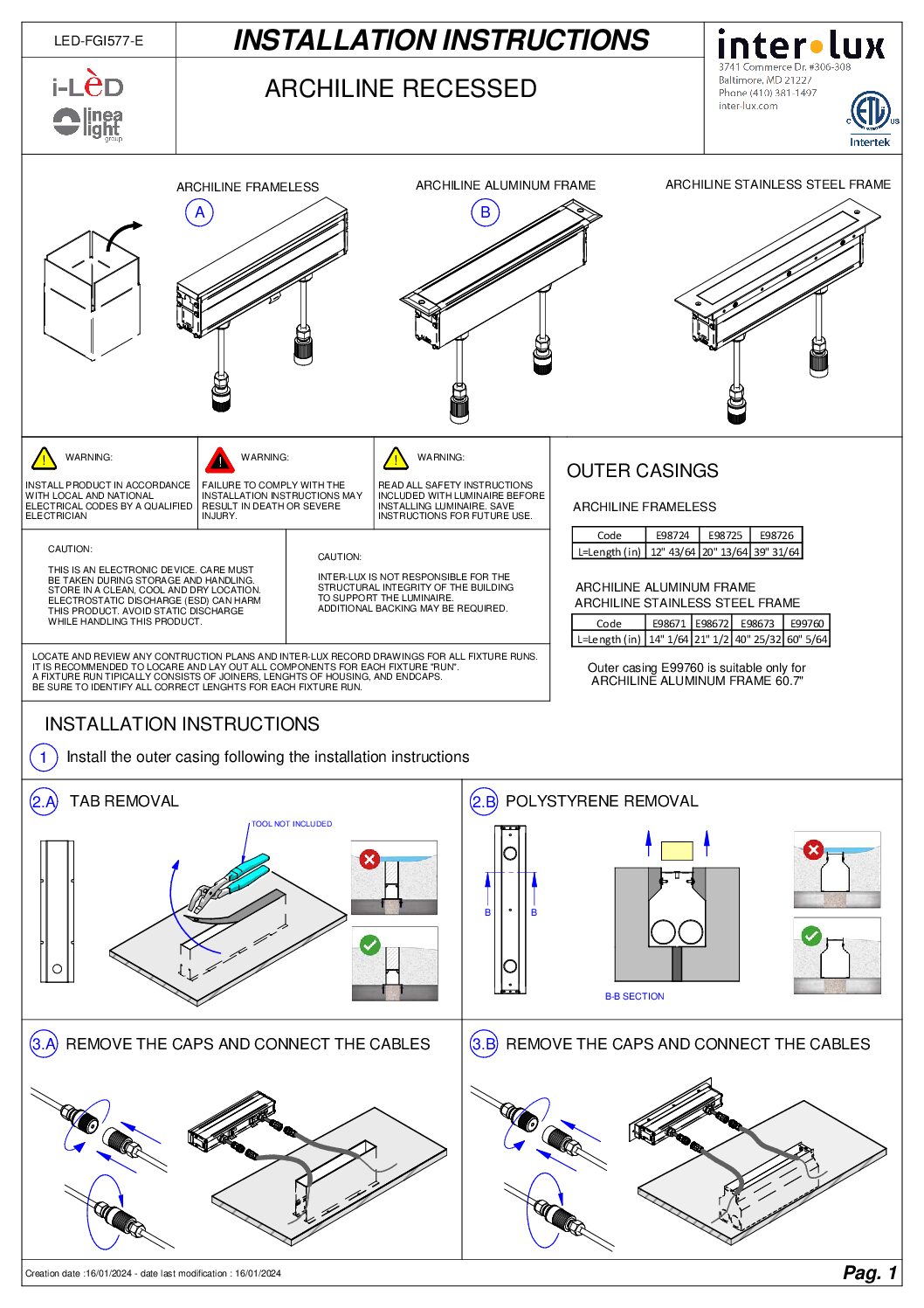

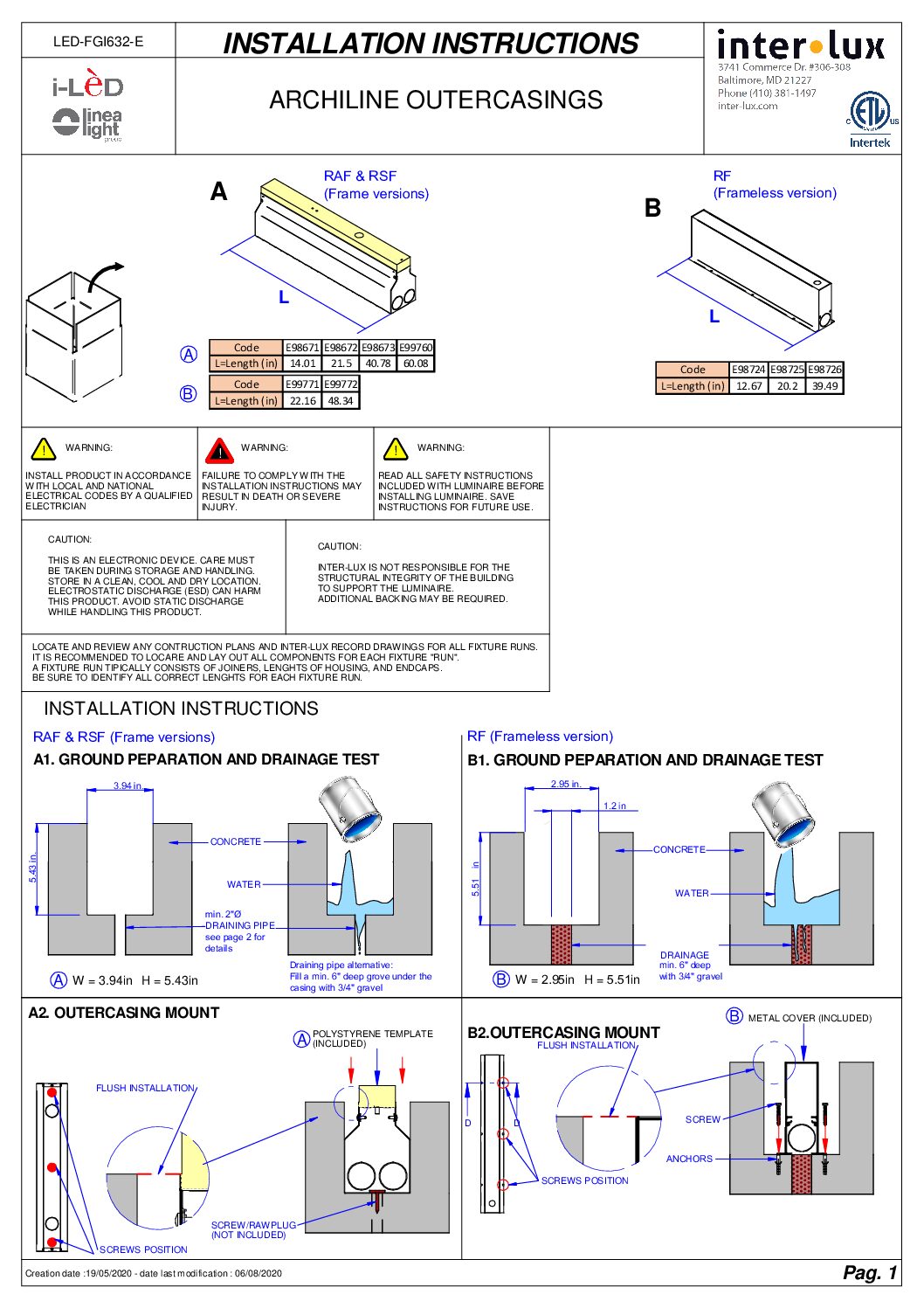

Mounting/Housing: Galvanized Steel (required for in ground installations).
Drive-over: Walk-Over only.

Driver: Integral, 120-277V Dimmable 0-10V or Non-Dim.
Wattages/Sizes: 14.5W (14.6″) – 22W (22.1″) – 44W (41.4″) – 65W (60.7″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP67
ETL Certification: ETL, wet location

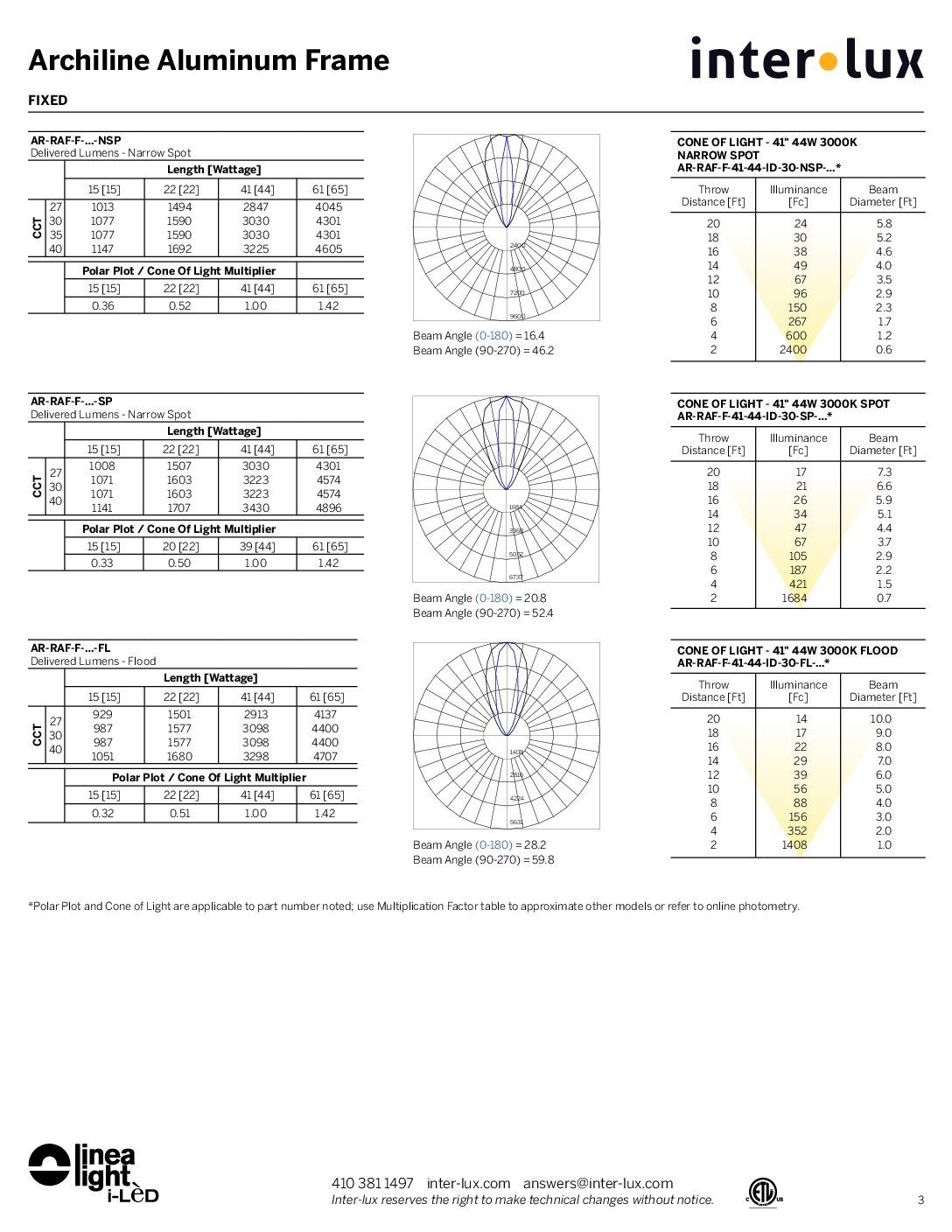

Optics: Fixed. Available in Narrow Spot – Spot – Flood – Wide Flood – Elliptic, Asymmetric Wall Washer. Most variants are also available with Dark Light (Anti-glare) system.
Color temperatures: 2700K – 3000K – 3500K – 4000K.

Quickship Housings Available: add QS in front of part number
