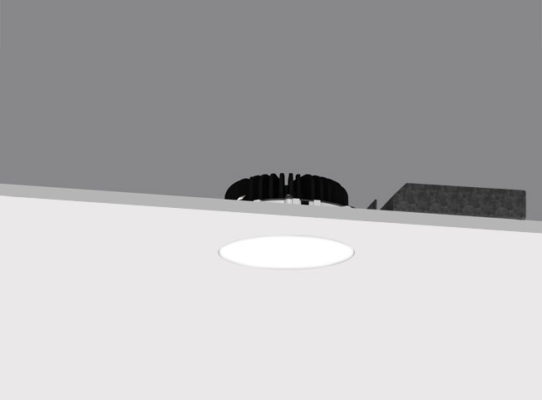

4″ ProTools D Downlight Round Flush Diffuser
High-Angle Distribution Ambient Lighting
- 4″ aperture square downlight for wide distribution ambient lighting.
- High angle distribution giving good vertical illumination.
- High transmission, evenly illuminated Flush Satin Diffuser.
- Beam Angle: Lambertian
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Modular interchangeability throughout the entire ProTools range of products.
- Multiple luminaire configurations for plaster trim.
- Available 2700 to 4000 K (849 to 1839 lm).
ProTools Configurator
Downloads
Specsheets

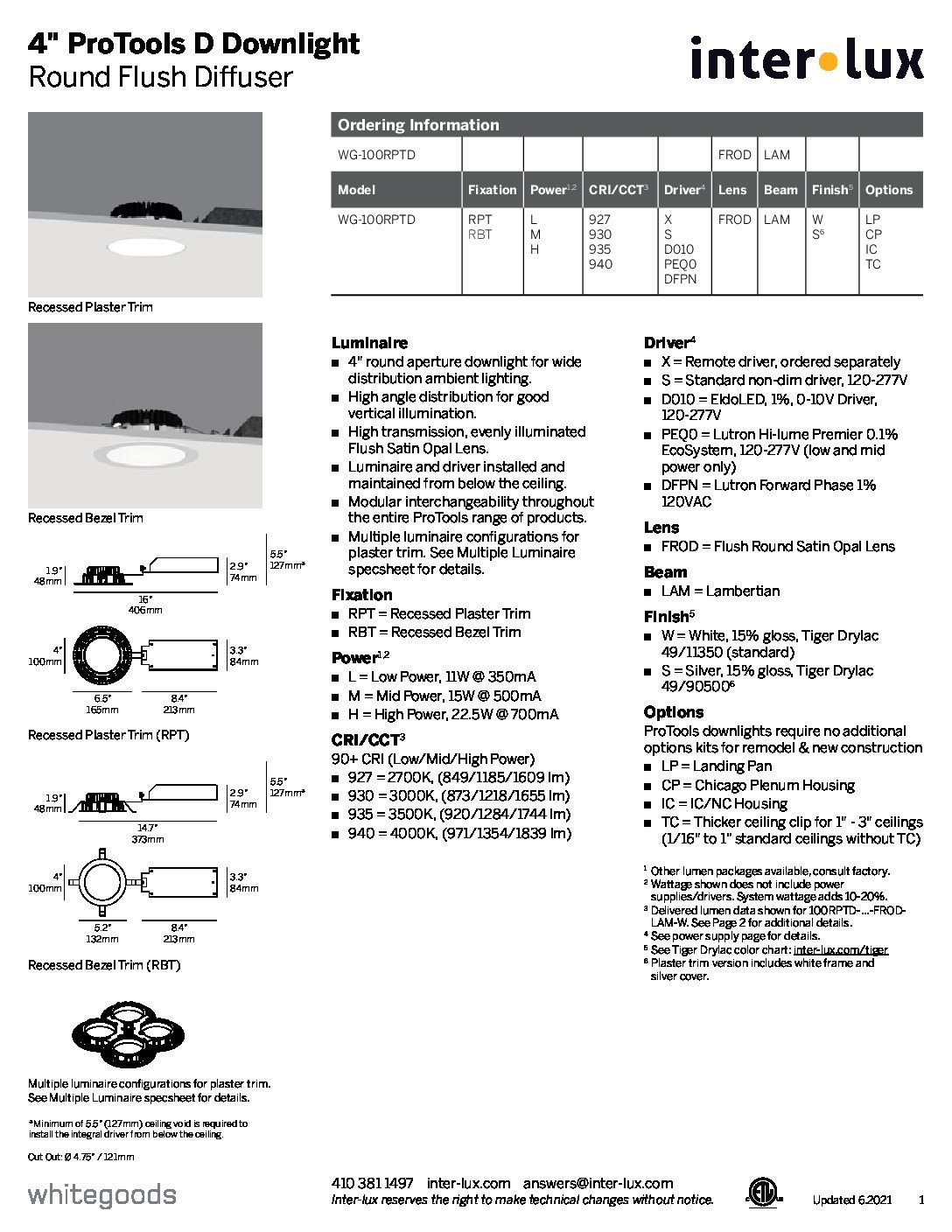

- 4″ ProTools D Downlight Round Flush Diffuser Specsheet

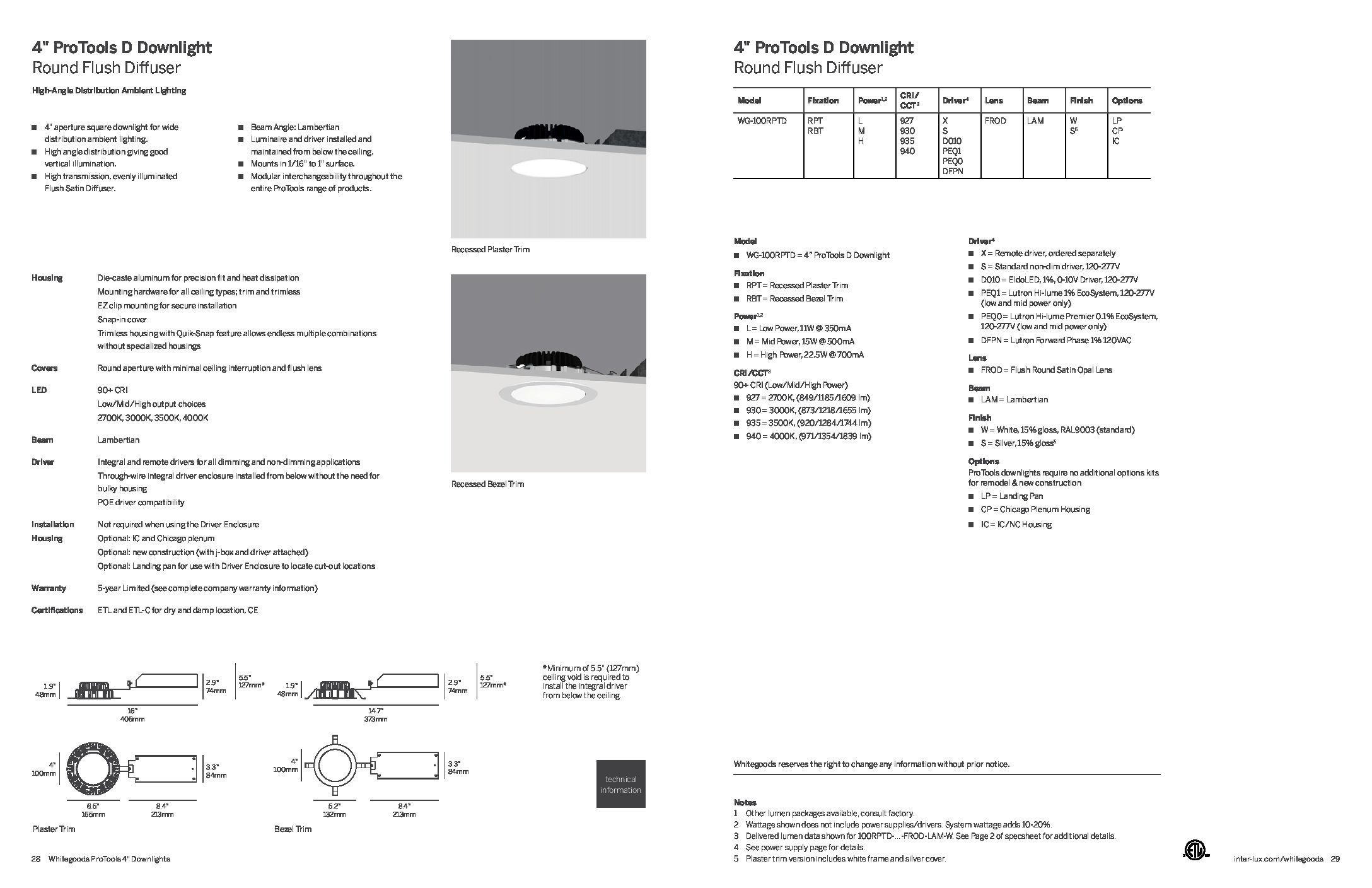

- 4″ ProTools D Downlight Round Flush Diffuser Catalog
- 4″ ProTools Downlight Multiple Luminaire Configurations
Application Guides
Installation Instructions
- ProTools D Round Plaster Instructions
- ProTools D Round Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools D Downlight Round Recessed Cone
Even Illumination From Regressed Lens
- 4″ round aperture downlight with wide distribution ambient lighting.
- 0.7″ regressed, evenly illuminated, highly efficient Satin Opal Diffuser providing good glare control.
- High efficiency, high transmission diffuser.
- Beam Angle: 110°
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Modular interchangeability throughout the entire ProTools range of products.
- Wet Location as standard option (WL).
- Multiple luminaire configurations for plaster trim.
- Available 2700 to 4000 K (700 to 1516 lm).
ProTools Configurator
Downloads
Specsheets
- 4″ ProTools D Downlight Round Recessed Cone Specsheet
- 4″ ProTools D Downlight Round Recessed Cone Catalog
- 4″ ProTools Downlight Multiple Luminaire Configurations
Application Guides
Installation Instructions
- ProTools D Round Bezel Instructions
- ProTools D Round Plaster Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools D Downlight Round Regressed Pinhole
Even Illumination From Regressed Lens
- 4″ round aperture downlight with wide distribution ambient lighting.
- 0.7″ regressed, evenly illuminated, highly efficient Satin Opal Diffuser providing good glare control.
- High efficiency, high transmission diffuser.
- Beam Angle: 110°
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Modular interchangeability throughout the entire ProTools range of products.
- Multiple luminaire configurations for plaster trim.
- Available 2700 to 4000 K (657 to 1423 lm).
ProTools Configurator
Downloads
Specsheets

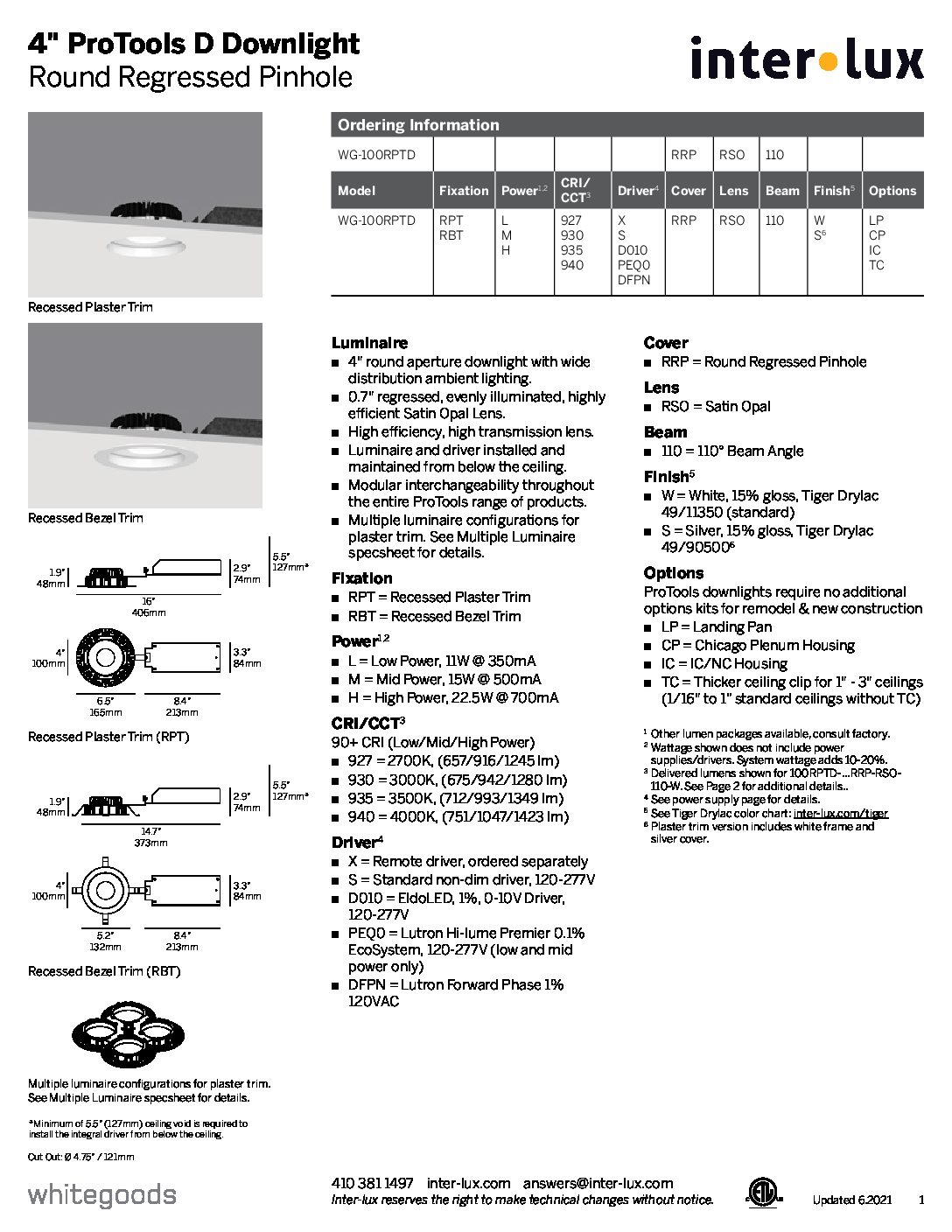

- 4″ ProTools D Downlight Round Regressed Pinhole Specsheet

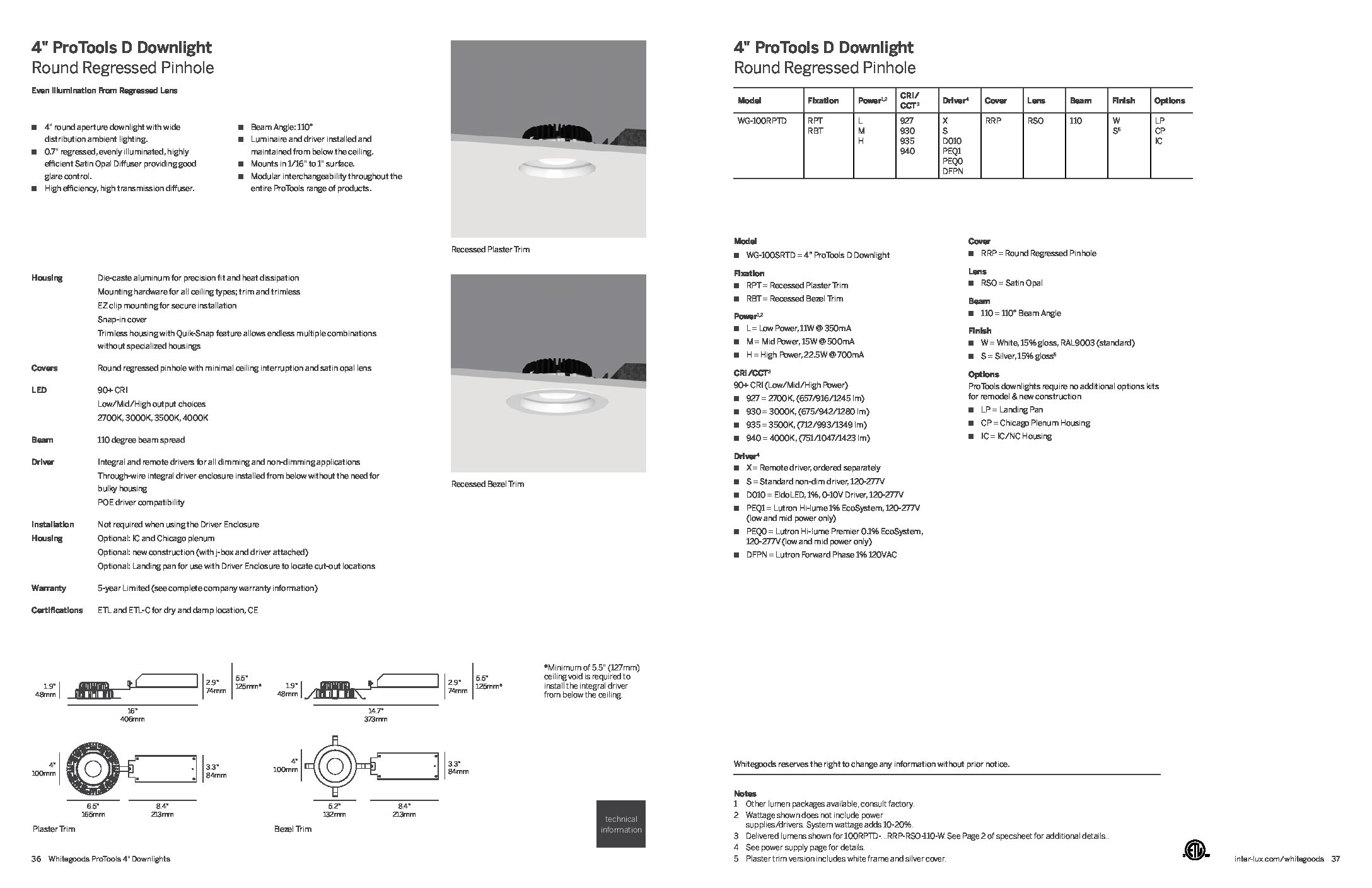

- 4″ ProTools D Downlight Round Regressed Pinhole Catalog
- 4″ ProTools Downlight Multiple Luminaire Configurations
Application Guides
Installation Instructions
- ProTools D Round Plaster Instructions
- ProTools D Round Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites

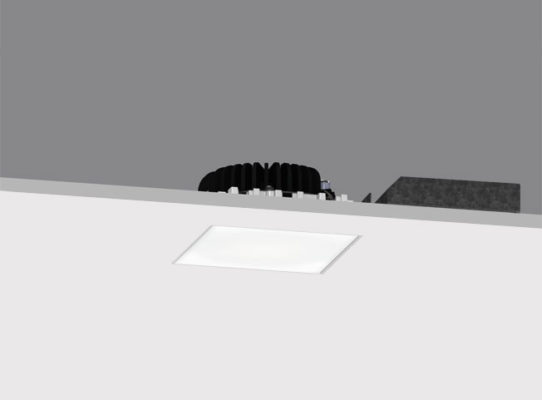

4″ ProTools D Downlight Square Flush Diffuser
High-Angle Distribution Ambient Lighting
- 4″ aperture square downlight for wide distribution ambient lighting.
- High angle distribution giving good vertical illumination.
- High transmission, evenly illuminated Flush Satin Diffuser.
- Beam Angle: Lambertian
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Modular interchangeability throughout the entire ProTools range of products.
- Multiple luminaire configurations for plaster trim.
- Available 2700 to 4000 K (850 to 1842 lm).
ProTools Configurator
Downloads
Specsheets

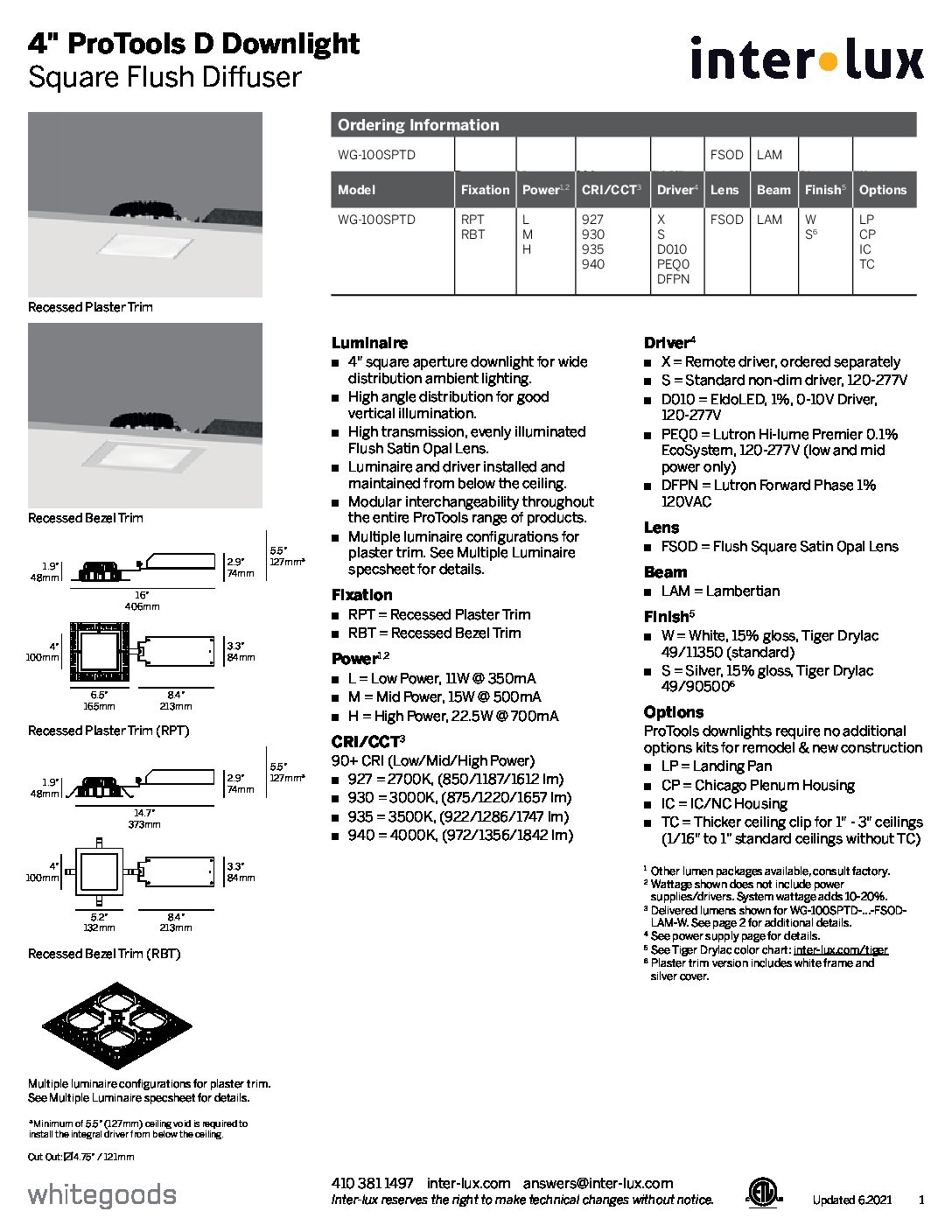

- 4″ ProTools D Downlight Square Flush Diffuser Specsheet

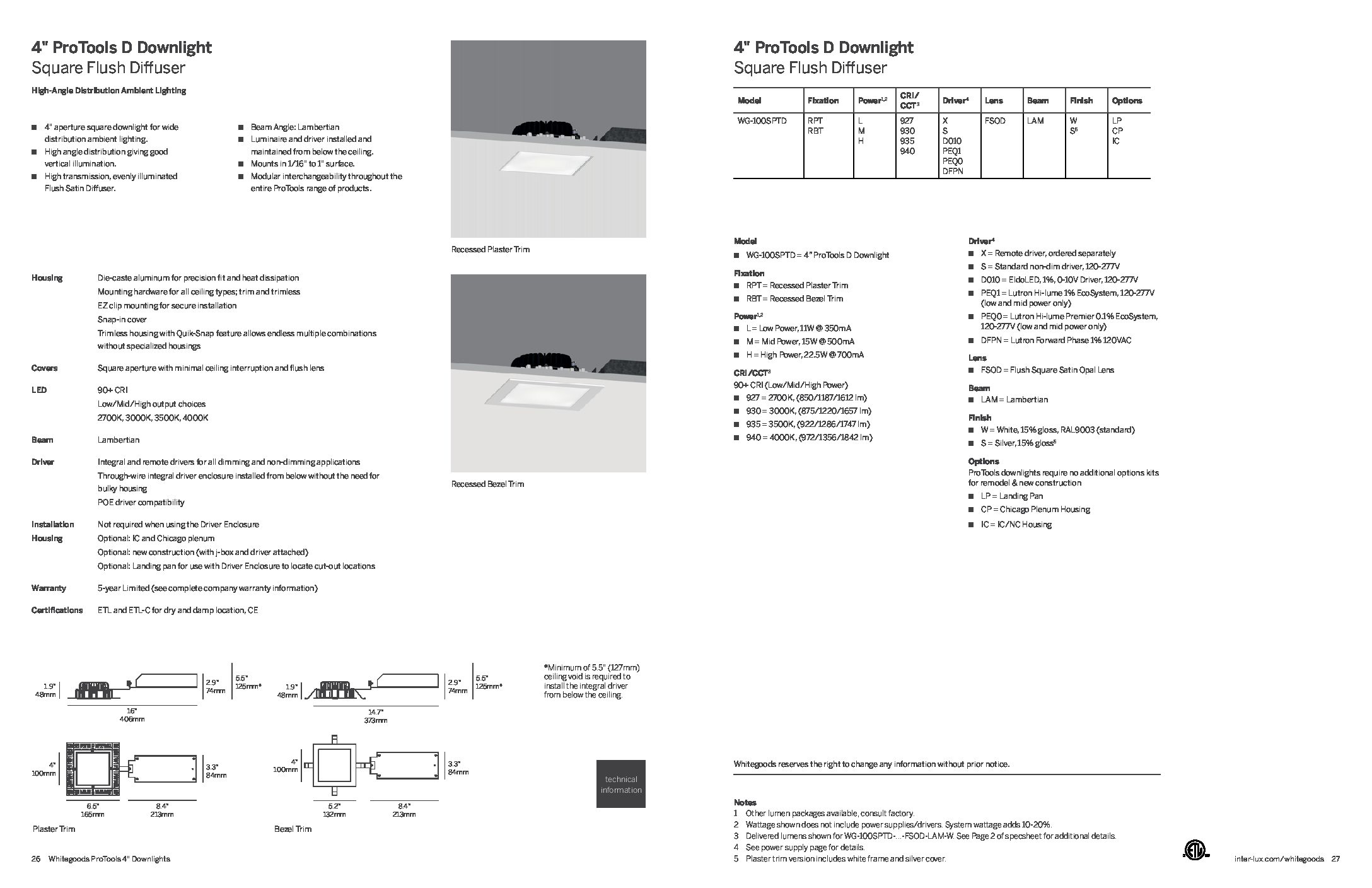

- 4″ ProTools D Downlight Square Flush Diffuser Catalog
- 4″ ProTools Downlight Multiple Luminaire Configurations
Application Guides
Installation Instructions
- ProTools D Square Plaster Instructions
- ProTools D Square Bezel Trim Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools D Downlight Square Recessed Cone
Even Illumination From Regressed Lens
- 4″ square aperture downlight with wide distribution ambient lighting.
- 0.7″ regressed, evenly illuminated, highly efficient Satin Opal Diffuser providing good glare control.
- High efficiency, high transmission diffuser.
- Beam Angle: 110°
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Modular interchangeability throughout the entire ProTools range of products.
- Wet Location as standard option (WL).
- Multiple luminaire configurations for plaster trim.
- Available 2700 to 4000 K (760 to 1646 lm).
ProTools Configurator
Downloads
Specsheets

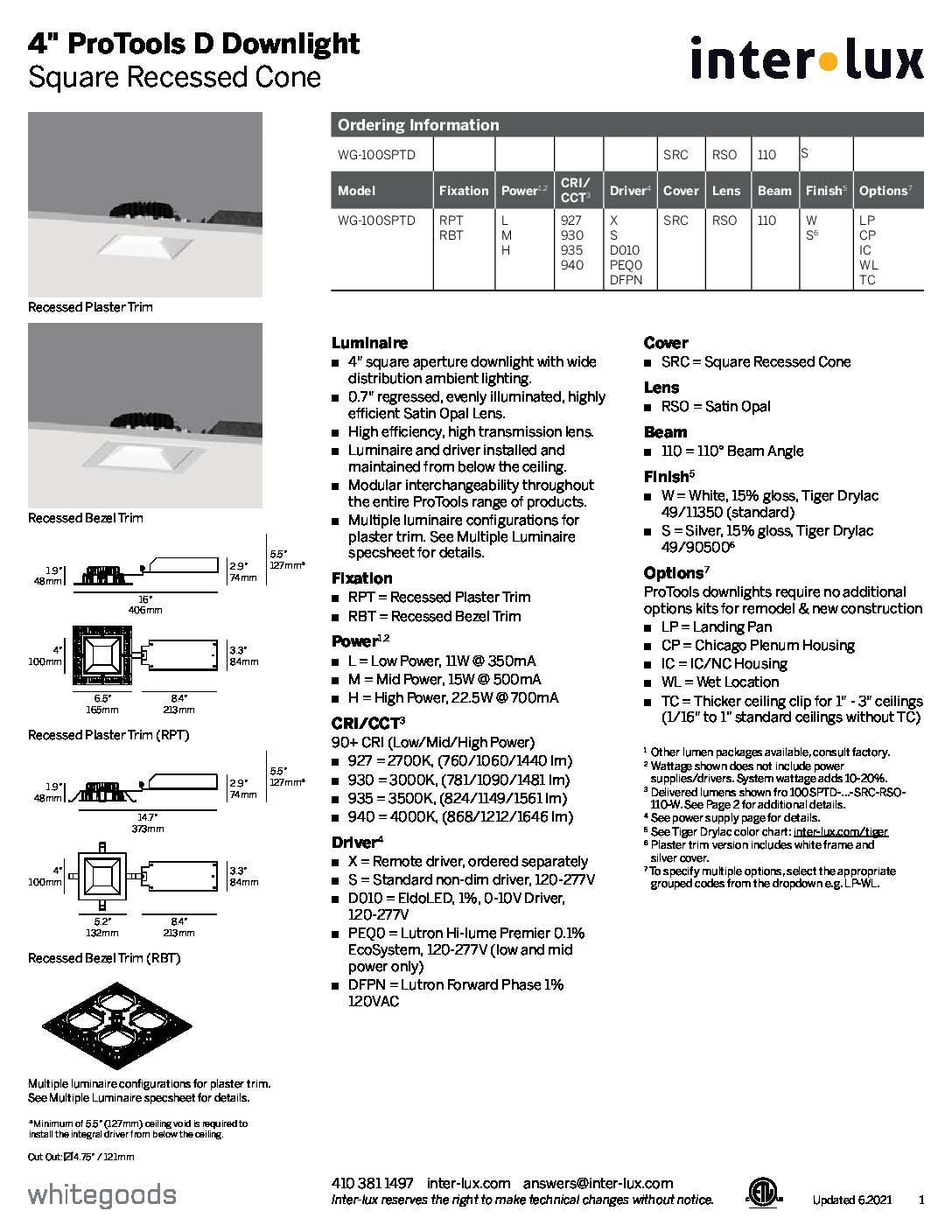

- 4″ ProTools D Downlight Square Recessed Cone Specsheet

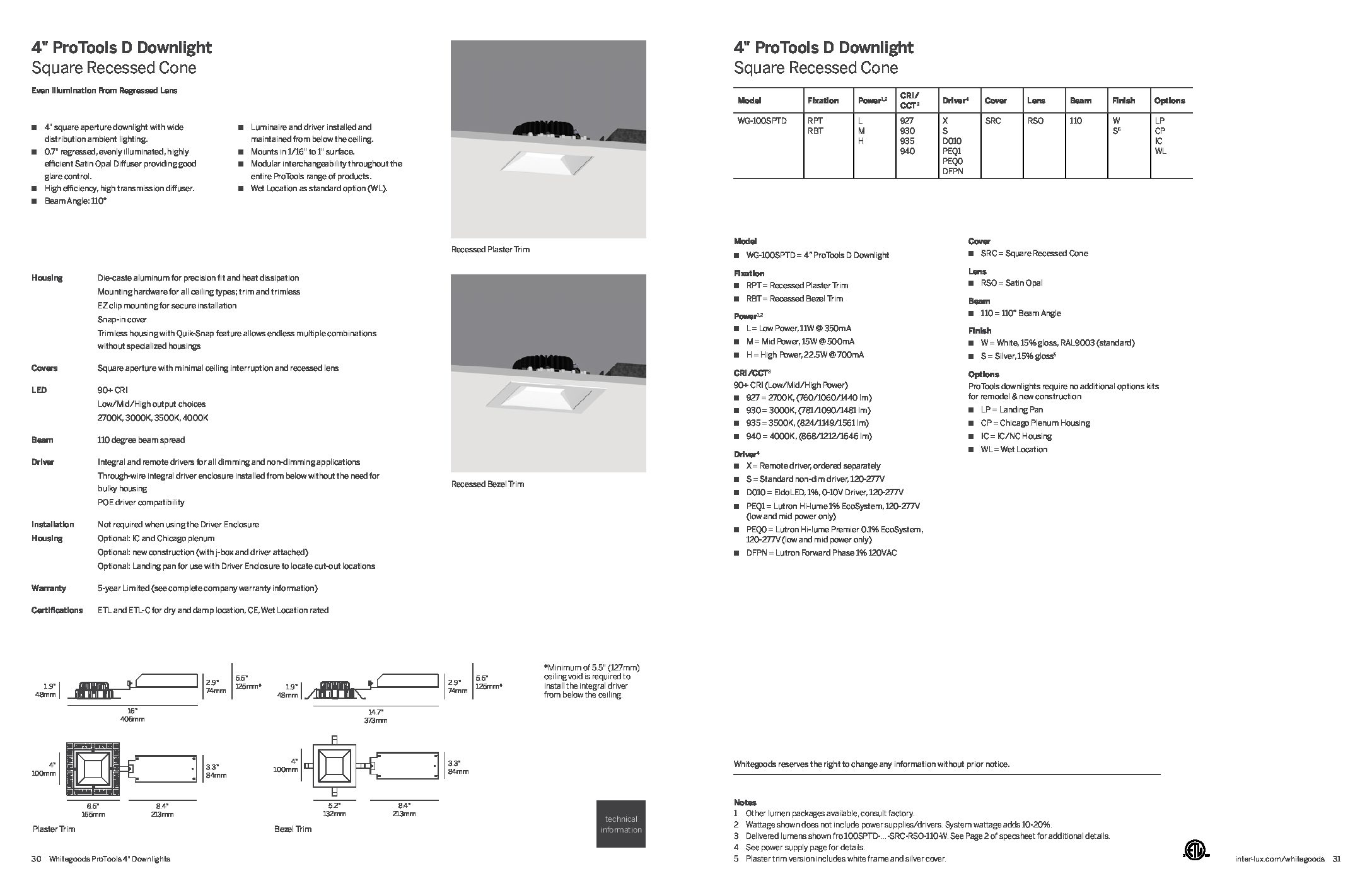

- 4″ ProTools D Downlight Square Recessed Cone Catalog
- 4″ ProTools Downlight Multiple Luminaire Configurations
Application Guides
Installation Instructions
- ProTools D Square Bezel Trim Instructions
- ProTools D Square Plaster Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools D Downlight Square Regressed Pinhole
Even Illumination From Regressed Lens
- 4″ square aperture downlight with wide distribution ambient lighting.
- 0.7″ regressed, evenly illuminated, highly efficient Satin Opal Diffuser providing good glare control.
- High efficiency, high transmission diffuser.
- Beam Angle: 110°
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Modular interchangeability throughout the entire ProTools range of products
- Multiple luminaire configurations for plaster trim.
- Available 2700 to 4000 K (741 to 1606 lm).
ProTools Configurator
Downloads
Specsheets

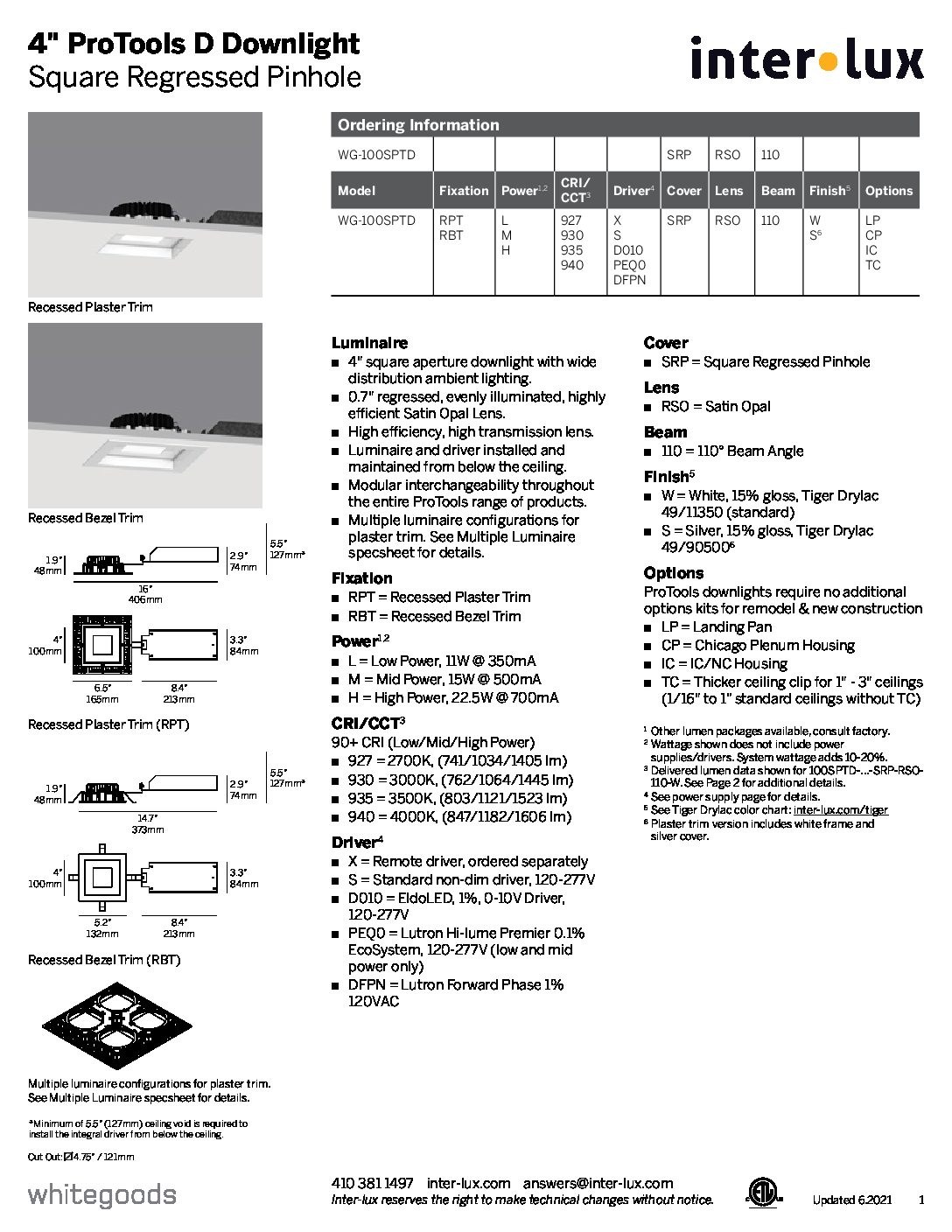

- 4″ ProTools D Downlight Square Regressed Pinhole Specsheet

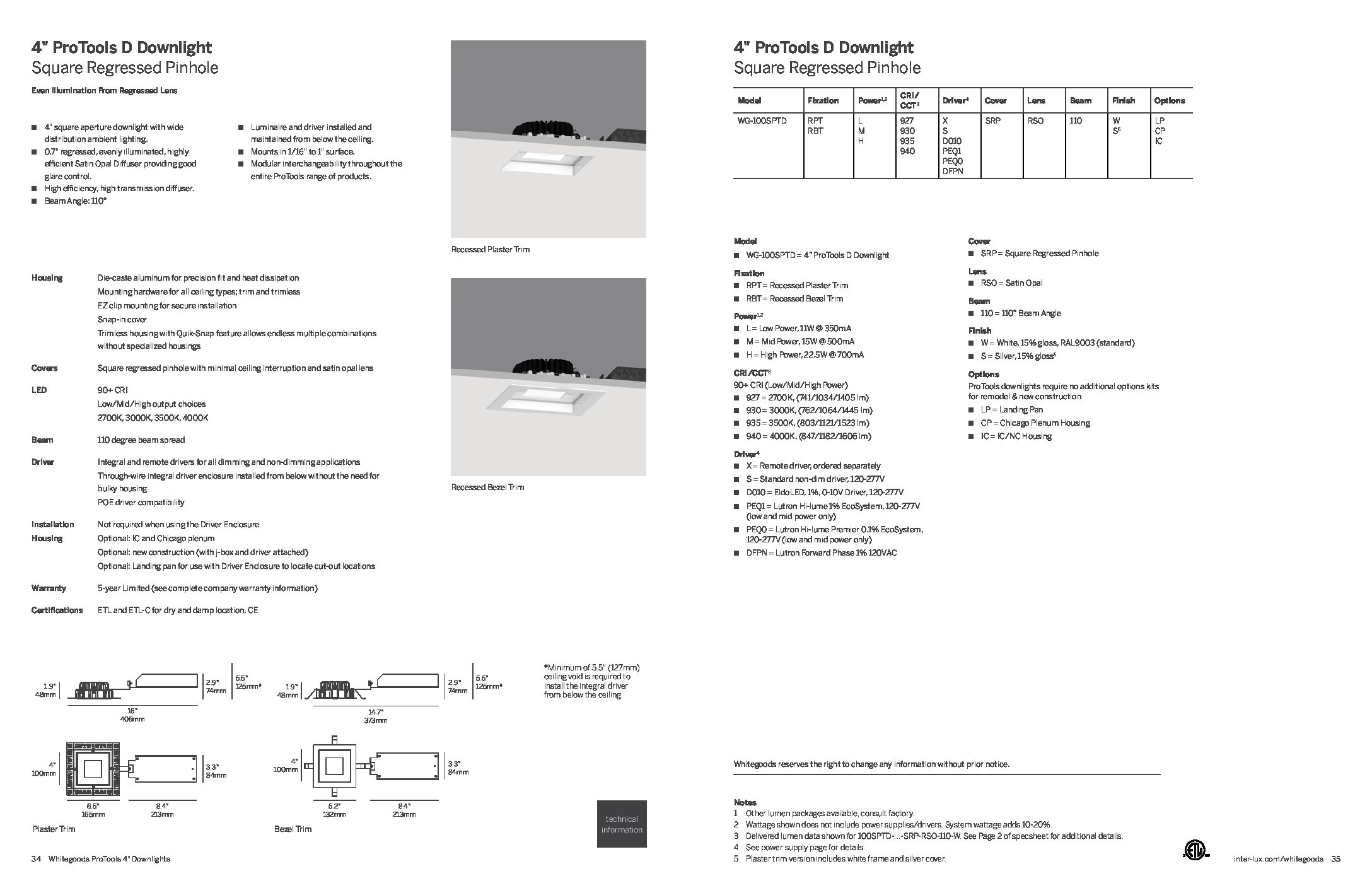

- 4″ ProTools D Downlight Square Regressed Pinhole Catalog
- 4″ ProTools Downlight Multiple Luminaire Configurations
Application Guides
Installation Instructions
- ProTools D Square Plaster Instructions
- ProTools D Square Bezel Trim Instructions
- New Construction Housing Ins. Remote

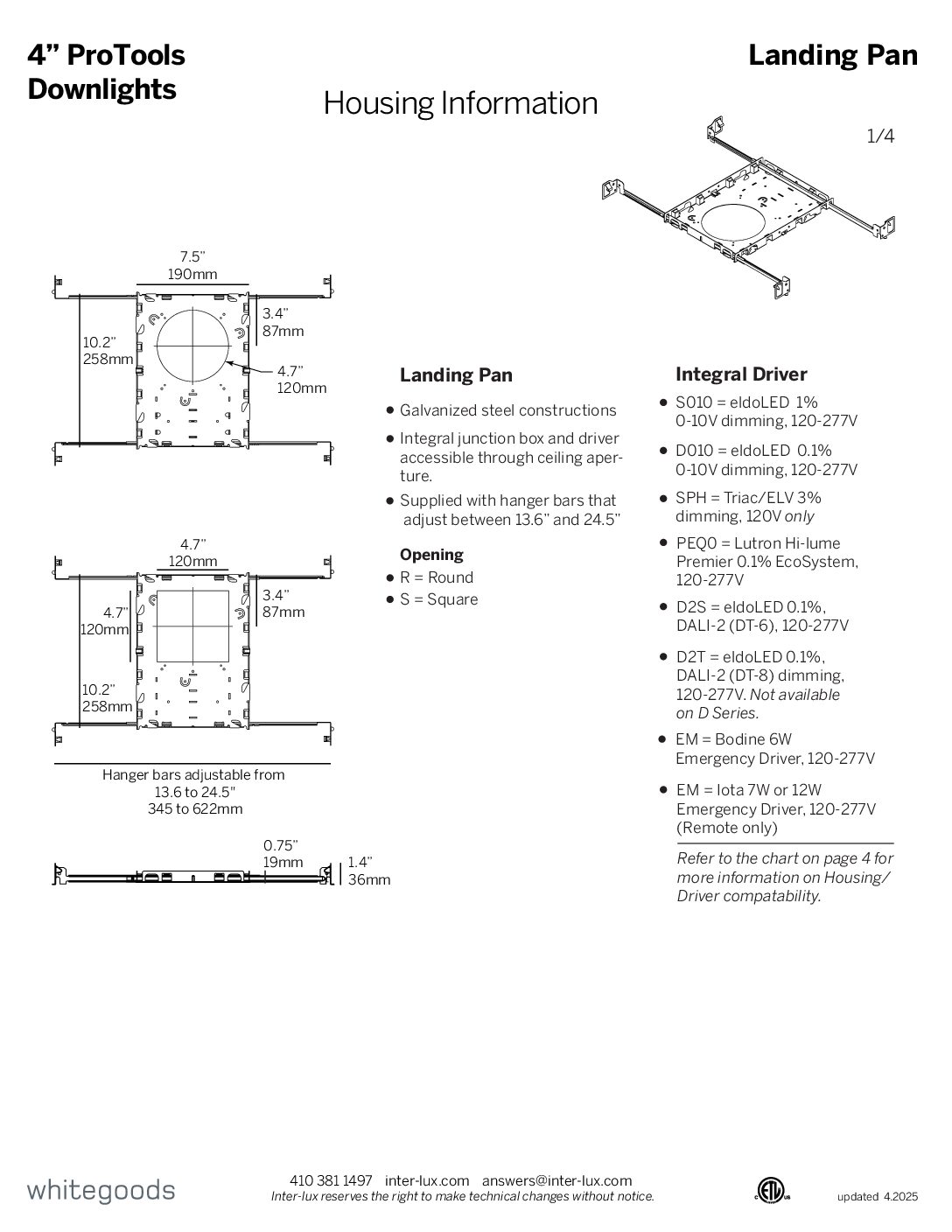

- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
