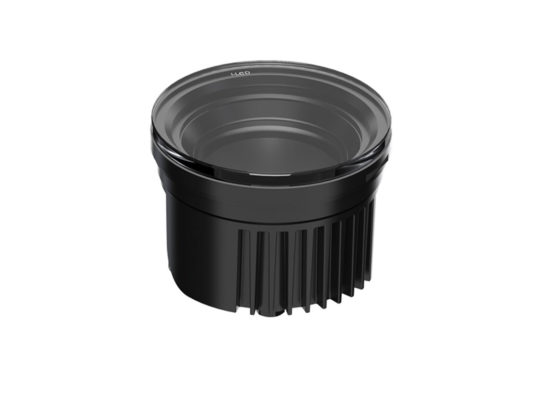

ORMA Trimless Flush Optics

Orma is a compact and shallow family of round LED in-grades suitable to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting. The overall depth of roughly 3″ including the housing makes it one of the most compact fixtures on the market.

Fixture Body: Die-Cast Aluminum 6060, anodized black (15 μm)
Trim: Trimless. Extra clear glass – Tempered
Drive-over: Up to 4,409 lbs.

Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.

Wattages (CC/CV) / Sizes: 1W/1.5W (0.9″) – 4W/5W (2.2″) – 8W/9W (3.4″) – 12W (5.0″)

IP rating: IP68
ETL Certification: ETL, Wet location

Optics: Fixed or Adjustable. Available in Spot – Flood – Wide Flood – Elliptical. Honeycomb and Anti-glare (Dark Light) accessories available.
Color temperatures: 2700K – 3000K – 4000K.


Quickship Housings Available: add QS in front of part number

Selections download as one PDF
  • Spec Page
  • Photometry

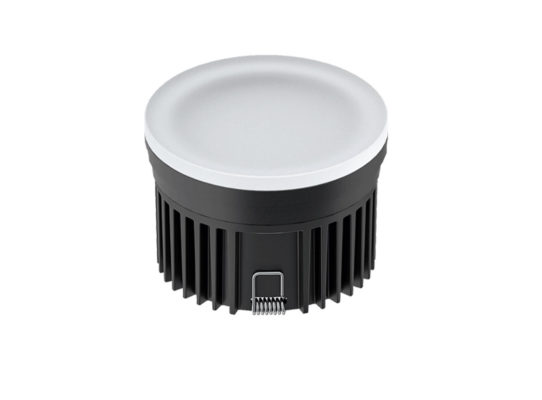

ORMA Trimless Flush Frosted

Orma is a compact and shallow family of round LED in-grades suitable to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting. The overall depth of roughly 3″ including the housing makes it one of the most compact fixtures on the market.

Fixture Body: Die-Cast Aluminum 6060, anodized black (15 μm)
Trim: Trimless. Frosted glass – Tempered – Anti-slip
Drive-over: Up to 4,409 lbs.

Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
Wattages (CC/CV) / Sizes: 1W/1.5W (0.9″) – 4W/5W (2.2″) – 8W/9W (3.4″) – 12W (5″)

IP rating: IP68
ETL Certification: ETL, wet location

Optics: Fixed, Diffused.
Color temperatures: 2700K – 3000K – 4000K.


Quickship Housings Available: add QS in front of part number

Selections download as one PDF
  • Spec Page
  • Photometry

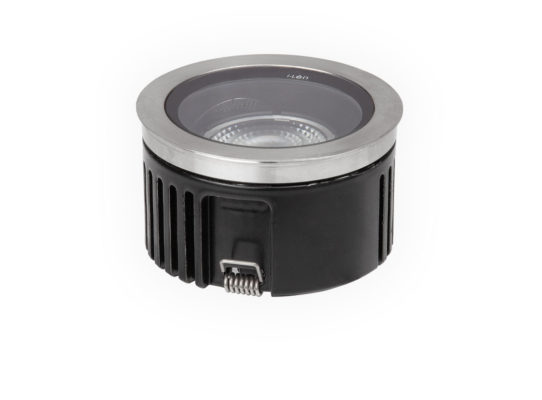

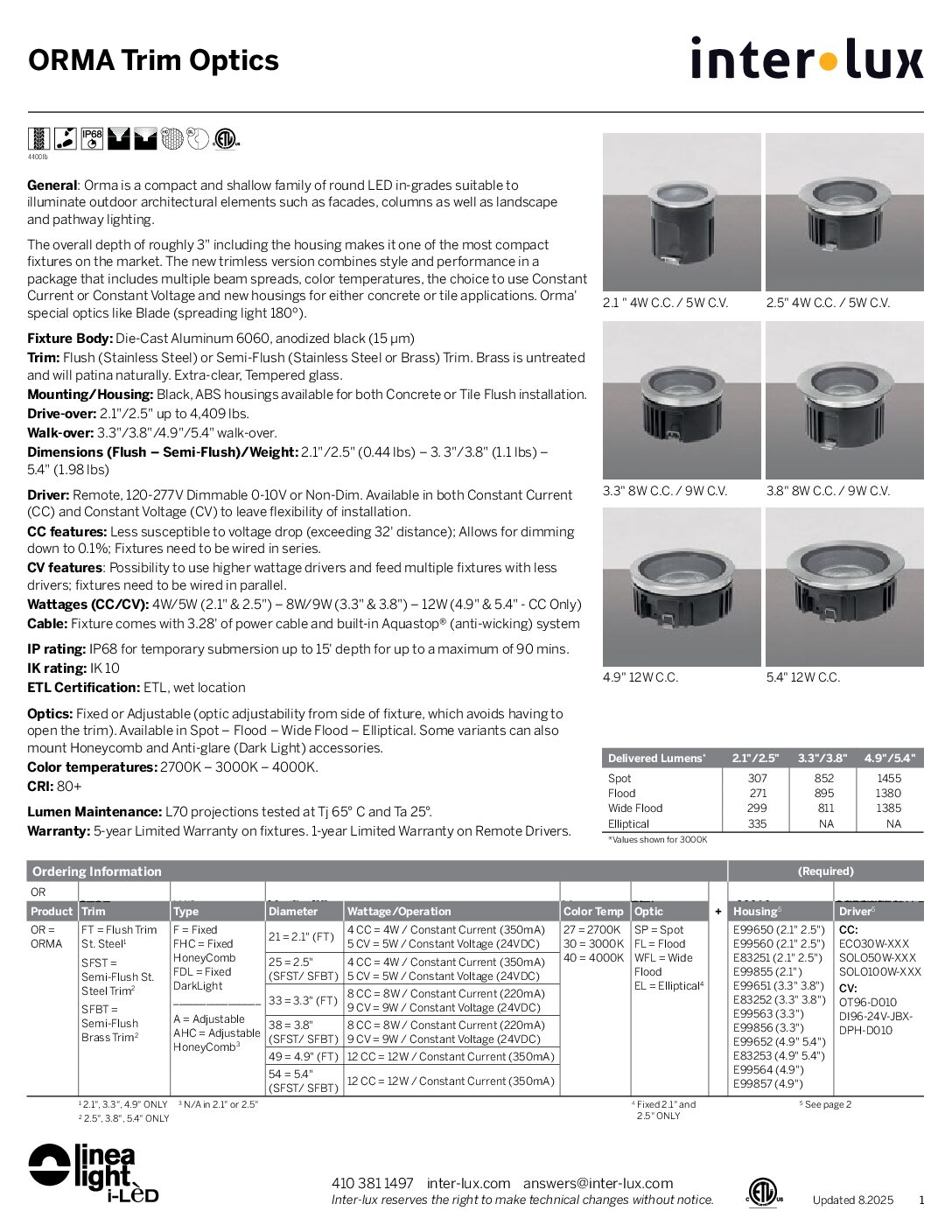

ORMA Trim Optics

Orma is a compact and shallow family of round LED in-grades suitable to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting. The overall depth of roughly 3″ including the housing makes it one of the most compact fixtures on the market.

Fixture Body: Die-Cast Aluminum 6060, anodized black (15 μm)
Trim: Flush (Stainless Steel) or Semi-Flush (Stainless Steel or Brass) Trim. Extra-clear, Tempered glass.
Drive-over: Up to 4,409 lbs.

Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
Wattages (CC/CV) / Sizes: 4W/5W (2.1″ & 2.5″) – 8W/9W (3.3″ & 3.8″) – 12W (4.9″ & 5.4″ – CC Only)

IP rating: IP68
ETL Certification: ETL, wet location

Optics: Fixed or Adjustable. Available in Spot – Flood – Wide Flood – Elliptical. Honeycomb and Anti-glare (Dark Light) accessories available.
Color temperatures: 2700K – 3000K – 4000K.


Quickship Housings Available: add QS in front of part number

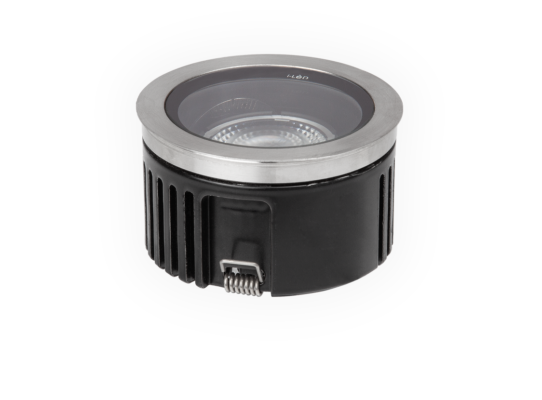

    • ORMA Trim Optics RGBW

    Orma is a compact and shallow family of round LED in-grades suitable to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting. The overall depth of roughly 3″ including the housing makes it one of the most compact fixtures on the market.

    Fixture Body: Die-Cast Aluminum 6060, anodized black (15 μm)
    Trim: Flush (Stainless Steel) or Semi-Flush (Stainless Steel or Brass) Trim. Extra-clear, Tempered glass for Optic versions. Frosted, Tempered and Anti-Slip glass for General version.
    Drive-over: Up to 4,409 lbs.

    Driver: Remote, 120-277V DMX. RGBW version is available in Constant Current (CC) only.
    Wattages (CC) / Sizes: 8W (3.3″ & 3.8″).

    IP rating: IP68
    ETL Certification: ETL, wet location

    Optics: Fixed. Available in Narrow Spot, Spot, Flood and General distributions.
    Color temperatures: RGBW with 3000K Warm White – RGBW with 4000K Neutral White


    Quickship Housings Available: add QS in front of part number

    • Spec Page

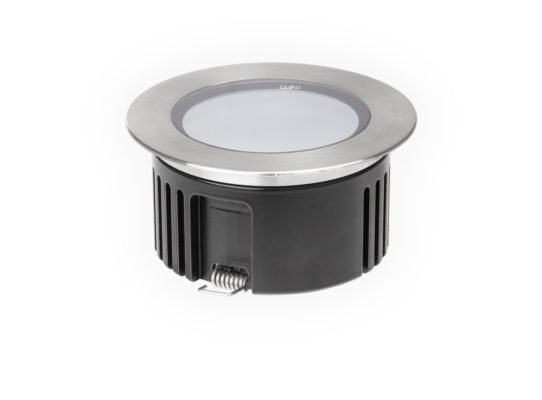

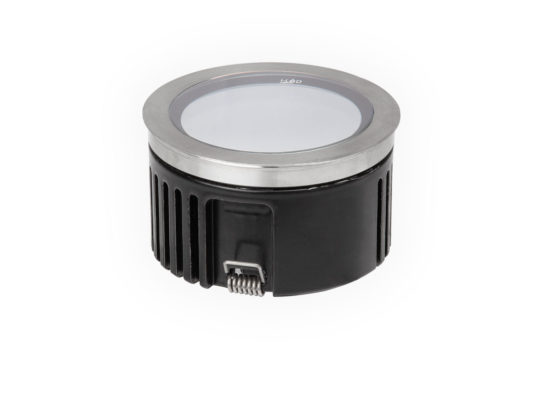

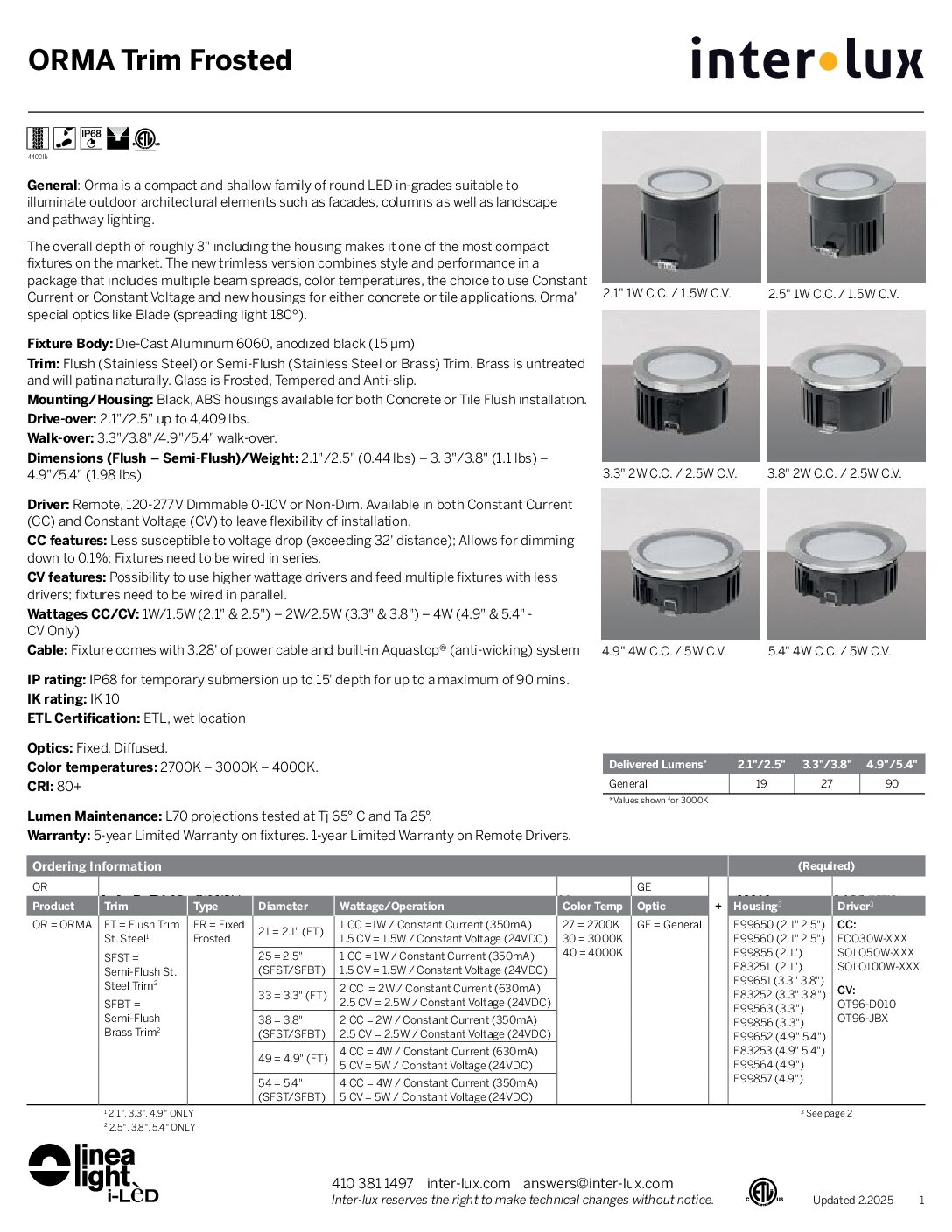

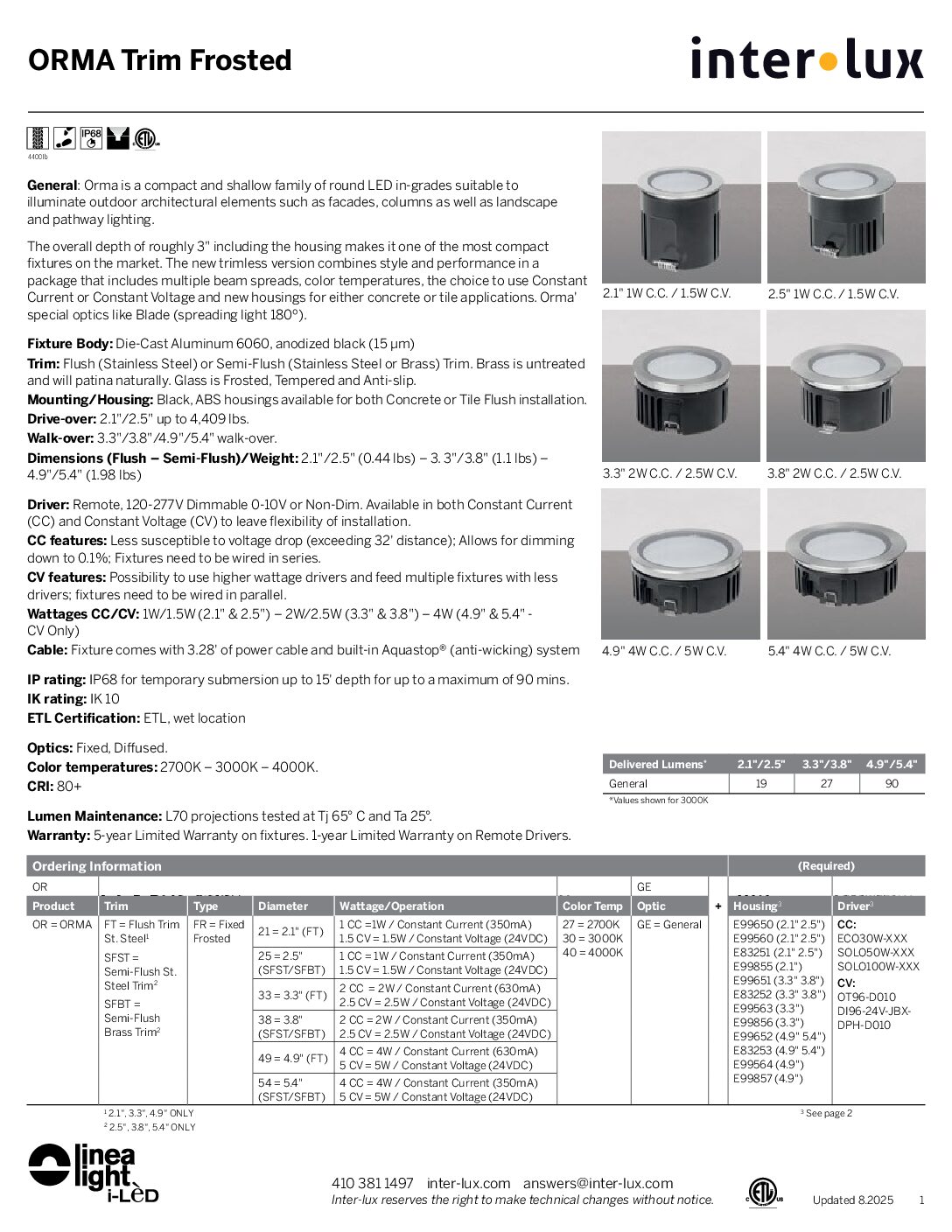

    ORMA Trim Frosted

    Orma is a compact and shallow family of round LED in-grades suitable to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting. The overall depth of roughly 3″ including the housing makes it one of the most compact fixtures on the market.

    Fixture Body: Die-Cast Aluminum 6060, anodized black (15 μm)
    Trim: Flush (Stainless Steel) or Semi-Flush (Stainless Steel or Brass) Trim. Glass is Frosted, Tempered and Anti-slip.
    Drive-over: Up to 4,409 lbs.

    Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
    Wattages (CC/CV) / Sizes: 1W/1.5W (2.1″ & 2.5″) – 2W/2.5W (3.3″ & 3.8″) – 4W (4.9″ & 5.4″ – CV Only)

    IP rating: IP68
    ETL Certification: ETL, wet location

    Optics: Fixed, Diffused.
    Color temperatures: 2700K – 3000K – 4000K.


    Quickship Housings Available: add QS in front of part number

    Selections download as one PDF
    • Spec Page
    • Photometry

    ORMA Trim Frosted RGBW

    Orma is a compact and shallow family of round LED in-grades suitable to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting. The overall depth of roughly 3″ including the housing makes it one of the most compact fixtures on the market.

    Fixture Body: Die-Cast Aluminum 6060, anodized black (15 μm)
    Trim: Flush (Stainless Steel) or Semi-Flush (Stainless Steel or Brass) Trim. Extra-clear, Tempered glass for Optic versions. Frosted, Tempered and Anti-Slip glass for General version.
    Drive-over: Up to 4,409 lbs.

    Driver: Remote, 120-277V DMX. RGBW version is available in Constant Current (CC) only.
    Wattage CC) / Sizes: 8W (3.3″ & 3.8″).

    IP rating: IP68
    ETL Certification: ETL, wet location

    Optics: Fixed. Available in Narrow Spot, Spot, Flood and General distributions.
    Color temperatures: RGBW with 3000K Warm White – RGBW with 4000K Neutral White


    Quickship Housings Available: add QS in front of part number

    • Spec Page

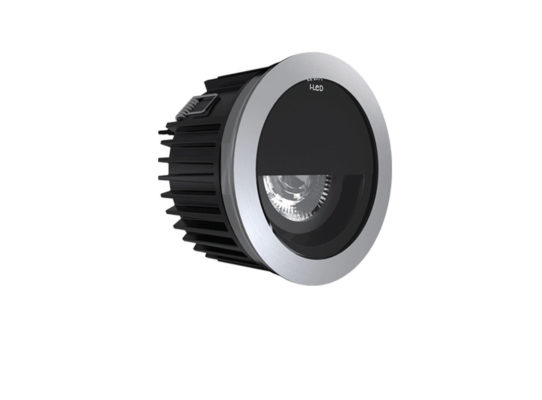

    ORMA Trim Adjustable Wall Washer

    Orma is a compact and shallow family of round LED in-grades suitable to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting. The overall depth of roughly 3″ including the housing makes it one of the most compact fixtures on the market.

    Fixture Body: Die-Cast Aluminum 6060, anodized black (15 μm)
    Trim: Flush (Stainless Steel) or Semi-Flush (Stainless Steel or Brass) Trim. Extra-clear, Tempered glass.
    Drive-over: Up to 4,409 lbs.

    Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
    Wattages (CC/CV) / Sizes: 4W/5W (2.1″ & 2.5″) – 8W/9W (3.3″ & 3.8″) – 12W (4.9″ & 5.4″ – CC Only)

    IP rating: IP68
    ETL Certification: ETL, wet location

    Optics: Adjustable Wall Washer (tilts up to 25°, in 5° increments). Optic adjustability from side of fixture, which avoids having to open the trim.
    Color temperatures: 2700K – 3000K – 4000K.


    Quickship Housings Available: add QS in front of part number

    Selections download as one PDF
    • Spec Page
    • Photometry

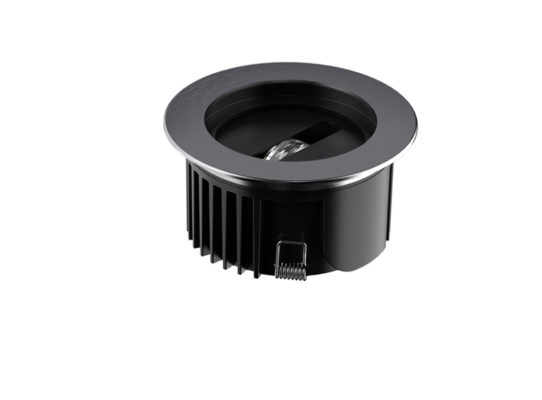

    ORMA Blade

    Orma is a compact and shallow family of round LED in-grades suitable to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting. The overall depth of roughly 3″ including the housing makes it one of the most compact fixtures on the market.

    Fixture Body: Die-Cast Aluminum 6060, anodized black (15 μm)
    Trim: Flush (Stainless Steel) or Semi-Flush (Stainless Steel or Brass) Trim. Extra-clear, Tempered glass.
    Drive-over: Up to 4,409 lbs.

    Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
    Wattages (CC/CV) / Sizes: 8W/9W (3.3″ & 3.8″).

    IP rating: IP68
    ETL Certification: ETL, wet location

    Optics: Fixed, Radial.
    Color temperatures: 2700K – 3000K – 4000K.


    Quickship Housings Available: add QS in front of part number

    Selections download as one PDF
    • Spec Page
    • ORMA Blade Photometry

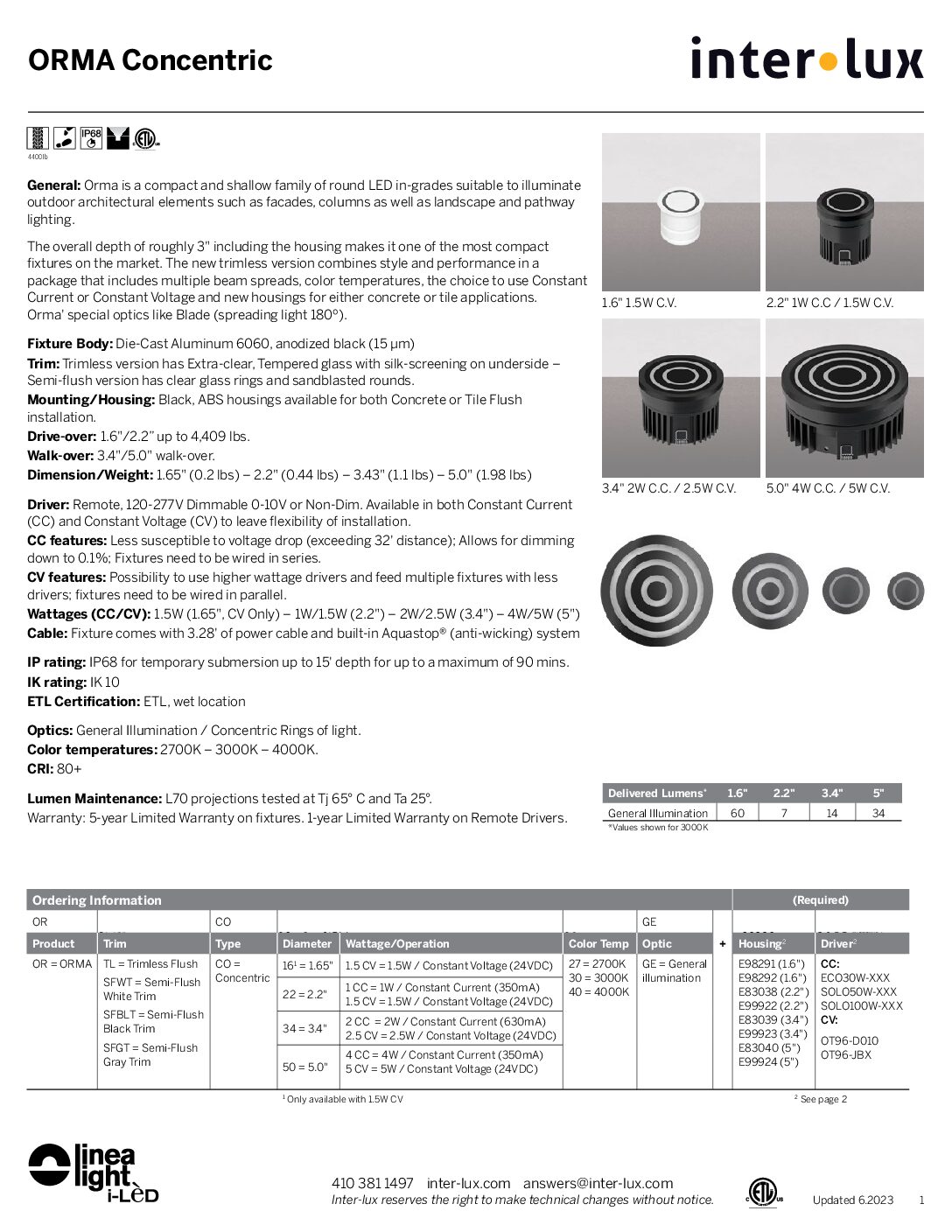

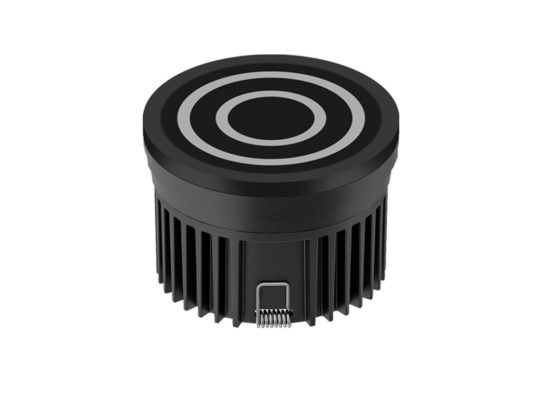

    ORMA Concentric

    Orma is a compact and shallow family of round LED in-grades suitable to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting. The overall depth of roughly 3″ including the housing makes it one of the most compact fixtures on the market.

    Fixture Body: Die-Cast Aluminum 6060, anodized black (15 μm)
    Trim: Trimless version has Extra-clear, Tempered glass with silk-screening on underside – Semi-flush version has clear glass rings and sandblasted rounds.
    Drive-over: Up to 4,409 lbs.

    Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
    Wattages (CC/CV) / Sizes: 1.5W (1.65″, CV Only) – 1W/1.5W (2.2″) – 2W/2.5W (3.4″) – 4W/5W (5″)

    IP rating: IP68
    ETL Certification: ETL, wet location

    Optics: Concentric Rings of light.
    Color temperatures: 2700K – 3000K – 4000K.


    Quickship Housings Available: add QS in front of part number

    Selections download as one PDF
    • Spec Page

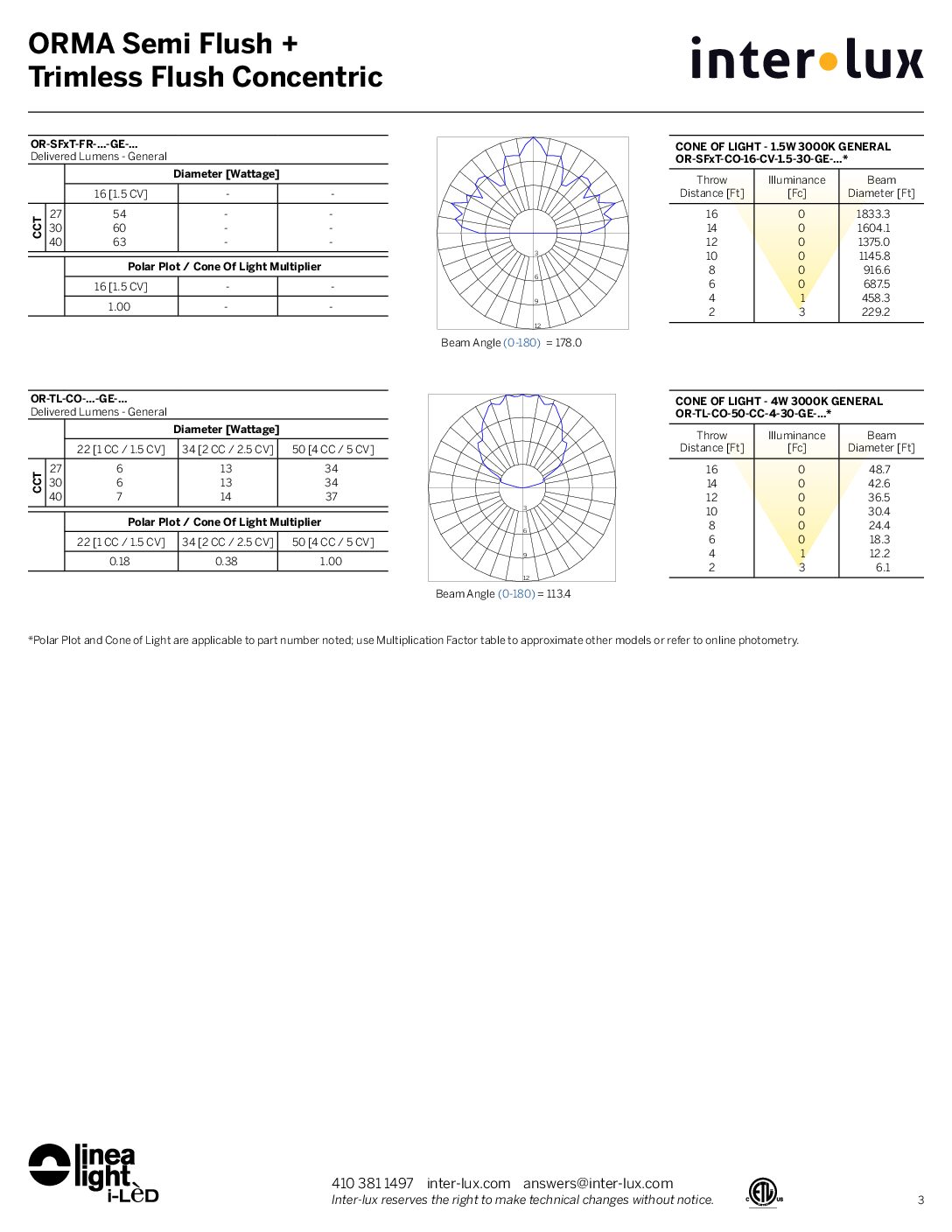

    • Photometry
