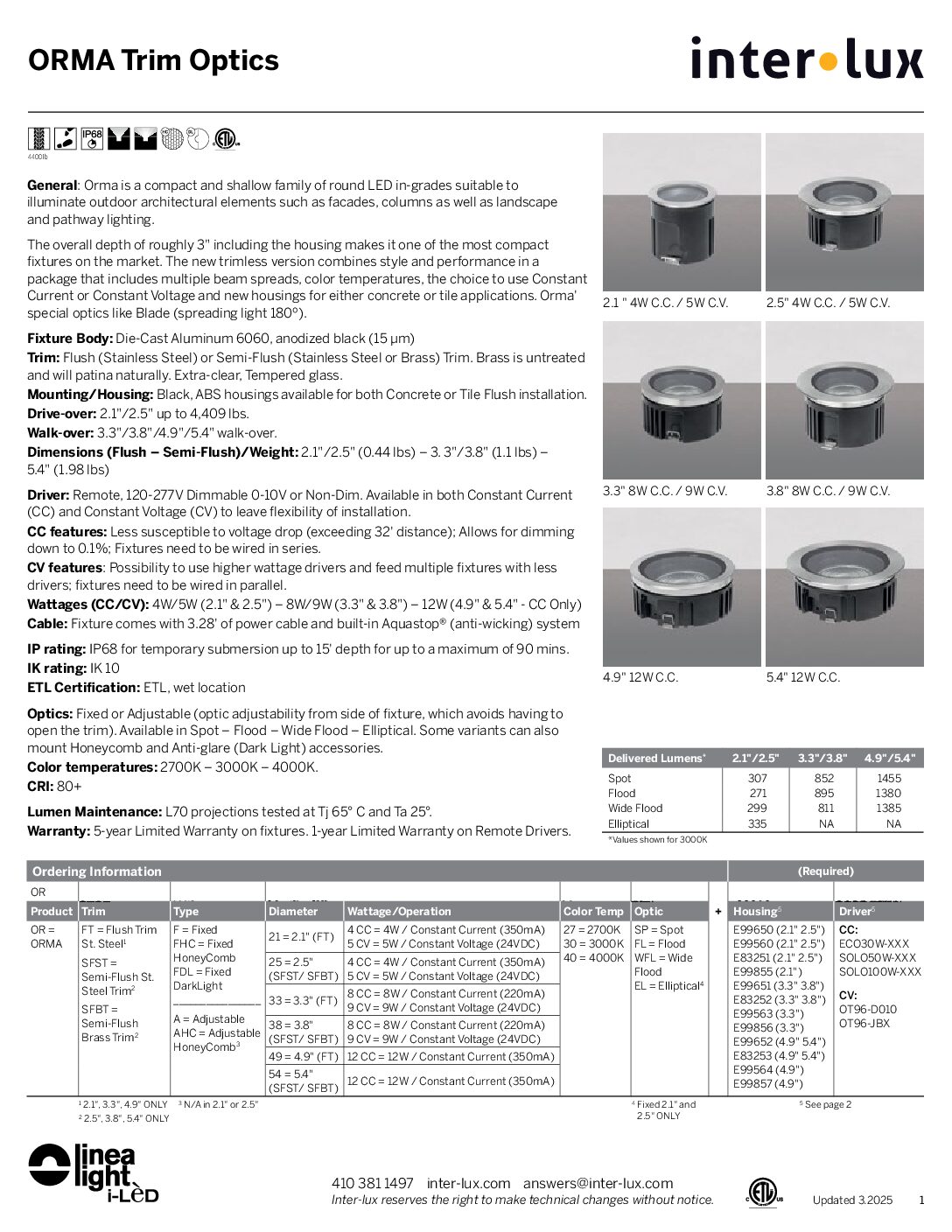

ORMA Trim Optics

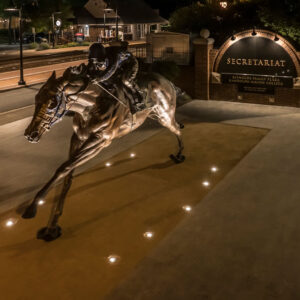

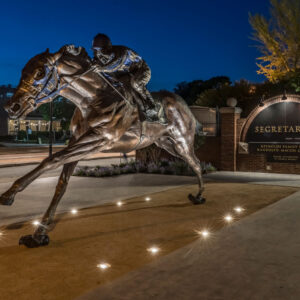

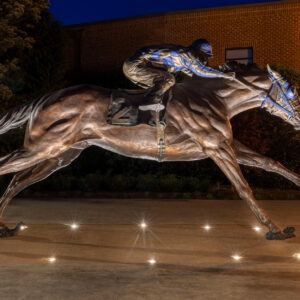

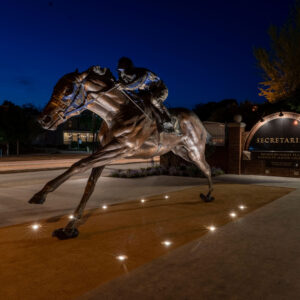

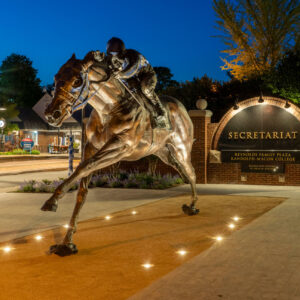

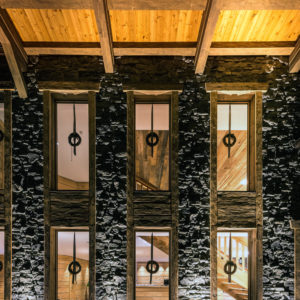

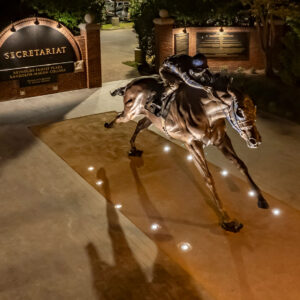

Orma is a compact and shallow family of round LED in-grades suitable to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting. The overall depth of roughly 3″ including the housing makes it one of the most compact fixtures on the market.
Fixture Body: Die-Cast Aluminum 6060, anodized black (15 μm)
Trim: Flush (Stainless Steel) or Semi-Flush (Stainless Steel or Brass) Trim. Brass is untreated and will patina naturally. Extra-clear, Tempered glass.
Drive-over: 2.1″/2.5″ up to 4,409 lbs.
Walk-over: 3.3″/3.8″/4.9″/5.4″ walk-over.
Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
Wattages (CC/CV) / Sizes: 4W/5W (2.1″ & 2.5″) – 8W/9W (3.3″ & 3.8″) – 12W (4.9″ & 5.4″ – CC Only)
IP rating: IP68
ETL Certification: ETL, wet location

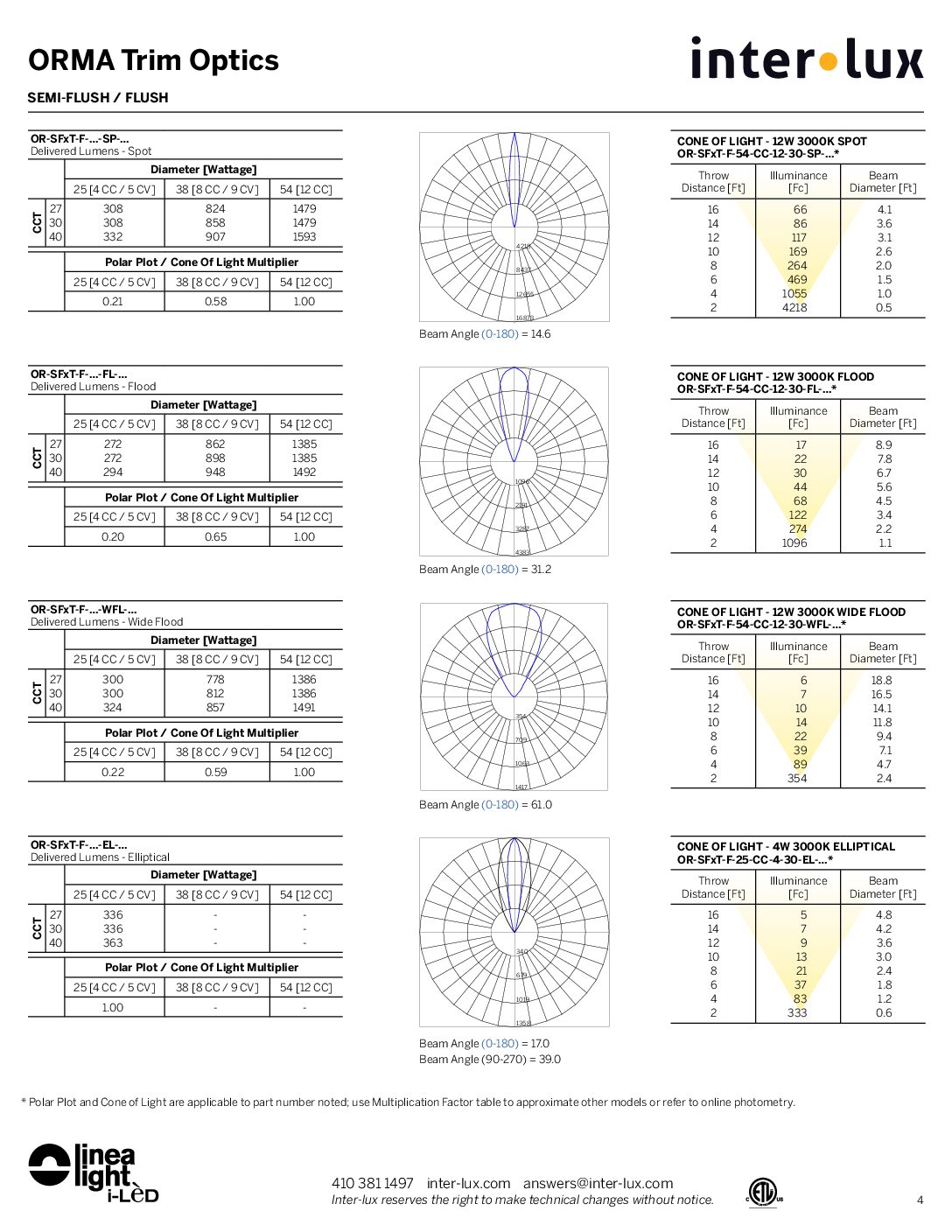

Optics: Fixed or Adjustable. Available in Spot – Flood – Wide Flood – Elliptical. Honeycomb and Anti-glare (Dark Light) accessories available.
Color temperatures: 2700K – 3000K – 4000K.
• View + download Orma brochure
Quickship Available for the following Fixtures + All Orma Housings: add QS in front of part number
| QS-IL-OR-SFST-F-25-4-CC-27-SP | QS-IL-OR-SFST-F-25-4-CC-30-WFL |
| QS-IL-OR-SFST-F-25-4-CC-27-EL | QS-IL-OR-SFST-F-38-8-CC-27-SP |
| QS-IL-OR-SFST-F-25-4-CC-27-FL | QS-IL-OR-SFST-F-38-8-CC-27-FL |
| QS-IL-OR-SFST-F-25-4-CC-27-WFL | QS-IL-OR-SFST-F-38-8-CC-27-WFL |
| QS-IL-OR-SFST-F-25-4-CC-30-SP | QS-IL-OR-SFST-F-38-8-CC-30-SP |
| QS-IL-OR-SFST-F-25-4-CC-30-EL | QS-IL-OR-SFST-F-38-8-CC-30-FL |
| QS-IL-OR-SFST-F-25-4-CC-30-FL | QS-IL-OR-SFST-F-38-8-CC-30-WFL |
