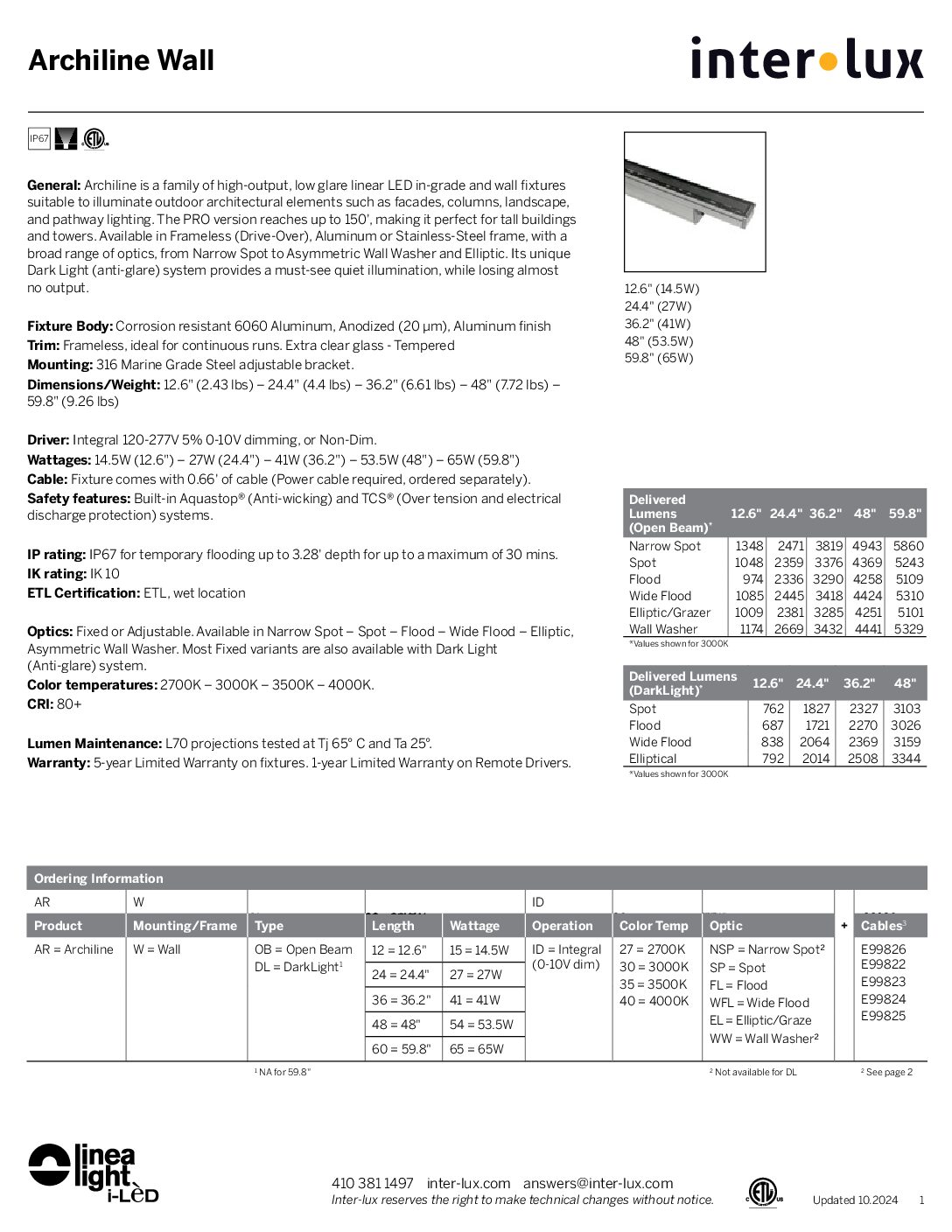

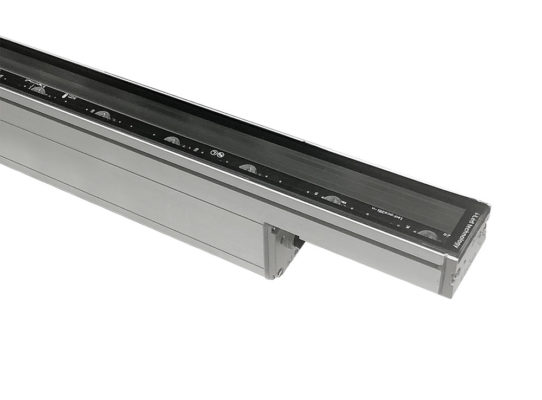

Archiline Wall

Archiline is a family of high-output, low glare linear LED in-grade and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm), Aluminum finish
Trim: Frameless, ideal for continuous runs. Extra clear glass – Tempered
Mounting: 316 Marine Grade Steel adjustable bracket.

Driver: Integral, 120-277V Dimmable 0-10V or Non-Dim.
Wattages/Sizes: 14.5W (12.6″) – 27W (24.4″) – 41W (36.2″) – 53.5W (48″) – 65W (59.8″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed or Adjustable. Available in Narrow Spot – Spot – Flood – Wide Flood – Elliptic, Asymmetric Wall Washer. Most Fixed variants are also available with Dark Light (Anti-glare) system.
Color temperatures: 2700K – 3000K – 3500K – 4000K.
Quickship Housings Available: add QS in front of part number

Selections download as one PDF
  • Spec Page

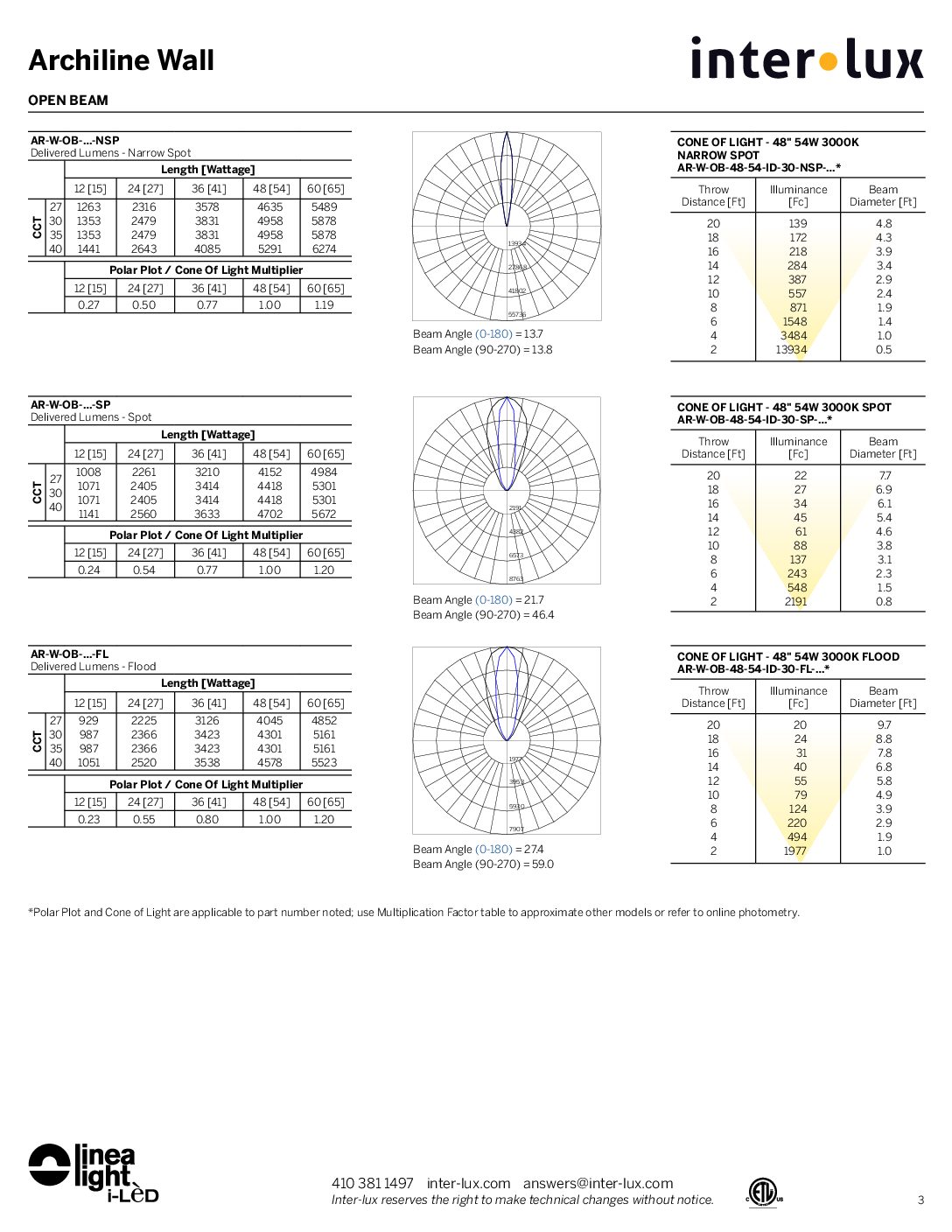

  • Photometry

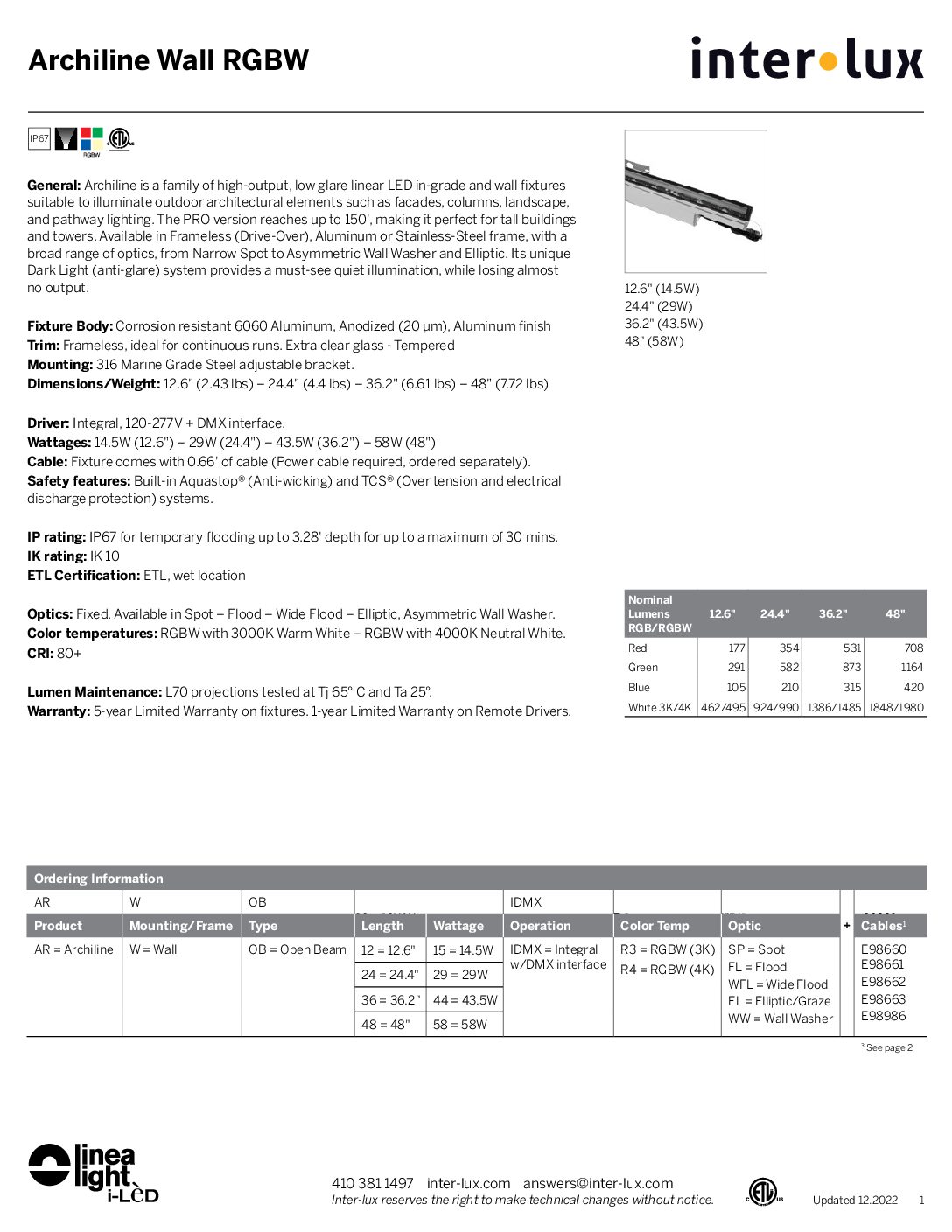

Archiline Wall RGBW

Archiline is a family of high-output, low glare linear LED in-grade and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm), Aluminum finish
Trim: Frameless, ideal for continuous runs. Extra clear glass – Tempered
Mounting: 316 Marine Grade Steel adjustable bracket.

Driver: Integral, 120-277V + DMX interface.
Wattages/Sizes: 14.5W (12.6″) – 29W (24.4″) – 43.5W (36.2″) – 58W (48″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed. Available in Spot – Flood – Wide Flood – Elliptic, Asymmetric Wall Washer.
Color temperatures: RGBW with 3000K Warm White – RGBW with 4000K Neutral White.


Quickship Housings Available: add QS in front of part number

  • Spec Page

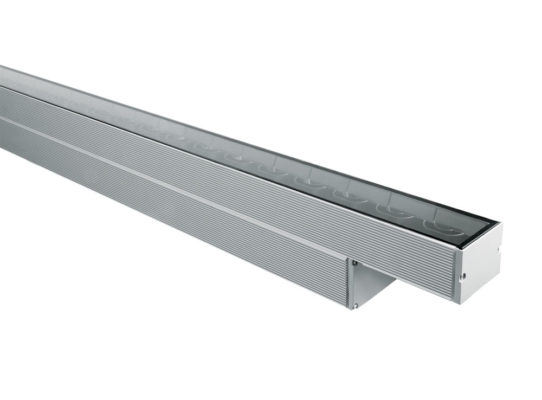

Archiline Pro Wall

Archiline is a family of high-output, low glare linear LED in-grade and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. The PRO version reaches up to 150′, making it perfect for tall buildings and towers.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm), Aluminum finish
Trim: Frameless, ideal for continuous runs. Extra clear glass – Tempered
Mounting: 316 Marine Grade Steel adjustable bracket.

Driver: Integral, 120-277V Dimmable 0-10V or Non-Dim.
Wattage/Size: 35W (14″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed. Available in Narrow Spot – Spot – Flood – Elliptic. Archiline PRO comes with Dark Light (Anti-glare) system as a standard feature.
Color temperatures: 2700K – 3000K – 3500K – 4000K.


Quickship Housings Available: add QS in front of part number

Selections download as one PDF
  • Spec Page
  • Photometry

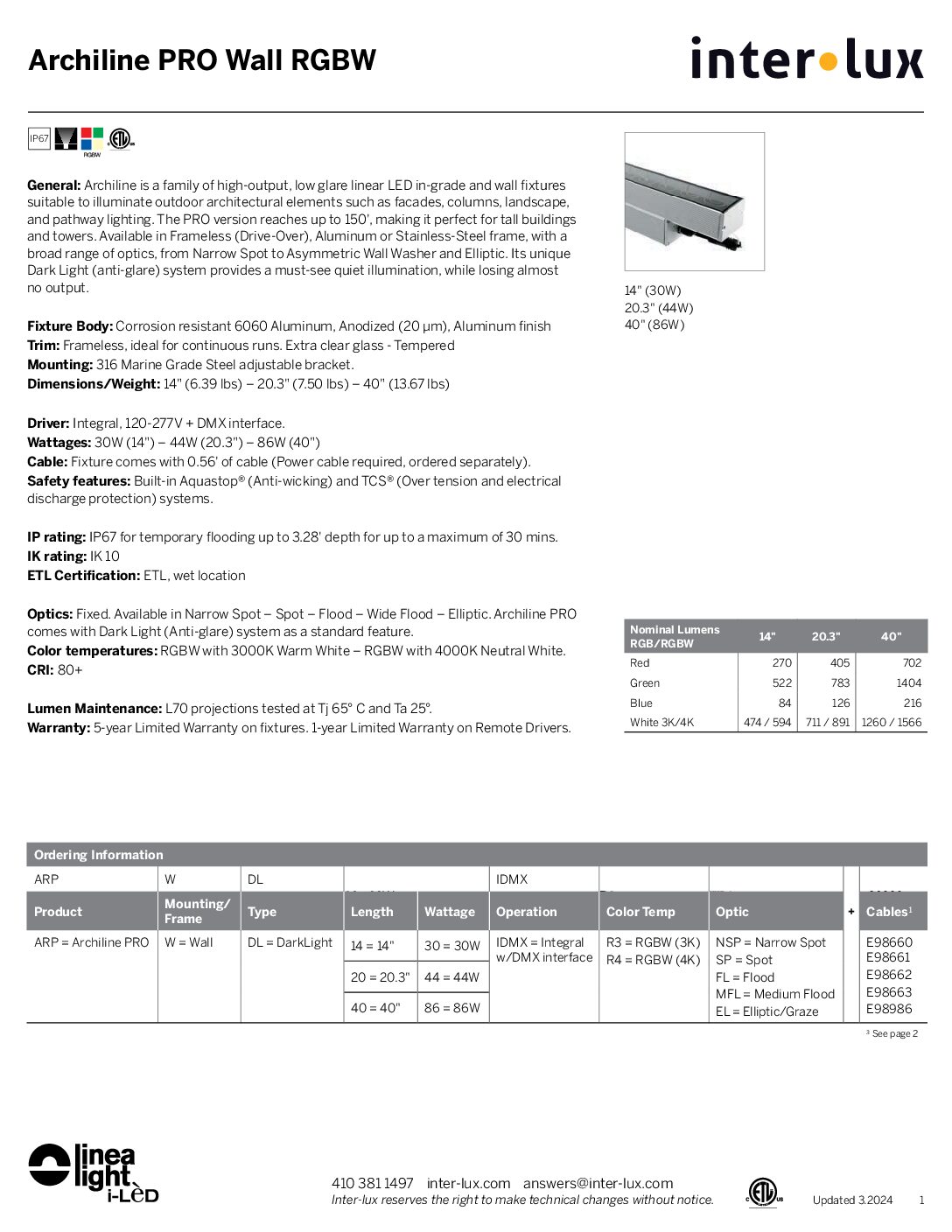

Archiline Pro Wall RGBW

Archiline is a family of high-output, low glare linear LED in-grade and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. The PRO version reaches up to 150′, making it perfect for tall buildings and towers.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm), Aluminum finish
Trim: Frameless, ideal for continuous runs. Extra clear glass – Tempered
Mounting: 316 Marine Grade Steel adjustable bracket.

Driver: Integral, 120-277V + DMX interface.
Wattages/Sizes: 30W (14″) – 44W (20.3″) – 86W (40″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed. Available in Narrow Spot – Spot – Flood – Wide Flood – Elliptic. Archiline PRO comes with Dark Light (Anti-glare) system as a standard feature.
Color temperatures: RGBW with 3000K Warm White – RGBW with 4000K Neutral White.
Quickship Housings Available: add QS in front of part number

  • Spec Page
