Z Cove

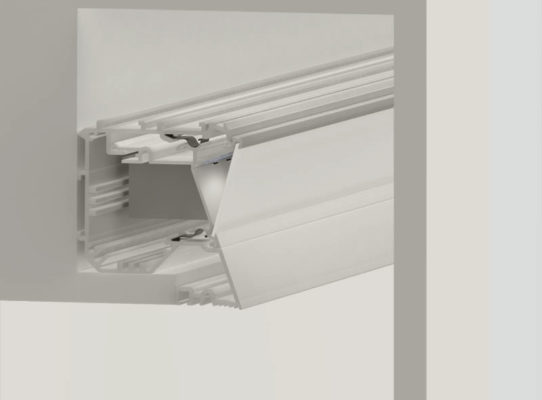

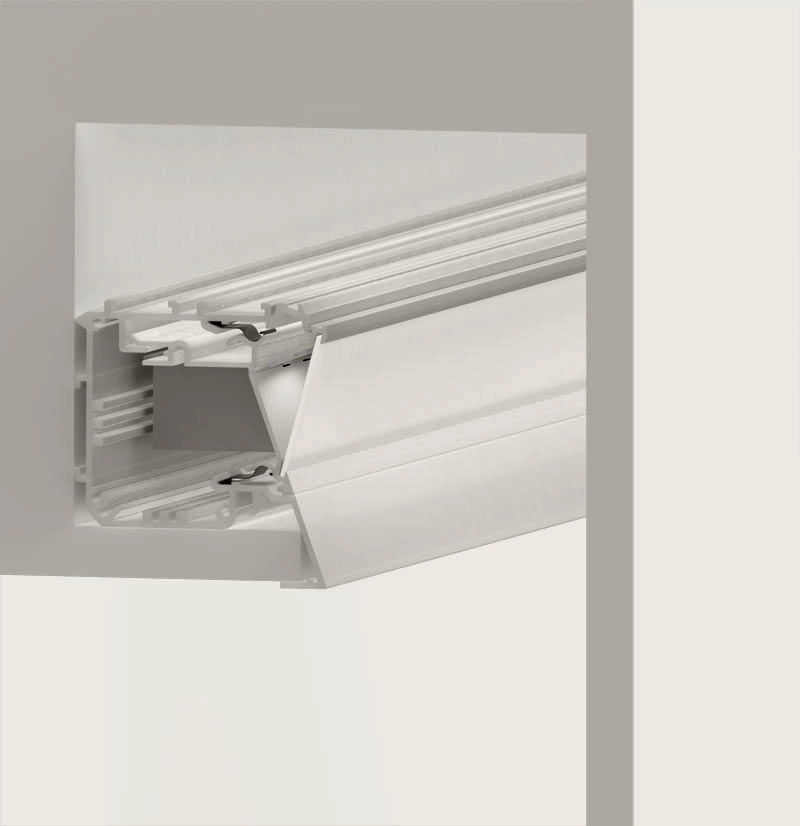

A knife edge perimeter slot system for continuous illumination of vertical surfaces available in any dimension to fully integrate with the architecture.
- Continuous perimeter cove with precision knife edge delivers wash of directed light to adjacent surface.
- Suitable for 1/2″ or 5/8″ drywall ceiling.
- Light source positioned for optimum vertical spread of illumination.

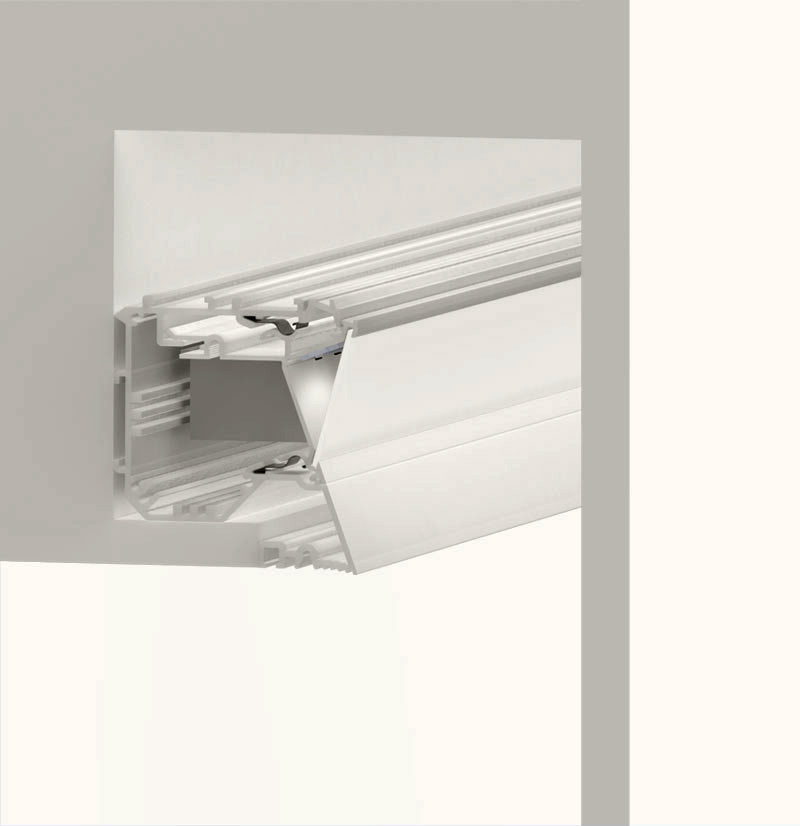

- Extruded aluminum housing, easily installed internal LED tray assembly with integral driver. Field replaceable LED boards.

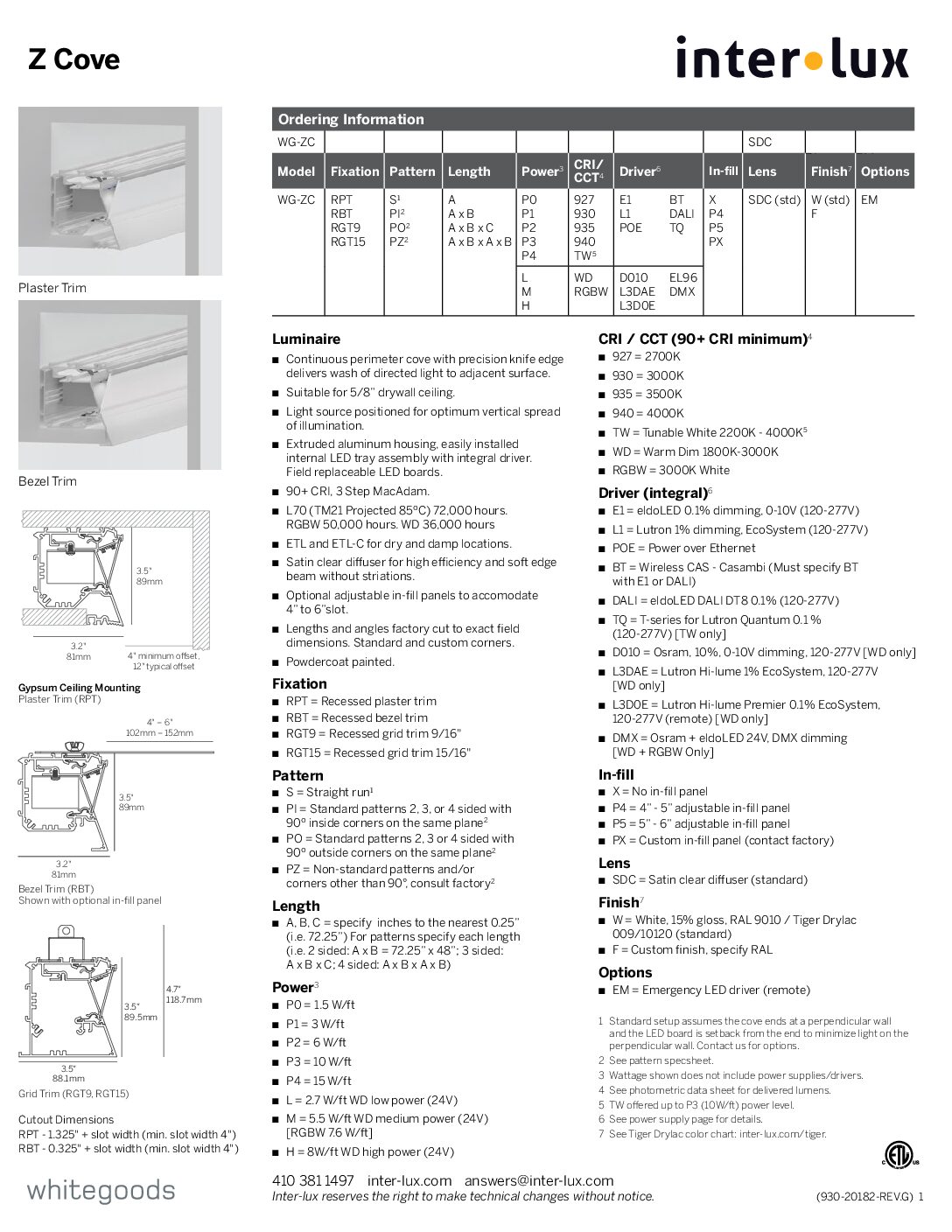

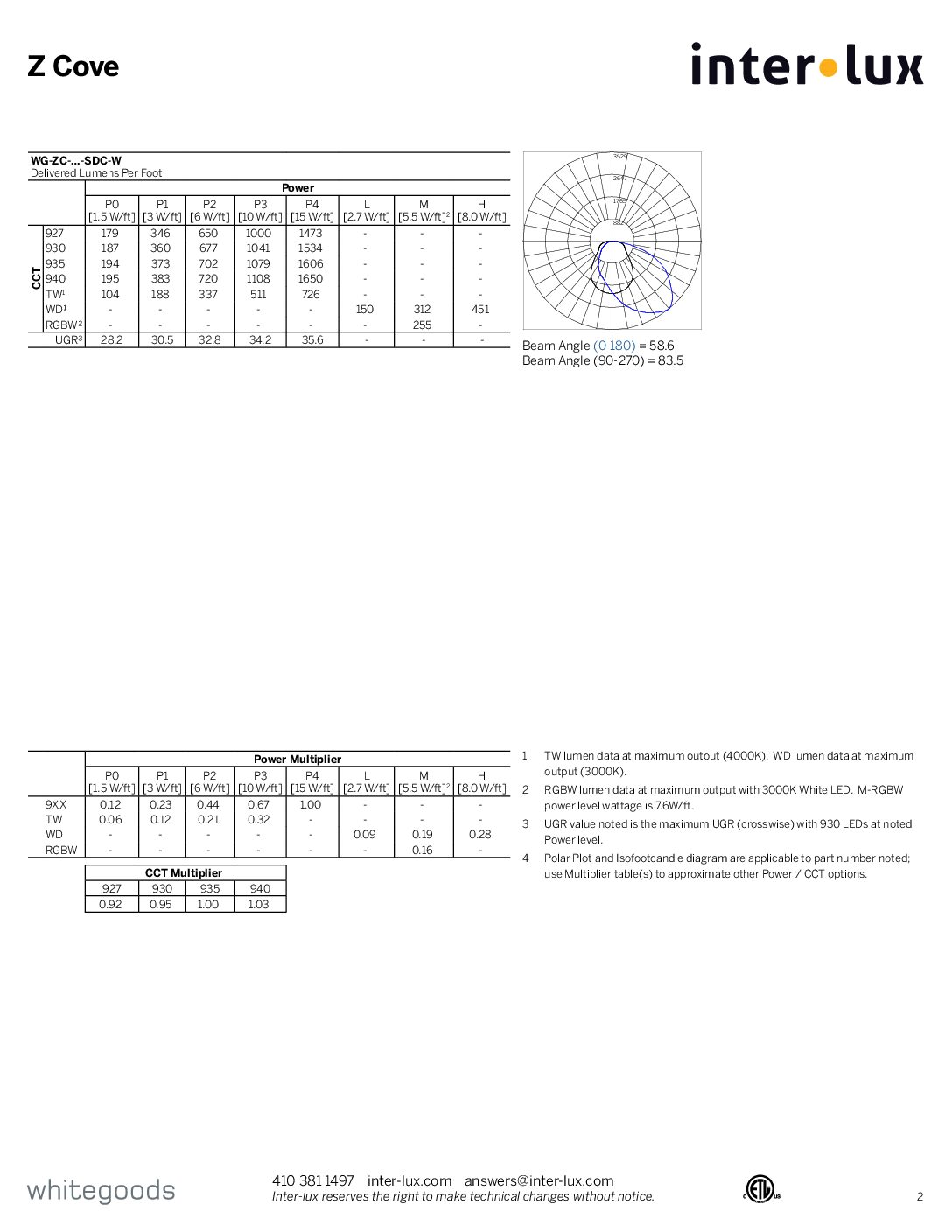

- Efficacy up to 125 lumens per watt (delivered) @ 3000K, see photometry page for details.
- 90+ CRI, 3 Step MacAdam (Static White).
- L70 (TM21 Projected 85ºC) Static White / Tunable White / RGBW 50,000 hours. Warm Dim 36,000 hours.
- ETL and ETL-C for dry and damp locations.
- Satin clear diffuser for high efficiency and soft edge beam without striations.
- Optional adjustable in-fill panels to accommodate 4″ to 6″slot.

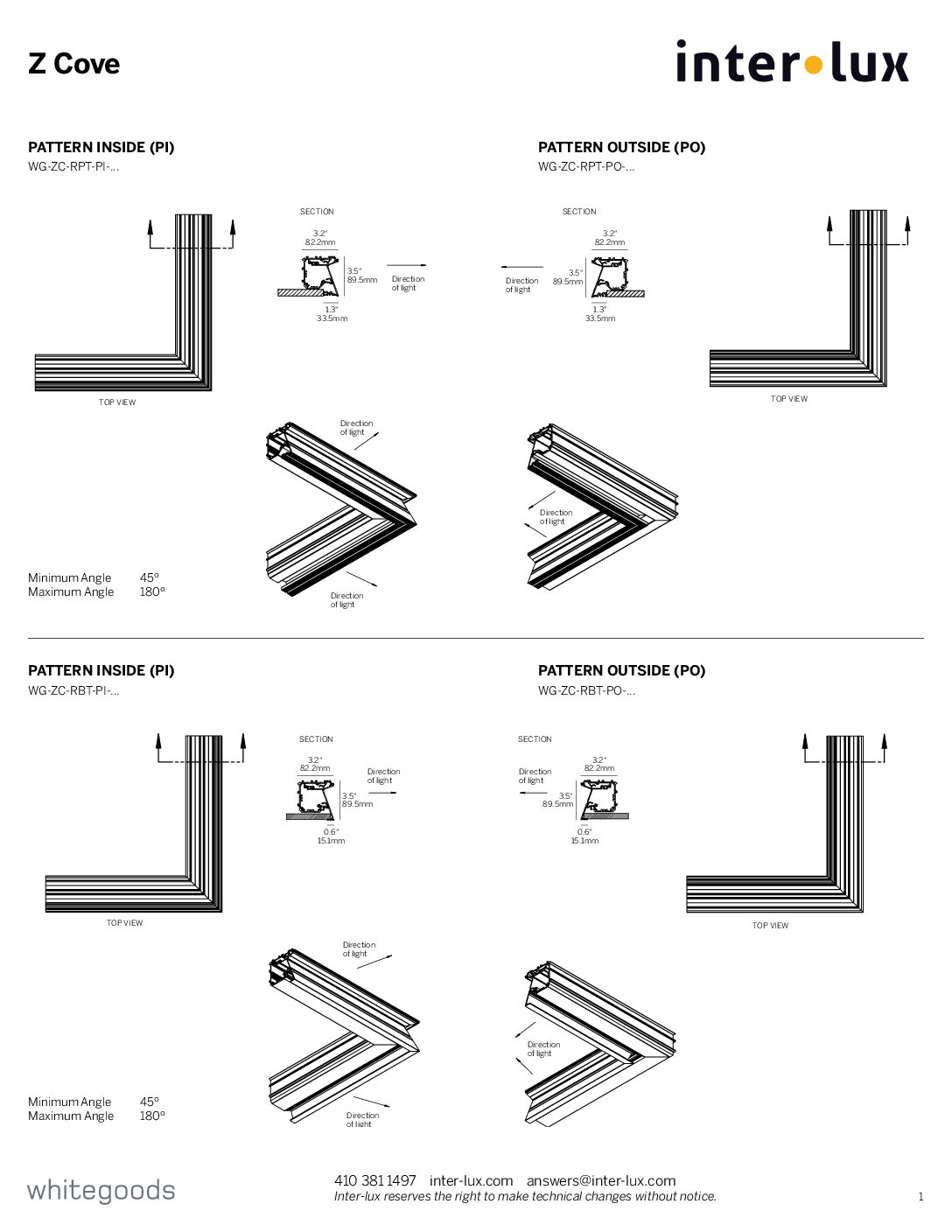

- Lengths and angles factory cut to exact field dimensions. Standard and custom corners.
- Powdercoat painted.
