4 In. ProTools Adjustable Round Recessed (PTD4)

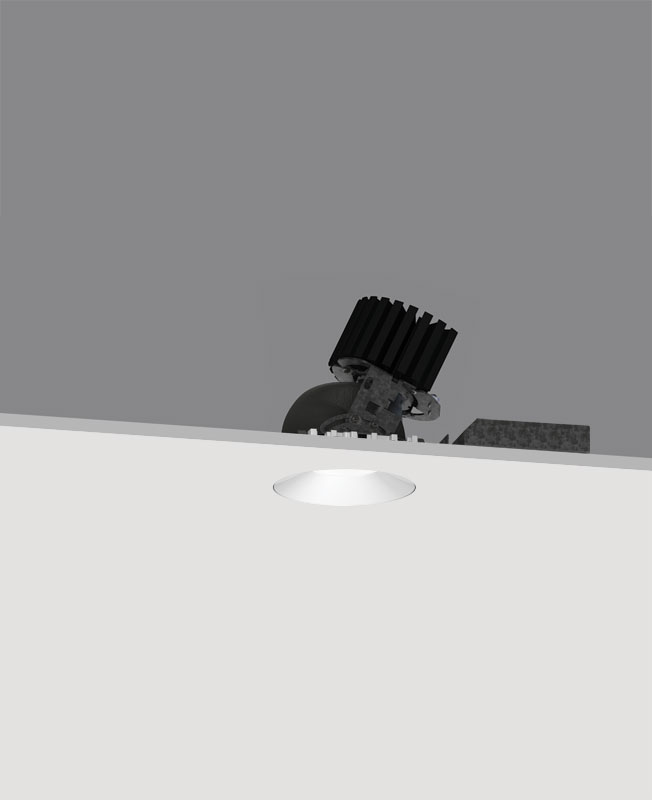

4″ round aperture adjustable downlight for general and accent illumination. Available with round recessed cone, regressed pinhole or asymmetric cone with 0.5″ regressed 2″ round light aperture. Tilt 40º, rotation 365º, 144 step.
- Part of a complete family of 4″ aperture matching downlights.
- 4″ (100mm) round aperture adjustable downlight for general and accent illumination. Available with round recessed cone, regressed pinhole or asymmetric cone with 0.5″ regressed 2″ round light aperture.
- Tilt 40º, rotation 365º, 144 step.
- Efficacy up to 76 lumens per watt (delivered).
- UGR < 19 for some configurations to comply with WELL requirements.
- CREE 2-step McAdam LEDs.
- CRI >92+ standard, 98+ optional.
- L70 (TM21 Projected 85C) Static White 55,400 hours, TW + WD 55,000 hours, 8º (Narrow) = 109,000 hours.
- ETL and ETL-C for dry and damp location standard, Wet location optional.
- Luminaire and driver installed and maintained from below the ceiling. Maximum ceiling thickness 1″.
- Housings available (see housings page).
- Multiple luminaire configurations for plaster trim (see detail page).

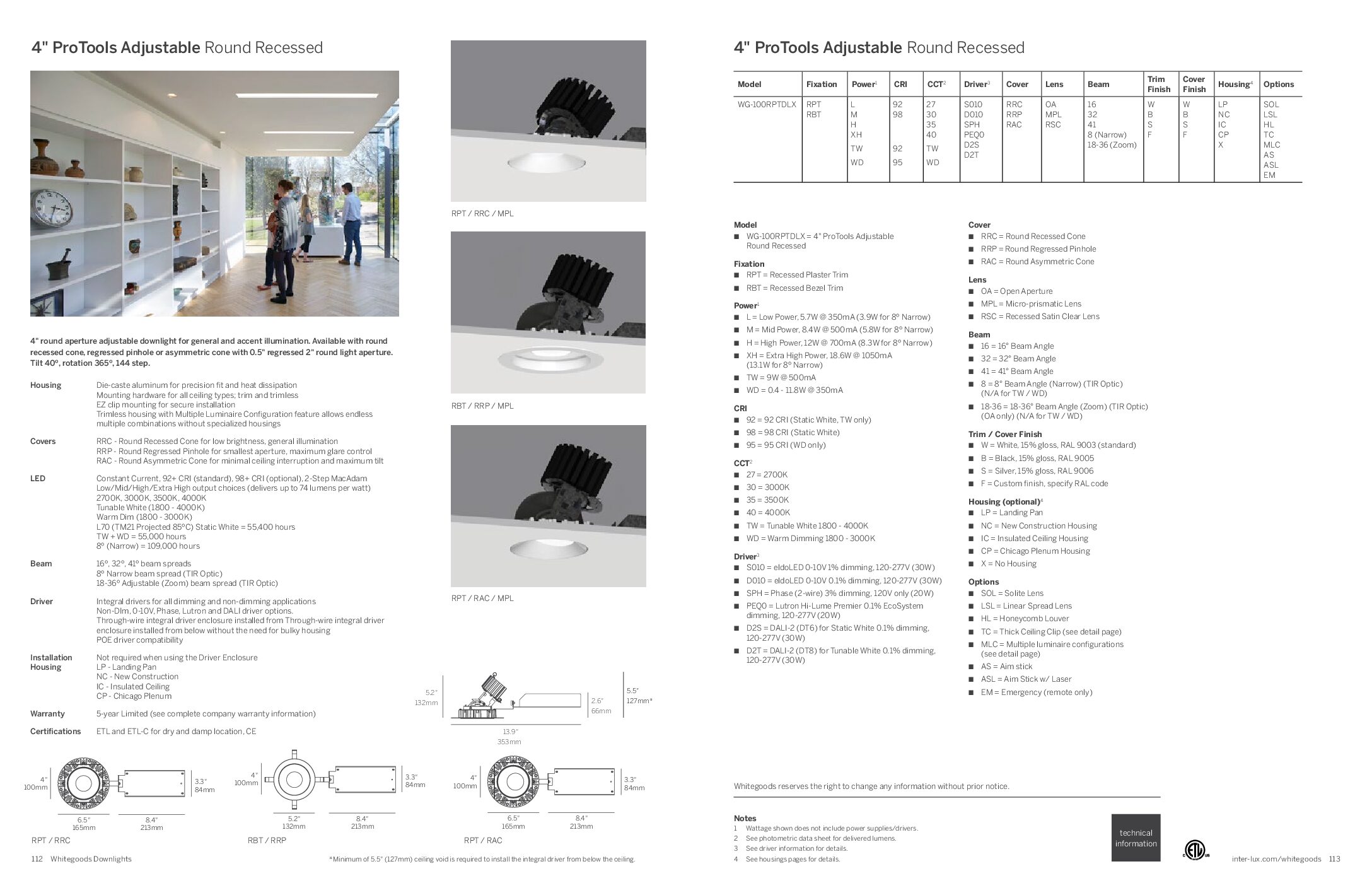

View Downlights Flipbook
Selections download as one PDF

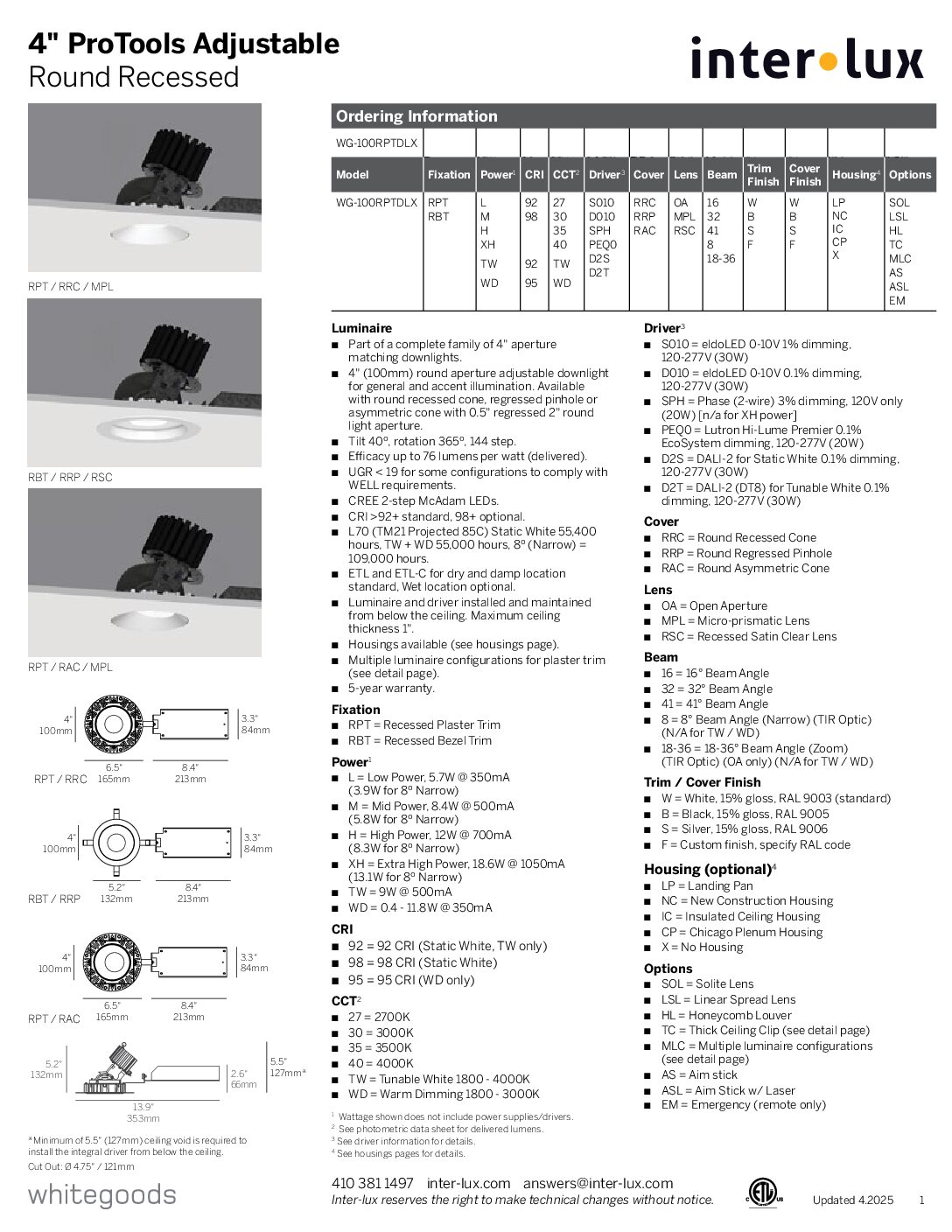

- Spec Page
-

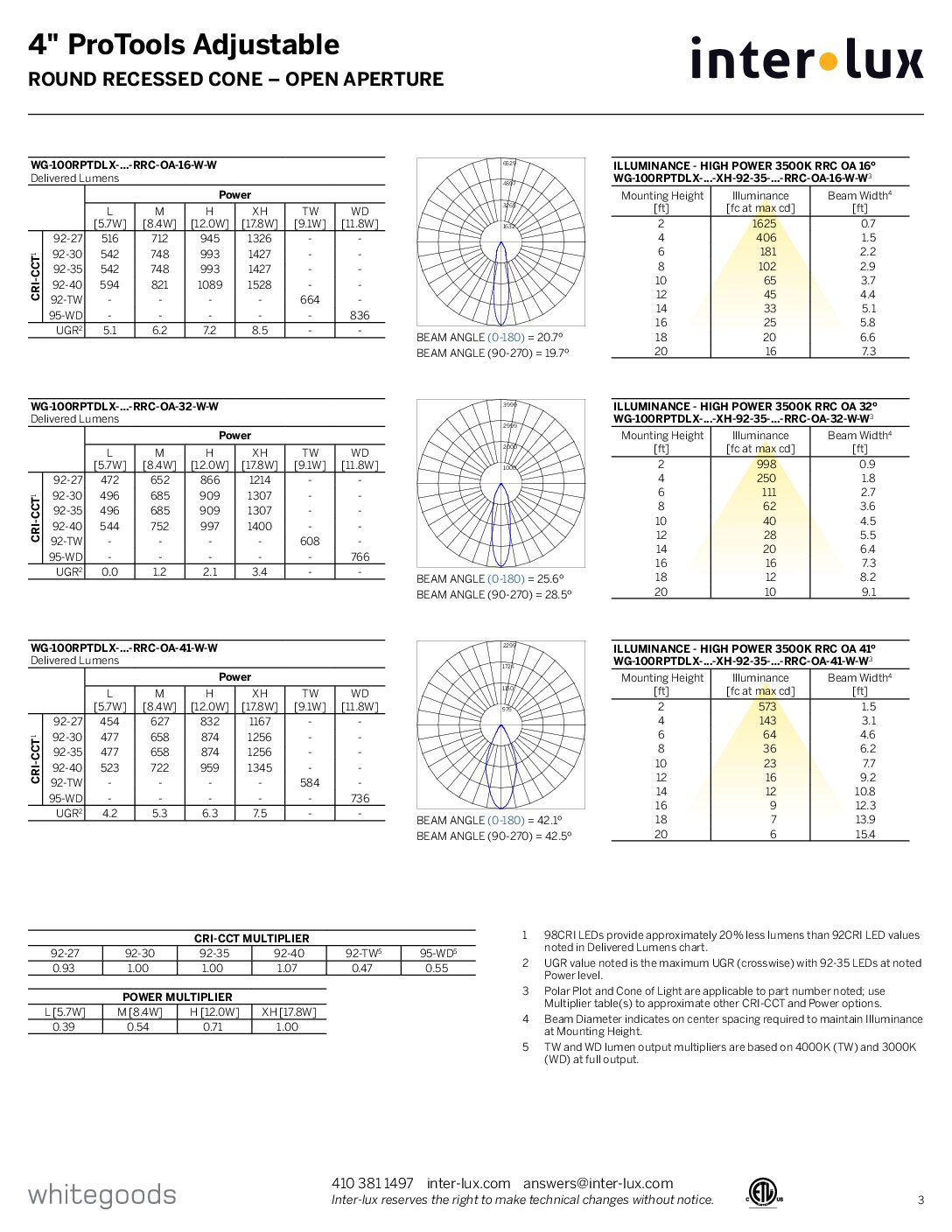

- Photometry
-

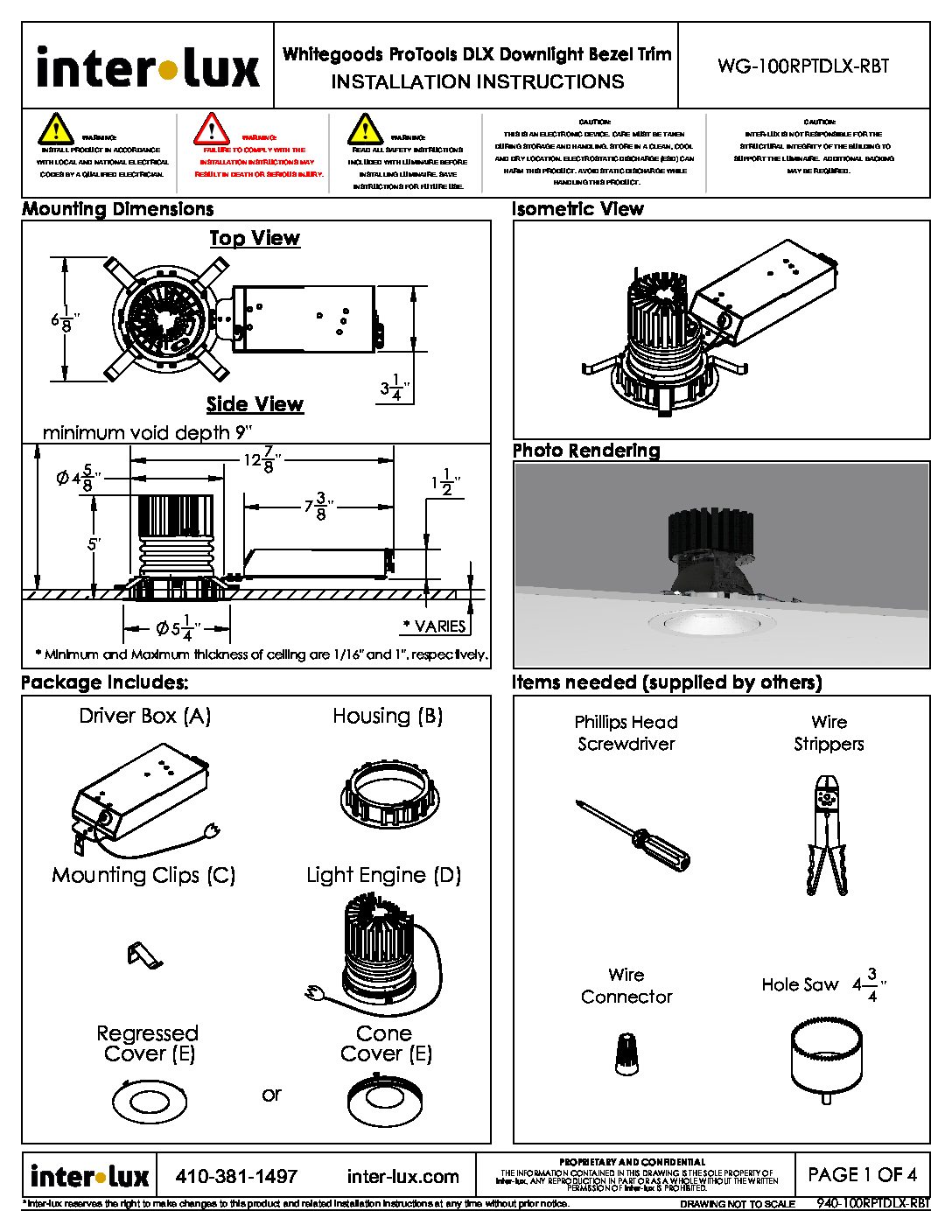

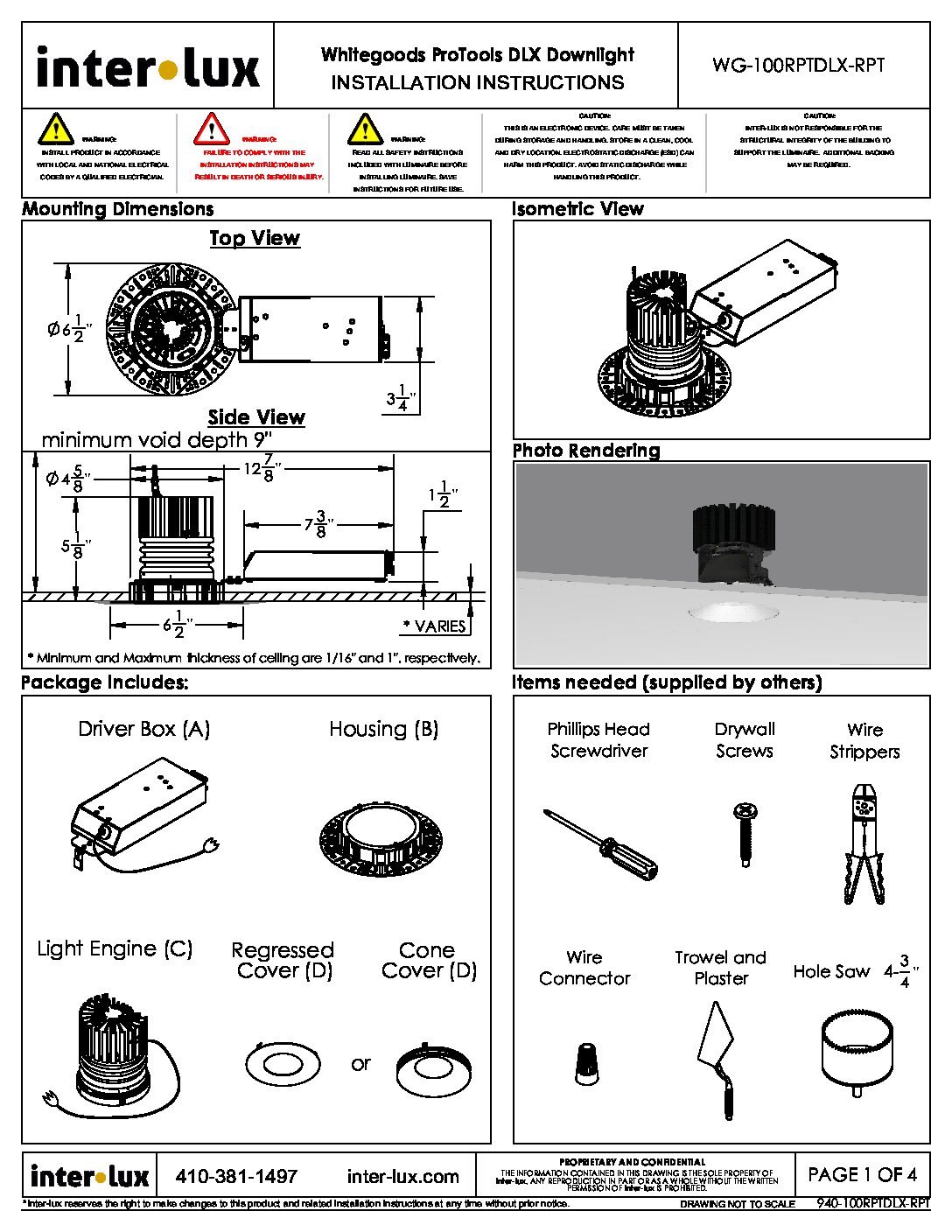

- Details
-
- Housings
-
- Driver Information
-
- Emergency Constant Current
-
