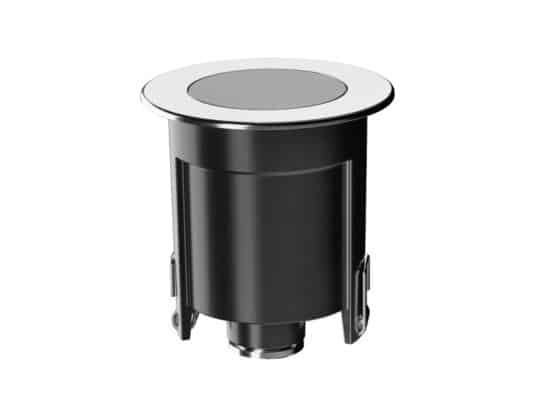

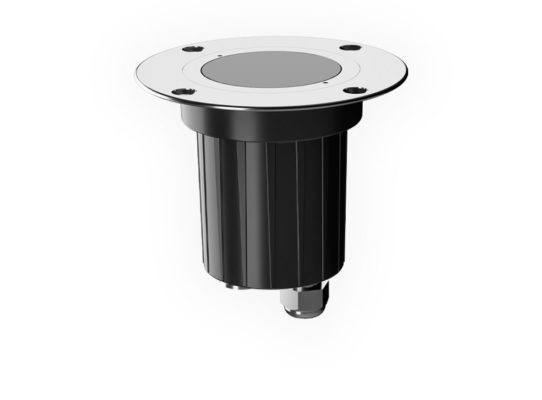

Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. The standard Suelo R provides maximum output and a selection of accessories to control the emission based on application needs.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum (2.5″ & 3.6″). Brass (1.2″).
Trim: Semi-Flush (Stainless Steel) Trim with Extra-clear Tempered glass.
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs. (2.5″ & 3.6″). 1.2″ variant is Walk-Over Only.

Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Some variants available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
Wattages/Sizes: 2W (1.2″ – CC Only) – 4.2W (2.5″ – CC/CV) – 7.2W (3.6″ – CC/CV) – 2W CC / 2.5W CV (USP 2.5″ / HSP 3.6″)

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed. Available in Hyper Spot – Ultra Spot – Narrow Spot – Spot – Narrow Flood – Flood – Wide Flood – Elliptical. Honeycomb louvers available.
Color temperatures: 2700K – 3000K – 4000K.

• View + download Suelo brochure

Quickship Housings Available: add QS in front of part number

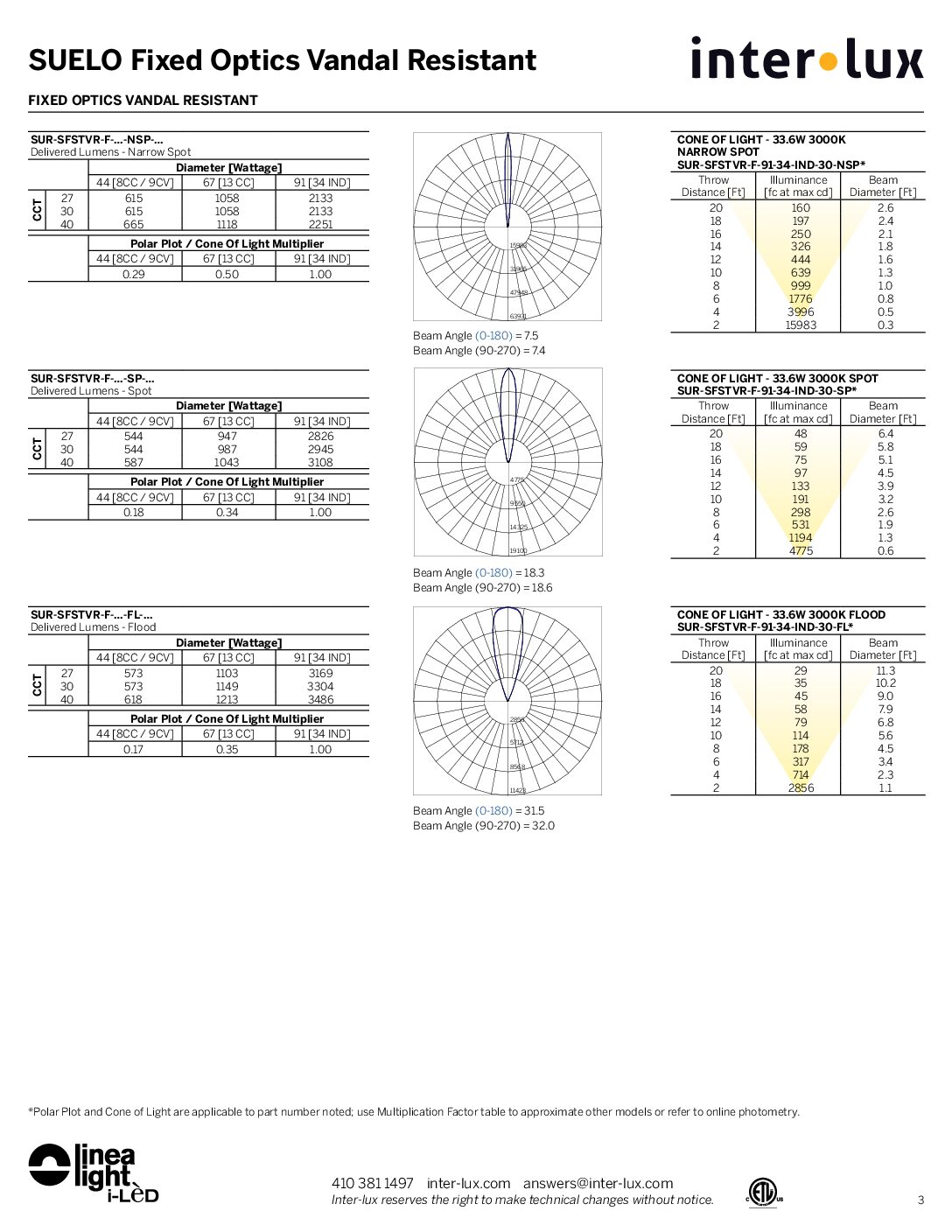

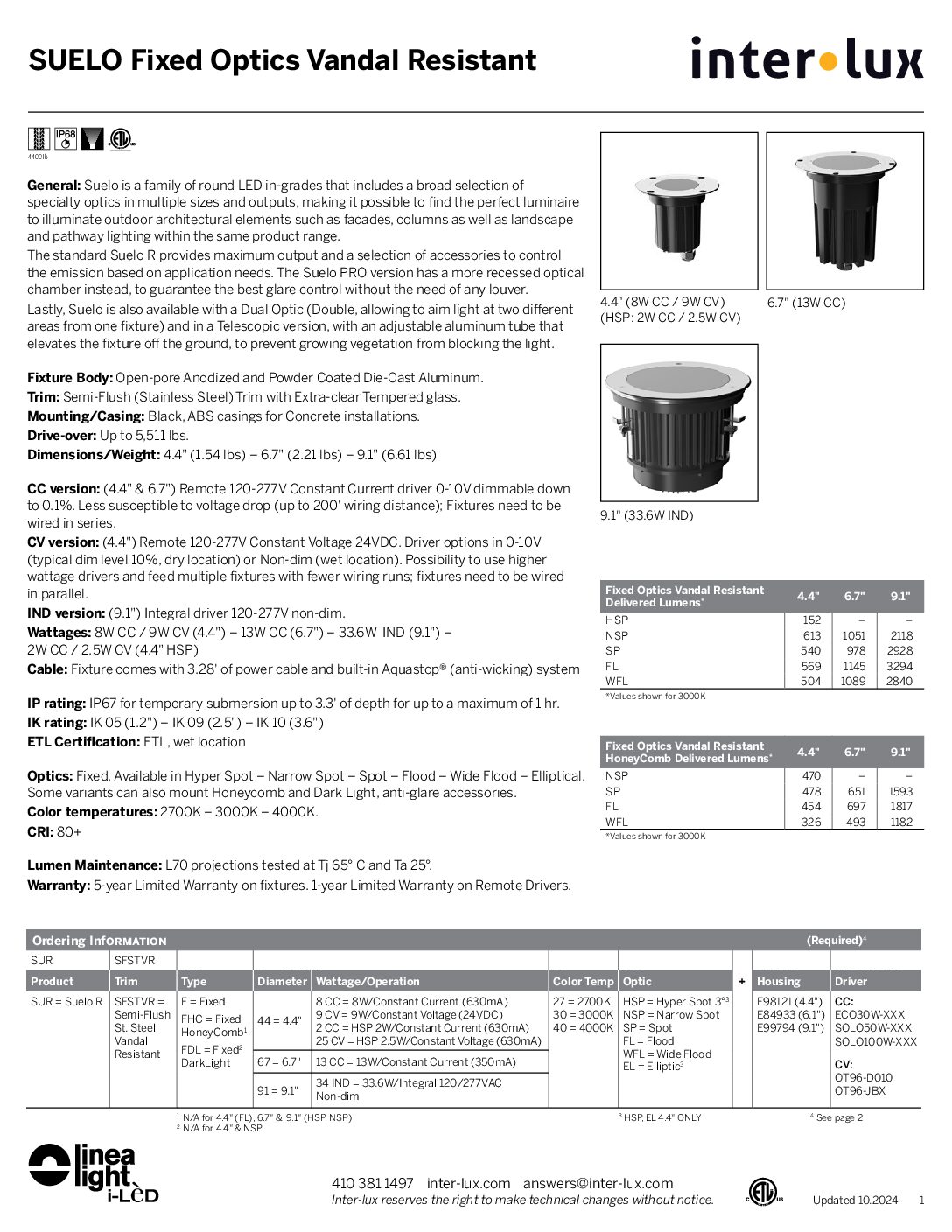

Spec PageSuelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. The standard Suelo R provides maximum output and a selection of accessories to control the emission based on application needs.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum.
Trim: Semi-Flush (Stainless Steel) Trim with Extra-clear Tempered glass.
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs.

CC version: (4.4″ & 6.7″) Remote 120-277V Constant Current driver 0-10V dimmable down to 0.1%. Less susceptible to voltage drop (up to 200′ wiring distance); Fixtures need to be wired in series.
CV version: (4.4″) Remote 120-277V Constant Voltage 24VDC. Driver options in 0-10V (typical dim level 10%, dry location) or Non-dim (wet location). Possibility to use higher wattage drivers and feed multiple fixtures with fewer wiring runs; fixtures need to be wired in parallel.
ID version: (9.1″) Integral 0-10V driver.
Wattages: 8W CC / 9W CV (4.4″) – 13W CC (6.7″) – 33.6W IND (9.1″) – 2W CC / 2.5W CV (4.4″ HSP)

IP rating: IP67
ETL Certification: ETL, wet location

Optic: Fixed. Available in Hyper Spot – Narrow Spot – Spot – Flood – Wide Flood – Elliptical. Some variants can also mount Honeycomb and Dark Light, anti-glare accessories.
Color temperatures: 2700K – 3000K – 4000K.
CRI: 80+

• View + download Suelo brochure

Quickship Housings Available: add QS in front of part number

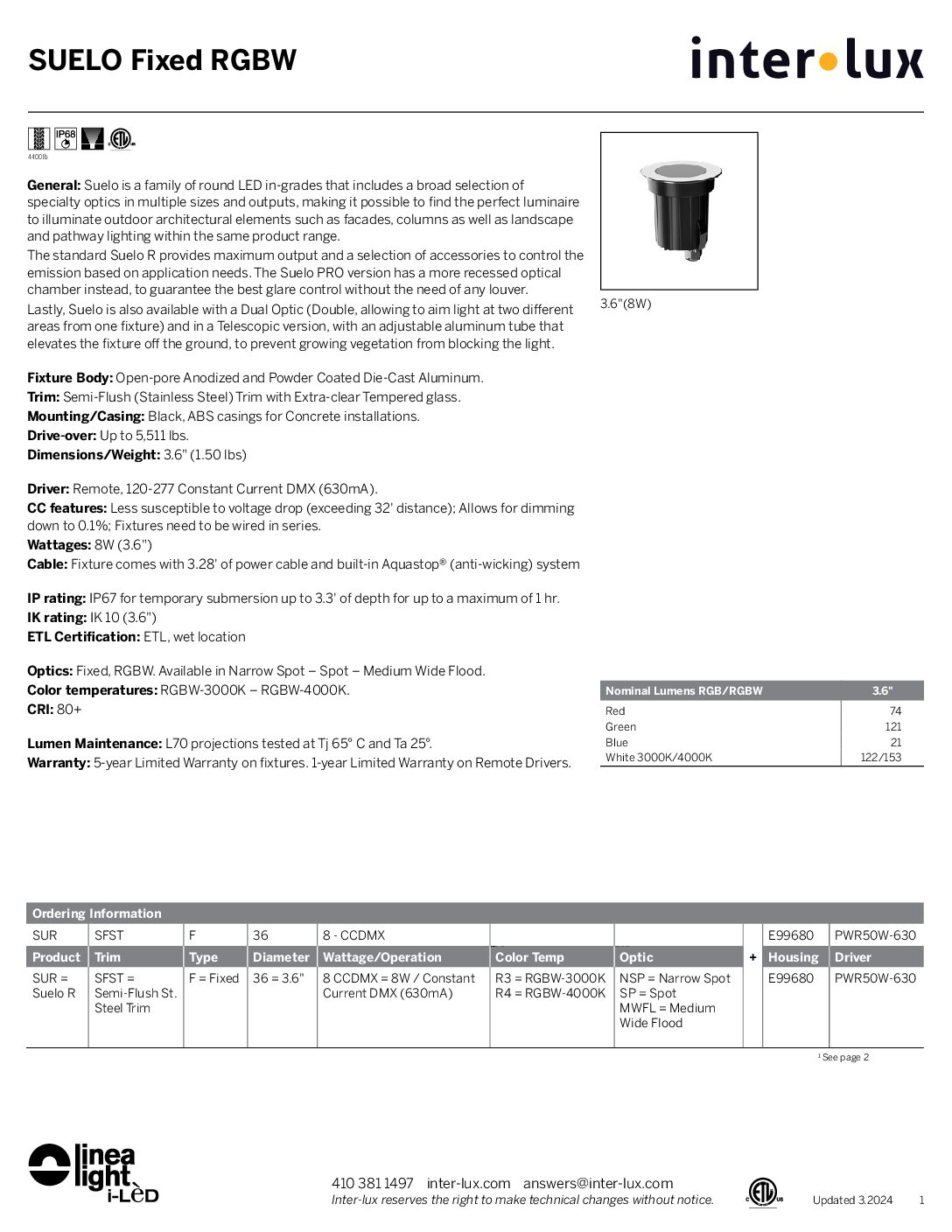

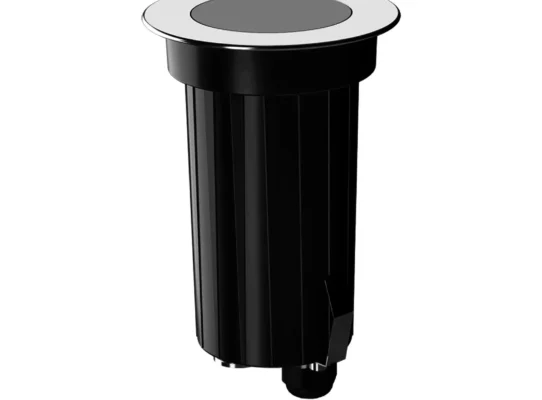

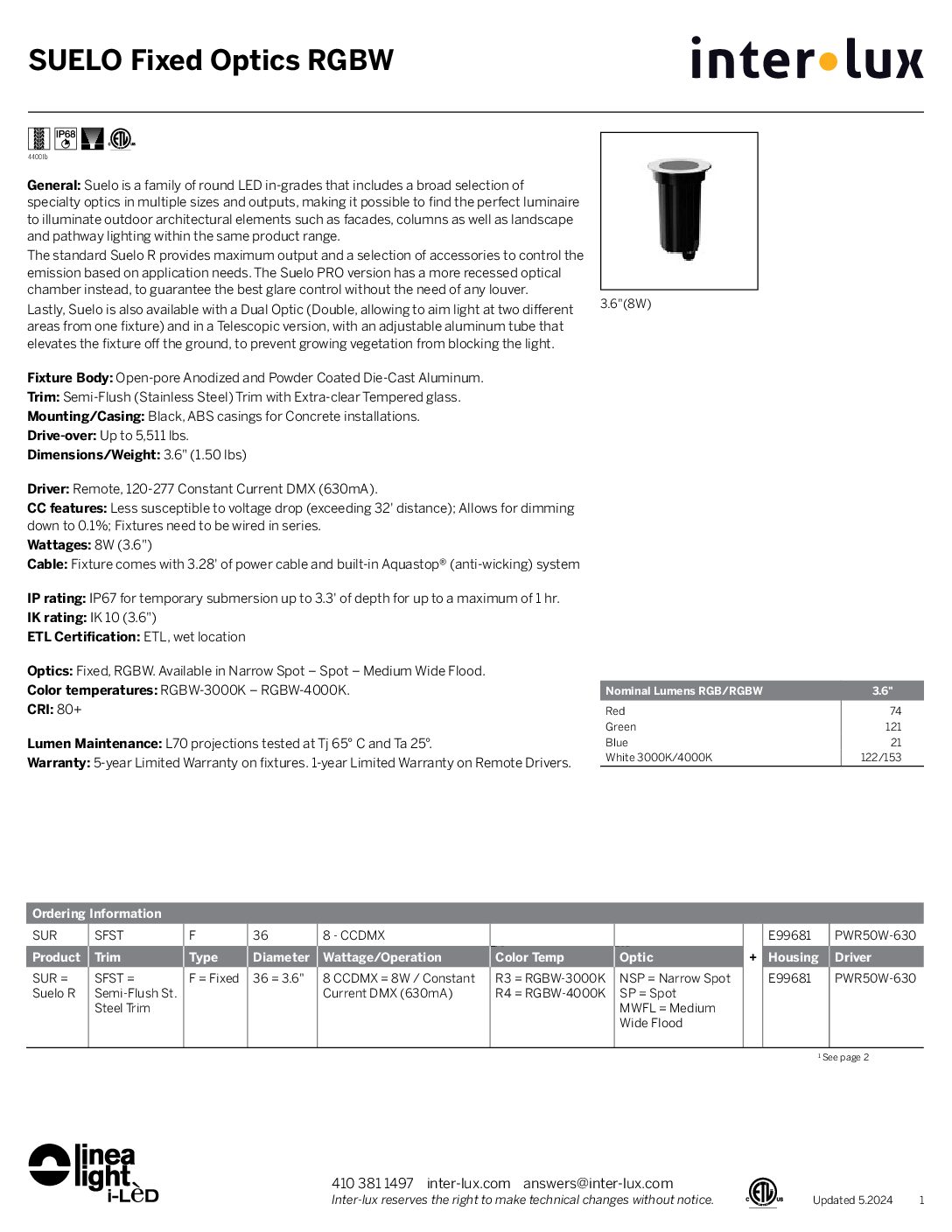

Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. The standard Suelo R provides maximum output and a selection of accessories to control the emission based on application needs.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum.
Trim: Semi-Flush (Stainless Steel) Trim with Extra-clear Tempered glass.
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs.

Driver: Remote, 120-277 Constant Current DMX (630mA).
Wattage/Size: 8W (3.6″)

IP rating: IP67 for temporary submersion up to 3.3′ of depth for up to a maximum of 1 hr.
ETL Certification: ETL, wet location

Optics: Fixed, RGBW. Available in Narrow Spot – Spot – Medium Wide Flood.
Color temperatures: RGBW-3000K – RGBW-4000K.

• View + download Suelo brochure

Quickship Housings Available: add QS in front of part number

Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. The standard Suelo R provides maximum output and a selection of accessories to control the emission based on application needs.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum.
Trim: Semi-Flush (Stainless Steel) Trim with Extra-clear Tempered glass.
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs.

Driver: Remote, 120-277V Constant Current DMX (630mA).
Wattages/Sizes: R4.4″,6.1″ & 9.1″: Remote, 120-277V Constant Current DMX (630mA).
12.4″ & 12.1″: Integral, 120-277V + DMX interface

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed, RGBW. Available in Narrow Spot – Spot – Flood – Medium Wide Flood –
Wide Flood.
Color temperatures: RGBW-3000K – RGBW-4000K.
CRI: 80+

• View + download Suelo brochure

Quickship Housings Available: add QS in front of part number

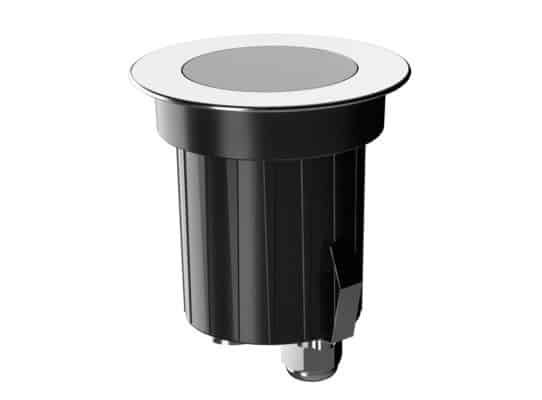

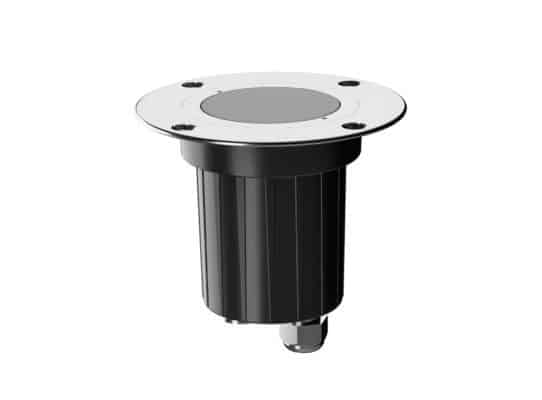

Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. The standard Suelo R provides maximum output and a selection of accessories to control the emission based on application needs.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum (2.5” & 3.6”). Brass (1.2”).
Trim: Semi-Flush Stainless Steel Trim with Frosted glass.
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs. (2.5” & 3.6”). 1.2” variant is Walk-Over Only.

Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Some variants available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
Wattages/Sizes: 2W (1.2” – CC Only) – 4.2W (2.5”) – 7.2W (3.6”)

IP rating: IP67
ETL Certification: ETL, wet location

Optic: Fixed, Frosted.
Color temperatures: 2700K – 3000K – 4000K.

• View + download Suelo brochure

Quickship Housings Available: add QS in front of part number

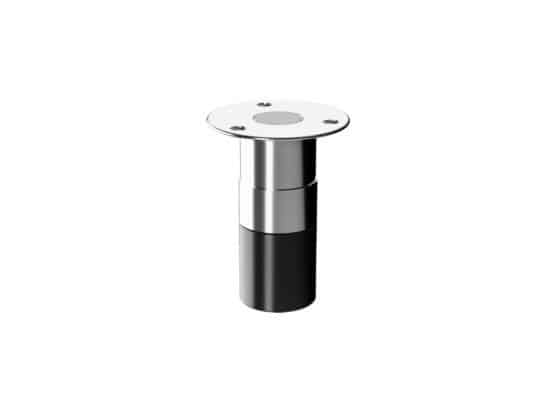

Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. The standard Suelo R provides maximum output and a selection of accessories to control the emission based on application needs.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum.
Trim: Semi-Flush Stainless-Steel Trim with Frosted glass.
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs.

Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
Wattage/Size: 8W / 9W (4.4)”

IP rating: IP67
ETL Certification: ETL, wet location

Optic: Fixed, Frosted.
Color temperatures: 2700K – 3000K – 4000K.


Quickship Housings Available: add QS in front of part number

Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. The standard Suelo R provides maximum output and a selection of accessories to control the emission based on application needs.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum (2.5″ & 3.6″).
Trim: Semi-Flush (Stainless Steel or OT58 Raw Brass) Trim (Brass is untreated and will patina naturally), with Extra-clear Tempered glass.
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs.

Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
Wattages/Sizes: 4.2W (2.5″) – 7.2W (3.6″)

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Adjustable. Available in Narrow Flood – Flood – Wide Flood.
Color temperatures: 2700K – 3000K – 4000K.
CRI: 80+

• View + download Suelo brochure

Quickship Housings Available: add QS in front of part number

Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. The standard Suelo R provides maximum output and a selection of accessories to control the emission based on application needs.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum.
Trim: Semi-Flush (Stainless Steel) Trim with Extra-clear Tempered glass.
Mounting/Casing: Black, ABS casings for Concrete installations. Vandal Resistant, secured with Hex or Torx screws (check installation instructions for details).
Drive-over: Up to 5,511 lbs.

Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. 4.4″ variant available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
Wattages/Sizes: 8W / 9W (4.4″) – 13W (6.7″) – 33.6W (9.1″) – 48.2W (12.1″ & 12.4″)

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Adjustable. Available in Ultra Spot – Spot – Narrow Flood – Flood – Medium Wide Flood – Wide Flood.
Color temperatures: 2700K – 3000K – 4000K.
CRI: 80+

• View + download Suelo brochure

Quickship Housings Available: add QS in front of part number

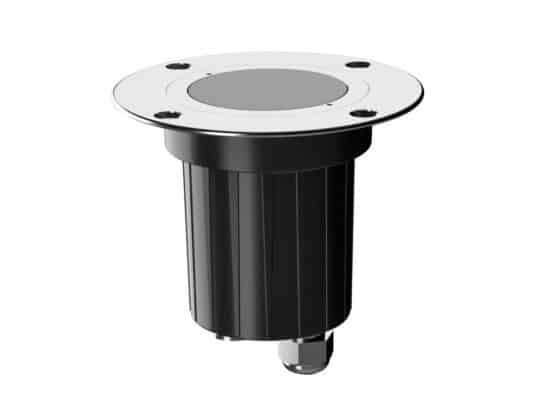

Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. The standard Suelo R provides maximum output and a selection of accessories to control the emission based on application needs.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum.
Trim: Semi-Flush Stainless-Steel Trim with Extra-clear Tempered Glass.
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs.

Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
Wattages/Sizes: 4.2W (2.5″) – 7.2W (3.6″)”

IP rating: IP67
ETL Certification: ETL, wet location

Optic: Fixed, Wall Washer.
Color temperatures: 2700K – 3000K – 4000K.

• View + download Suelo brochure

Quickship Housings Available: add QS in front of part number

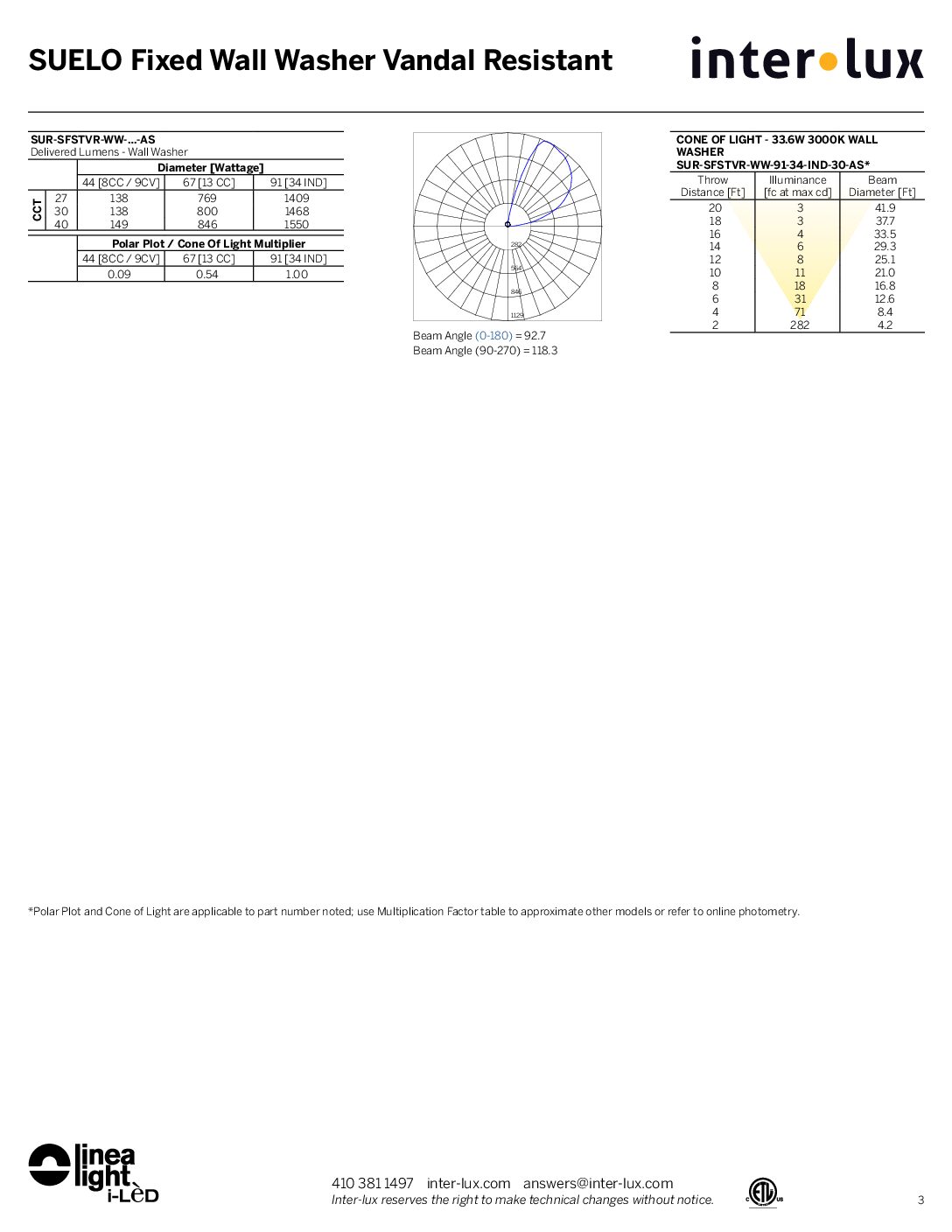

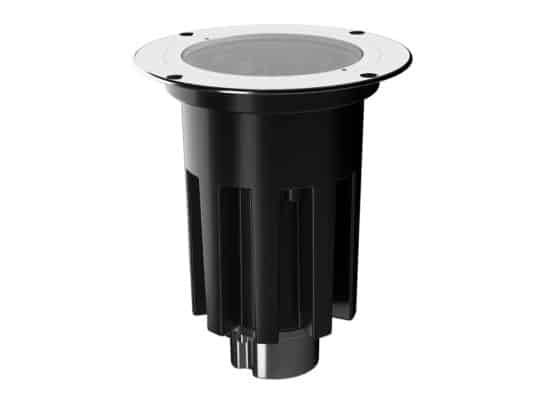

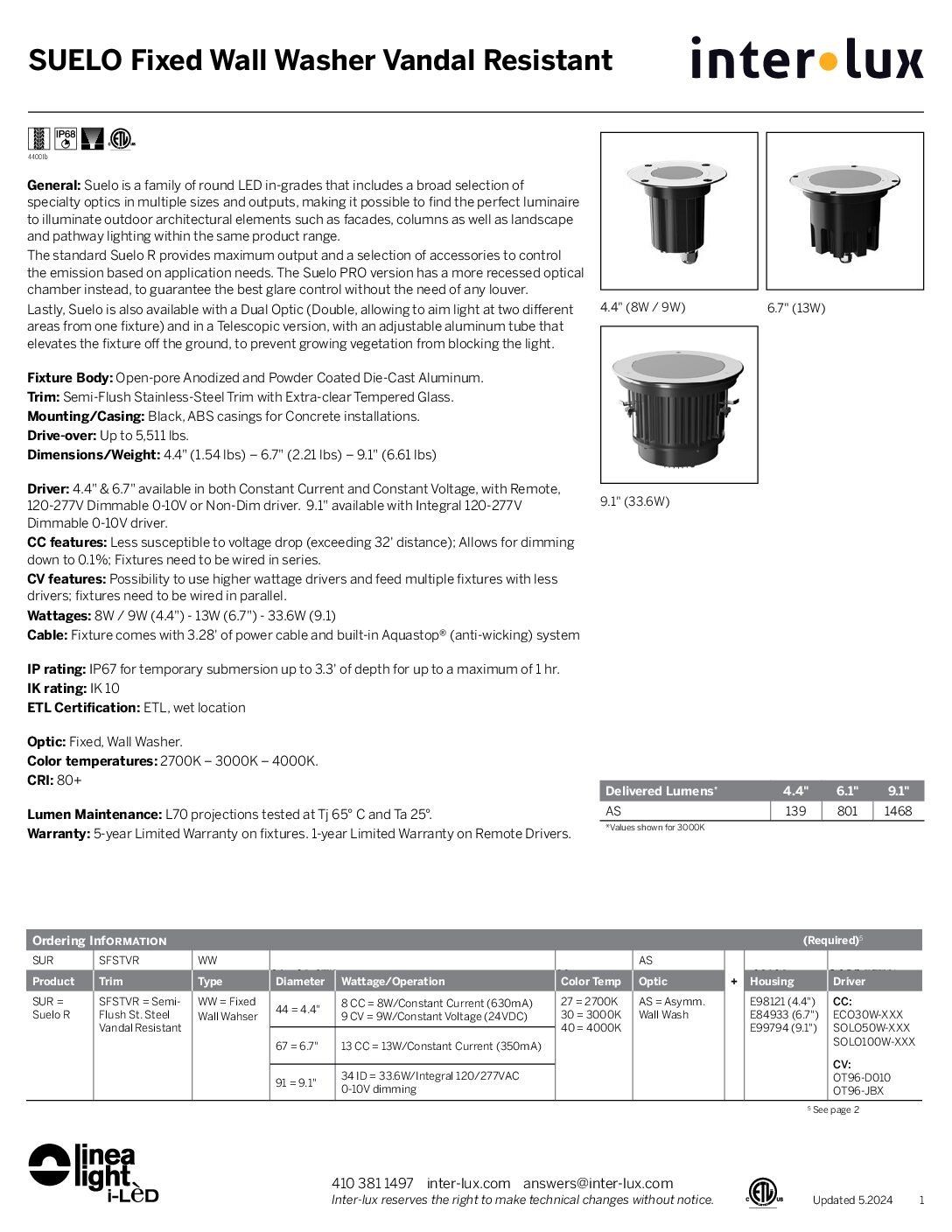

Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. The standard Suelo R provides maximum output and a selection of accessories to control the emission based on application needs.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum.
Trim: Semi-Flush Stainless-Steel Trim with Extra-clear Tempered Glass.
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs.

Driver: 4.4″ & 6.7″ available in both Constant Current and Constant Voltage, with Remote, 120-277V Dimmable 0-10V or Non-Dim driver. 9.1″ available with Integral Non-Dim driver.
Wattages/Sizes: 8W / 9W (4.4″) – 13W (6.7″) – 33.6W (9.1)

IP rating: IP67
ETL Certification: ETL, wet location

Optic: Fixed, Wall Washer.
Color temperatures: 2700K – 3000K – 4000K.
CRI: 80+

• View + download Suelo brochure

Quickship Housings Available: add QS in front of part number

Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. Suelo PRO has a more recessed optical chamber instead, to guarantee the best glare control without the need of any louver.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum (2.5″ & 3.6″). Anodized aluminum 6026 (1.4″).
Trim: Semi-Flush (Stainless Steel or OT58 Raw Brass) Trim (Brass is untreated and will patina naturally) with Extra-clear Tempered glass.
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs.

Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
Wattages/Sizes: 2W (1.4″) – 4.2W (2.5″) – 7.2W (3.6″)

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed. Available in Narrow Spot – Spot – Narrow Flood – Flood – Wide Flood – Elliptical. All models available with Honeycomb louver; 2.5″ and 3.6″ available with Dark Light anti-glare louver.
Color temperatures: 2700K – 3000K – 4000K.
CRI: 80+

• View + download Suelo brochure

Quickship Housings Available: add QS in front of part number

Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. Suelo PRO has a more recessed optical chamber instead, to guarantee the best glare control without the need of any louver.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum (4.4″ & 6.7″). Anodized aluminum 6026 (2.0″).
Trim: Semi-Flush (Stainless Steel or OT58 Raw Brass) Trim (Brass is untreated and will patina naturally), with Extra-clear Tempered glass.
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs.

Driver: 2.0″ & 4.4″ available in both Constant Current and Constant Voltage, with Remote, 120-277V Dimmable 0-10V or Non-Dim driver. 6.7″ available with Integral Non-Dim driver.
Wattages/Sizes: 2W (2.0″) – 8W / 9W (4.4″) – 15W (6.7″)

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed. Available in Narrow Spot – Spot – Flood – Wide Flood. All models available with Honeycomb louver; 4.4″ and 6.7″ available with Dark Light anti-glare louver.
Color temperatures: 2700K – 3000K – 4000K.
CRI: 80+

• View + download Suelo brochure

Quickship Housings Available: add QS in front of part number

Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. Suelo PRO has a more recessed optical chamber instead, to guarantee the best glare control without the need of any louver.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum (2.5″ & 3.6″). Anodized aluminum 6026 (1.4″).
Trim: Semi-Flush (Stainless Steel) Trim with Extra-clear Tempered glass.
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs.

Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
Wattages/Sizes: 2W (1.4″) – 4.2W (2.5″) – 7.2W (3.6″)

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed. Available in Narrow Spot – Spot – Narrow Flood – Flood – Wide Flood – Elliptical. All models available with Honeycomb louver; 2.5″ and 3.6″ available with Dark Light anti-glare louver.
Color temperatures: 2700K – 3000K – 4000K.

• View + download Suelo brochure

Quickship Housings Available: add QS in front of part number

Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. Suelo PRO has a more recessed optical chamber instead, to guarantee the best glare control without the need of any louver.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum (2.5″ & 3.6″). Anodized aluminum 6026 (1.4″).
Trim: Semi-Flush (Stainless Steel) Trim with Extra-clear Tempered glass.
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs.

Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
Wattages/Sizes: 2W (1.4″) – 4.2W (2.5″) – 7.2W (3.6″)

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed. Available in Narrow Spot – Spot – Narrow Flood – Flood – Wide Flood – Elliptical. All models available with Honeycomb louver; 2.5″ and 3.6″ available with Dark Light anti-glare louver.
Color temperatures: 2700K – 3000K – 4000K.

• View + download Suelo brochure

Quickship Housings Available: add QS in front of part number

Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. Suelo PRO has a more recessed optical chamber instead, to guarantee the best glare control without the need of any louver.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum.
Trim: Semi-Flush (Stainless Steel or OT58 Raw Brass) Trim (Brass is untreated and will patina naturally), with Extra-clear Tempered glass.
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs.

Driver: 120-277V Integral Non-Dim driver.
Wattage/Size: 15W (6.7″)

IP rating: IP67
ETL Certification: ETL, wet location

Optic: Fixed, Wall Washer.
Color temperatures: 2700K – 3000K – 4000K.

• View + download Suelo brochure

Quickship Housings Available: add QS in front of part number

Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. Suelo Dual Optic (Double) allows light to be aimed at two different areas from one fixture.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum.
Trim: Semi-Flush (Stainless Steel) Trim with Extra-clear Tempered glass.
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs.

Driver: 120-277V Integral Non-Dim driver (6.7″) – Integral 0-10V dim (9.1″).
Wattages/Sizes: 12W (6.7″) – 24W (9.1″)

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Dual Optic, Individually Adjustable. Available in Spot – Flood – Wide Flood.
Color temperatures: 2700K – 3000K – 4000K.

• View + download Suelo brochure

Quickship Housings Available: add QS in front of part number

InstructionsSuelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. Suelo Telescopic includes an adjustable aluminum tube that elevates the fixture off the ground, to prevent growing vegetation from blocking the light.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum.
Trim: Semi-Recessed (Dark Brown) with Extra-clear Tempered glass.
Mounting/Casing: Orange, ABS casings for In-ground installations.

Driver: 120-277V Integral Non-Dim driver.
Wattages/Size: 14W & 26W (7.9”)

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed. Available in Spot – Flood – Wide Flood.
Color temperatures: 2700K – 3000K – 4000K.

• View + download Suelo brochure

Quickship Housings Available: add QS in front of part number
