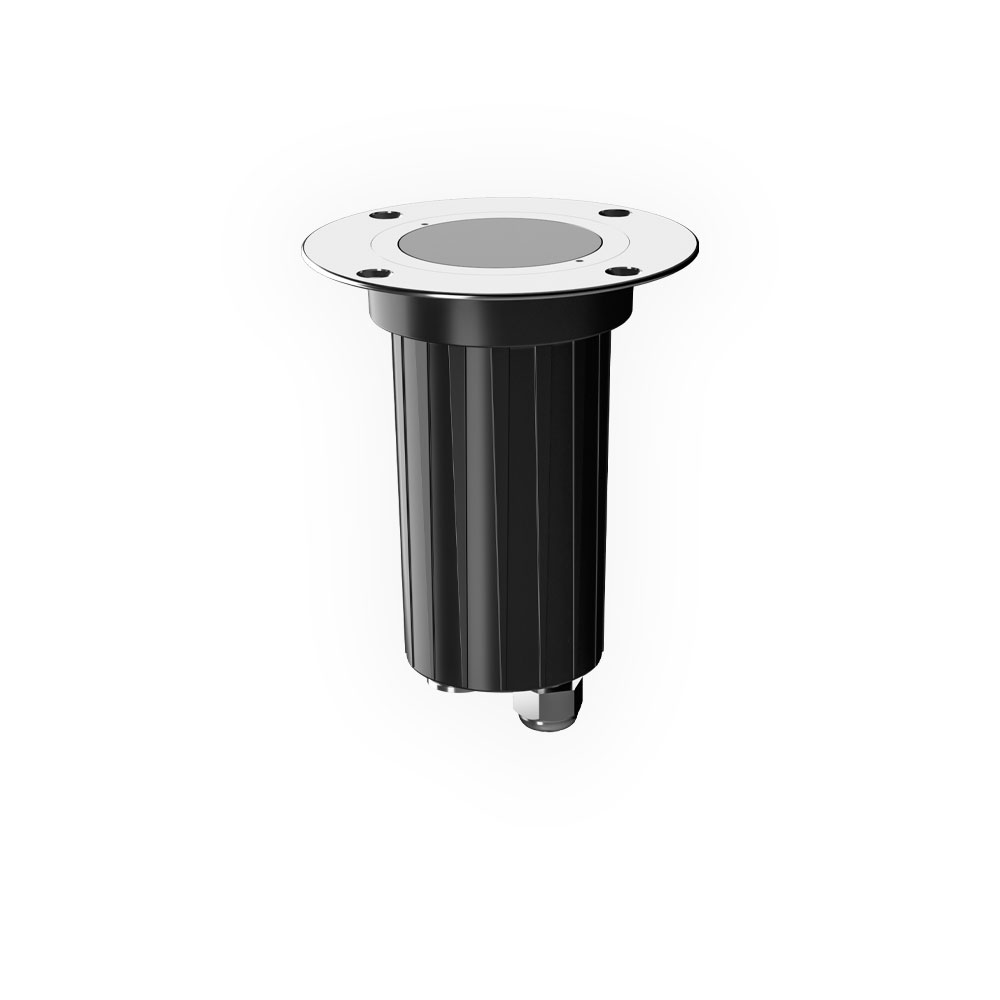

SUELO PRO Fixed Optics Vandal Resistant
Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. Suelo PRO has a more recessed optical chamber instead, to guarantee the best glare control without the need of any louver.
Fixture Body: Anodized aluminum 6026.
Trim: Semi-Flush Vandal Resistant Trim with Extra-clear Tempered glass, in Stainless Steel, Gunmetal PVD or OT58 Raw Brass (brass is untreated and will patina naturally).
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs.
CC version: (2.0″) Remote 120-277V Constant Current driver 0-10V dimmable down to 0.1%. Less susceptible to voltage drop (up to 200′ wiring distance); Fixtures need to be wired in series.
CV version: (2.0″) Remote 120-277V Constant Voltage 24VDC. Driver options in 0-10V (typical dim level 10%, dry location) or Non-dim (wet location). Possibility to use higher wattage drivers and feed multiple fixtures with fewer wiring runs; fixtures need to be wired in parallel.
Wattages: 3W CC / 3W CV (2.0″)
IP rating: IP67
ETL Certification: ETL, wet location

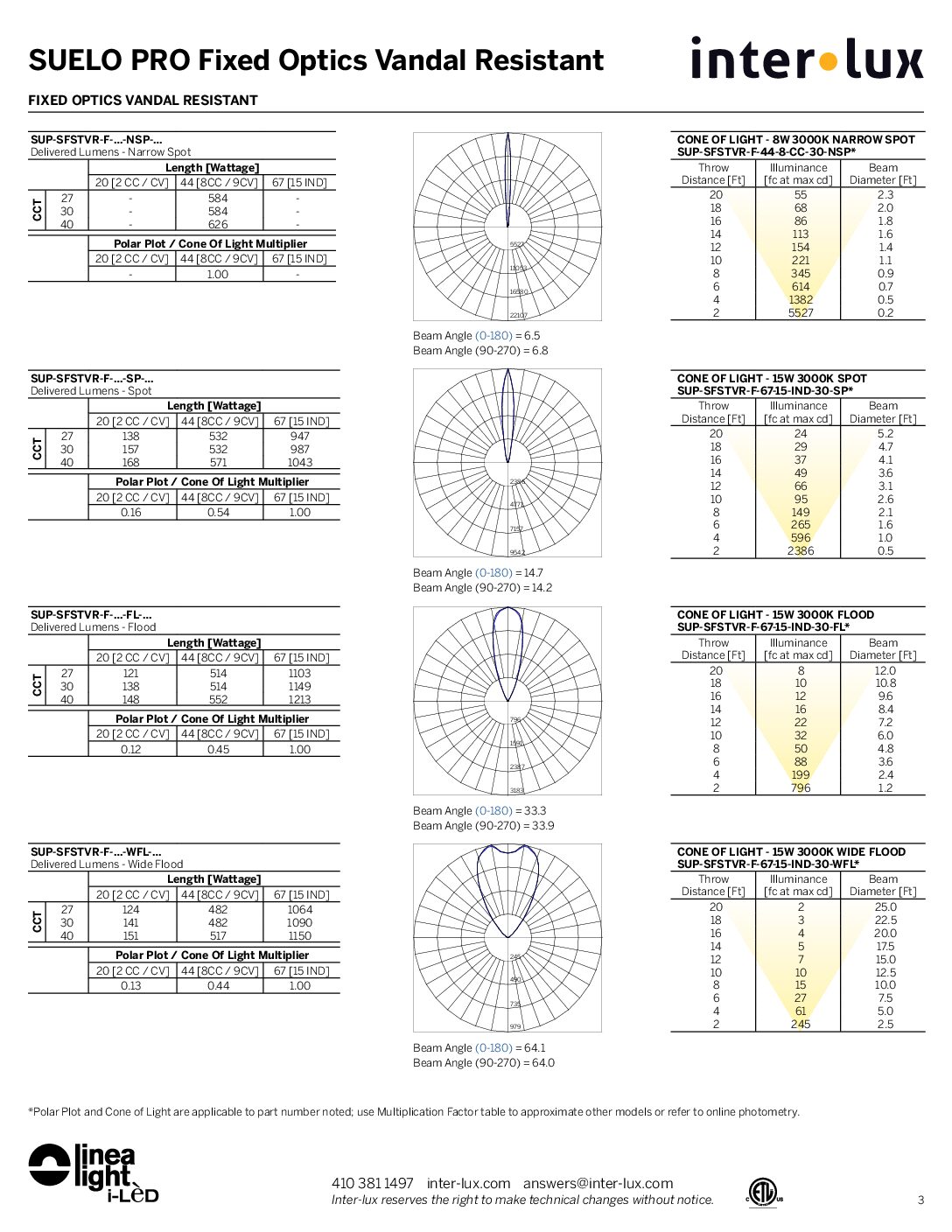

Optics: Fixed. Available in Narrow Flood – Flood – Wide Flood – Diffused/Frosted. Also available with Honeycomb louver (Spot – Narrow Flood – Medium Wide Flood).
Color temperatures: 2700K – 3000K – 4000K.
CRI: 80+
Quickship Housings Available: add QS in front of part number

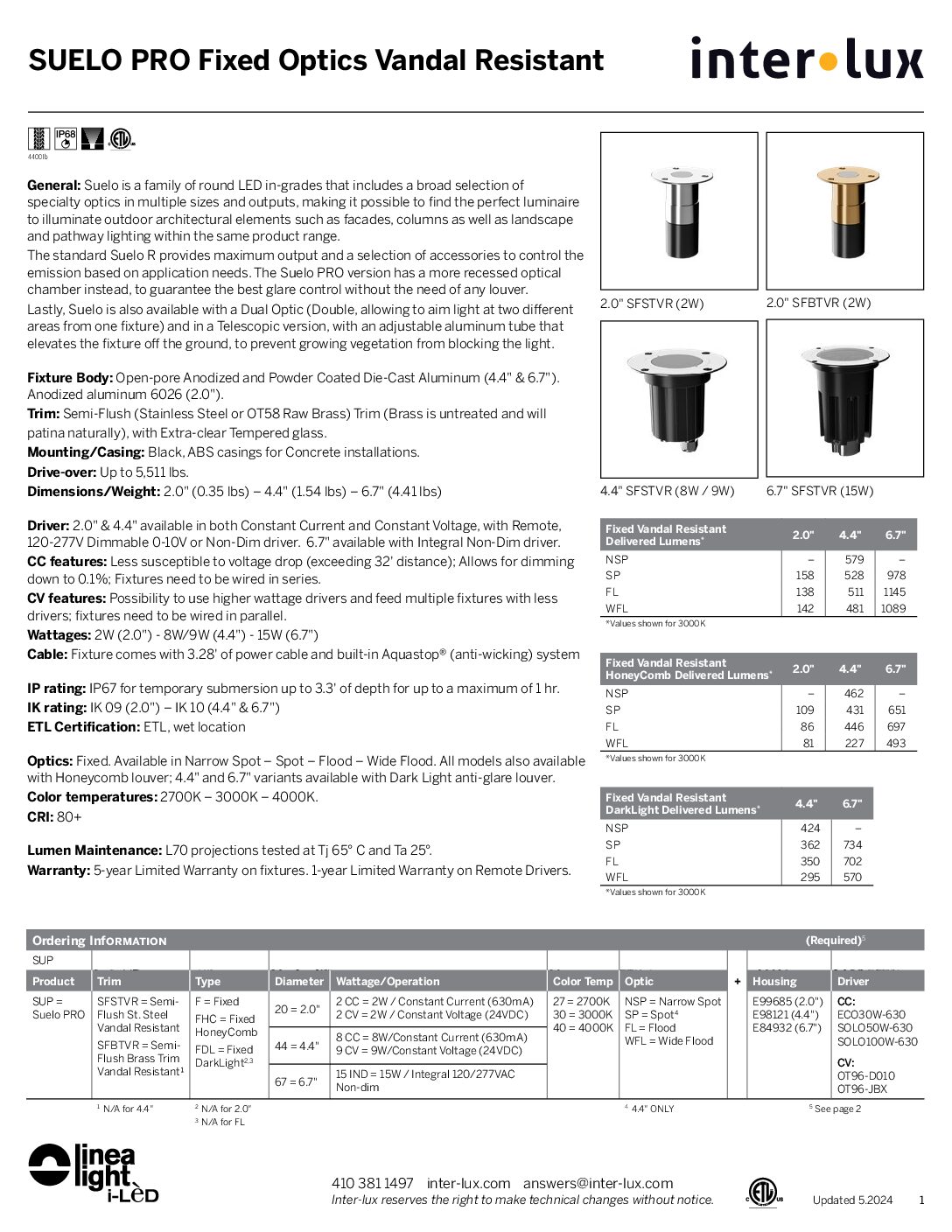

- Spec Page
-
