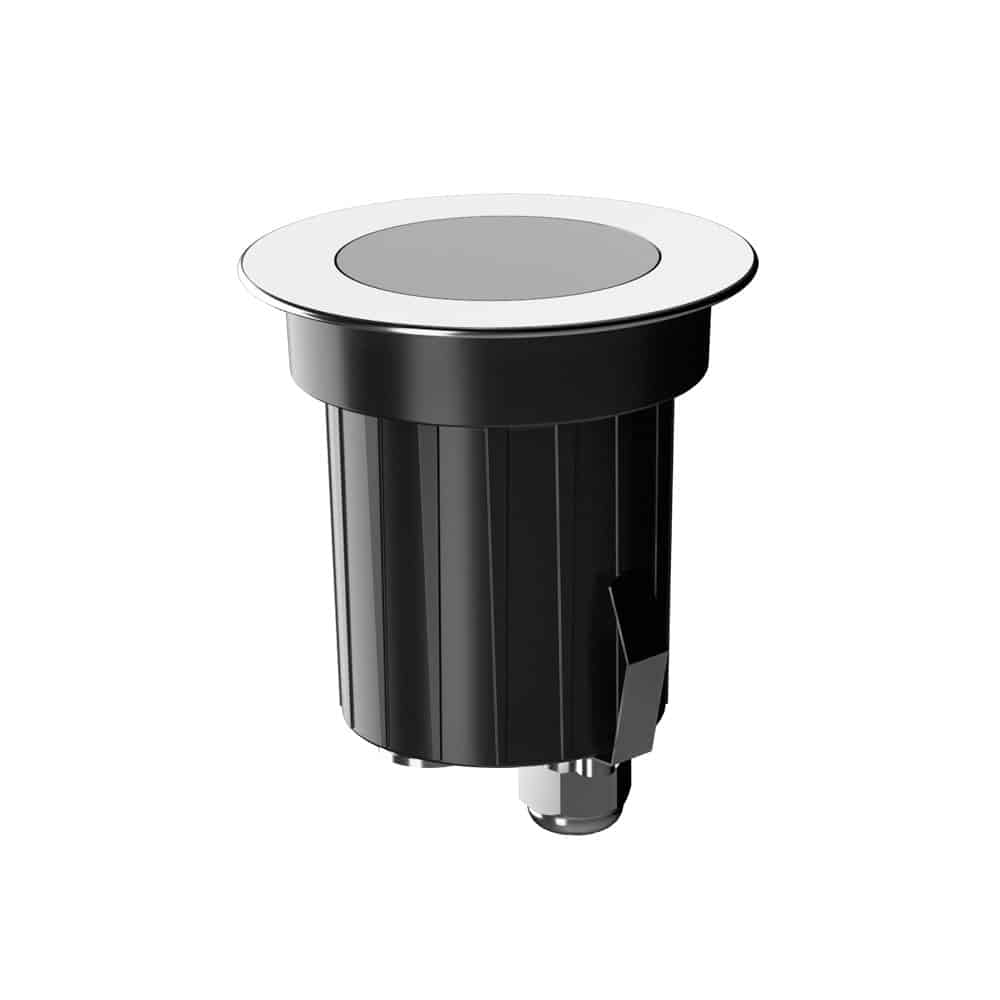

SUELO Fixed Frosted
Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. The standard Suelo R provides maximum output and a selection of accessories to control the emission based on application needs.
Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum (2.5” & 3.6”). Brass (1.2”).
Trim: Semi-Flush Stainless Steel Trim with Frosted glass.
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs. (2.5” & 3.6”). 1.2” variant is Walk-Over Only.
Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Some variants available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
Wattages/Sizes: 2W (1.2” – CC Only) – 4.2W (2.5”) – 7.2W (3.6”)
IP rating: IP67
ETL Certification: ETL, wet location
Optic: Fixed, Frosted.
Color temperatures: 2700K – 3000K – 4000K.
Quickship Housings Available: add QS in front of part number
