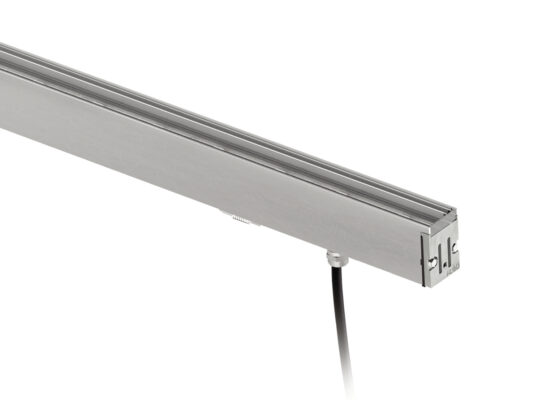

Xenia Recessed Optics Integral Driver

Xenia is a family of slim profile, low glare linear LED recessed and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. The recessed version can be installed as a drive-over in-grade or can be mounted into walls and ceilings.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm).
Trim: Frameless, ideal for continuous runs.
Mounting: Adjustable steel brackets, available in different lengths.

Driver: Integral, 120/277VAC Non-Dim.
Wattages/Sizes: 8.2W (14.4”) – 14.2W (24.8”) – 21.4W (36.6”) – 27.8W (48.4”) – 37W (60.2”)
Safety features: Built-in TCS® (Moisture protection), Over tension and Electrical discharge protection systems.

IP rating: IP66
ETL Certification: ETL, wet location

Optics: Fixed. Available in Narrow Flood – Medium Wide Flood – Extra Wide Flood – Asymmetric Wall Washer. Anti-glare visors available as accessory.
Color temperatures: 2700K – 3000K – 3500K – 4000K.



Quickship Housings Available: add QS in front of part number

Selections download as one PDF
  • Spec Page
  • Photometry

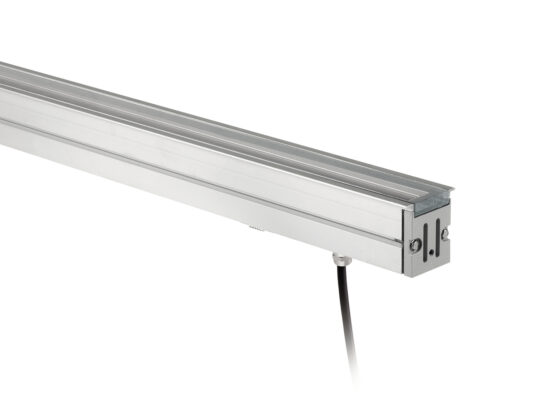

Xenia Recessed Optics Remote Driver

Xenia is a family of slim profile, low glare linear LED recessed and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. The recessed version can be installed as a drive-over in-grade or can be mounted into walls and ceilings.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm).
Trim: Aluminum Frame or Frameless. Extra clear glass – Tempered. Aluminum Frame version requires end caps only at the ends of each run, guaranteeing continuous illumination.
Mounting/Housing: Corrosion resistant 6060 Anodized Aluminum casing (required for Recessed in-ground installations) or Aluminum Springs (required for Recessed Wall/Ceiling applications).
Drive-over: Up to 4,409 lbs.

Driver: Remote CV, 120-277V Dimmable 0-10V or Non-Dim.
Wattages/Sizes: 6.5W (14.4″) – 13W (24.4″) – 19.5W (36.2″) – 26W(48″) – 32.5W (59.8″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP68
ETL Certification: ETL, wet location

Optics: Fixed. Available in Narrow Flood – Medium Wide Flood – Extra Wide Flood – Asymmetric Wall Washer. Some variants are available with Integrated Micro Louver.
Color temperatures: 2700K – 3000K – 3500K – 4000K.



Quickship Housings Available: add QS in front of part number

Selections download as one PDF
  • Spec Page
  • Photometry

Xenia Recessed Frosted Integral Driver

Xenia is a family of slim profile, low glare linear LED recessed and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. The recessed version can be installed as a drive-over in-grade or can be mounted into walls and ceilings.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm).
Trim: Aluminum Frame or Frameless. Extra clear glass – Tempered. Individual fixture end caps can be removed and are required only at the ends of each run, guaranteeing continuous illumination.
Mounting/Housing: Corrosion resistant 6060 Anodized Aluminum Housing (required for Recessed in-ground installations) or Aluminum Springs (required for Recessed Wall/Ceiling applications).
Drive-over: Up to 4,409 lbs.

Driver: Integral, 120-277VAC Non-Dim.
Wattages/Sizes: 3W (14.1”) – 5W (24.4”) – 7W (36.2”) – 9.4W(48”) – 11.3W (59.8”)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP68 for temporary submersion up to 10’ depth for up to a maximum of 1 hr.
ETL Certification: ETL, wet location

Optics: Fixed, Frosted.
Color temperatures: 2700K – 3000K – 3500K – 4000K.



Quickship Housings Available: add QS in front of part number

Selections download as one PDF
  • Spec Page
  • Photometry

Xenia Recessed Optics RGBW

Xenia is a family of slim profile, low glare linear LED recessed and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. The recessed version can be installed as a drive-over in-grade or can be mounted into walls and ceilings.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm).
Trim: Aluminum Frame or Frameless. Extra clear glass – Tempered. Individual fixture end caps can be removed and are required only at the ends of each run, guaranteeing continuous illumination.
Mounting/Housing: Corrosion resistant 6060 Anodized Aluminum Housing (required for Recessed in-ground installations) or Aluminum Springs (required for Recessed Wall/Ceiling applications).
Drive-over: Up to 4,409 lbs.

Driver: Remote 24V DC w/DMX on board or Integral, 120-277VAC w/DMX interface.
Wattages (Remote/Integral) / Sizes: 12/13W (20.8”) – 22/24W (46”)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP68 for temporary submersion up to 10’ depth for up to a maximum of 1 hr.
ETL Certification: ETL, wet location

Optics: Fixed. Available in Narrow Flood – Medium Wide Flood – Extra Wide Flood – Asymmetric Wall Washer.
Color temperatures: RGBW with 3000K Warm White or RGBW with 4000K Neutral White.



Quickship Housings Available: add QS in front of part number

  • Xenia Recessed Optics RGBW

Xenia Recessed Frosted RGBW

Xenia is a family of slim profile, low glare linear LED recessed and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. The recessed version can be installed as a drive-over in-grade or can be mounted into walls and ceilings.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm).
Trim: Aluminum Frame or Frameless. Frosted glass – Tempered. Individual fixture end caps can be removed and are required only at the ends of each run, guaranteeing continuous illumination.
Mounting/Housing: Corrosion resistant 6060 Anodized Aluminum Housing (required for Recessed in-ground installations) or Aluminum Springs (required for Recessed Wall/Ceiling applications).
Drive-over: Up to 4,409 lbs.

Driver: Remote 24V DC w/DMX on board or Integral, 120-277VAC w/DMX interface.
Wattages (Remote/Integral)/Sizes: 12/13W (20.8″) – 22/24W (46″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP68
ETL Certification: ETL, wet location

Optics: Fixed, Frosted.
Color temperatures: RGBW with 3000K Warm White or RGBW with 4000K Neutral White.


Quickship Housings Available: add QS in front of part number

  • Spec Page

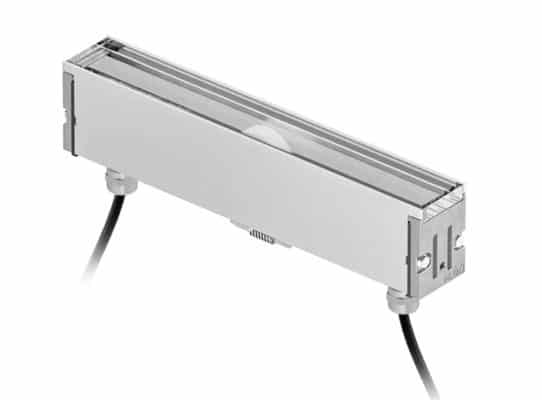

Xenia Recessed Blade

Xenia is a family of slim profile, low glare linear LED recessed and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. The recessed version can be installed as a drive-over in-grade or can be mounted into walls and ceilings.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm).
Trim: Aluminum Frame or Frameless. Extra clear glass – Tempered.
Mounting/Housing: Corrosion resistant 6060 Anodized Aluminum Housing (required for Recessed in-ground installations) or Aluminum Springs (required for Recessed Wall/Ceiling applications).
Drive-over: Up to 4,409 lbs.

Driver: Remote CC 120-277V Dimmable 0-10V.
Wattage/Size: 6W (8.1″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP68 for temporary submersion up to 10′ depth for up to a maximum of 1 hr.
ETL Certification: ETL, wet location

Optics: Fixed, Radial (Blade).
Color temperatures: 2700K – 3000K – 3500K – 4000K.



Quickship Housings Available: add QS in front of part number

Selections download as one PDF
  • Spec Page
  • Photometry

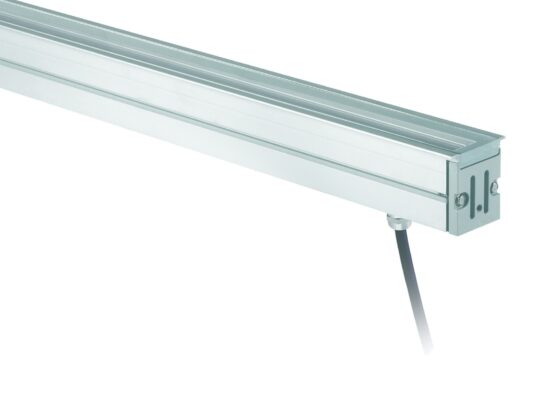

Xenia Pro Recessed Optics

Xenia is a family of slim profile, low glare linear LED recessed and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. Xenia Pro Recessed (the higher output version) can be installed as a drive-over in-grade or can be mounted into walls and ceilings.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm).
Trim: Aluminum Frame or Frameless. Extra clear glass – Tempered. Aluminum Frame version requires end caps only at the ends of each run, guaranteeing continuous illumination.
Mounting/Casing: Corrosion resistant 6060 Anodized Aluminum casing (required for Recessed in-ground installations) or Aluminum Springs (required for Recessed Wall/Ceiling applications).
Drive-over: Up to 4,409 lbs.

Driver: Integral, 120-277VAC Non-Dim or 0-10V Dim. – 6.3″ size is CC remote only.
Wattages/Sizes: 4.5W (6.3″) – 8.3W (14.1″) – 16.5W (24.4″) – 24.8W (36.2″) – 33.2W (48″) – 41.3W (59.8″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP68 for temporary submersion up to 10′ depth for up to a maximum of 1 hr.
ETL Certification: ETL, wet location

Optics: Fixed. Available in Narrow Spot – Narrow Flood – Medium Wide Flood – Extra Wide Flood – Asymmetric Wall Washer – Elliptic Grazer. Some variants are available with Integrated Micro Louver.
Color temperatures: 2700K – 3000K – 3500K – 4000K.



Quickship Housings Available: add QS in front of part number

Selections download as one PDF
  • Spec Page
  • Photometry

Xenia Pro Recessed Optics RGBW

Xenia is a family of slim profile, low glare linear LED recessed and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. Xenia Pro Recessed (the higher output version) can be installed as a drive-over in-grade or can be mounted into walls and ceilings.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm).
Trim: Aluminum Frame or Frameless. Extra clear glass – Tempered. Individual fixture end caps can be removed and are required only at the ends of each run, guaranteeing continuous illumination.
Mounting/Casing: Corrosion resistant 6060 Anodized Aluminum casing (required for Recessed in-ground installations) or Aluminum Springs (required for Recessed Wall/Ceiling applications).
Drive-over: Up to 4,409 lbs.

Driver: Integral 120-277VAC w/DMX interface.
Wattages (Remote/Integral)/Sizes: 8.5W (20.8”) – 22.6W (46”)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP68 for temporary submersion up to 10’ depth for up to a maximum of 1 hr.
ETL Certification: ETL, wet location

Optics: Fixed. Available in Elliptic Graze.
Color temperatures: RGBW with 3000K Warm White or RGBW with 4000K Neutral White.



Quickship Housings Available: add QS in front of part number

  • Spec Page

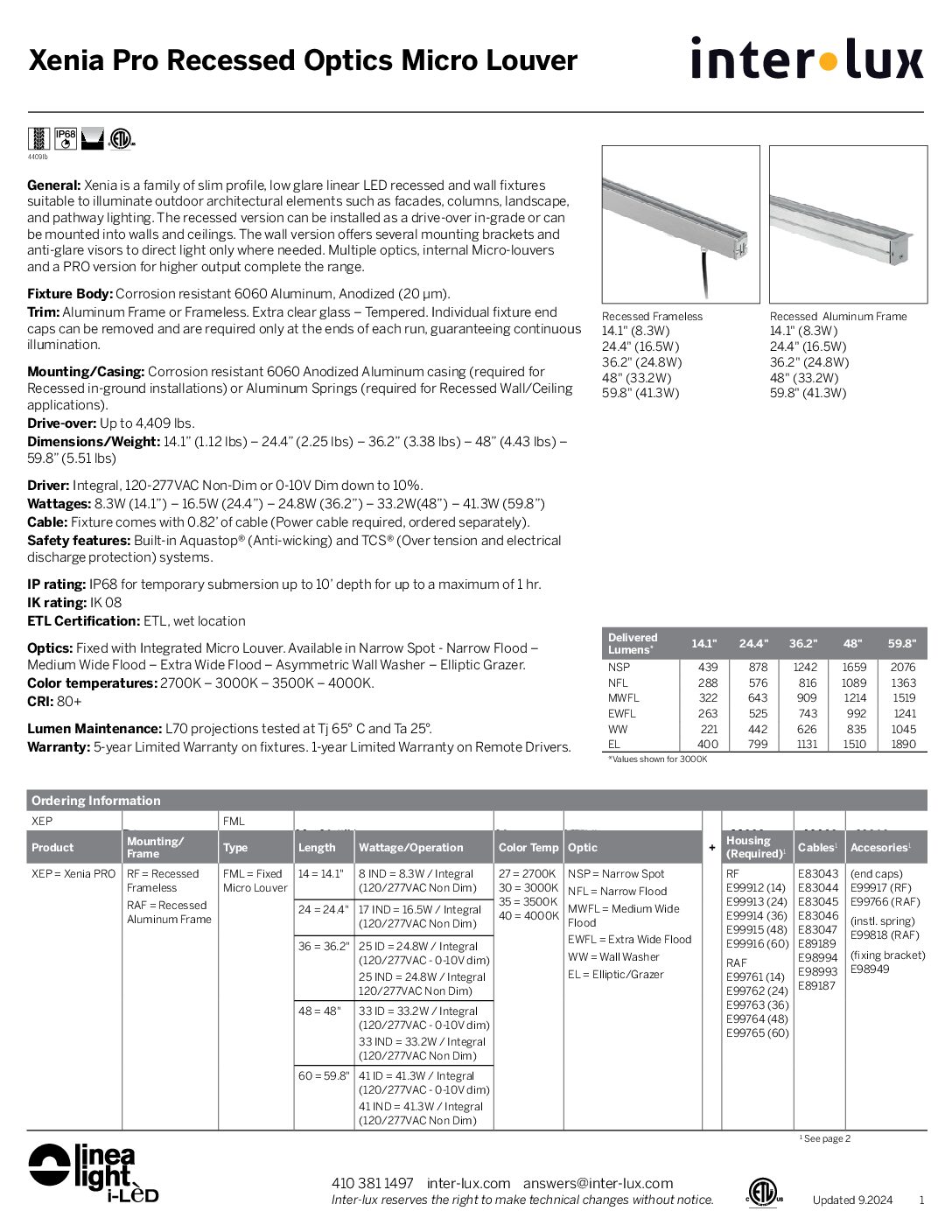

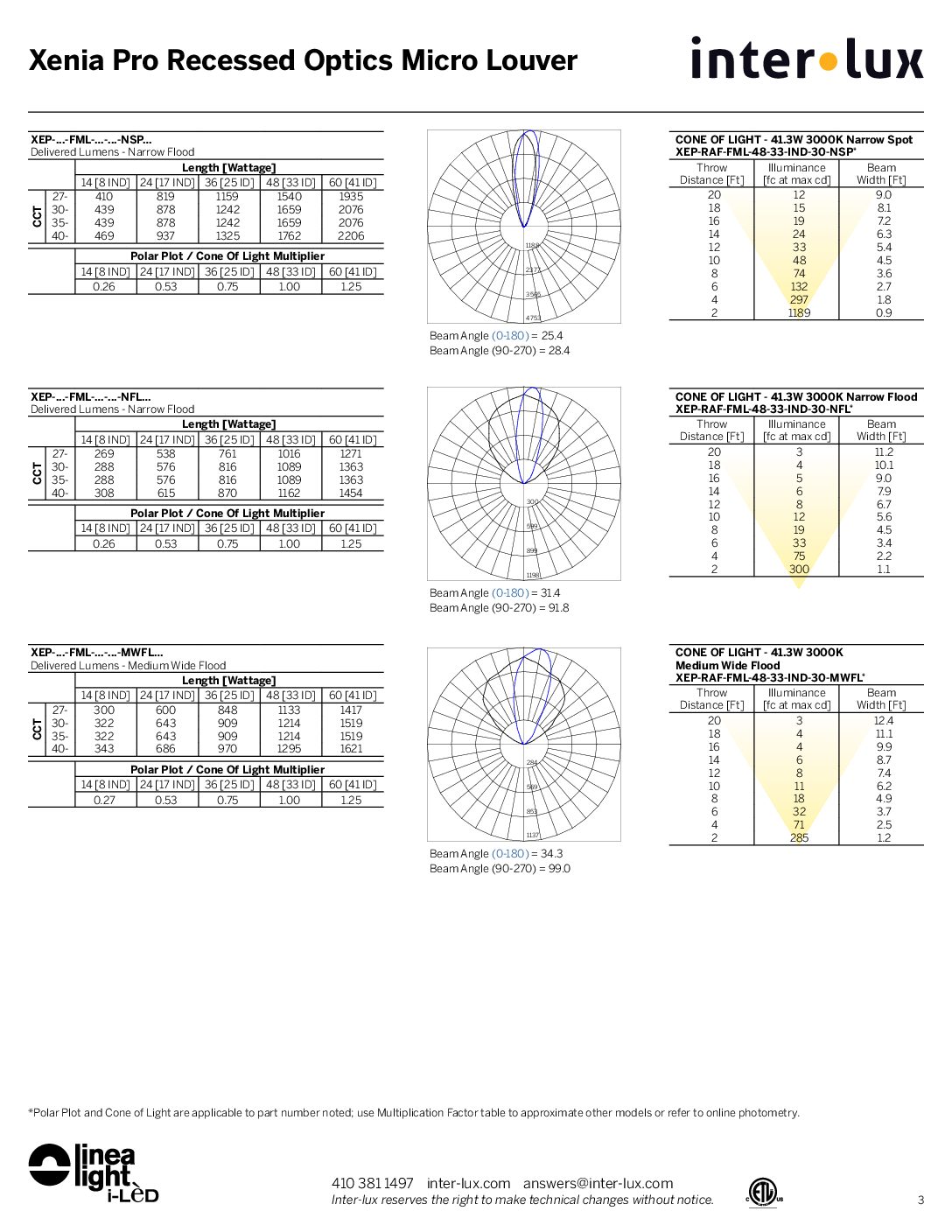

Xenia Pro Recessed Optics Micro Louver

Xenia is a family of slim profile, low glare linear LED recessed and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. Xenia Pro Recessed (the higher output version) can be installed as a drive-over in-grade or can be mounted into walls and ceilings.

Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm).
Trim: Aluminum Frame or Frameless. Extra clear glass – Tempered. Individual fixture end caps can be removed and are required only at the ends of each run, guaranteeing continuous illumination.
Mounting/Casing: Corrosion resistant 6060 Anodized Aluminum casing (required for Recessed in-ground installations) or Aluminum Springs (required for Recessed Wall/Ceiling applications).
Drive-over: Up to 4,409 lbs.

Driver: Integral, 120-277VAC Non-Dim or 0-10V Dim.
Wattages/Sizes: 8.3W (14.1”) – 16.5W (24.4”) – 24.8W (36.2”) – 33.2W(48”) – 41.3W (59.8”)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.

IP rating: IP68
ETL Certification: ETL, wet location

Optics: Fixed with Integrated Micro Louver. Available in Narrow Spot – Narrow Flood – Medium Wide Flood – Extra Wide Flood – Asymmetric Wall Washer – Elliptic Grazer.
Color temperatures: 2700K – 3000K – 3500K – 4000K.



Quickship Housings Available: add QS in front of part number

Selections download as one PDF
  • Spec Page
  • Photometry
