Xenia Pro Recessed Optics
Xenia is a family of slim profile, low glare linear LED recessed and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. The recessed version can be installed as a drive-over in-grade or can be mounted into walls and ceilings. The wall version offers several mounting brackets and anti-glare visors to direct light only where needed. Multiple optics, internal Micro-louvers and a PRO version for higher output complete the range.
Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 µm).

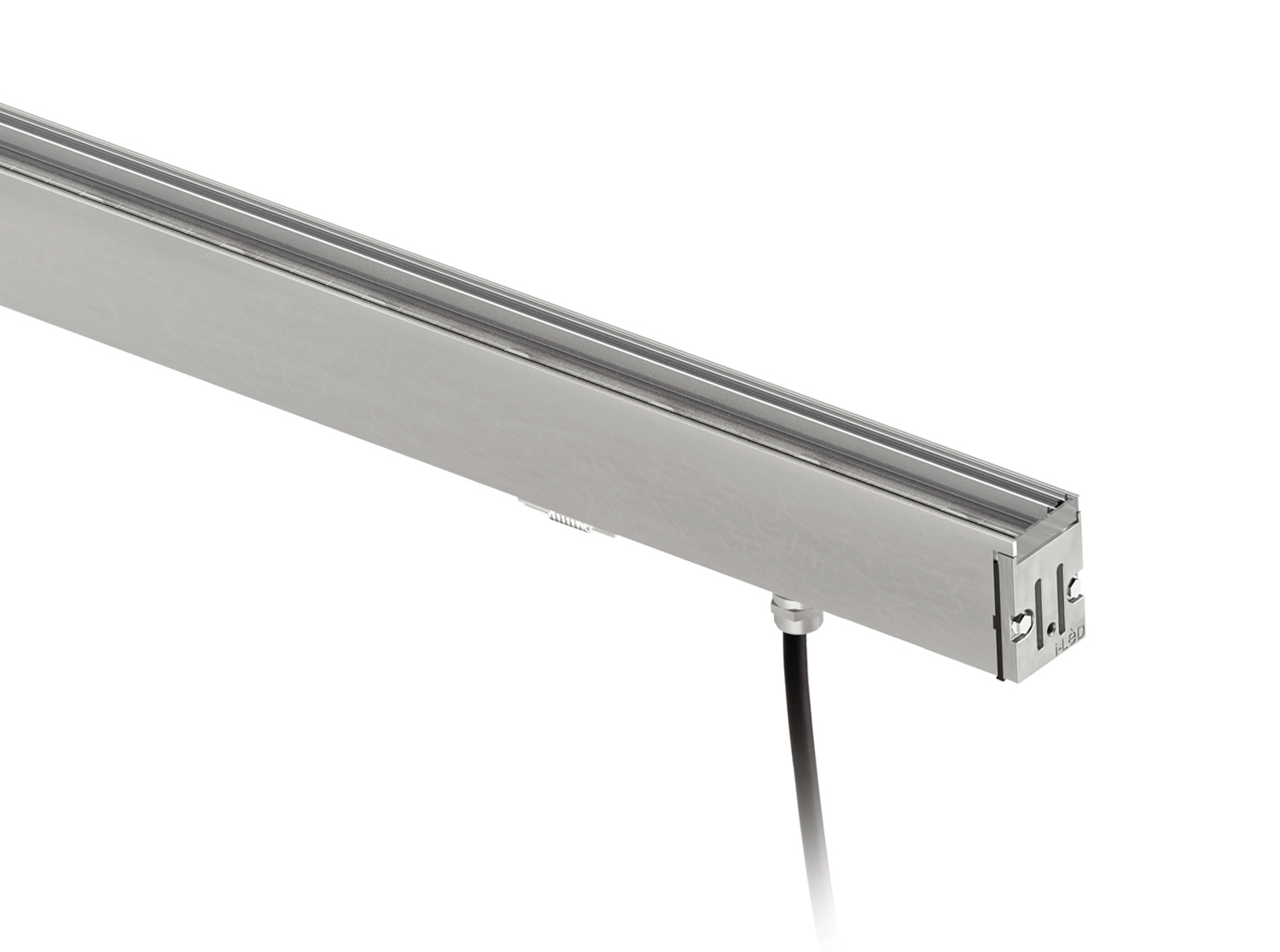

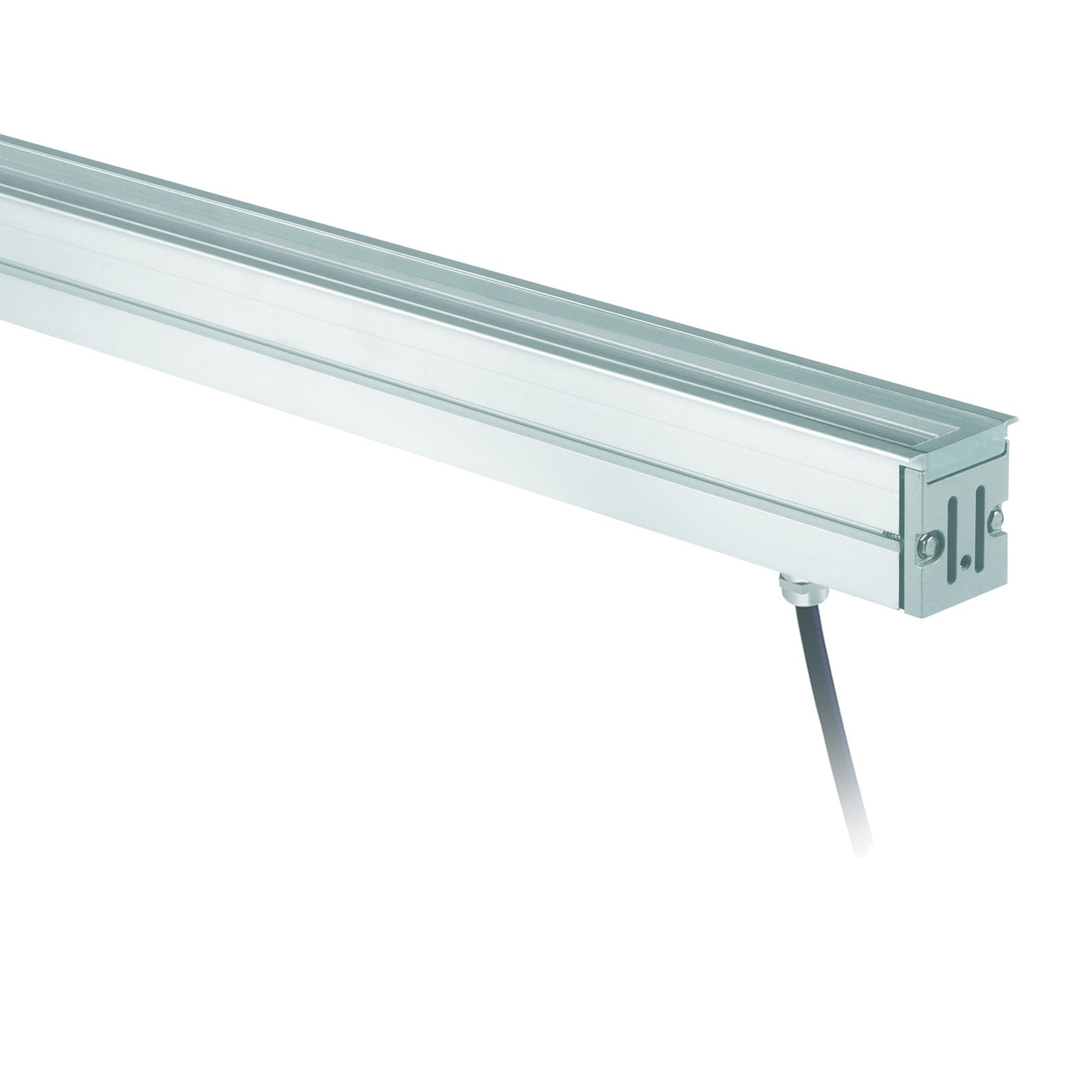

Trim: Aluminum Frame or Frameless. Extra clear glass – Tempered. Aluminum Frame version requires end caps only at the ends of each run, guaranteeing continuous illumination.
Mounting/Casing: Corrosion resistant 6060 Anodized Aluminum casing (required for Recessed in-ground installations) or Aluminum Springs (required for Recessed Wall/Ceiling applications).
Drive-over: Up to 4,409 lbs.
Driver: Integral, 120-277VAC Non-Dim or 0-10V Dim down to 10% (6.3″ CC remote only).
Wattages: 4.5W (6.3″) – 8.3W (14.1″) – 16.5W (24.4″) – 24.8W (36.2″) – 33.2W (48″) –
41.3W (59.8″)
Cable: Fixture comes with 0.82′ of cable (Power cable required, ordered separately).
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.
IP rating: IP68 for temporary submersion up to 10′ depth for up to a maximum of 1 hr.
IK rating: IK 08
ETL Certification: ETL, wet location
Optics: Fixed or Fixed with Integrated Micro Louver. Available in Spot – Flood – Wide Flood – Elliptic Narrow Flood – Asymmetric Wall Washer.
Color temperatures: 2200K – 2700K – 3000K – 3500K – 4000K.
CRI: 80+
Quickship Housings Available: add QS in front of part number

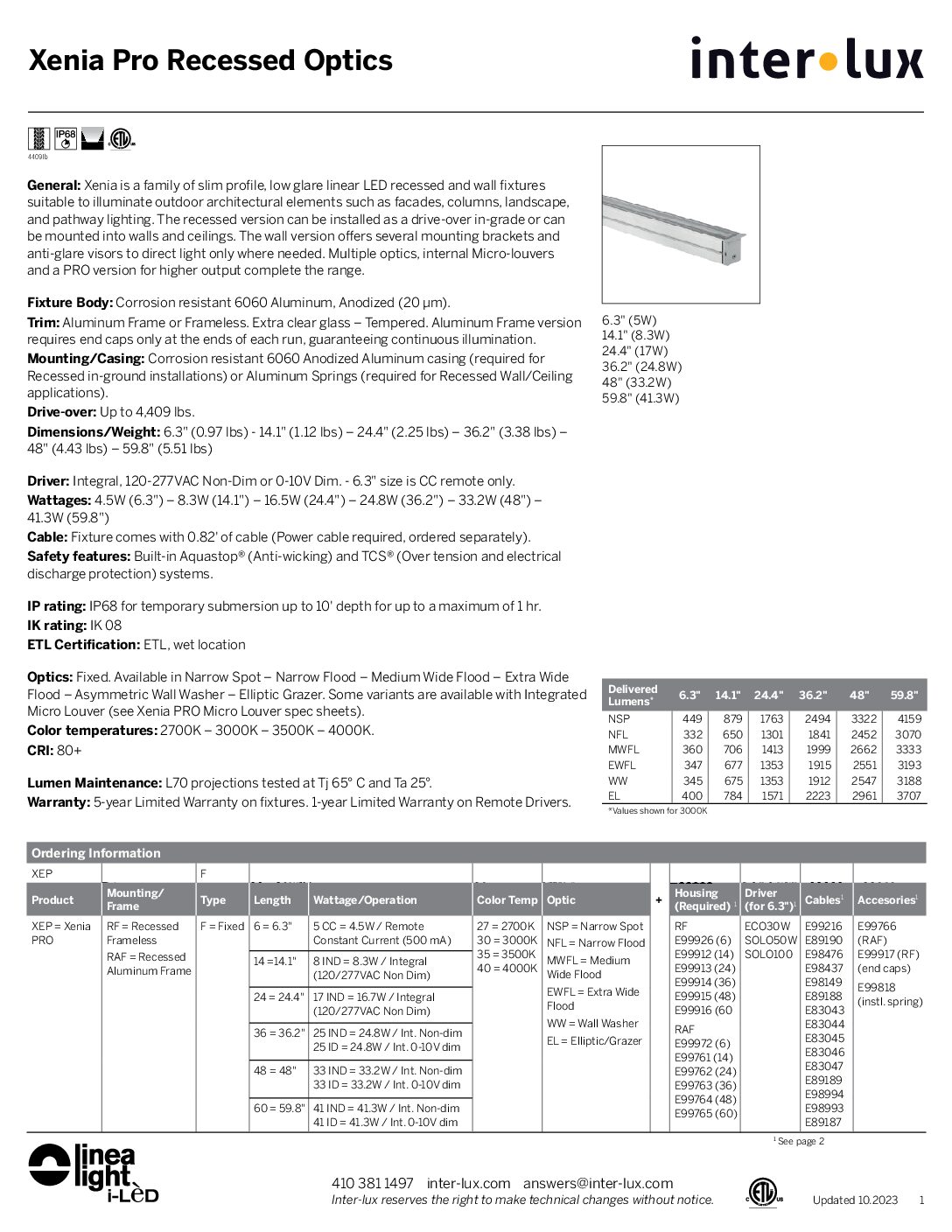

- Spec Page
-

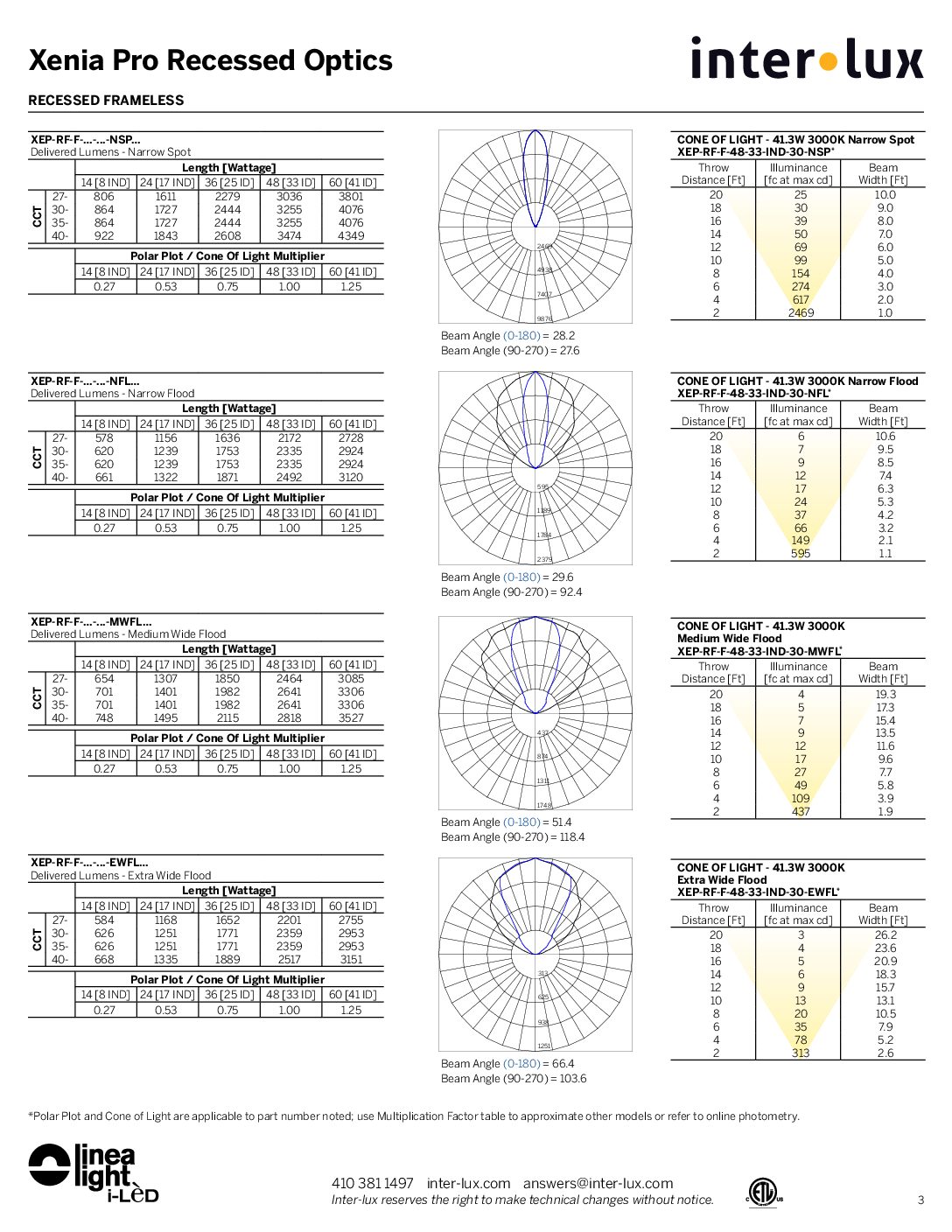

- Photometry
-
