Xenia Recessed Optics RGBW
Xenia is a family of slim profile, low glare linear LED recessed and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. The recessed version can be installed as a drive-over in-grade or can be mounted into walls and ceilings.
Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm).
Trim: Aluminum Frame or Frameless. Extra clear glass – Tempered. Individual fixture end caps can be removed and are required only at the ends of each run, guaranteeing continuous illumination.
Mounting/Housing: Corrosion resistant 6060 Anodized Aluminum Housing (required for Recessed in-ground installations) or Aluminum Springs (required for Recessed Wall/Ceiling applications).
Drive-over: Up to 4,409 lbs.
Driver: Integral, 120-277VAC w/DMX interface.
Wattages / Sizes: 13W (20.8”) – 24W (46”)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.
IP rating: IP68 for temporary submersion up to 10’ depth for up to a maximum of 1 hr.
ETL Certification: ETL, wet location
Optics: Fixed. Available in Narrow Flood – Medium Wide Flood – Extra Wide Flood – Asymmetric Wall Washer.
Color temperatures: RGBW with 3000K Warm White or RGBW with 4000K Neutral White.
Quickship Housings Available: add QS in front of part number

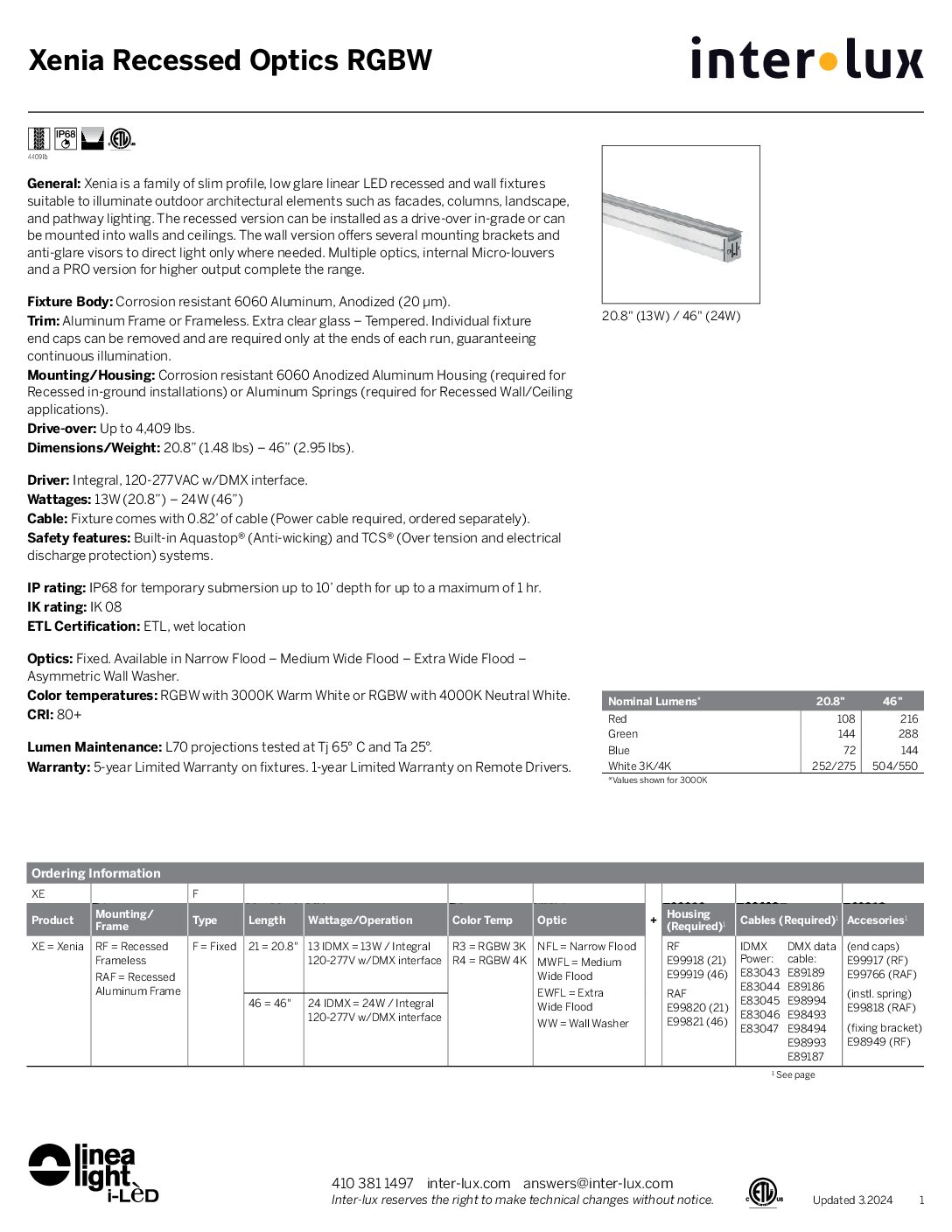

- Spec Page
-
