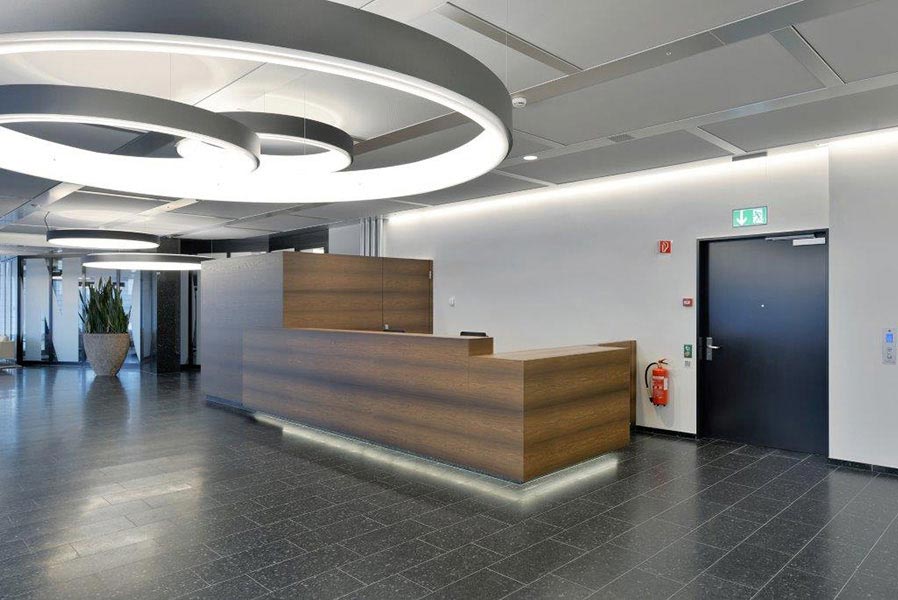

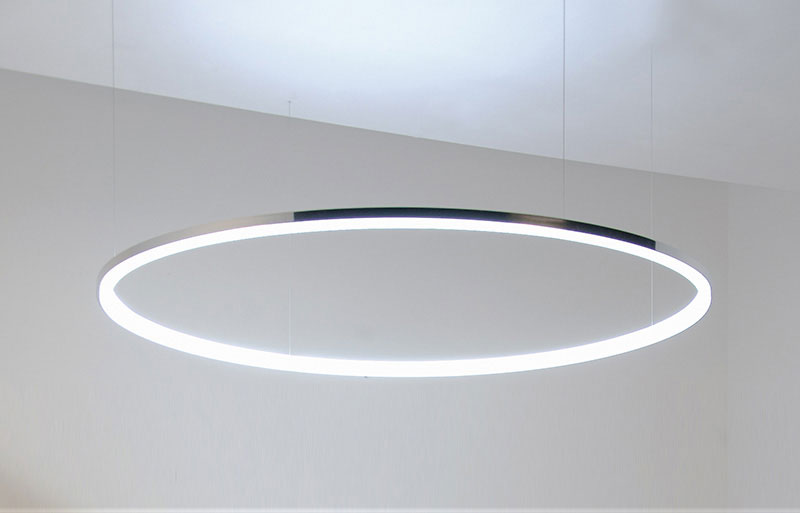

The combination of the circular archetype, the simple expression of infinity and the luminous power of light, was the inspiration for the development of the CIRCOLO. Whether as a large-dimensioned individual luminaire up to Ø 137.8″ or as a combination of light rings in different sizes, the CIRCOLO can be used individually and sets special accents wherever large areas and heights are designed with light.

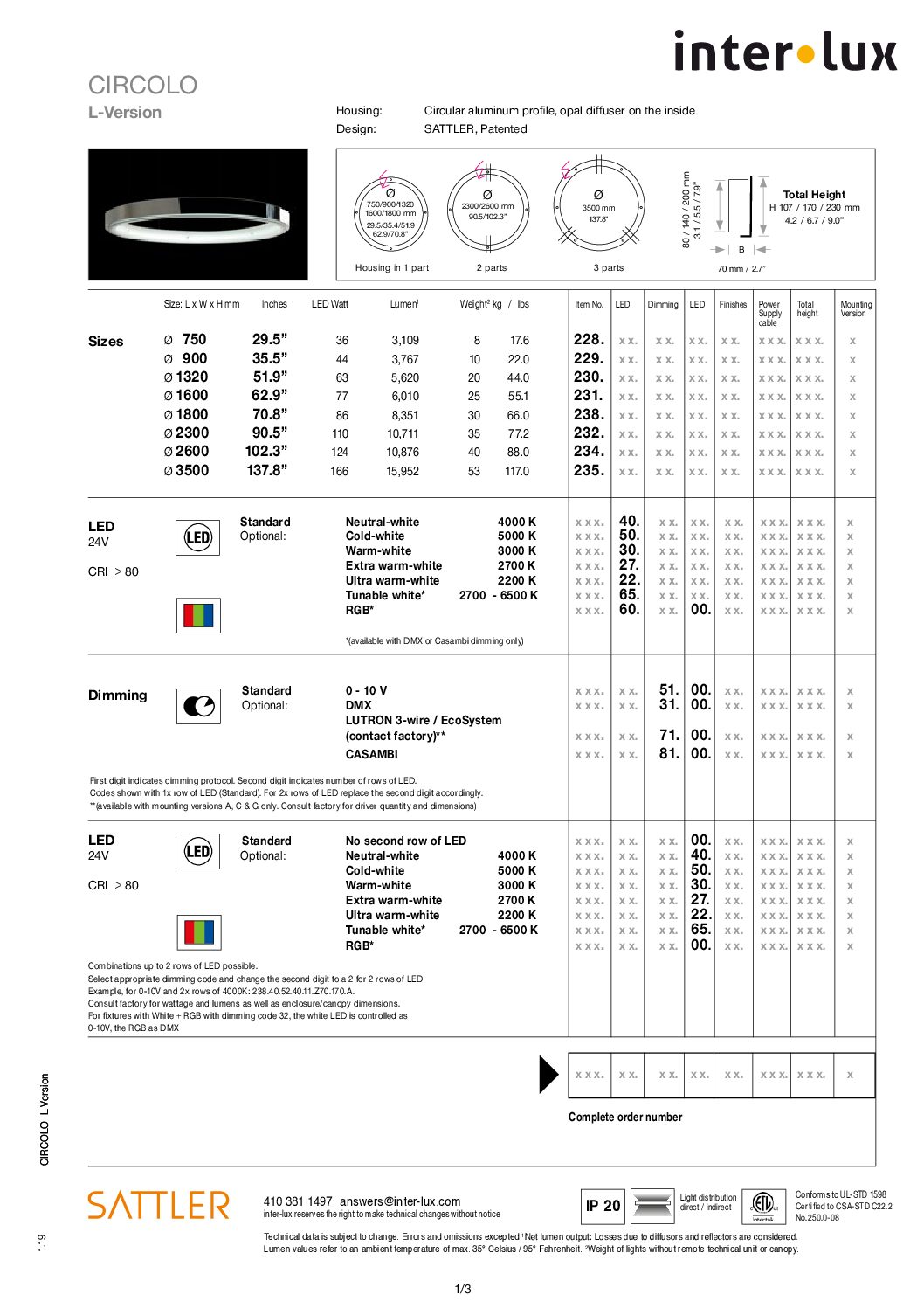

Housing: Aluminum profile with integrated opal diffuser.

Size: Ø 29.5 / 35.4 / 51.9 / 62.9 / 70.8 / 90.5 / 102.3 / 137.8″

LED: 24V / CRI > 90 / Mac Adam 3 / SELV / L80 B10 100,000 hours
Standard: neutral white 4000 K
Optional: natural-white 3500 K, warm white 3000 K, extra warm white 2700 K, tunable white (2700-6500 K), RGB

Dimming: 0-10V, Lutron EcoSystem or DMX

Mounting (Standard): Pendant lamp, optional 4- or 6-point suspension, steel cable 5000 mm/196.8″, Power supply cable silver, incl. external power supply unit for suspended ceiling.

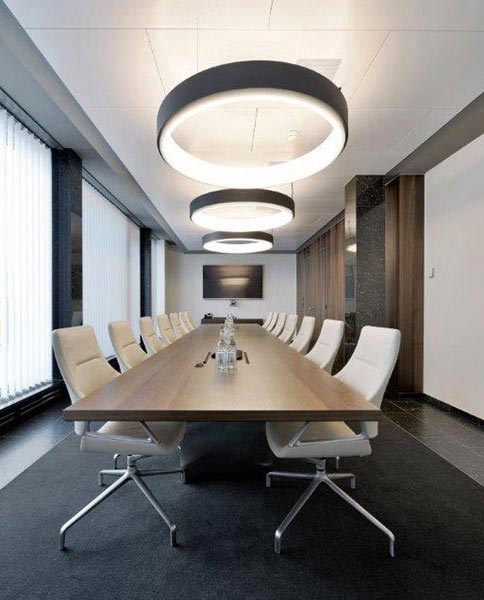

The combination of the circular archetype, the simple expression of infinity and the luminous power of light, was the inspiration for the development of the CIRCOLO. Whether as a large-dimensioned individual luminaire up to Ø 137.8″ or as a combination of light rings in different sizes, the CIRCOLO can be used individually and sets special accents wherever large areas and heights are designed with light.

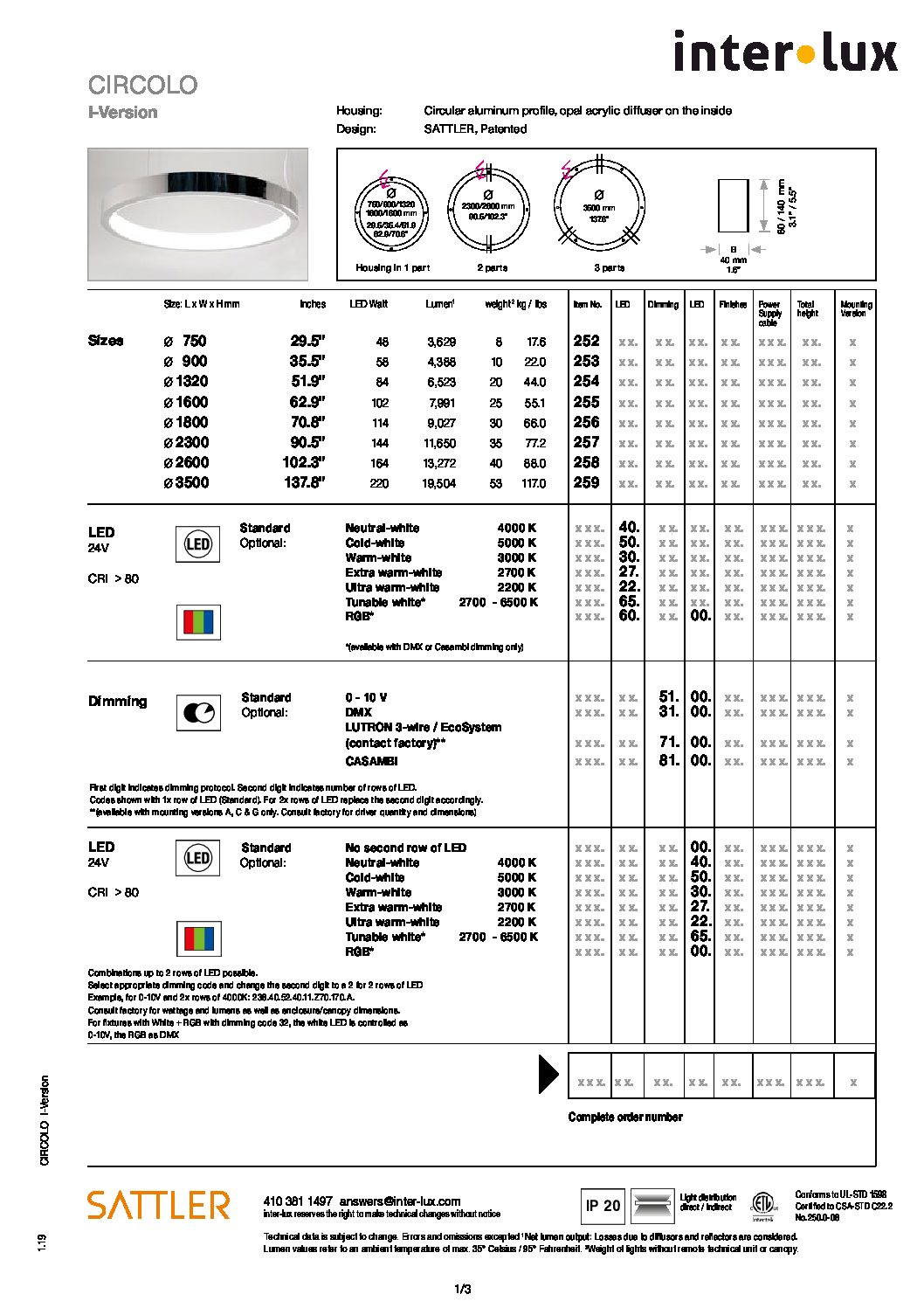

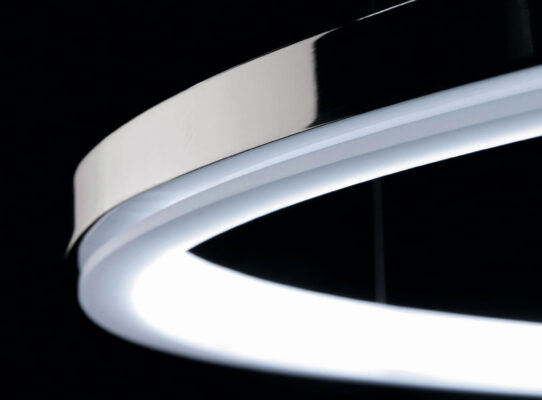

Housing: L-shaped opal acrylic diffuser on the inside.

Size: Ø 29.5 / 35.4 / 51.9 / 62.9 / 70.8 / 90.5 / 102.3 / 137.8″

LED: 24V / CRI > 90 / Mac Adam 3 / SELV / L80 B10 100,000 hours
Standard: neutral white 4000 K
Optional: natural-white 3500 K, warm white 3000 K, extra warm white 2700 K, tunable white (2700-6500 K), RGB

Dimming: 0-10V, Lutron EcoSystem or DMX

Mounting (Standard): Pendant lamp, optional 4- or 6-point suspension, steel cable 5000 mm/196.8″, Power supply cable silver, including external power supply unit for suspended ceiling.

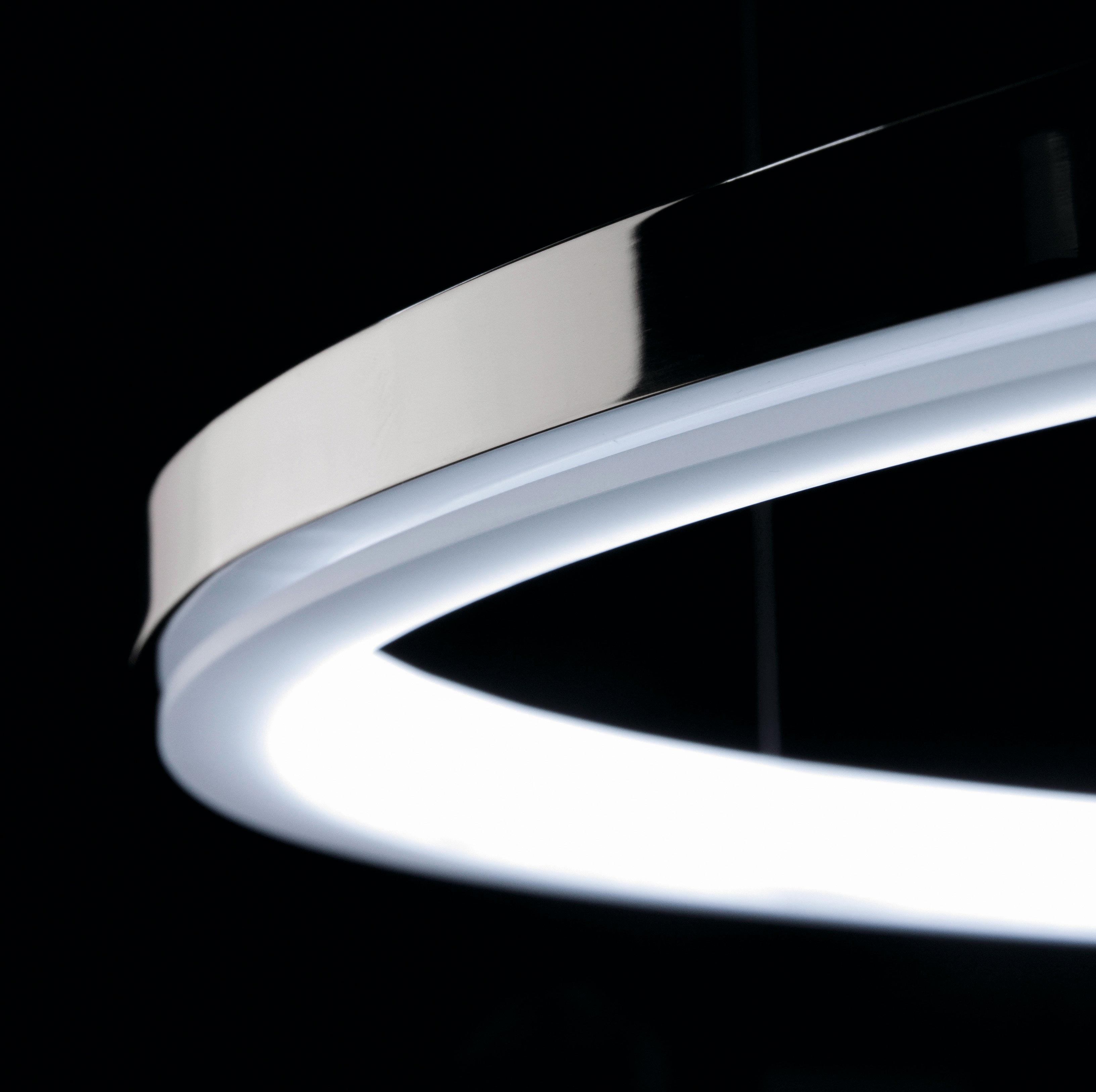

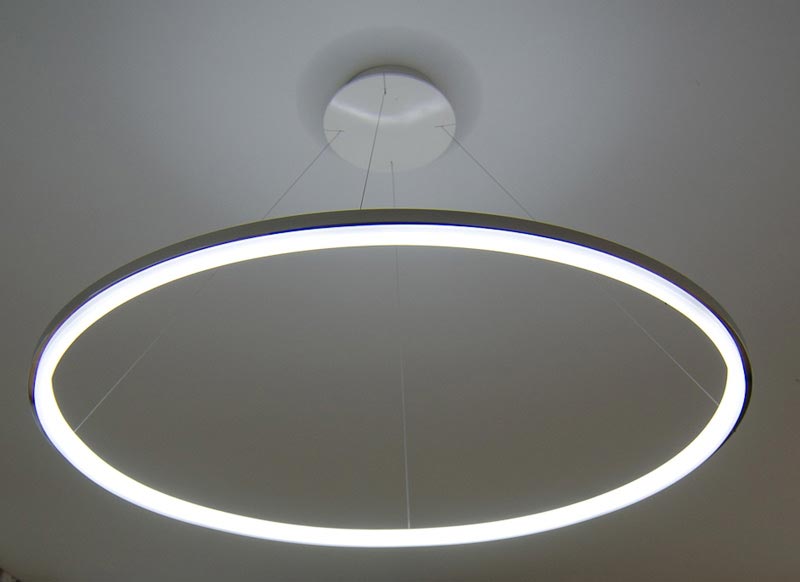

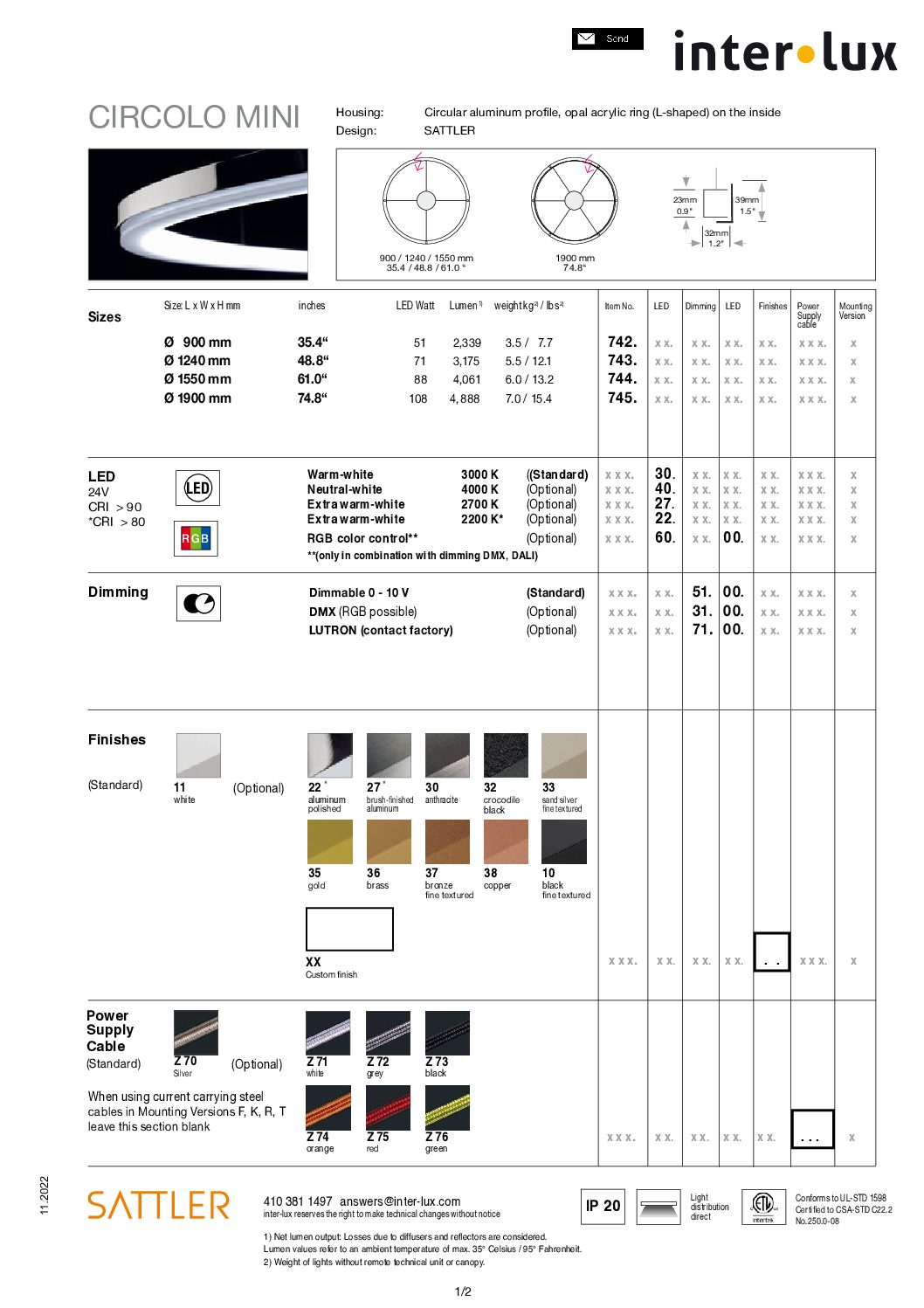

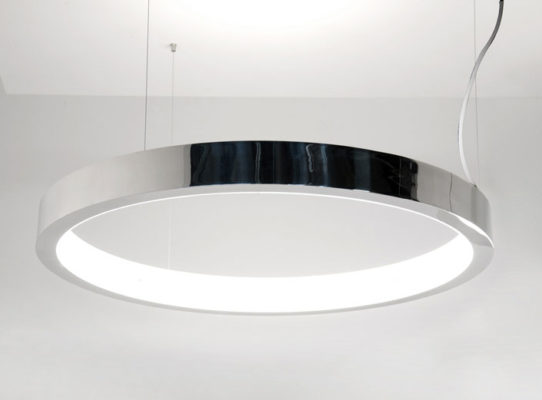

Circular aluminum profile, opal acrylic glass ring (L-shaped) on the inside

Mounting:
Pendant light, inclusive canopy (Ø 290 mm/11.4″) and 4 current carrying steel cable suspensions (length 2000 mm/78.7″).

Size: Ø 35.4, 48.8, 61.0, 74.8″

LED: 24V, CRI > 90, Mac Adam 3, SELV, L80 B10, 100,000 hours
Standard: Warm-white, 3000 K
Optional: Neutral white 4000K, extra warm white 2700K, tunable white (2700 – 6500 K) or RGB.

Dimmable:
Standard: 0-10V
Optional: Lutron EcoSystem, DMX

Mounting:

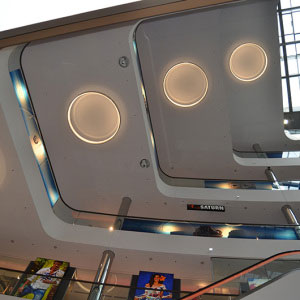

Direct ceiling mounting, 4 point suspension with a separate power supply cable and other see datasheet.

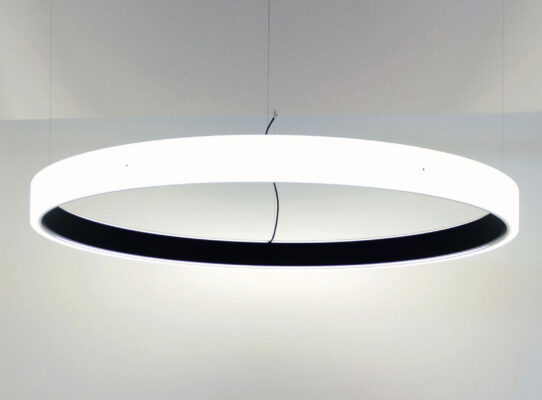

Circolo Inverse, circular pendant luminaire with inside aluminum ring and outside light. The external diffuser surface made of frosted acrylic glass ensures glare-free and mirror-free distribution of light. The harmonious indirect light output makes the luminaire particularly suitable for high rooms.

Housing: Aluminum profile with opal diffuser on the outside,

Size (Ø x H x W):
51.9 x 6.3 x 2.7″
62.9 x 6.3 x 2.7″
90.5 x 6.3 x 2.7″
102.3 x 6.3 x 2.7″

LED: 24V / CRI > 90 / Mac Adam 3 / SELV / L80 B10 100,000 hours
Standard: neutral white 4000 K
Optional: natural-white 3500 K, warm white 3000 K, extra warm white 2700 K, tunable white (2700-6500 K), RGB

Dimming: 0-10V, Lutron EcoSystem or DMX

Mounting (Standard): Pendant lamp, 4-point suspension with external power supply unit in suspended ceiling.

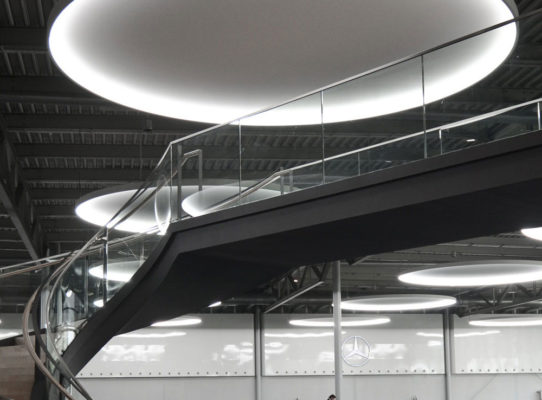

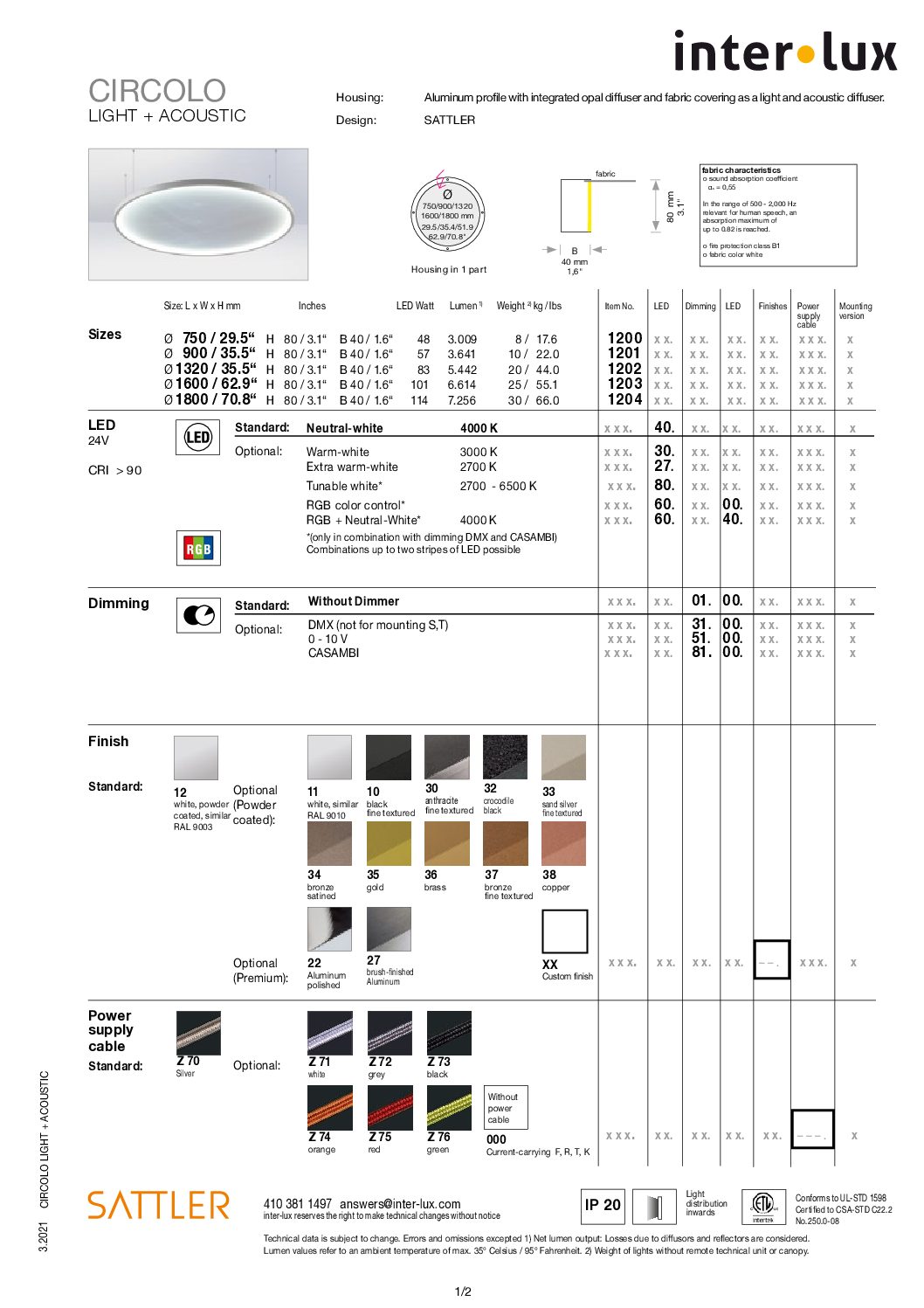

Circolo Light + Acoustic pendant with its integrated acoustic membrane ideally combines the themes of homogeneous light and impact sound reduction. Available from 29.5 to 70.8″ diameter in standard sizes, or individually as a large-area special luminaire. By combining different luminaire diameters in staggered suspension heights, large-area, creative lighting solutions can be achieved.

Housing: Aluminum profile with integrated opal diffuser and fabric covering as a light and acoustic diffuser.

Size: Ø 29.5 / 35.5 / 51.9 / 62.9 / 70.8″

LED: 24V / CRI > 90 / Mac Adam 3 / SELV / L80 B10 100,000 hours
Standard: neutral white 4000 K
Optional: natural-white 3500 K, warm white 3000 K, extra warm white 2700 K, tunable white (2700-6500 K), RGB

Dimming: 0-10V, Lutron EcoSystem or DMX

Mounting (Standard): Pendant lamp, 4-point suspension with external power supply unit in suspended ceiling.
