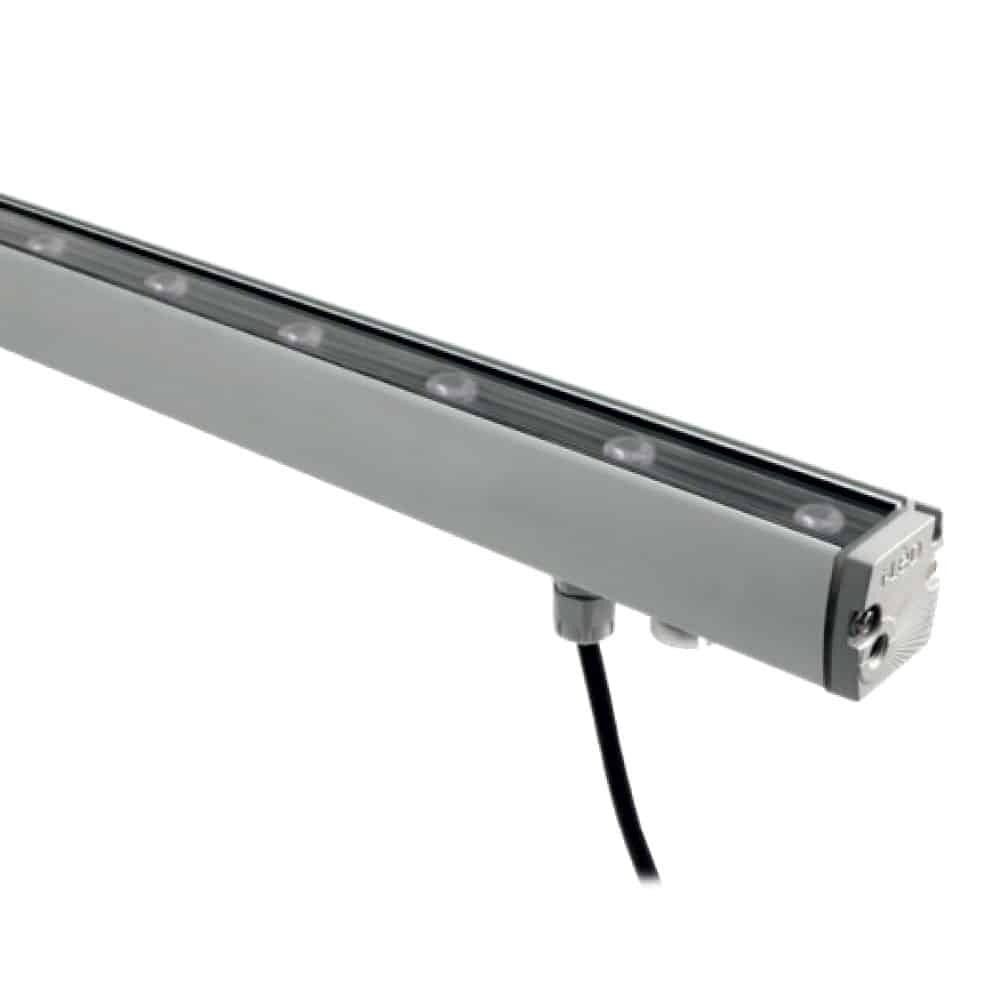

Xenia Pro Wall Optics
Xenia is a family of slim profile, low glare linear LED recessed and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. The recessed version can be installed as a drive-over in-grade or can be mounted into walls and ceilings. The wall version offers several mounting brackets and anti-glare visors to direct light only where needed. Multiple optics, internal Micro-louvers and a PRO version for higher output complete the range.
Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 µm).
Trim: Frameless, ideal for continuous runs.
Mounting: Adjustable steel brackets, available in different lengths.
Dimensions/Weight: 14.4” (1.21 lbs) – 24.8” (1.76 lbs) – 36.6” (2.43 lbs) – 48.4” (3.09 lbs) – 60.2” (3.75 lbs)
Driver: Integral, 120/277VAC Non-Dim or 0-10V Dim down to 10% (Dimming N/A for 14.1”).
Wattages: 9W (14.4”) – 17W (24.8”) – 26.2W (36.6”) – 35W (48.4”) – 44W (60.2”)
Cable: IND fixtures provided with a pair of 9.8″ Power in-and-out cables. ID fixtures provided
with a pair of 9.8″ Power in-and-out cables plus a pair of 9.8″ Dimming in-and-out cables.
(Power and Dimming cables required, ordered separately).
Safety features: Built-in TCS® (Moisture protection), Over tension and Electrical discharge protection systems.
IP rating: IP66. Fixture is protected against dust and direct exposure to powerful water jets.
IK rating: IK 10
ETL Certification: ETL, wet location
Optics: Fixed. Available in Narrow Flood – Elliptic Narrow Flood – Elliptic Flood – Wall Washer. Anti-glare visors available as accessory.
Color temperatures: 2700K – 3000K – 3500K – 4000K.
CRI: 80+
Quickship Housings Available: add QS in front of part number

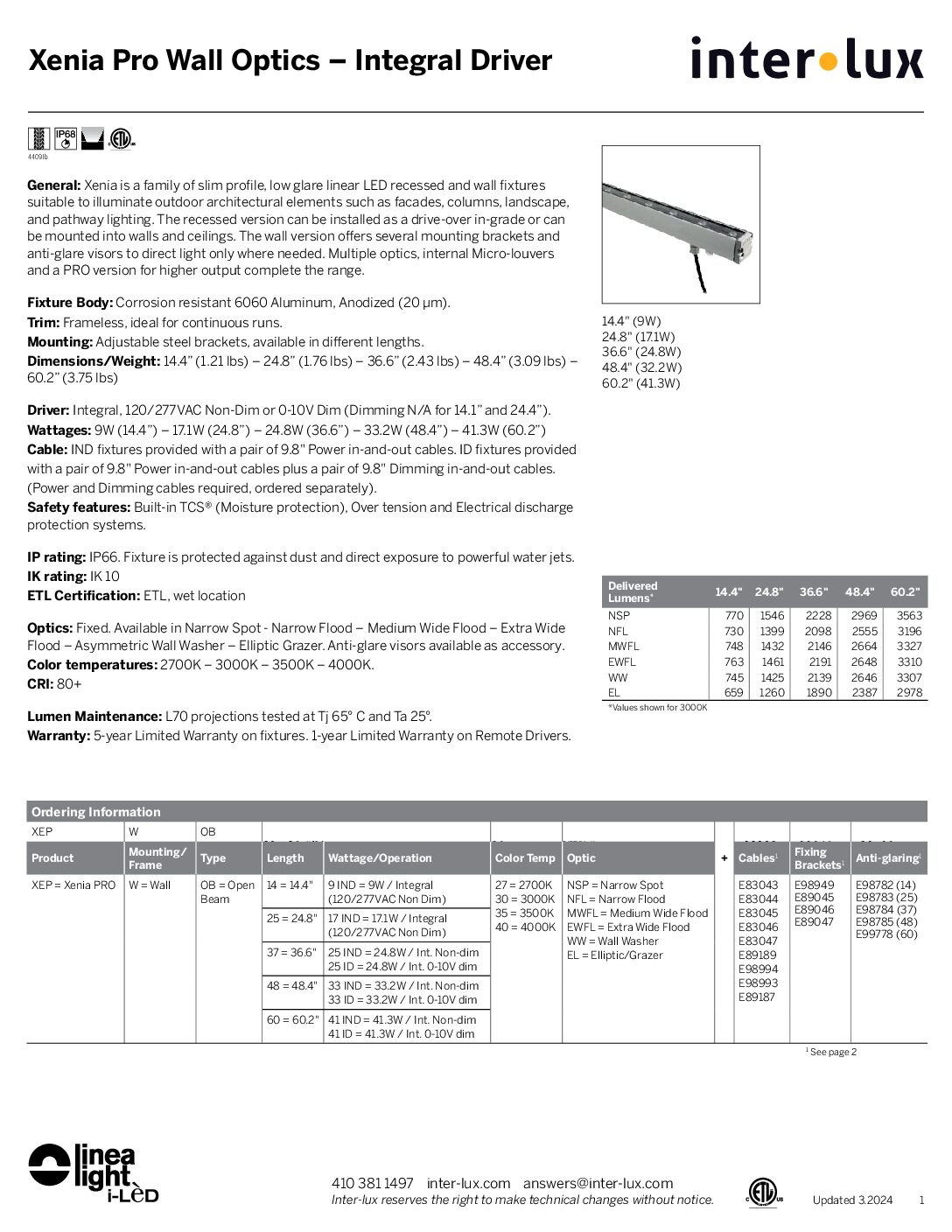

- Spec Page
-

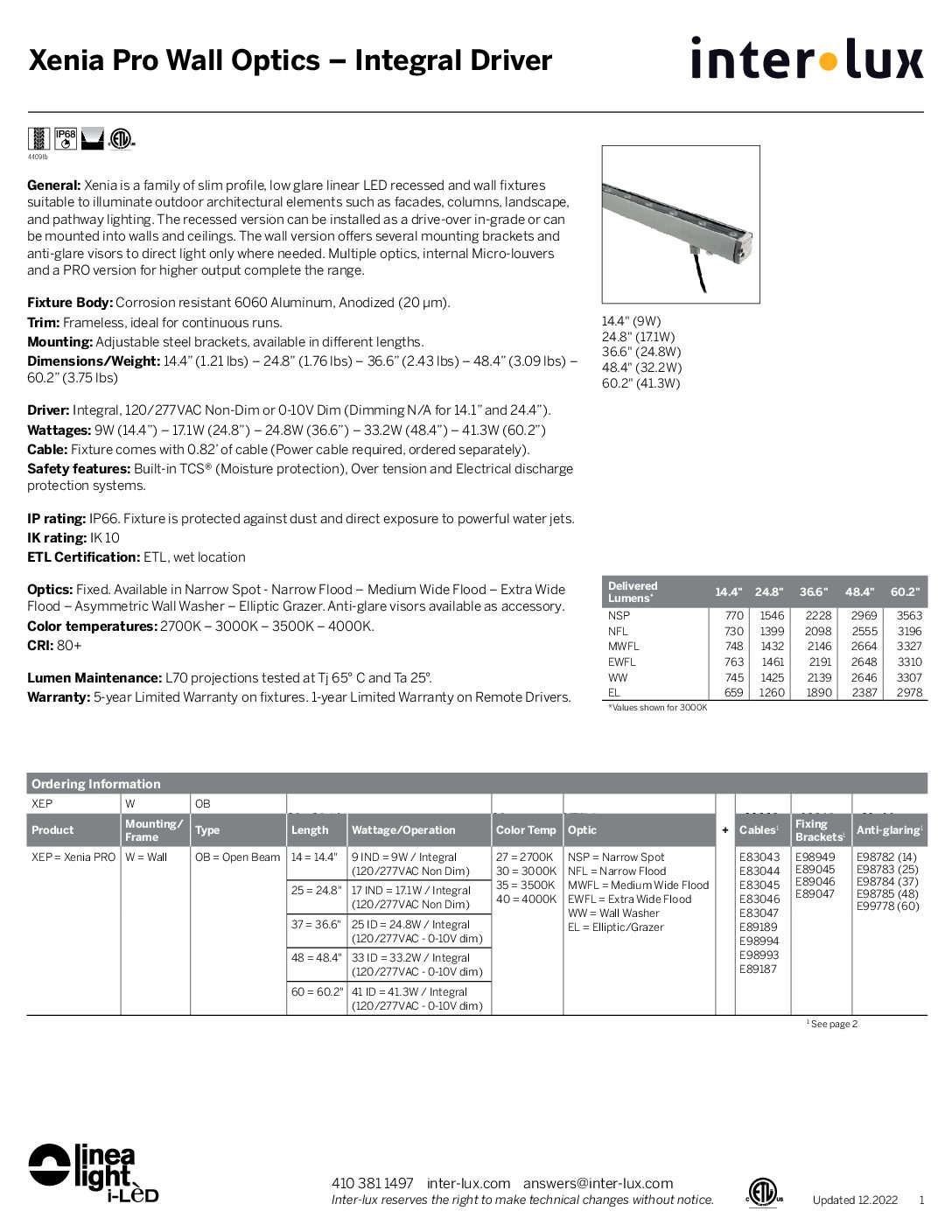

- Photometry
-
