Xenia Wall Optics
Xenia is a family of slim profile, low glare linear LED recessed and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. The recessed version can be installed as a drive-over in-grade or can be mounted into walls and ceilings. The wall version offers several mounting brackets and anti-glare visors to direct light only where needed. Multiple optics, internal Micro-louvers and a PRO version for higher output complete the range.
Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 µm).
Trim: Frameless, ideal for continuous runs.
Mounting: Adjustable steel brackets, available in different lengths.
Driver: Integral, 120/277VAC Non-Dim. Remote mounted CV 24VDC.
Wattages CV: 7.2W (14.4”) – 12.3W (24.8”) – 18.5W (36.6”) – 24.6W (48.4”) – 30.8W (60.2”)
Wattages IND: 6.4W (14.4”) – 11W (24.8”) – 16.5W (36.6”) – 22W (48.4”) – 27.5W (60.2”)
Cable: Fixture comes with 0.66’ of cable (Power cable required, ordered separately).
Safety features: Built-in TCS® (Moisture protection), Over tension and Electrical discharge protection systems.
IP rating: IP66. Fixture is protected against dust and direct exposure to powerful water jets.
IK rating: IK 10
ETL Certification: ETL, wet location
Optics: Fixed. Available in Elliptical Narrow Flood – Asymmetric Wall Washer –
General Distribution. Anti-glare visors available as accessory.
Color temperatures: 2200K – 2700K – 3000K – 3500K – 4000K.
CRI: 80+
Quickship Housings Available: add QS in front of part number

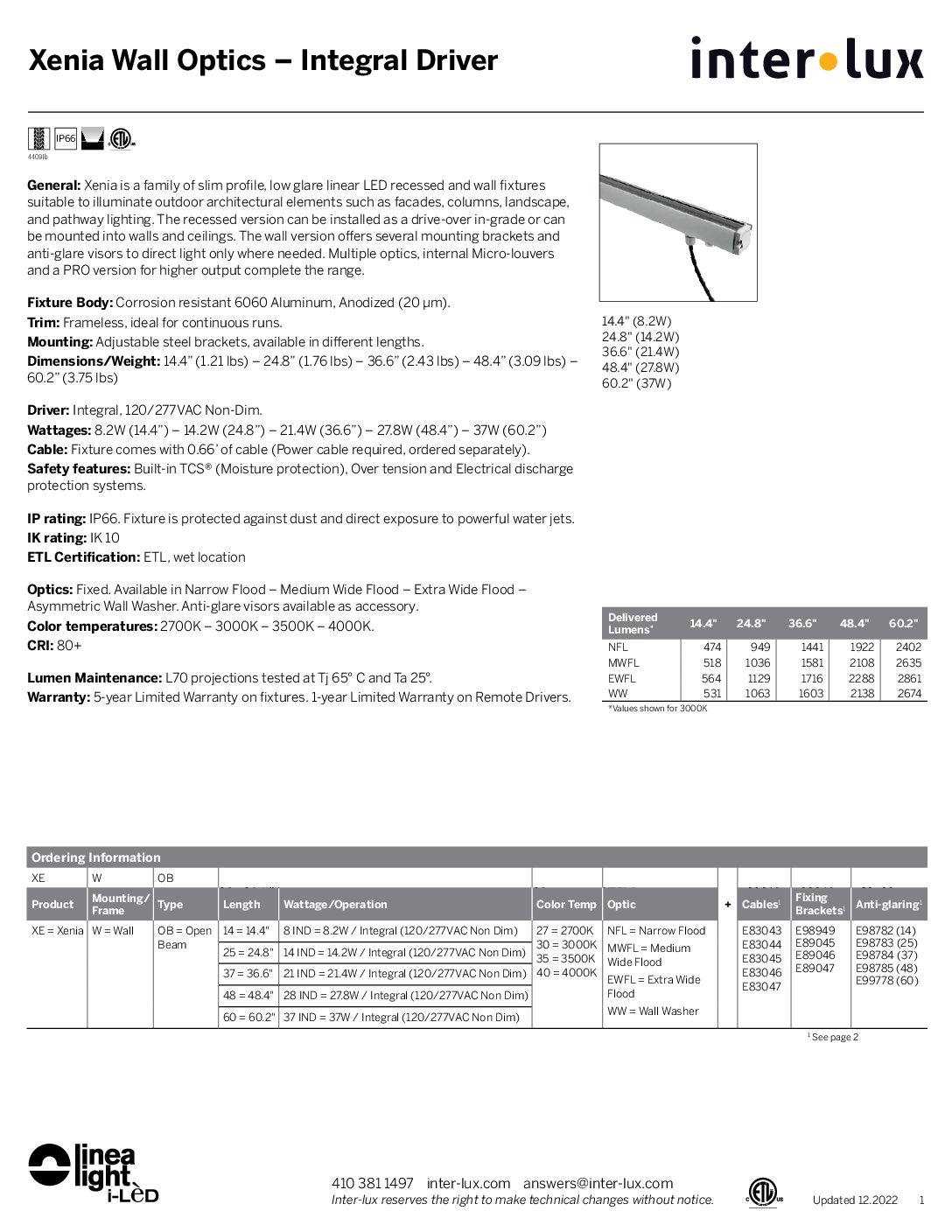

- Spec Page
-

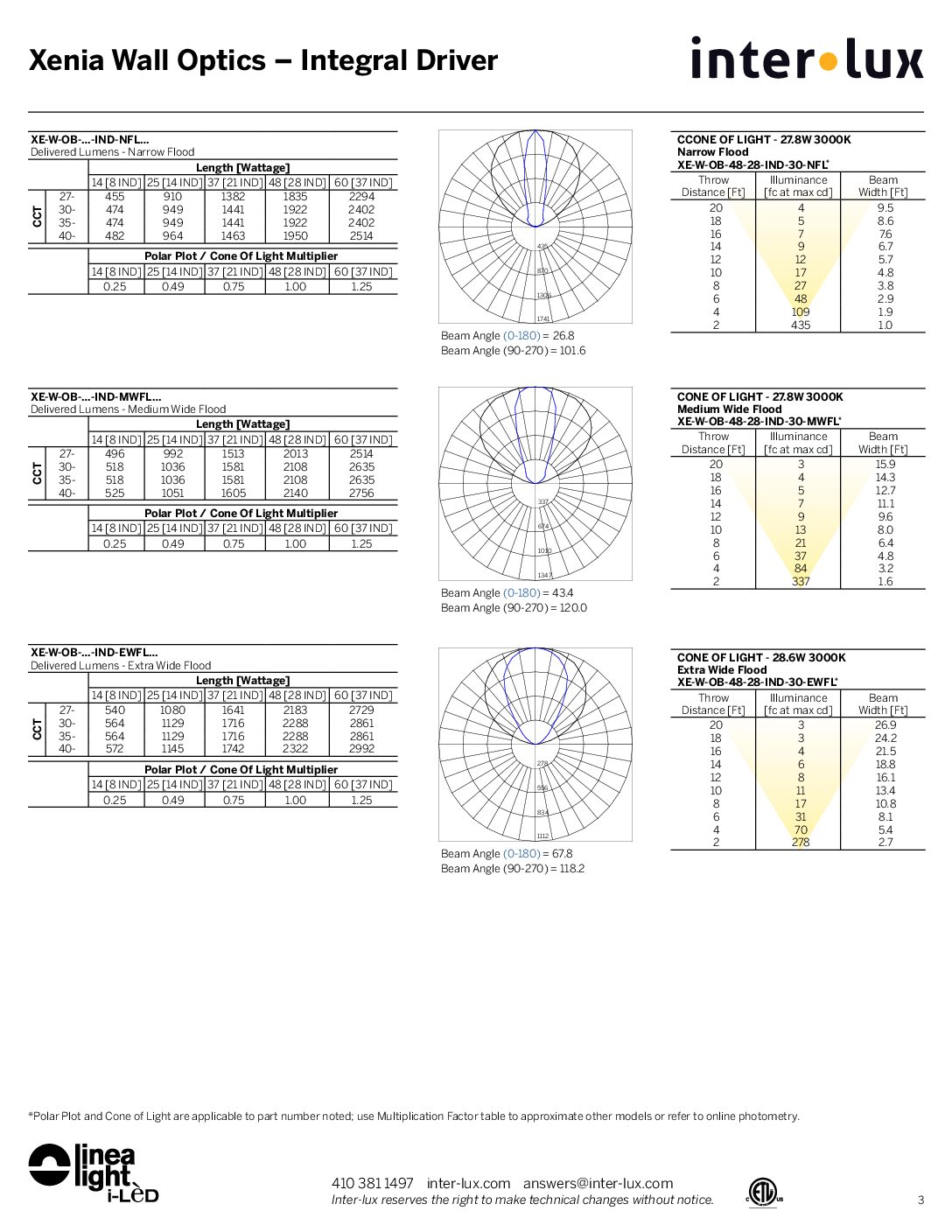

- Photometry
-
