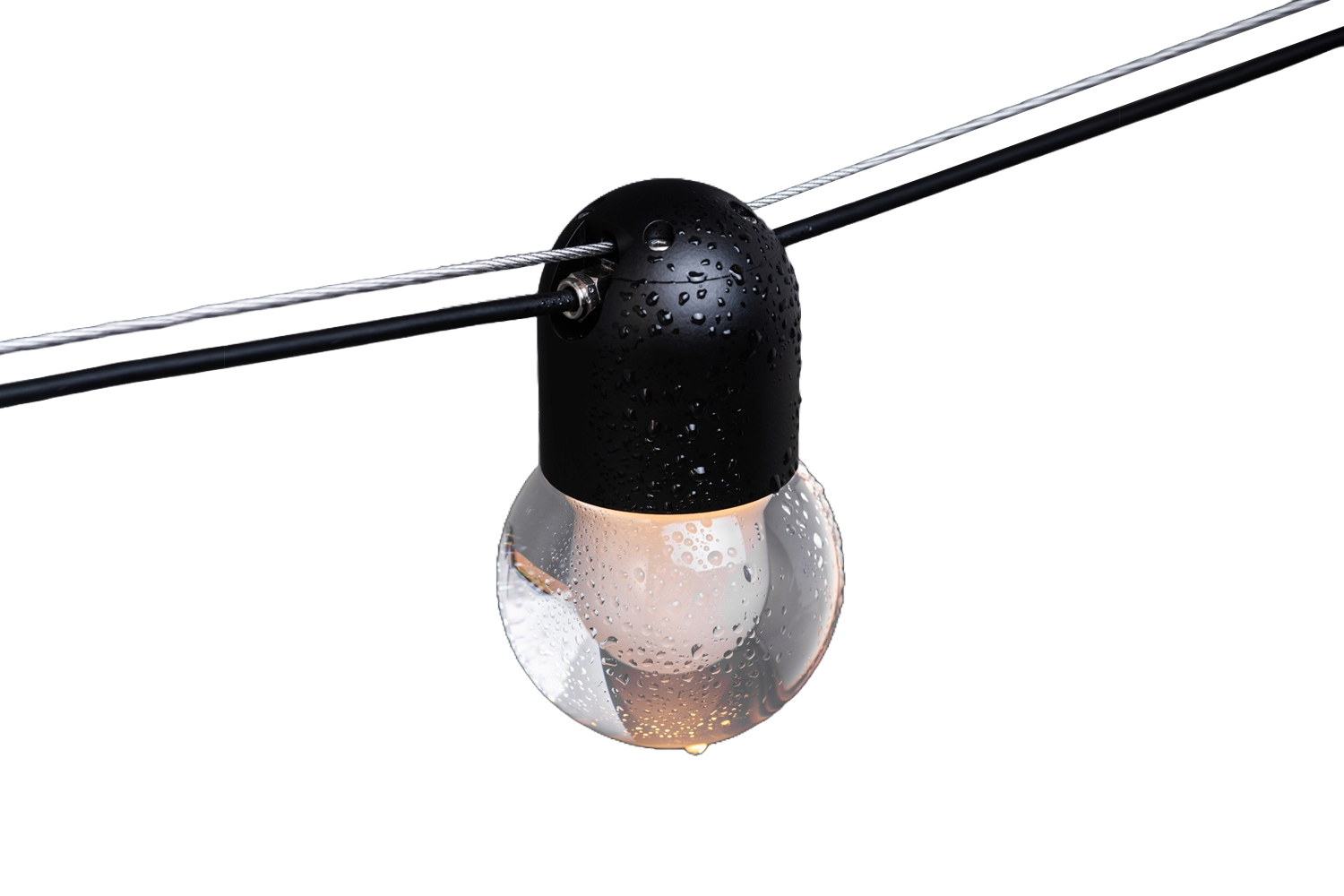

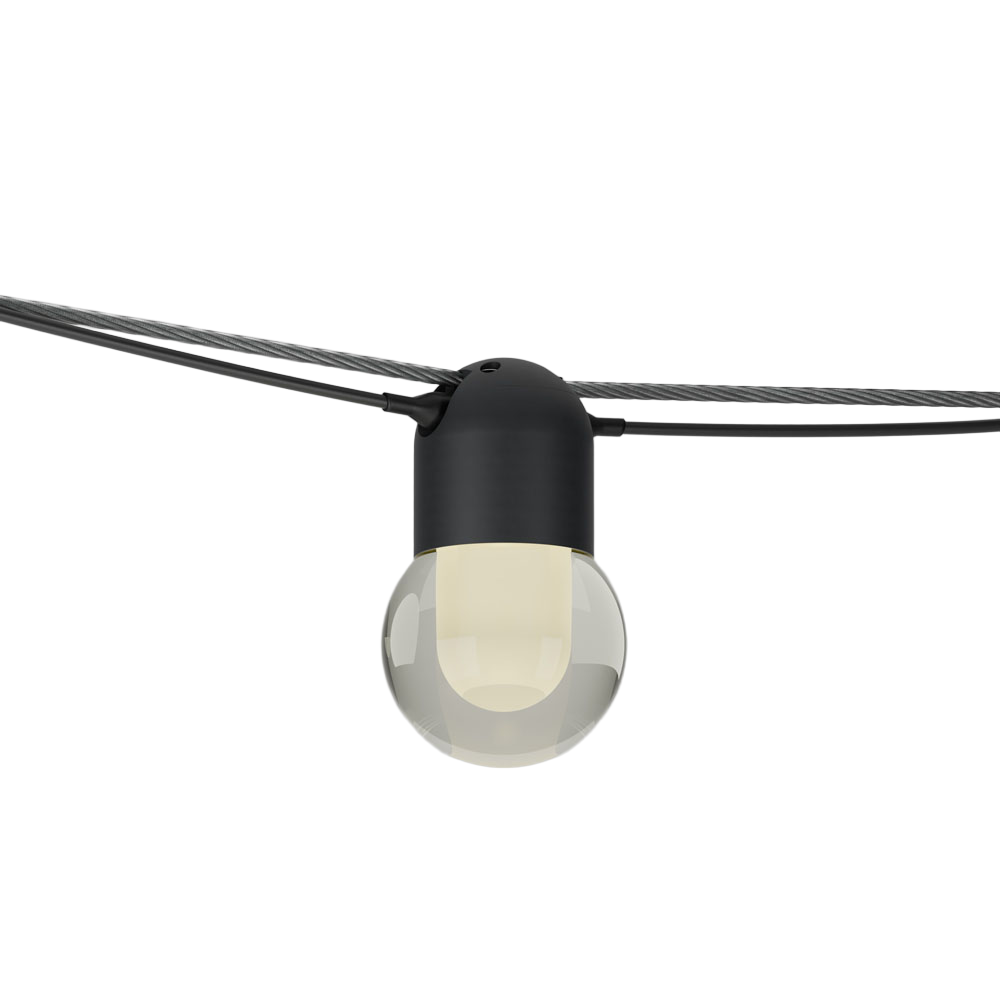

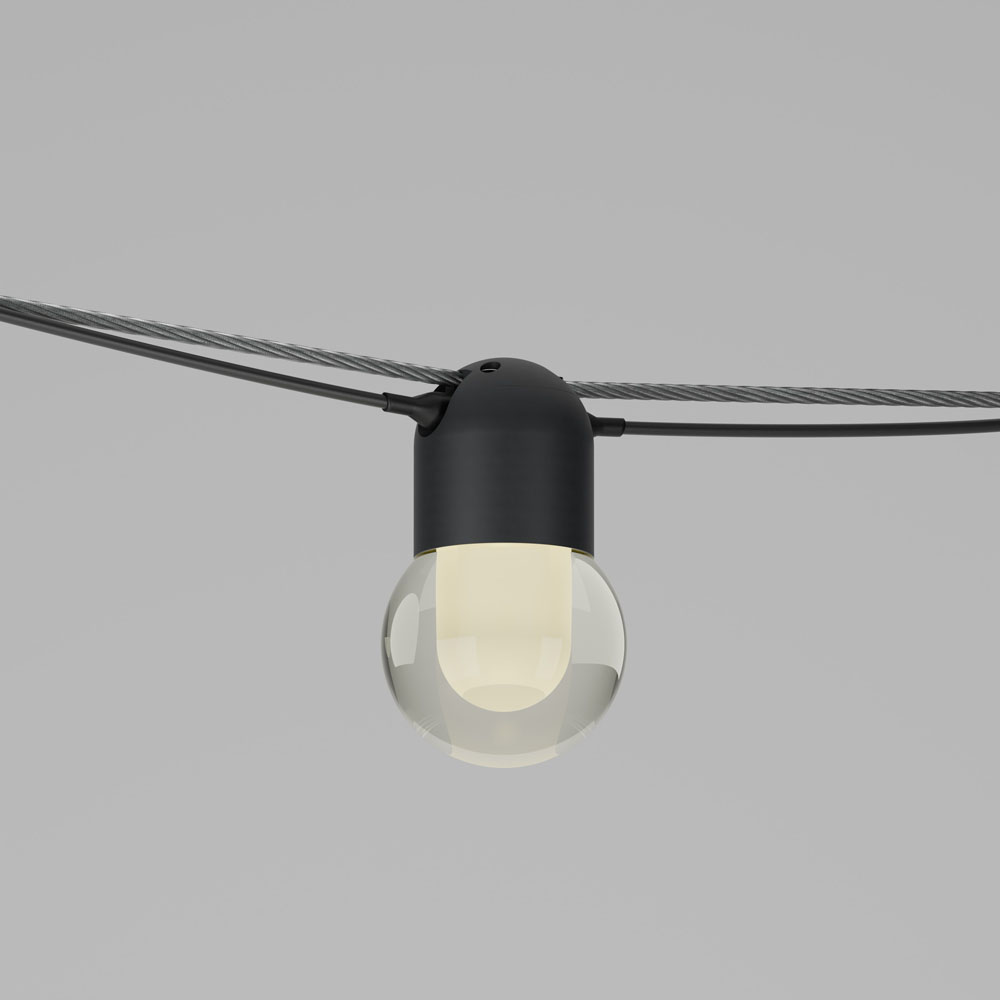

Mini G-Cat
IP66 rated miniature catenary mounted luminaire.

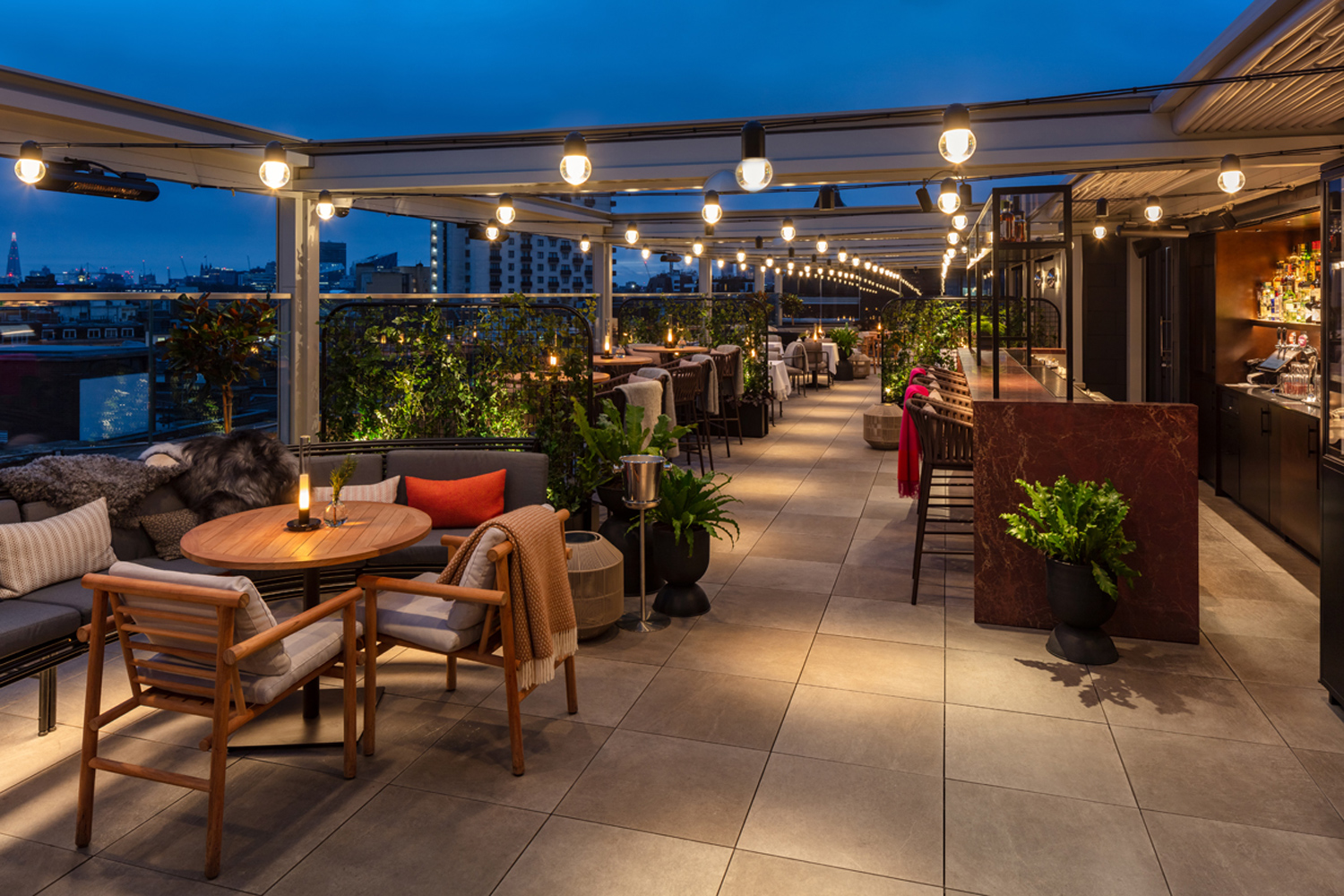

- Suitable for lighting outdoor public spaces, pathways and more intimate hospitality and high end residential applications.

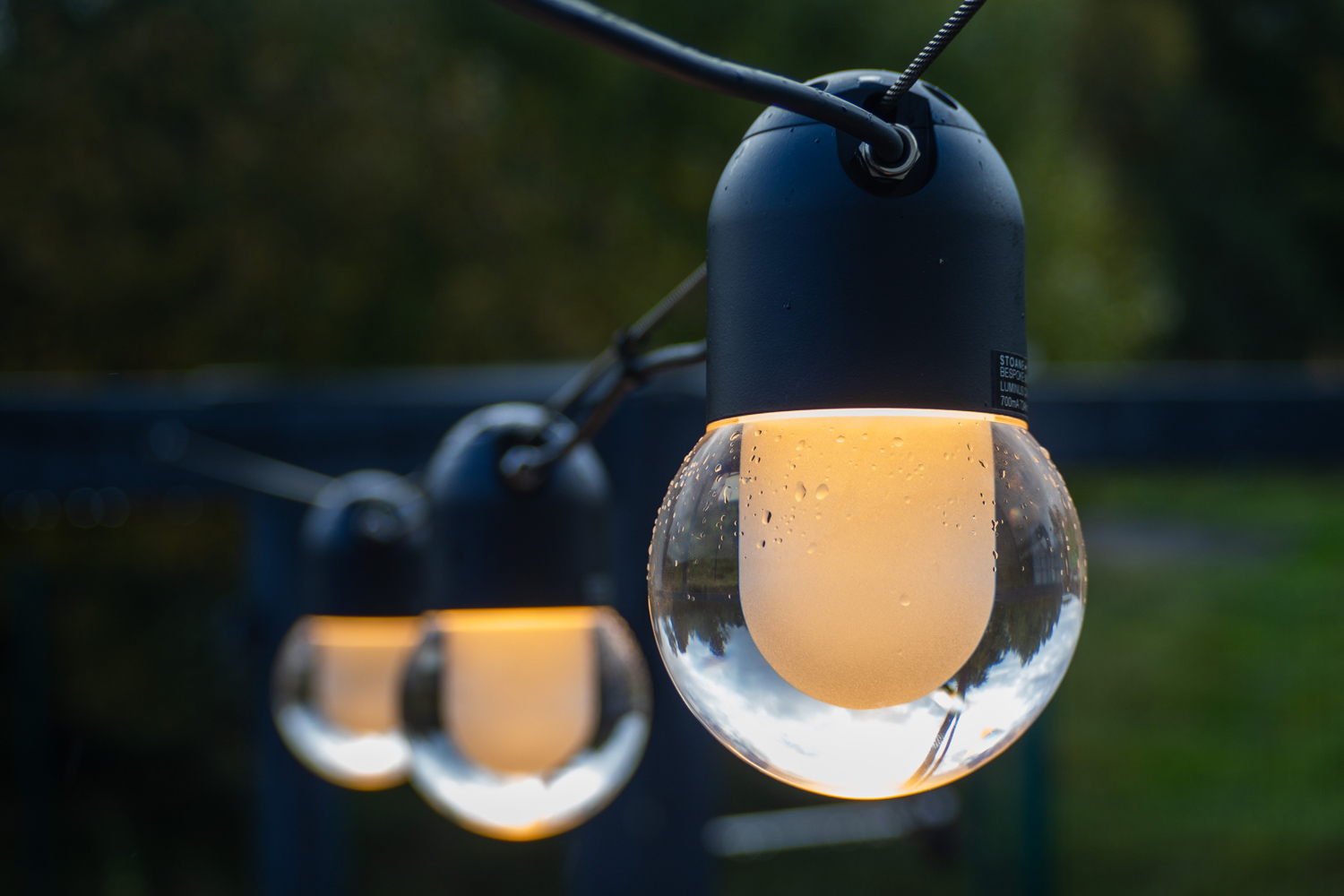

- Polished acrylic globe with internally frosted diffuser.
- Suitable for 0.2″ – 0.24″ (5 – 6mm) stainless steel catenary cable suspensions secured via integrated top cap and clamp system.
- Precision machined from 70 – 90% recycled aluminum.
- General illumination using Ø3.5″ (Ø90mm)acrylic globe with Ø1.4″ (Ø35mm) integral bore.
- LED 90+ CRI, multiple CCTs available.
- 5 Year warranty.
Mounting
- CAT = Suspended catenary system
Power
- M = Mid Power, 6W (631lm initial at 650mA, 9Vf)
CCT (90+ CRI)
- 927 = 2700K
- 930 = 3000K
- 935 = 3500K
- 940 = 4000K
Beam
- GE = General illumination
Finish
- CA = Clear anodized
- BL = Matte black
- CF = Custom finish, specify RAL
Selections download as one PDF

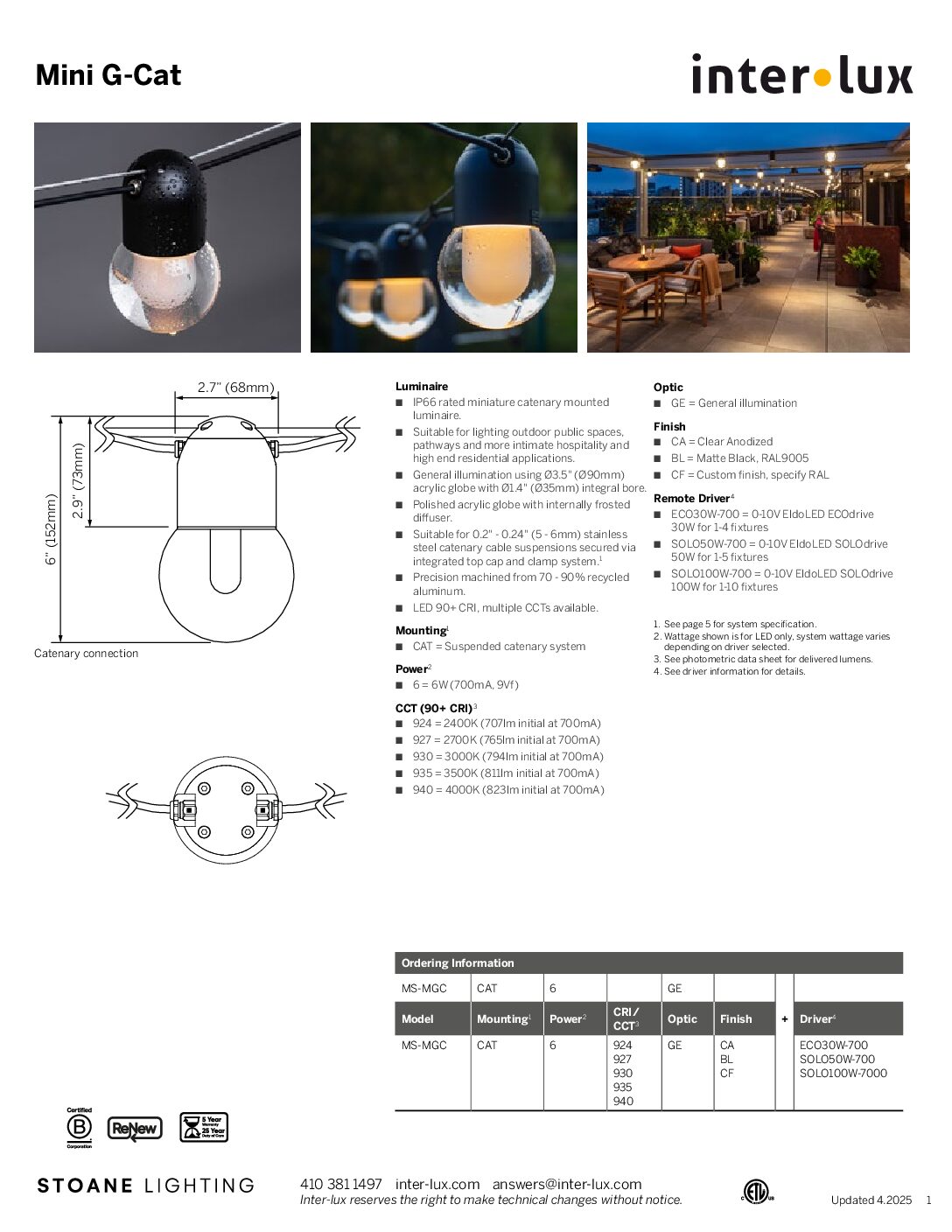

- Spec Page
-

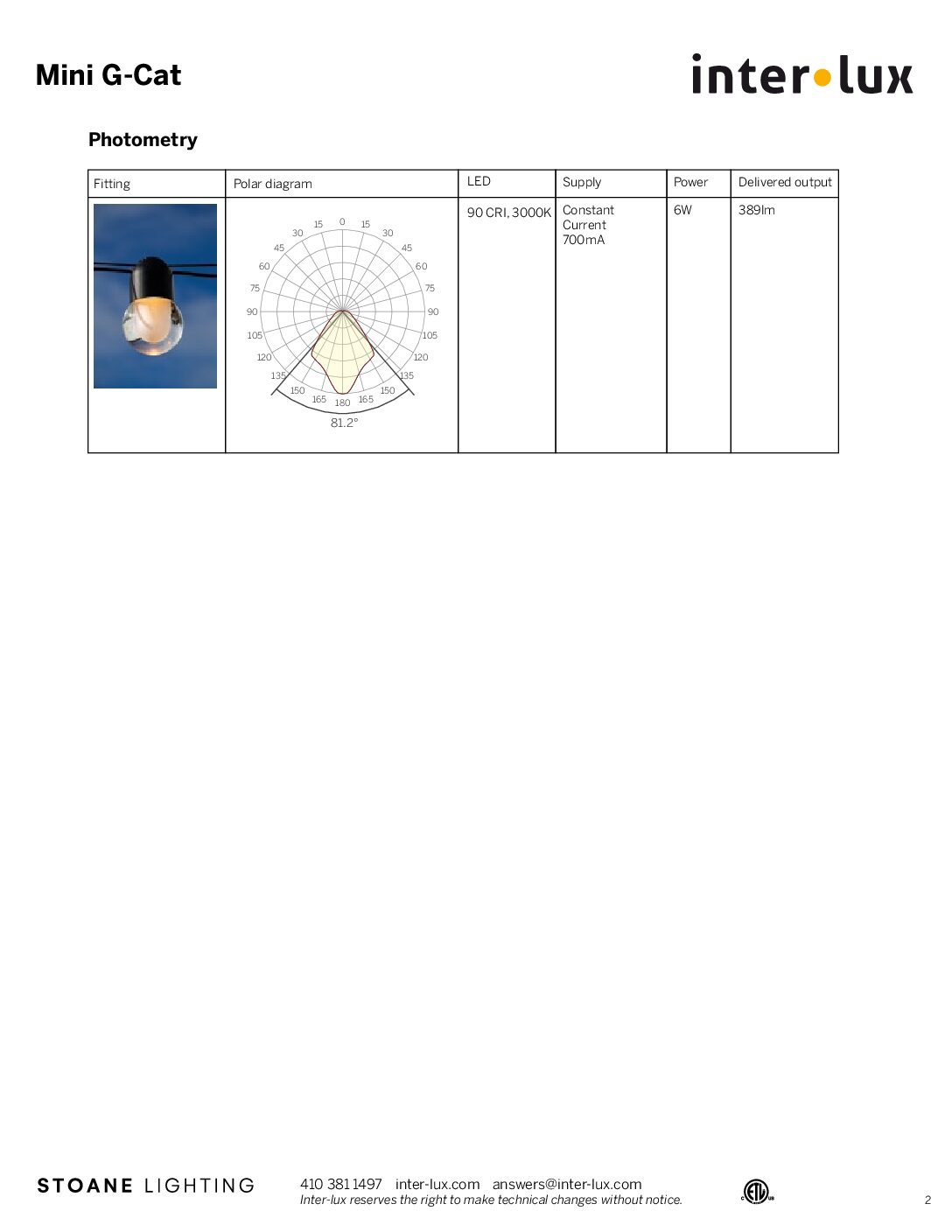

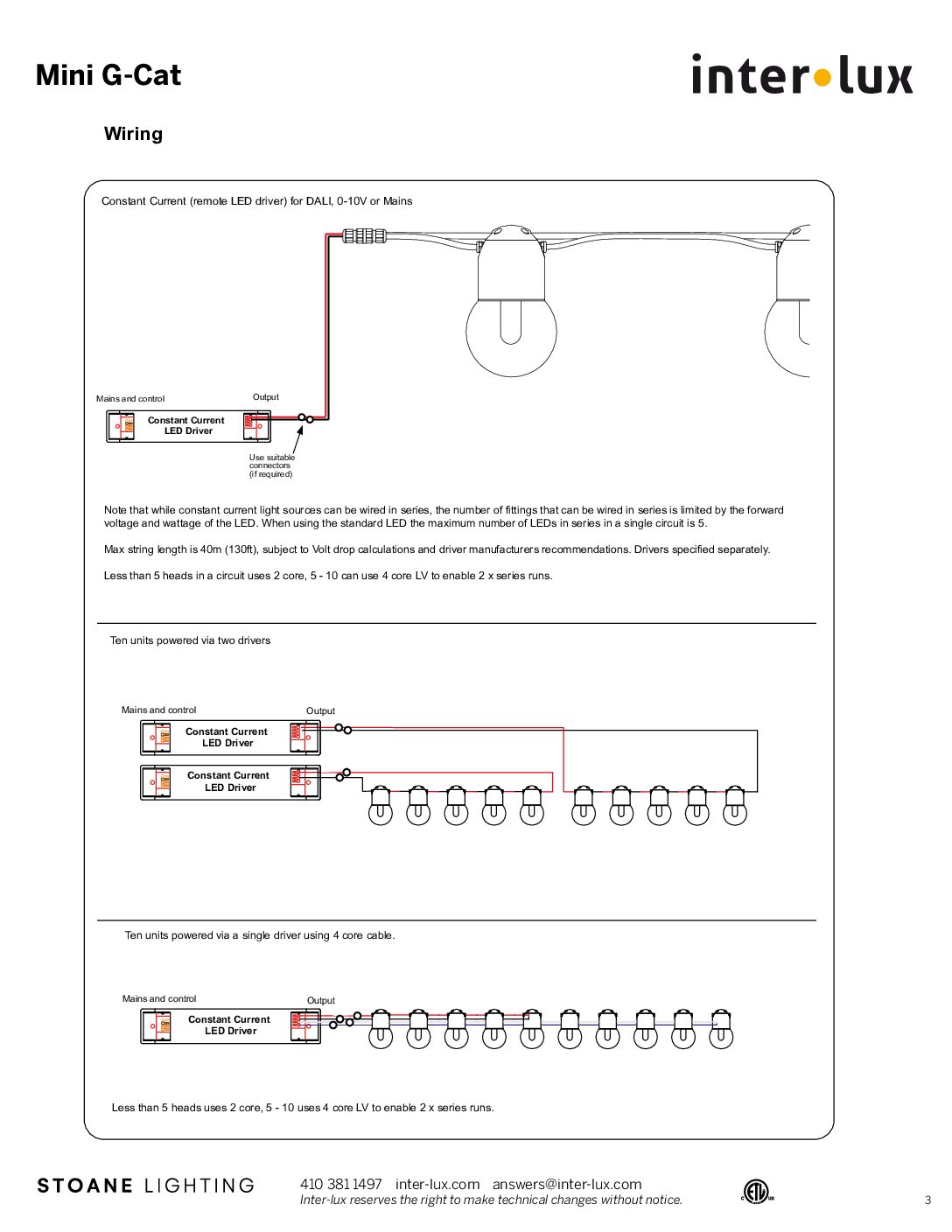

- Photometry / Wiring
-

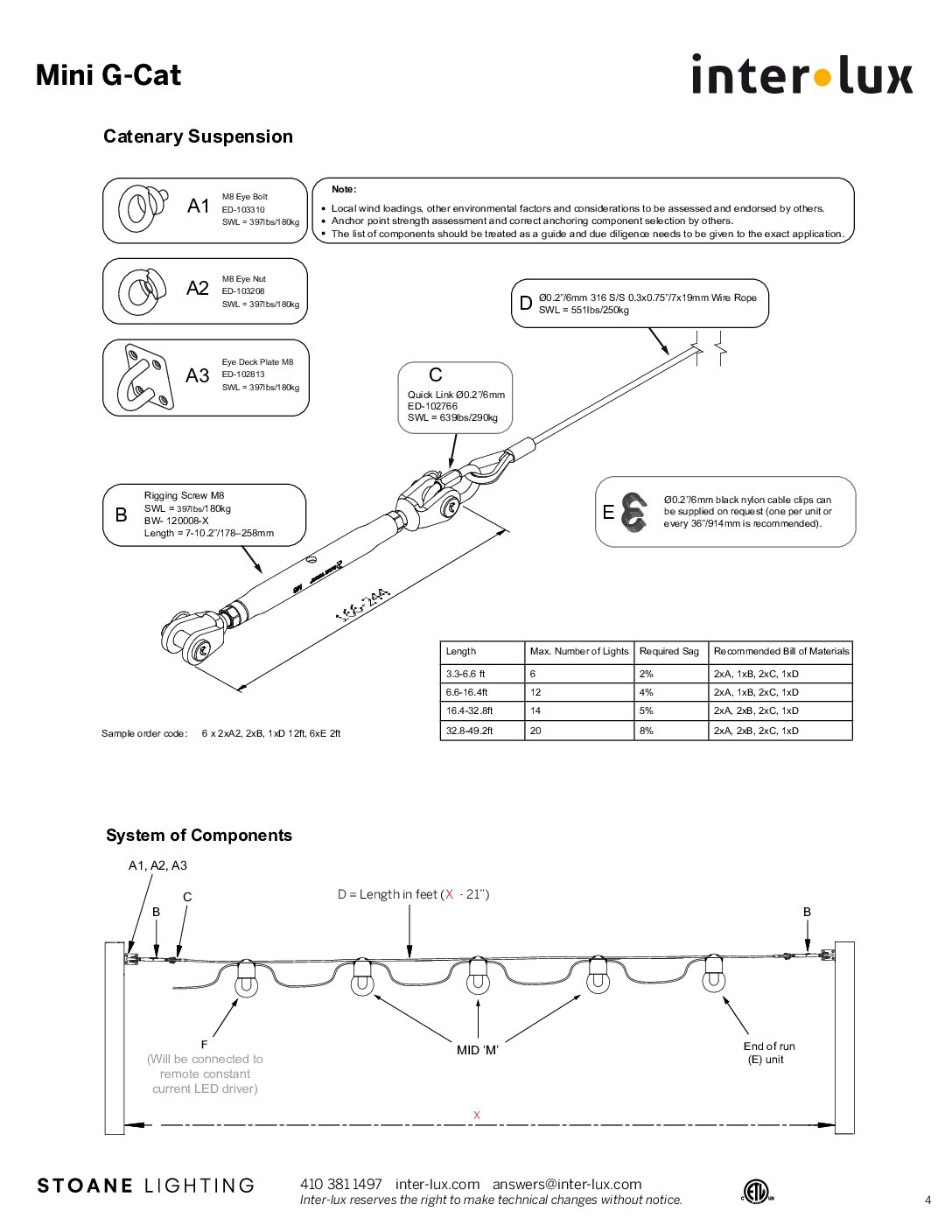

- Suspension
-

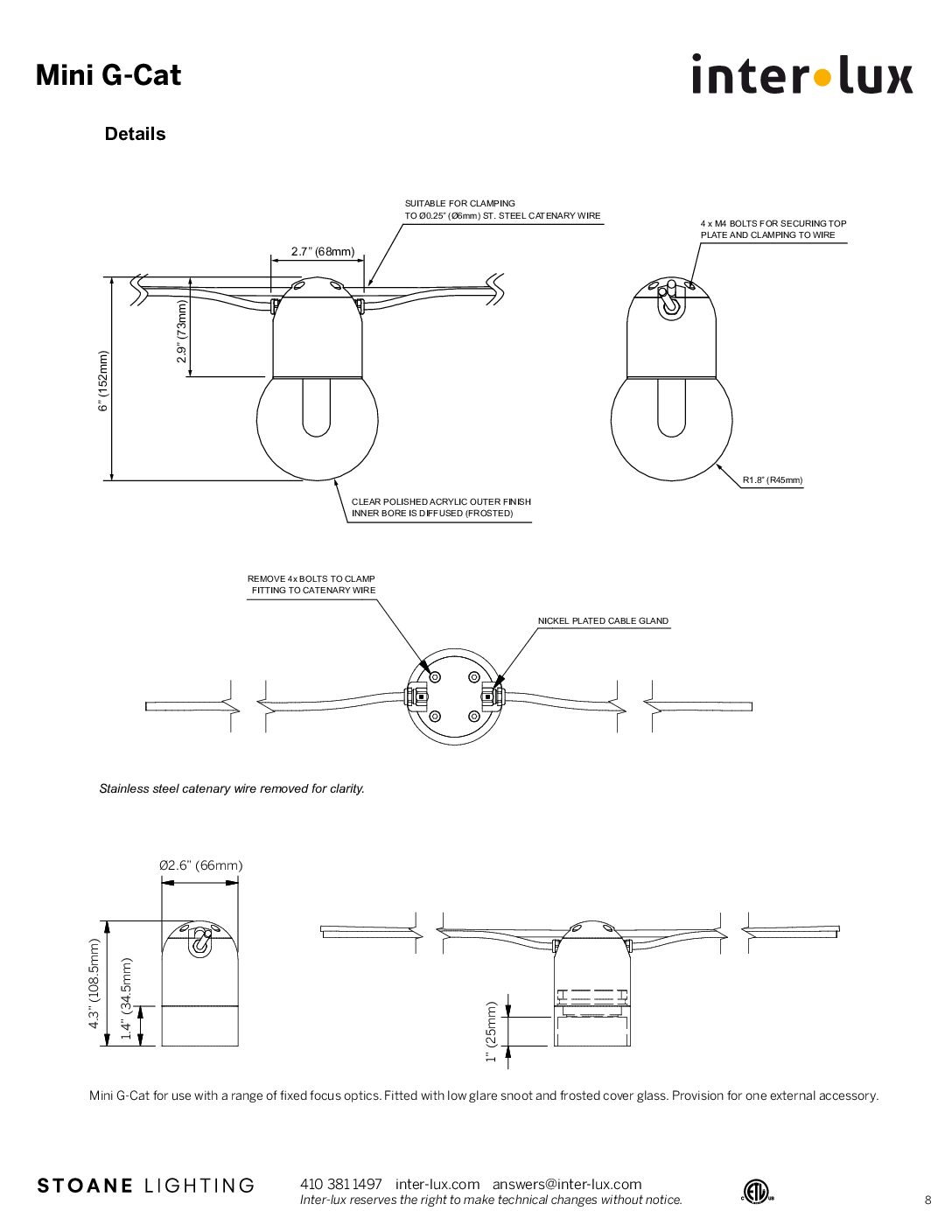

- Details
-
