Box Cove
Classic square-fronted continuous linear cove system for clean, minimal effect with optimized distribution for maximum throw of light
- Light source positioned for optimum horizontal spread of illumination.
- Light source is not visible from any viewing angle up to and including direct horizontal view.
- Delivers continuous soft wash of directed light to above surface.
- Satin Diffuser for high efficiency and soft edge beam without striations.
- Removable light source sub assembly for simple installation and maintenance.
- High efficiency linear LED in a range of outputs.
- Integral drivers and through wiring.
- Lengths and angles factory cut to exact field dimensions.
- Mitered corners available with continuous illumination.
Selections download as one PDF

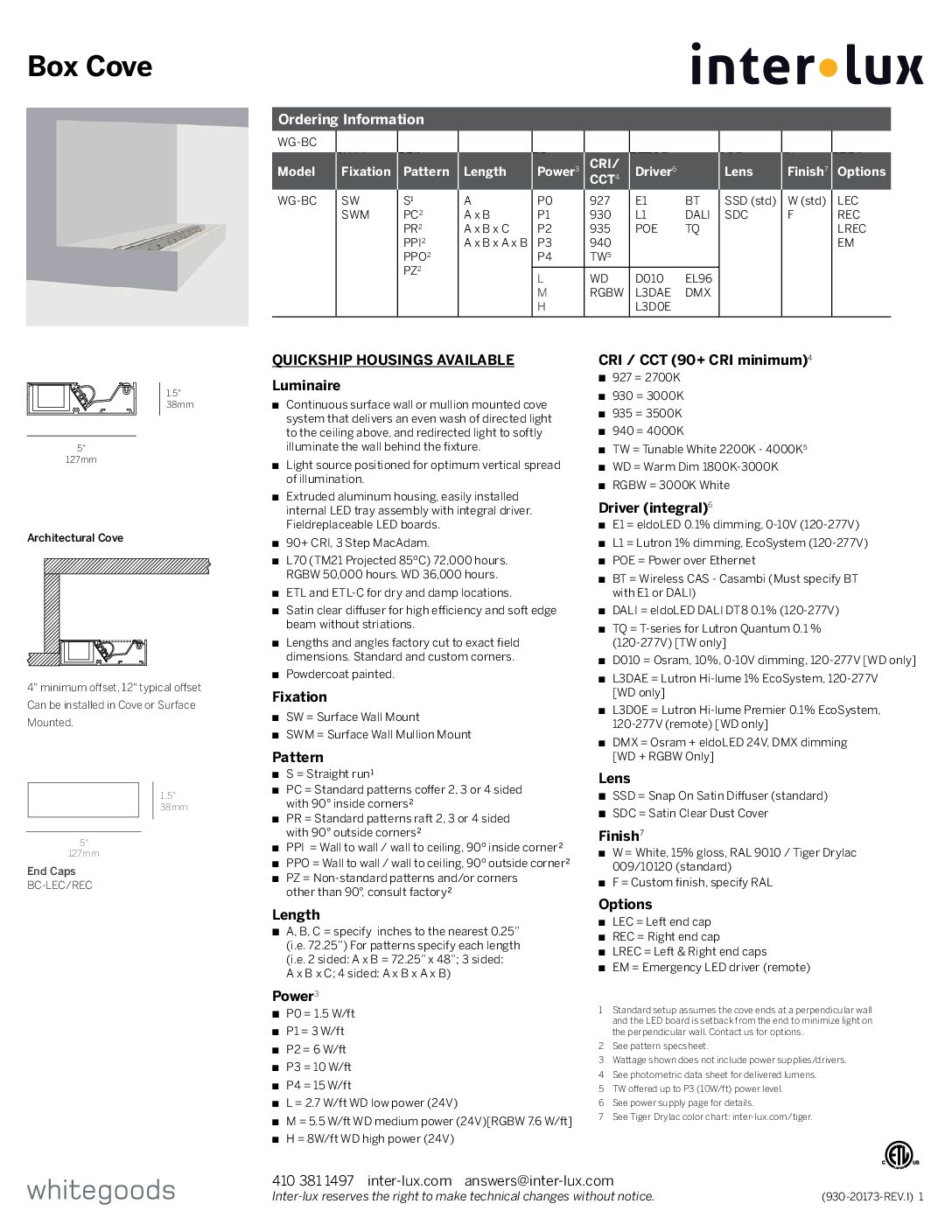

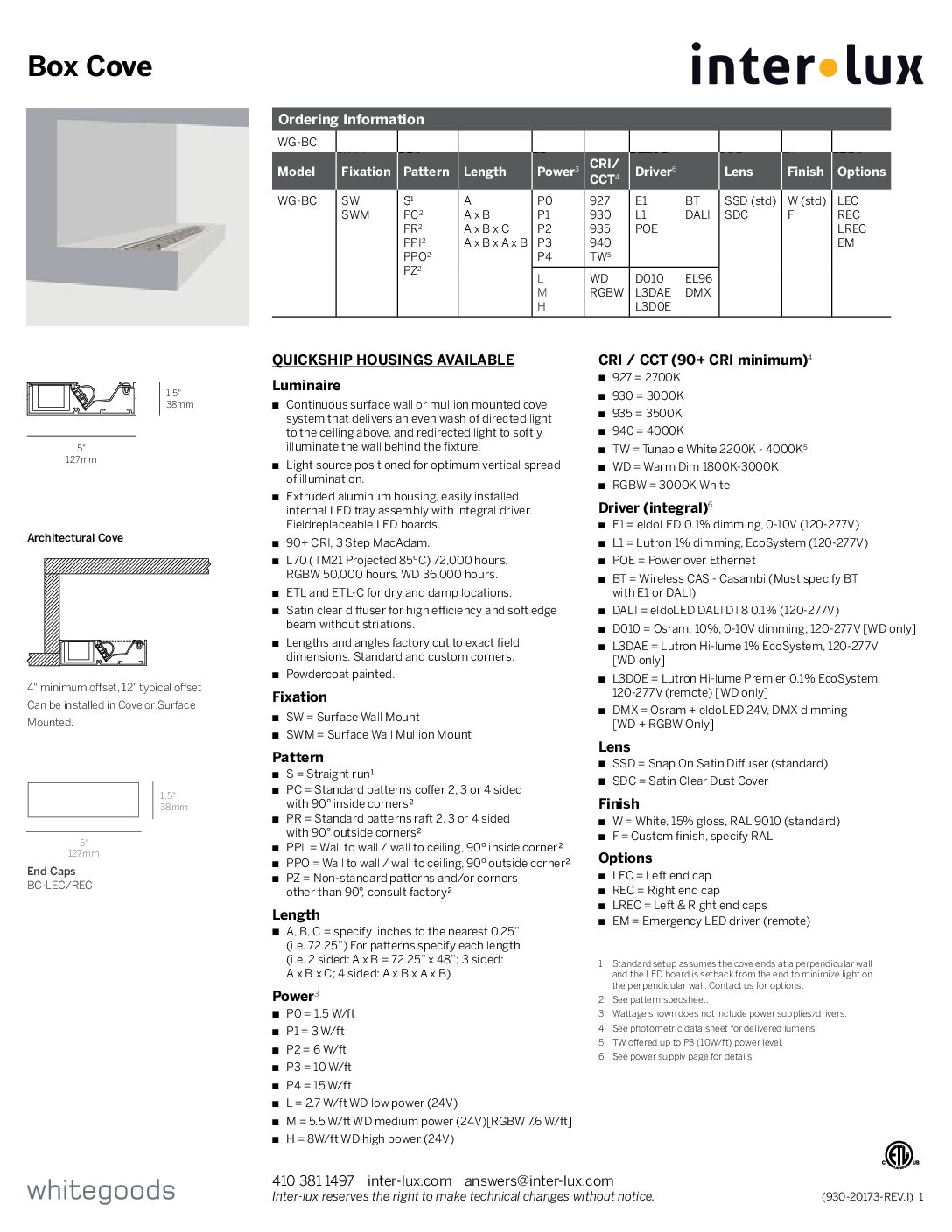

- Spec Page
-

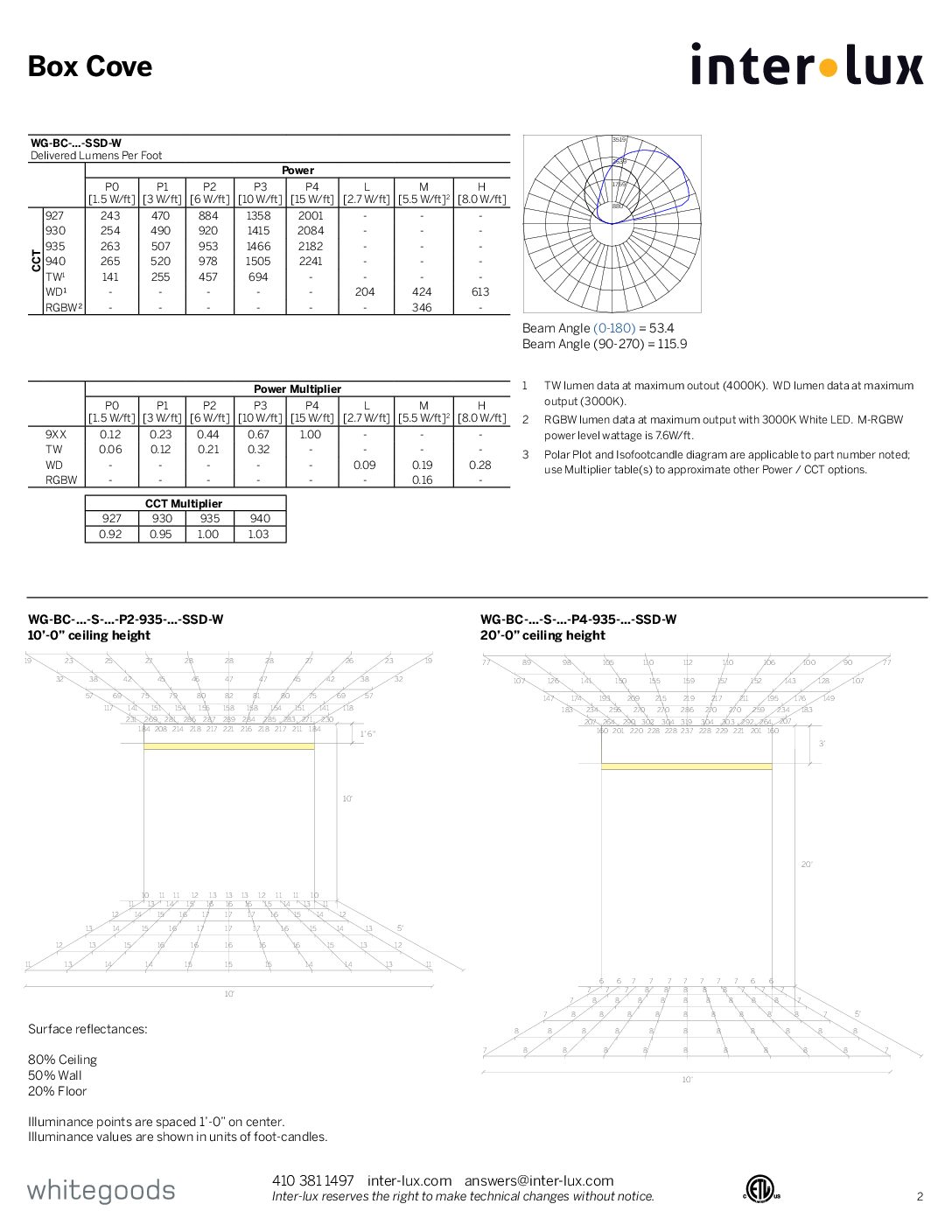

- Photometry
-

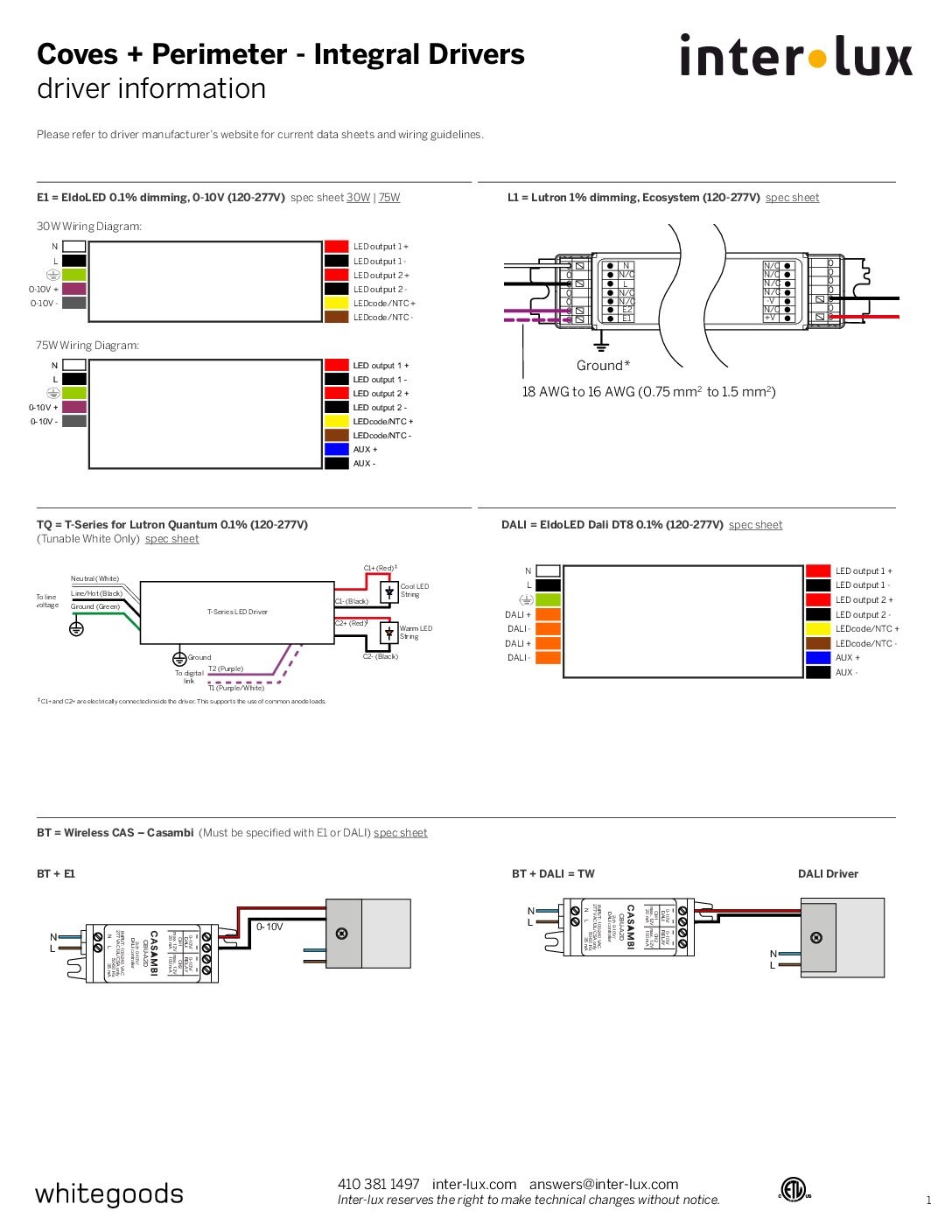

- Driver Information Constant Current
-
- Emergency Constant Current
-

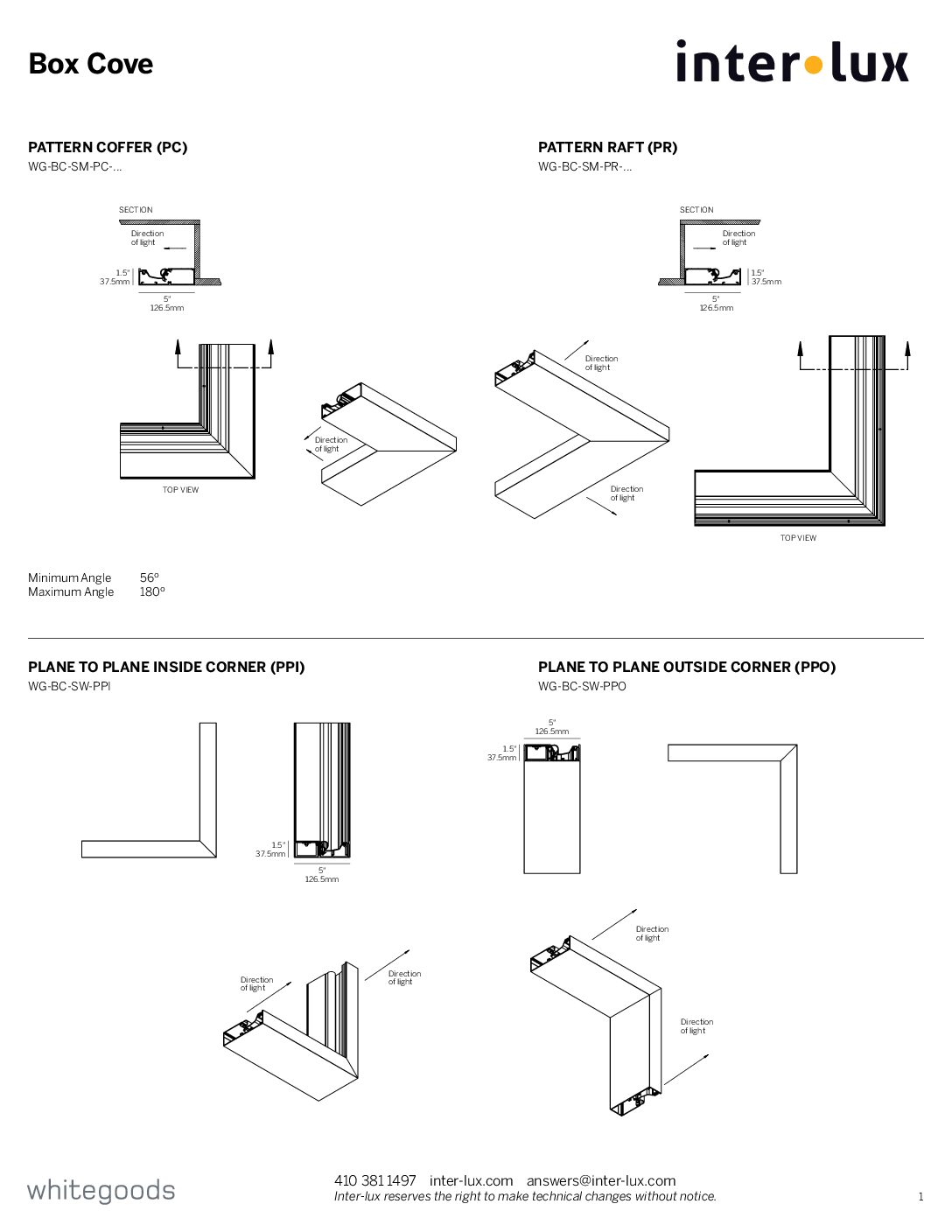

- Patterns
-
- CC1.3 Static White LED
-
- CC1.3 Tunable White LED
-
