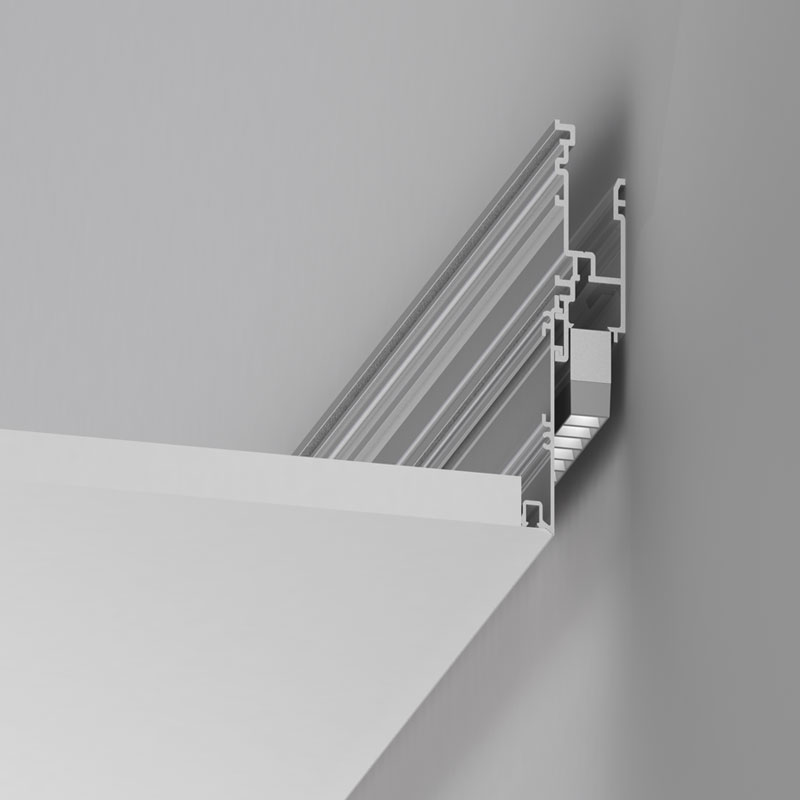

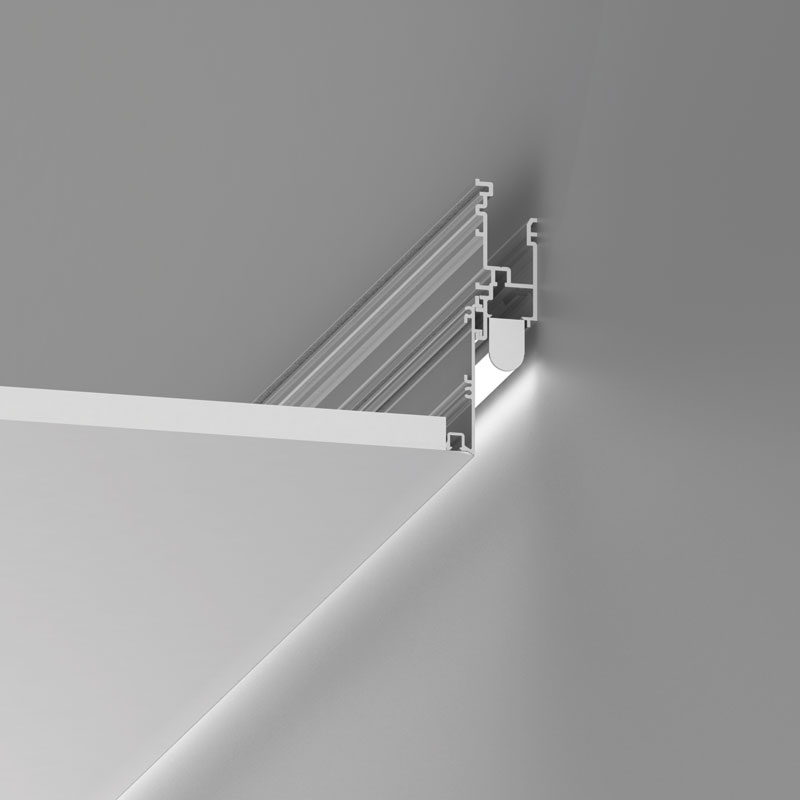

20 Linear Perimeter Regressed and Wallgraze
A perimeter pocket system with regressed mounted light source for continuous illumination of adjacent surfaces, available in any dimension to fully integrate with the architecture.
- Recessed perimeter mount fixture with regressed light for continuous mounting to any desired length (1/4″ increments), as well as standard grid multiples.
- Multiple lens options for diffuse, high efficiency and luminous effect.

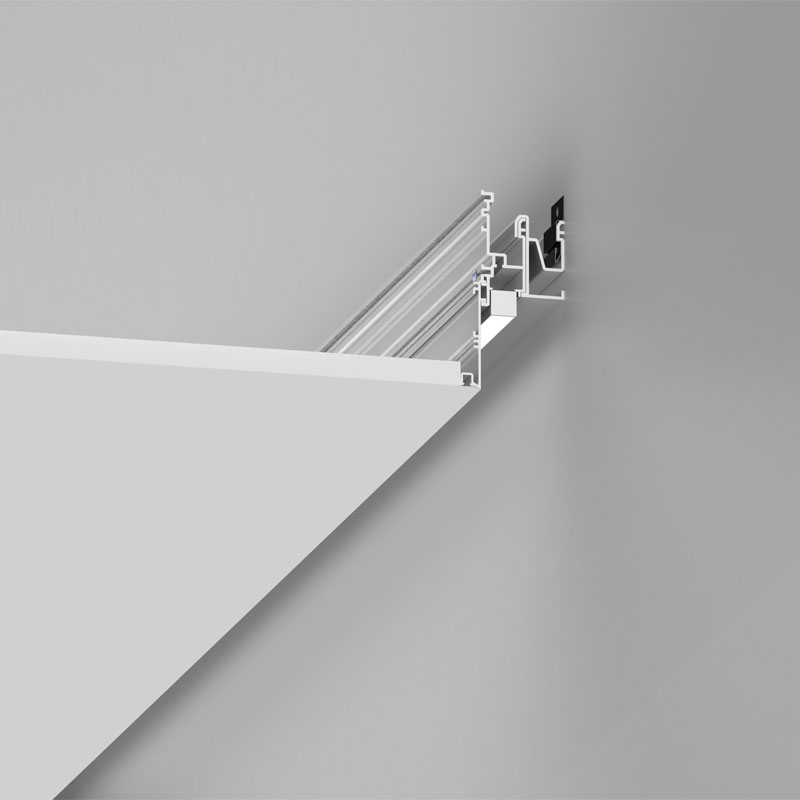

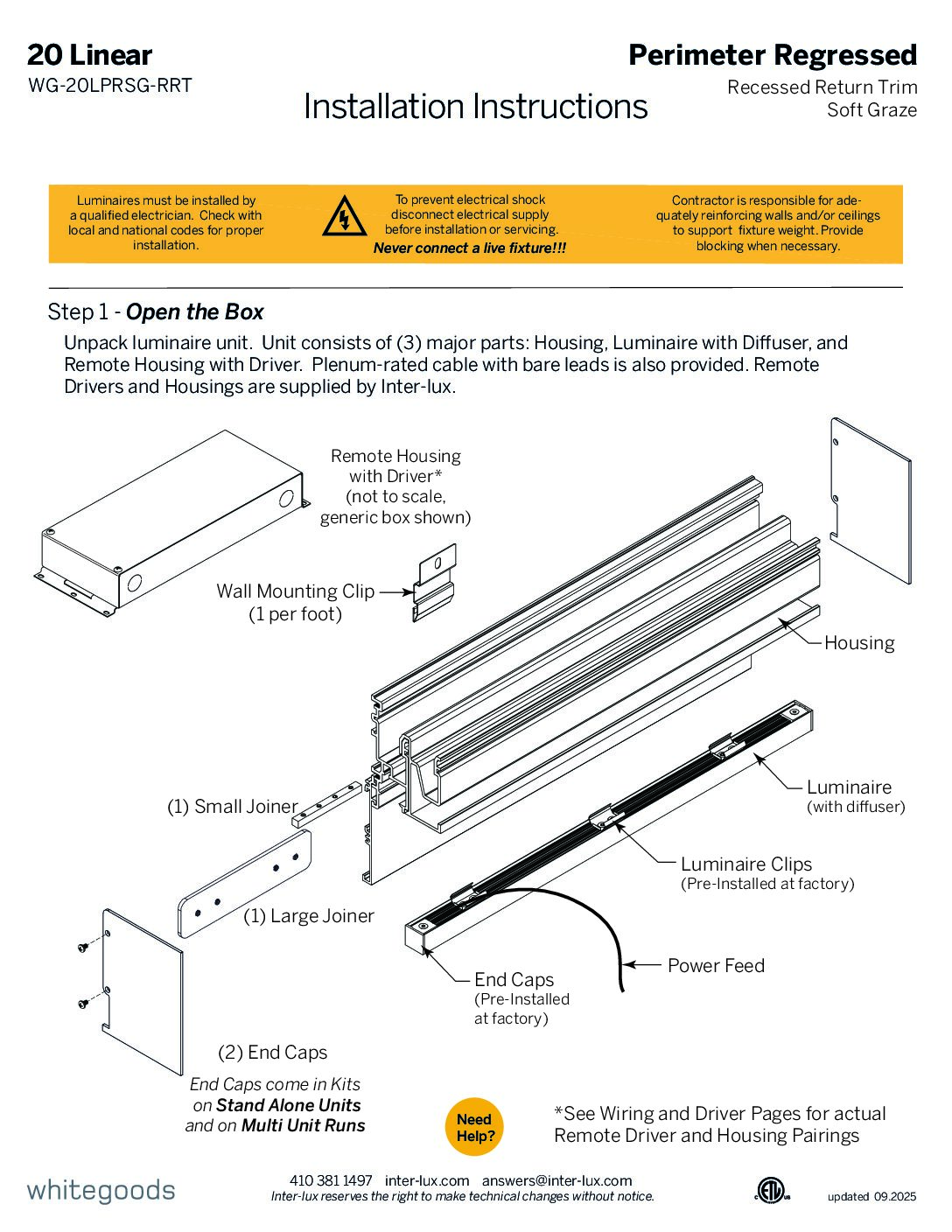

- Soft Graze version with 1″ extension.

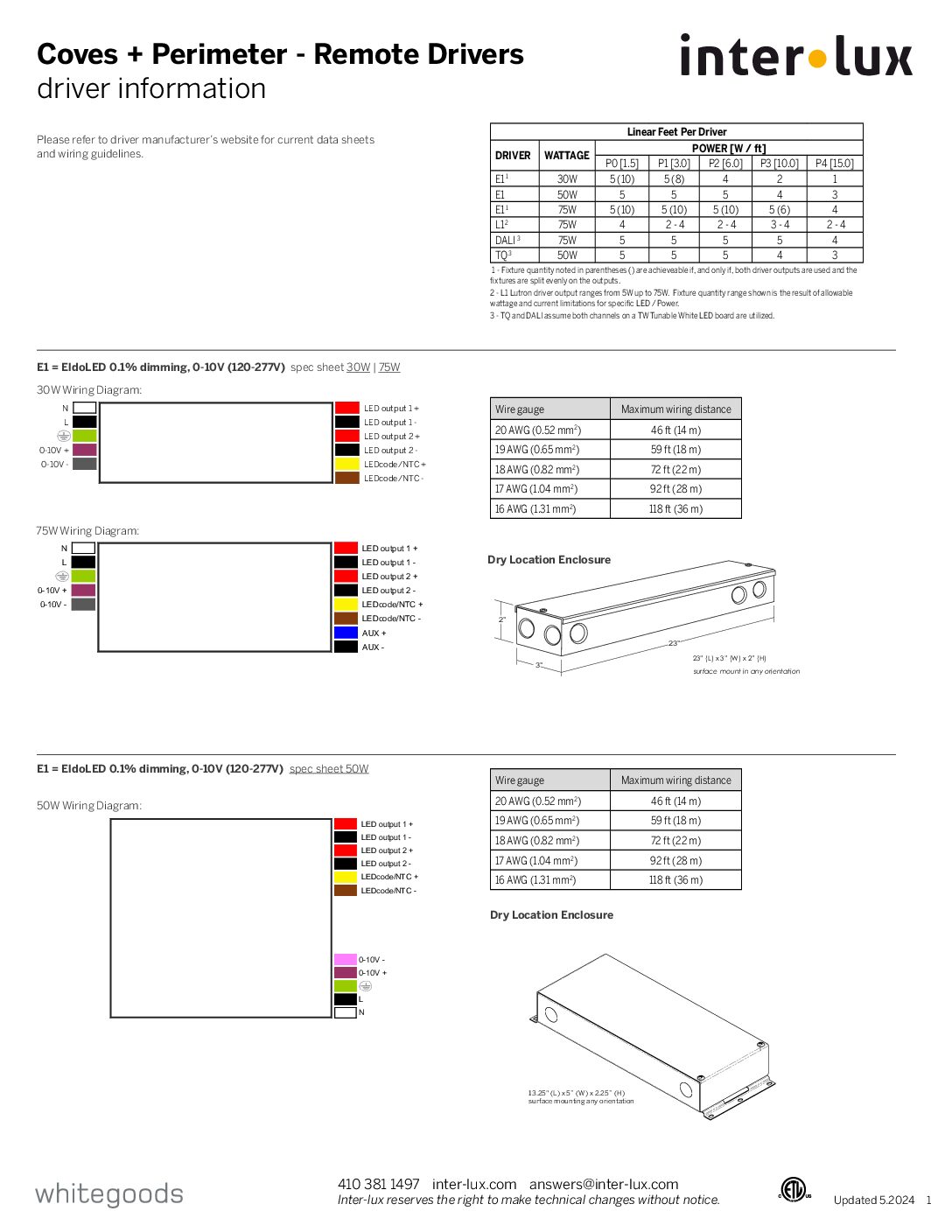

- Remote driver options (required). Field replaceable LEDs.

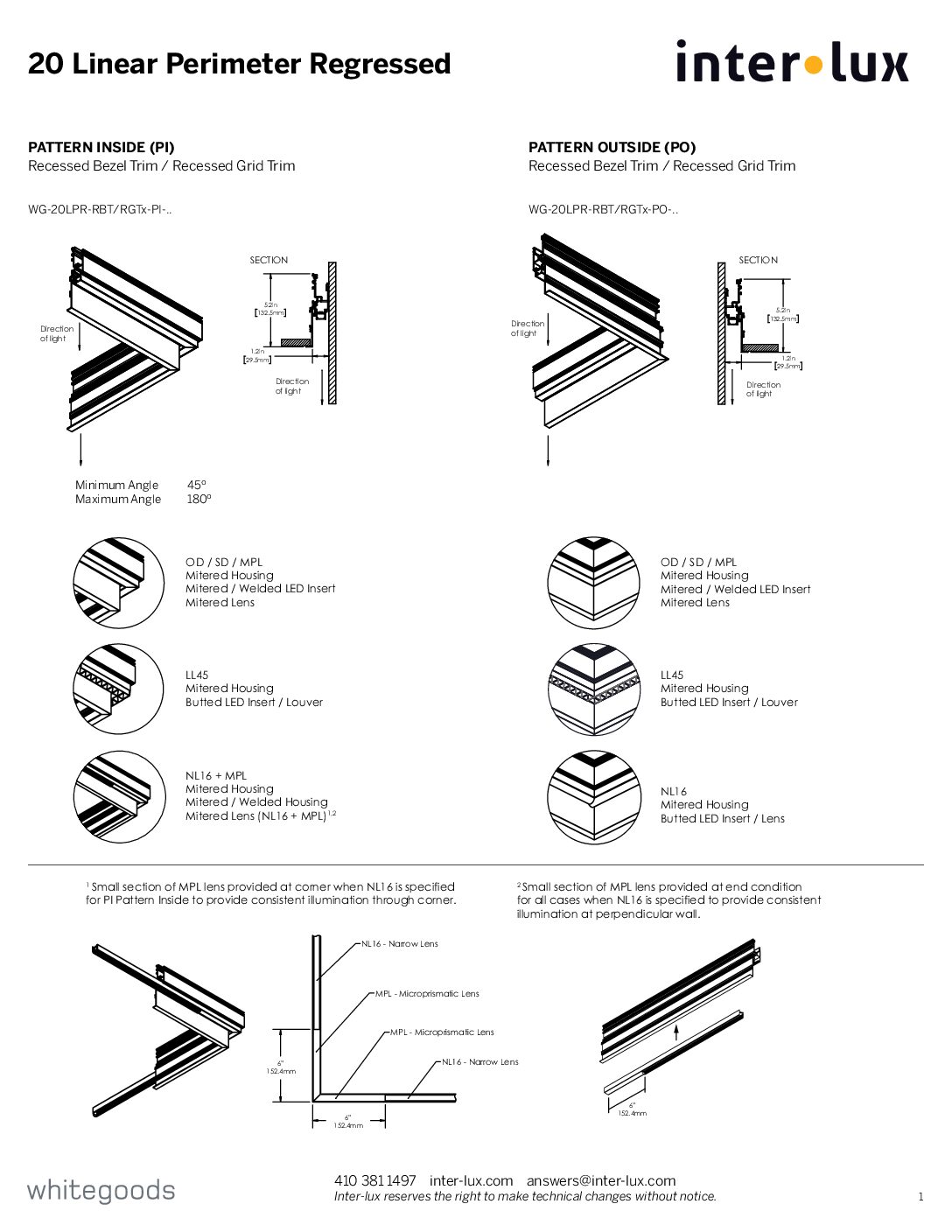

- Lengths and angles factory cut to exact field dimensions.
- Supplied with 4’ class 2 plenum rated feed cable per fixture lengths.

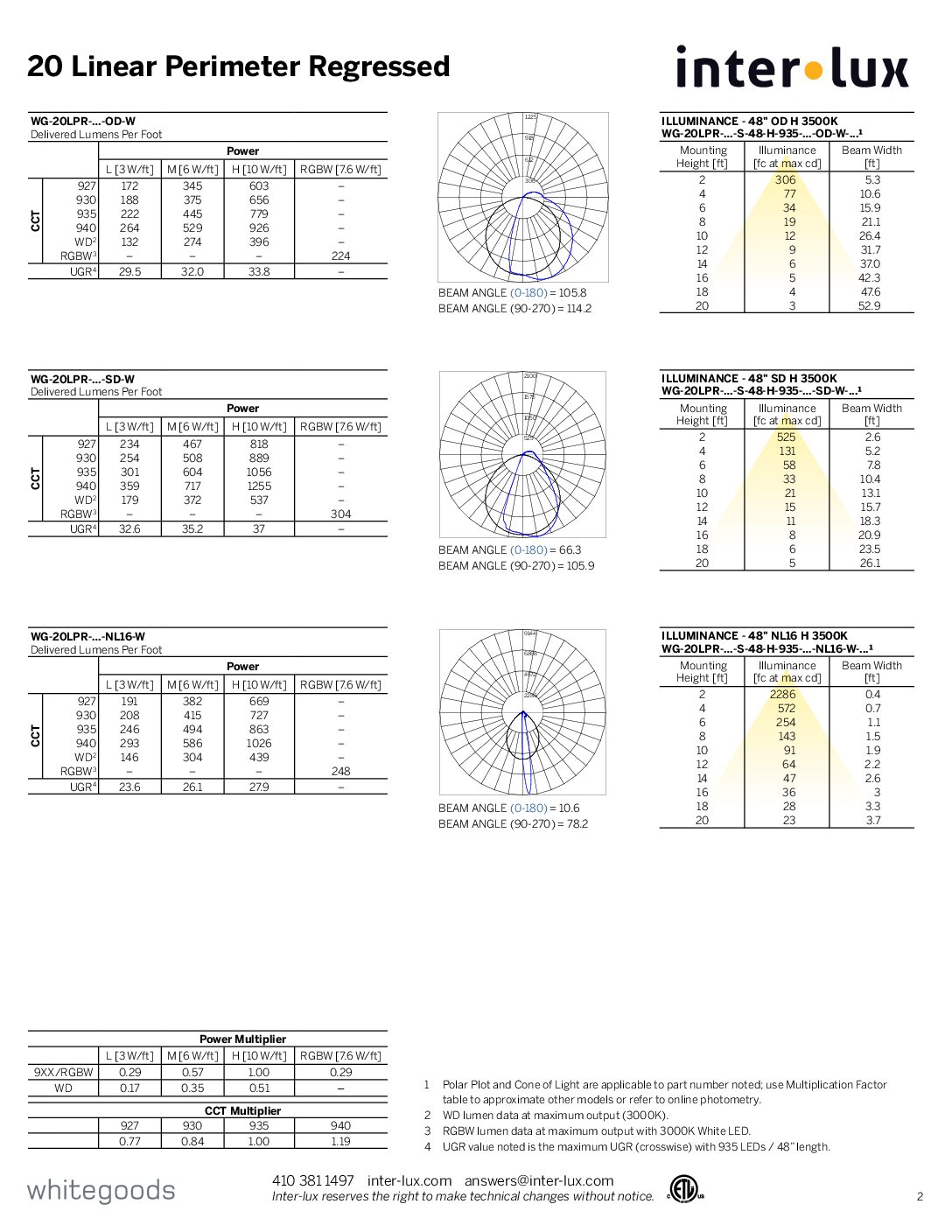

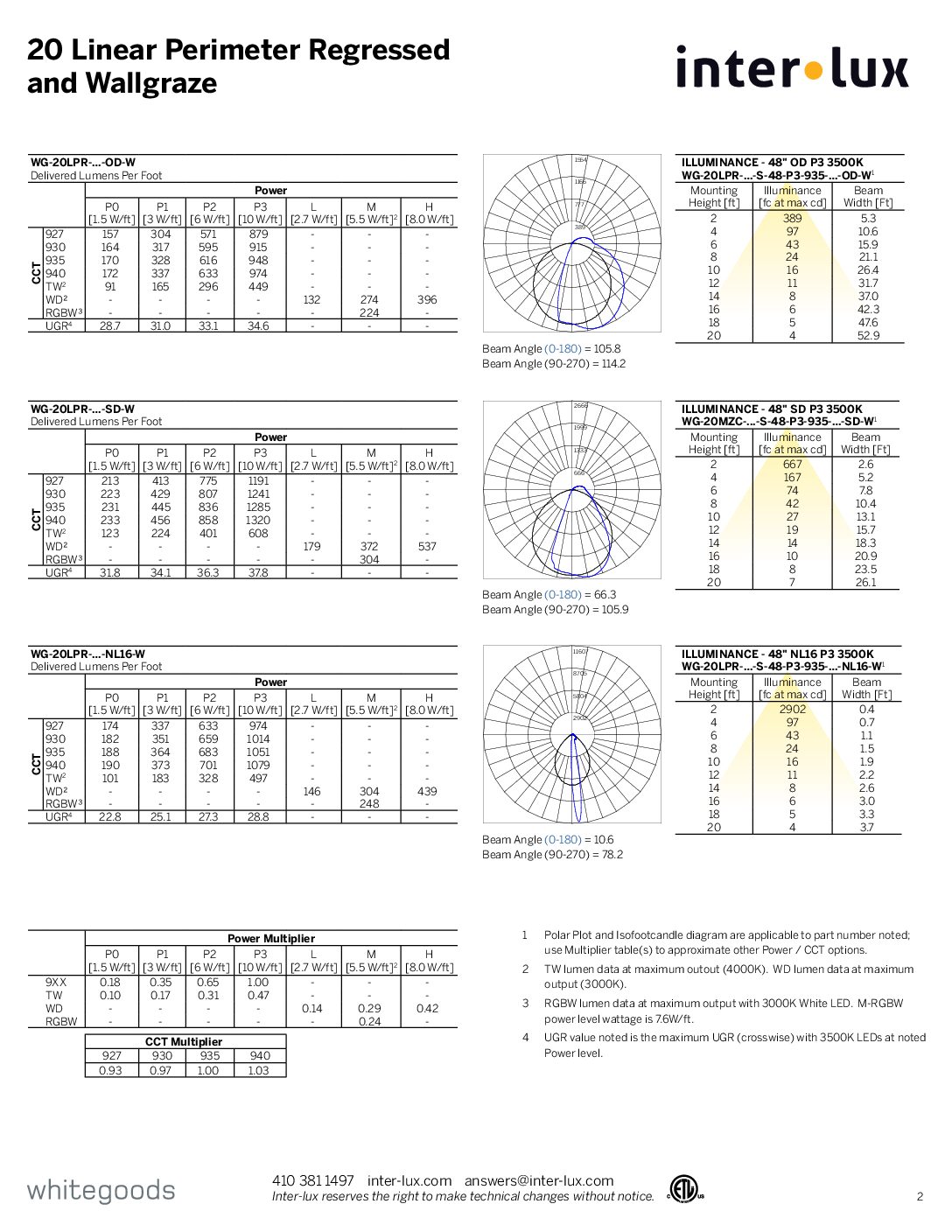

- Efficacy up to 66 lumens per watt (delivered) @ 3000K, see photometry page for details.
- 90+ CRI, 3 steps MacAdam (TW 80+ CRI).
- L70 (TM21 Projected 85ºC) Static White 60,000 hours, Tunable White / RGBW 50,000 hours, WD 36,000 hours.
- ETL and ETL-C for dry, damp (WL Wet Location optional), CE.

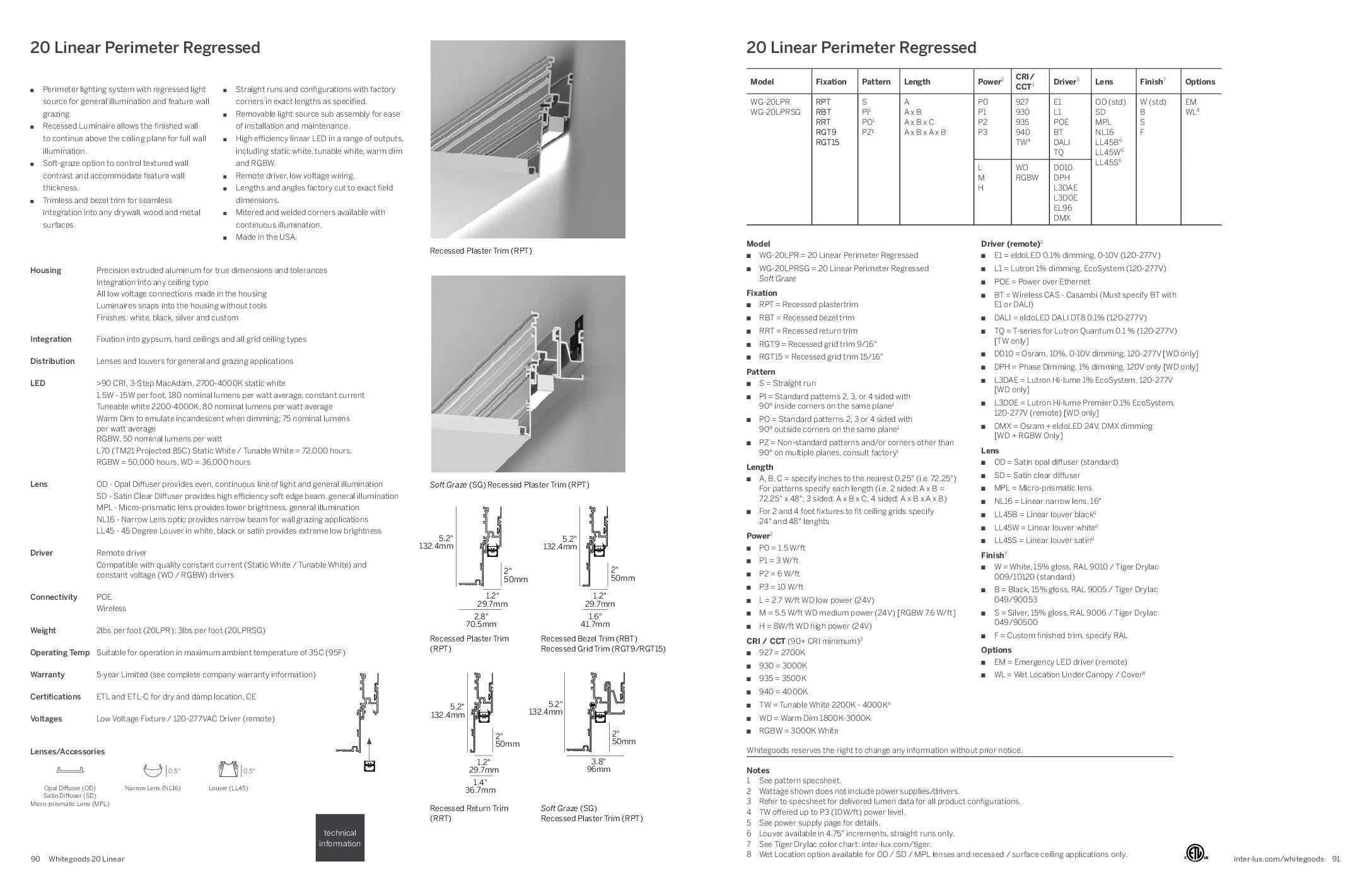

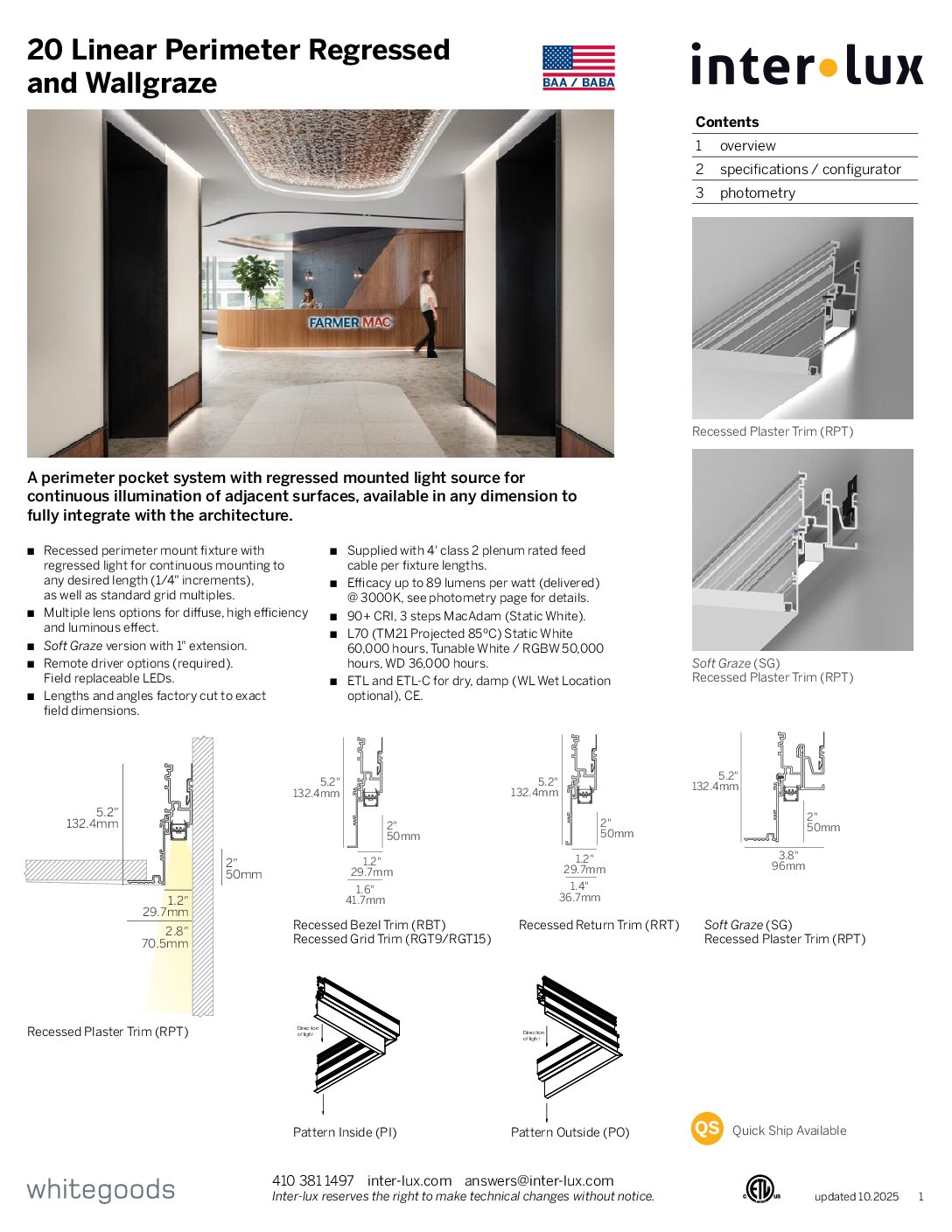

View 20 Linear Flipbook >
