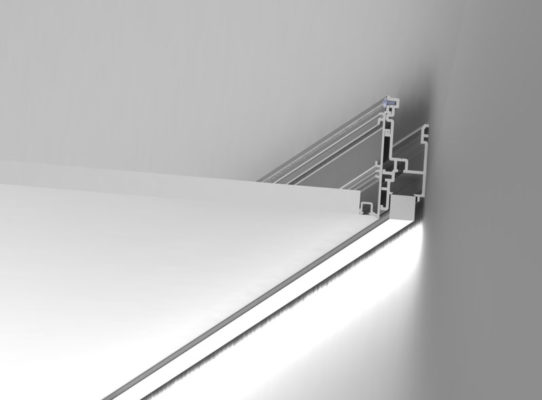

20 Linear Perimeter – Flush
A perimeter pocket system with flush mounted light source for continuous illumination of adjacent surfaces, available in any dimension to fully integrate with the architecture.
- Recessed perimeter mount fixture with flush light for continuous mounting to any desired length, as well as standard grid multiples.
- Soft Graze (SG) version with 1″ extension.
- Extruded aluminum housing, easily installed internal LED fixture insert. Remote driver. Field replaceable LED boards.
- 4′ class 2 plenum rated feed cable standard.
- Efficacy up to 67 lumens per watt (delivered) @ 3000K, see photometry page for details.
- 90+ CRI, 3 Steps MacAdam (Static White).
- L70 (TM21 Projected 85ºC) Static White 60,000 hours, RGBW 50,000 hours, WD 36,000 hours.
- ETL and ETL-C for dry and damp locations.
- Standard Satin Opal Diffuser for even illumination and no LED appearance. Optional microprismatic lens for high efficiency and low brightness.
- Lengths and angles factory cut to exact field dimensions. Standard and custom corners.
- Powdercoat painted.
View Coves Perimeter Flipbook >
