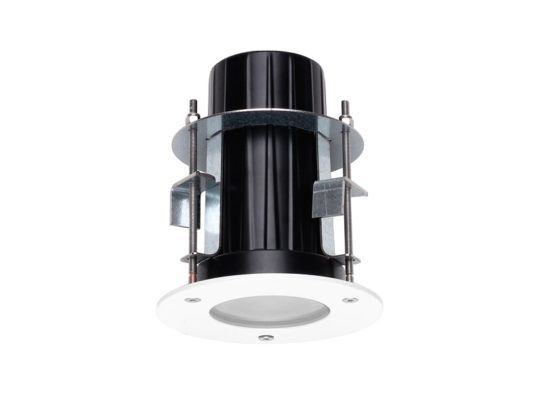

Guardian Optics

Guardian is a family of outdoor LED down lights available in different sizes, output and trim finishes. Several beam spreads, color temperatures and recessed casings suitable for brick or concrete installation make Guardian the solution for most outdoor down light needs.

Fixture Body: Open pore anodized and Powder Coated Die-Cast Aluminum, anodized black.
Trim: Open pore anodized and Powder Coated Die-Cast Aluminum. Extra-clear, Tempered glass. Available in Black, Grey and White finish.
Mounting: Outer casing for brick or concrete-mounted installation.

Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim (4.3” & 6.1”). Integral 120/277VAC Non-Dim (9.1”).
Wattages/Sizes: 7.2W (4.3”) – 12.6W (6.1”) – 33.6W (9.1”)

IP rating: IP67
ETL Certification: ETL, wet location

Optics: Fixed or Adjustable. Available in Spot – Flood – Wide Flood. Fixed variants can also mount Honeycomb louvers.
Color temperatures: 2700K – 3000K – 4000K.

Selections download as one PDF
  • Spec Page
  • Photometry

Guardian Wall Washer

Guardian is a family of outdoor LED down lights available in different sizes, output and trim finishes. Several beam spreads, color temperatures and recessed casings suitable for brick or concrete installation make Guardian the solution for most outdoor down light needs.

Fixture Body: Open pore anodized and Powder Coated Die-Cast Aluminum, anodized black.
Trim: Open pore anodized and Powder Coated Die-Cast Aluminum. Extra-clear, Tempered glass. Available in Black, Grey and White finish.
Mounting: Outer casing for brick or concrete-mounted installation.

Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim (4.3” & 6.1”). Integral 120/277VAC Non-Dim (9.1”).
Wattages/Sizes: 7.2W (4.3”) – 12.6W (6.1”) – 33.6W (9.1”)

IP rating: IP67 for temporary flooding up to 3.28’ depth for up to a maximum of 30 mins.
ETL Certification: ETL, wet location

Optics: Fixed, Wall Washer.
Color temperatures: 2700K – 3000K – 4000K.

Selections download as one PDF
  • Spec Page
  • Photometry
