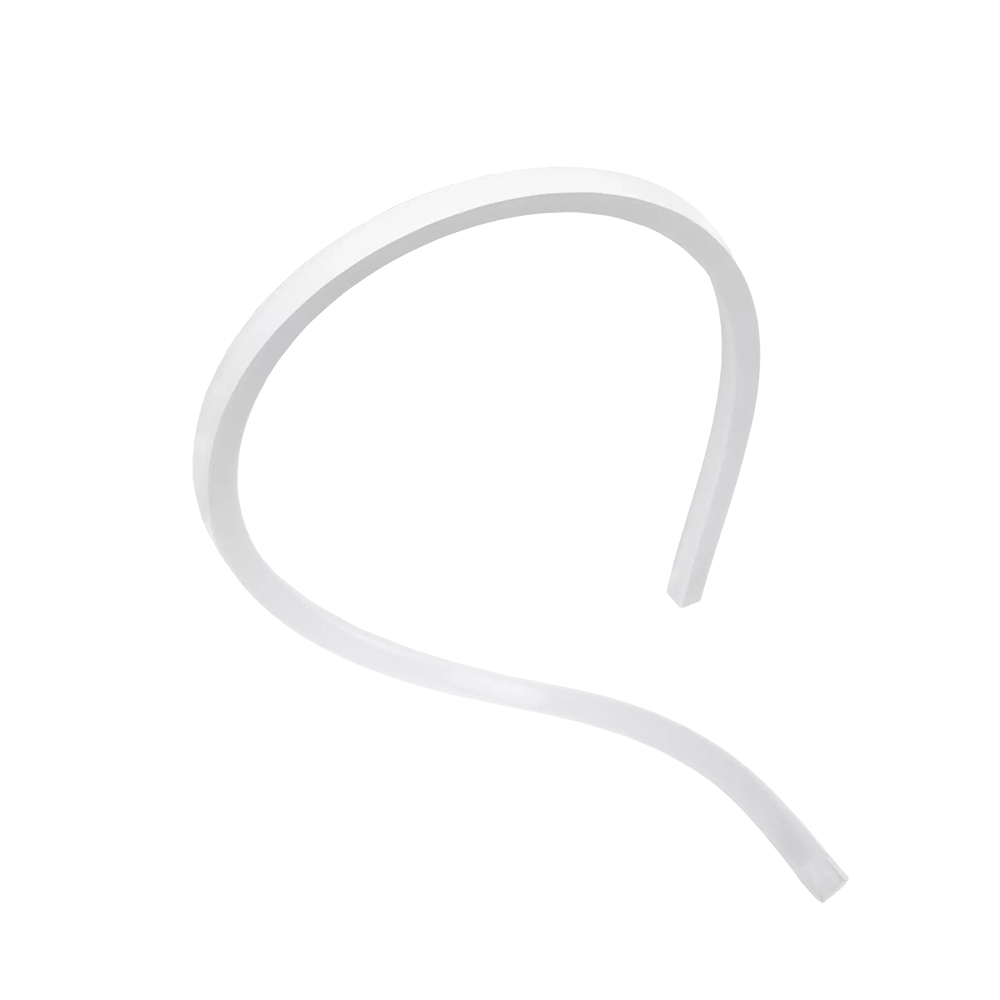

Rubber 3D Tunable White
Rubber is a broad family of flexible lighting fixtures created to resolve even the most challenging architectural details and applications (columns, curved walls), both indoor and outdoor. Rubber is available in multiple solutions: from a 3D version with a diffused output that bends in every direction, to 2D Mini (only 0.2″ wide) options that bend sideways, to get to the unique 3D Optic.
3D Optic has dedicated optics every inch which make this 360° bendable product a real lighting machine, unique in its category and with an unprecedented attention to its design and look.
Fixture Body: Polyurethane resin blended into a PVC flexible channel. Rubber 3D Optic bends 360° (Min. Bending Radius 9.9”).
Mounting/Casing: Multiple mounting solutions available: straight PVC or Aluminum channels and mounting clips with or without wireway; articulated channel to follow any shape the product is bent to.
Drive-over: Walk-Over only.
Driver: Remote, 24VDC DALI DT8 dimmable.
Wattages/Sizes: 4.9 W/ft Individual fixture wattage: 16W (39.5″) – 80W (197″)
IP rating: IP67 for temporary flooding up to 3.28’ depth for up to a maximum of 30 mins.
ETL Certification: ETL, wet location
Optics: Fixed, diffused.
Color temperatures: Tunable White 2000K – 6000K.
CRI: 90
Lumen Maintenance: L70 projections tested at Tj 65° C and Ta 25°. L70 (TM21 Projected 85C) 54,000 hours
- Spec Page
-
