Rubber 3D Pixel
Rubber is a broad family of flexible lighting fixtures created to resolve even the most challenging architectural details and applications (columns, curved walls), both indoor and outdoor. Thanks to its innovative technology, the new Rubber 3D PIXEL RGBW allows the creation of dynamic lighting effects. Depending on the selected pixel “pitch” (the space that defines the resolution of the final pixel), the dynamic light show created by the product can be visible from significant distances.
Fixture Body: Polyurethane resin blended into a PVC flexible channel. Rubber 3D PIXEL RGBW bends 360° (Min. Bending Radius 9.9″).
Pixel Resolution: 4.9″ (125mm)
Mounting/Casing: Multiple mounting solutions available: straight PVC or Aluminum
channels and mounting clips with or without wireway; articulated channel to follow any shape the product is bent to.
Drive-over: Walk-Over only.
Dimensions/Weight: 19.7″ (0.33 lbs) – 39.4″ (0.61 lbs) – 196.9″ (3.01 lbs)
Driver: Remote, 24V DC DMX dimmable.
Control Protocol: SPI dimmable, UCS8904
Wattages: 4 W/ft. Individual fixture wattage: 6.6W (19.7″) – 13.2W (39.4″) – 66W (196.9″)
Cable: Fixture comes with 0.82’ of cable (Power cable required, ordered separately).
IP rating: IP67 for temporary flooding up to 3.28’ depth for up to a maximum of 30 mins.
IK rating: IK 07
ETL Certification: ETL, wet location
Optics: Fixed, diffused.
Color temperatures: RGBW (White 3000K).
CRI: 80+

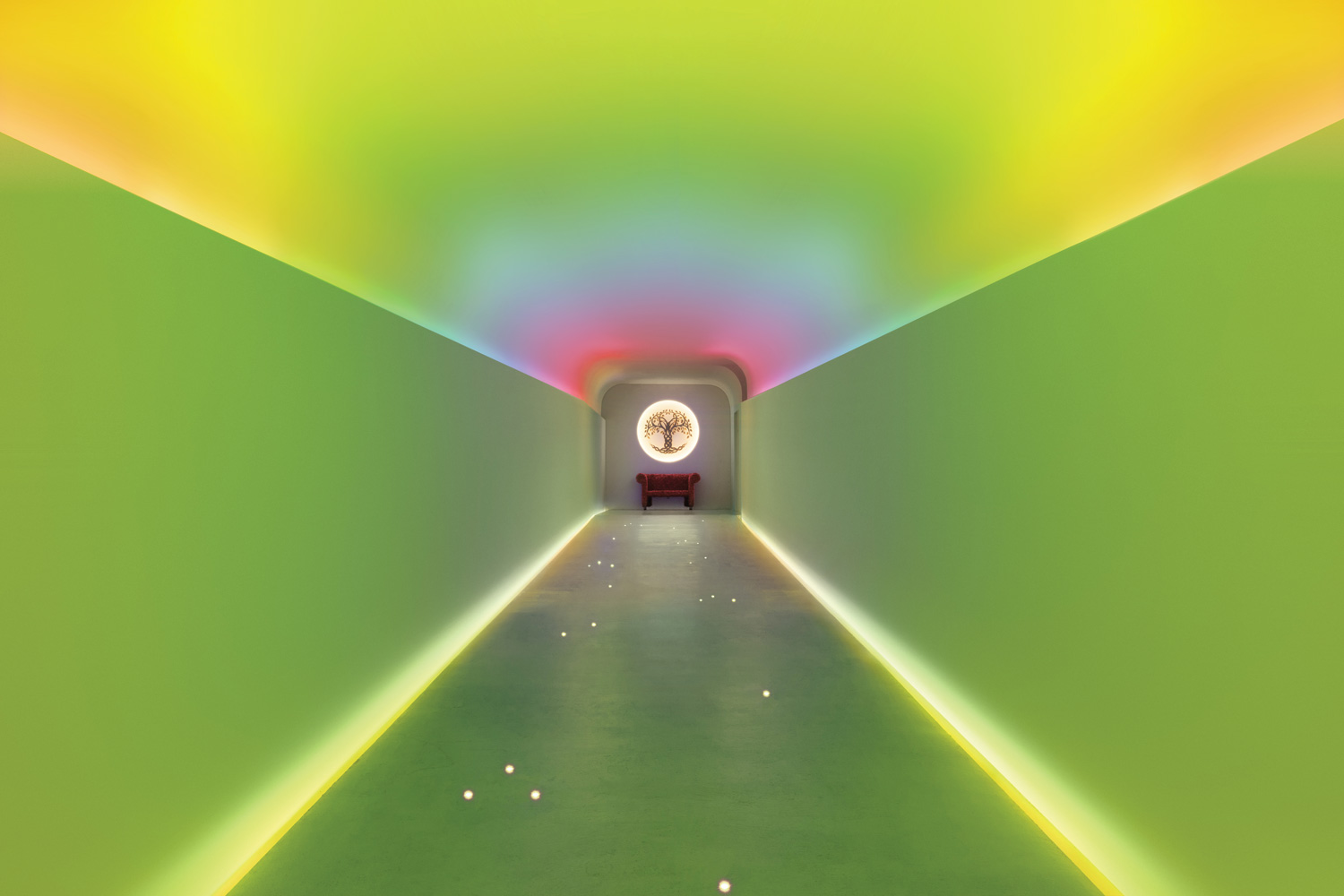

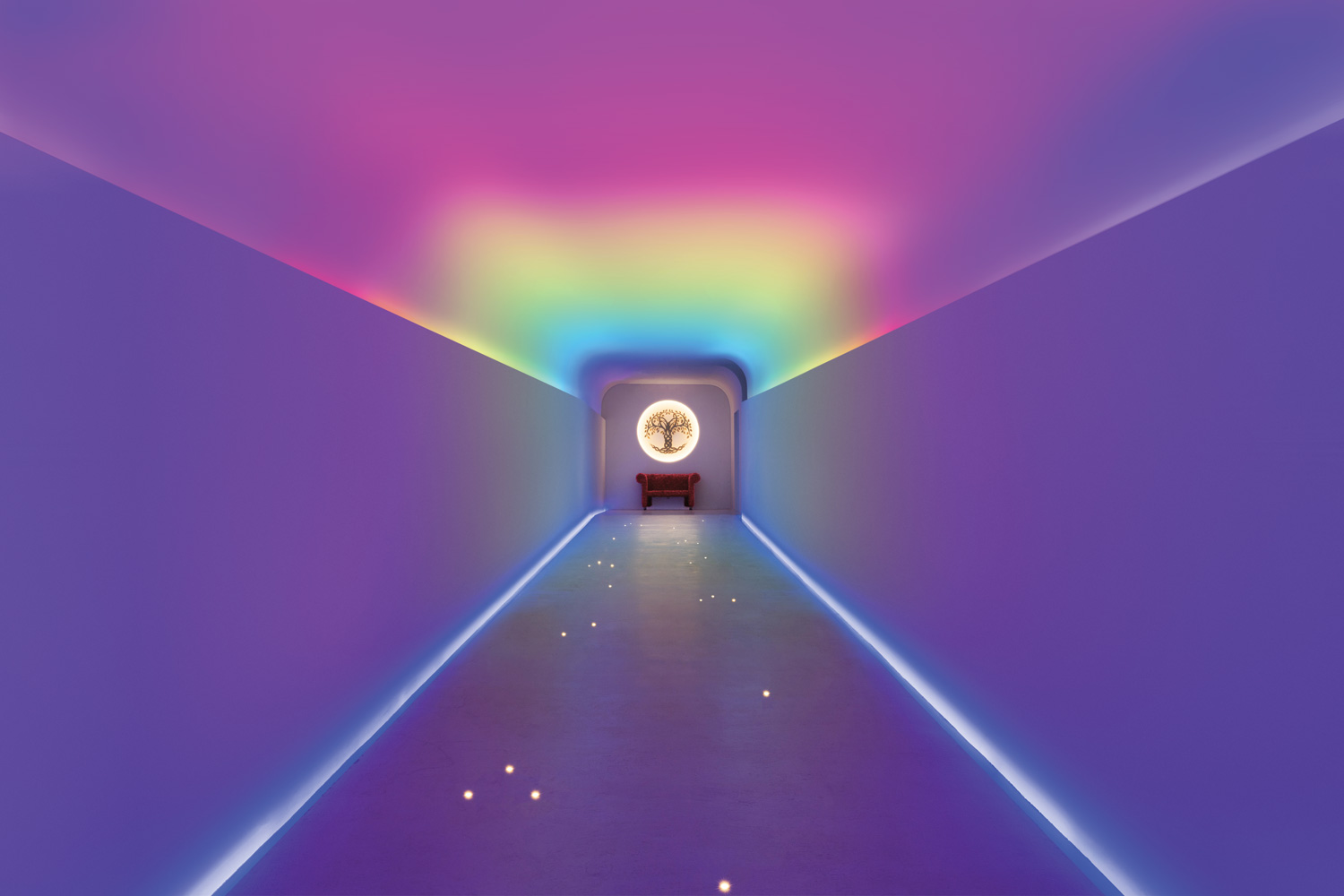

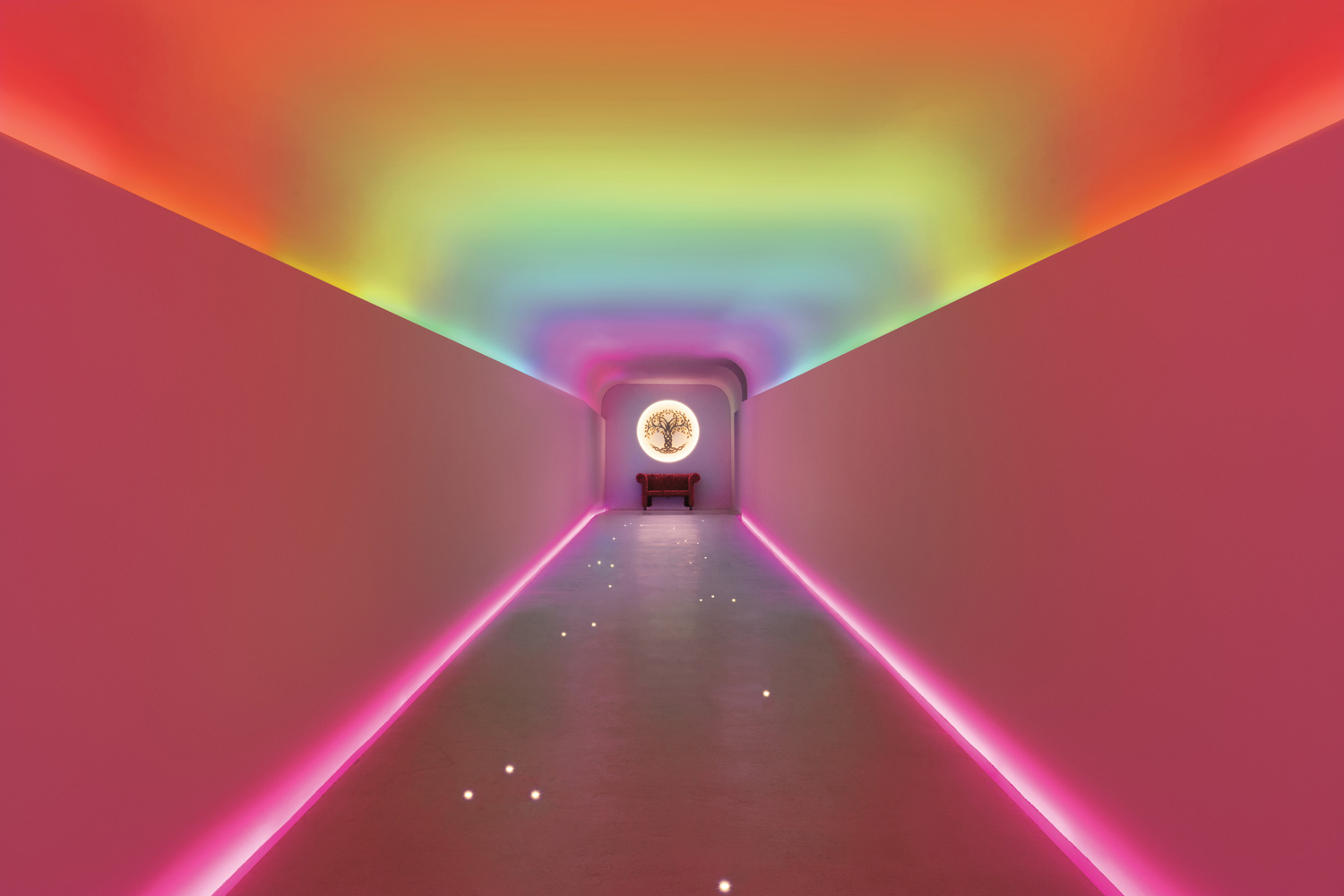

See Rubber 3D Pixel in Action >

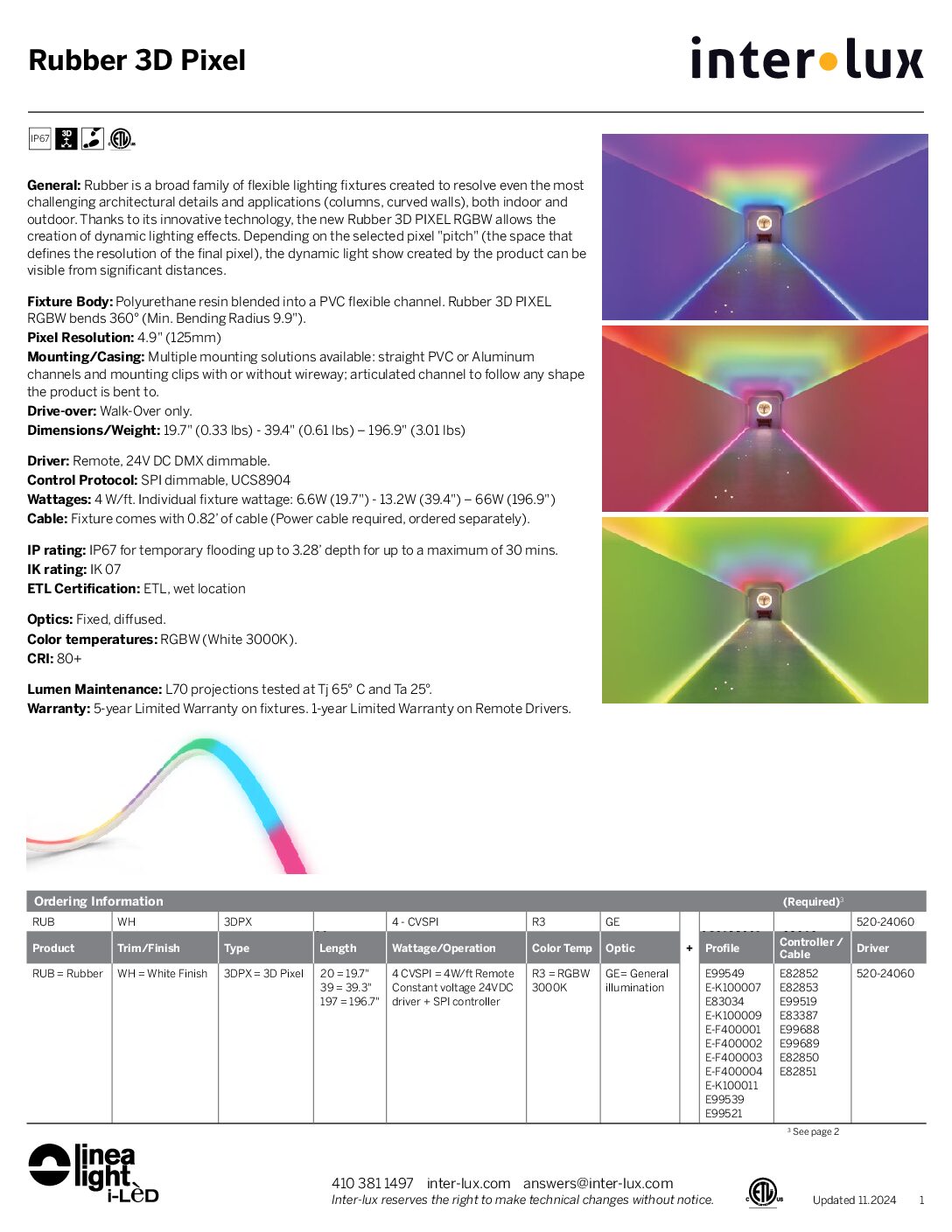

- Spec Page
-
