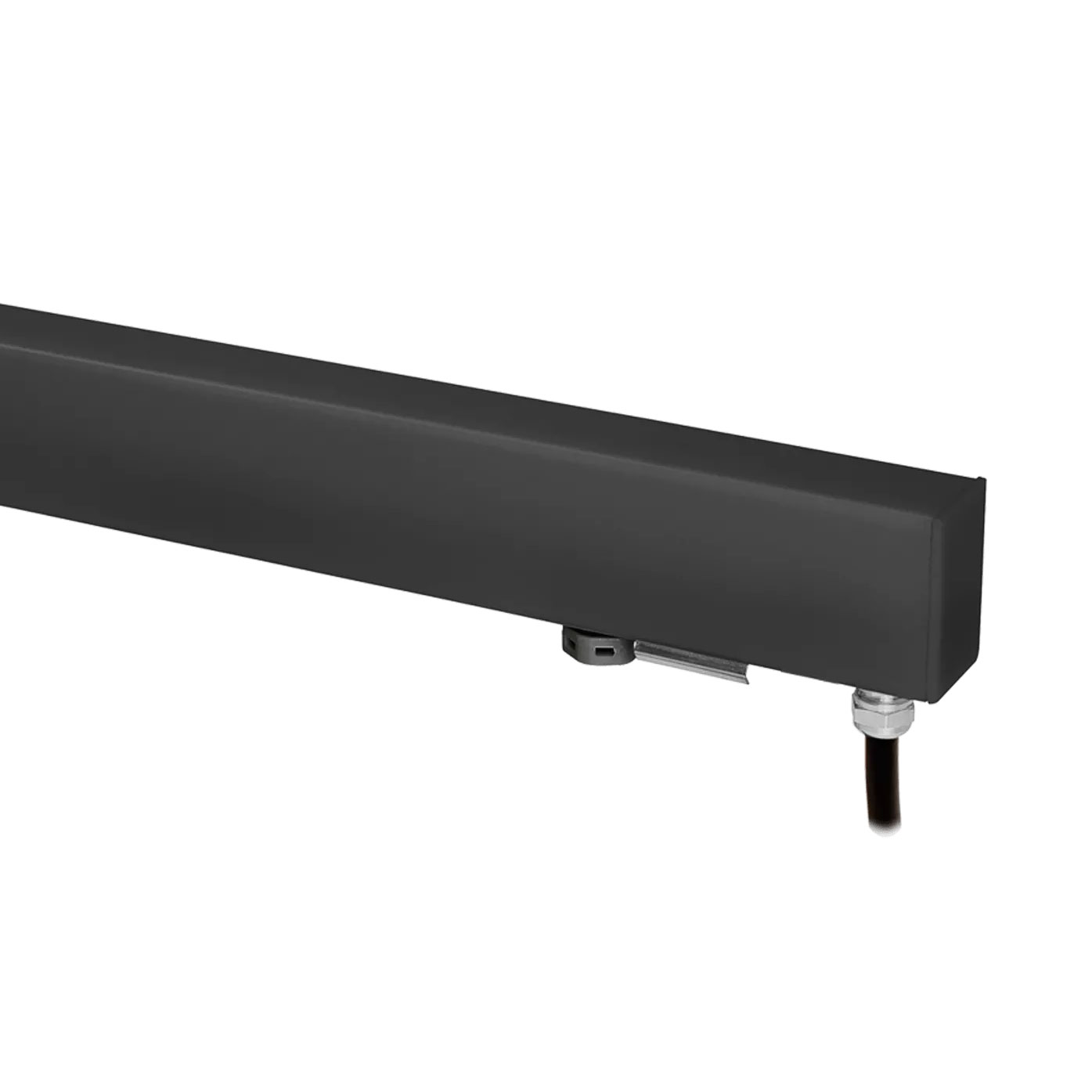

Paseo Dark
Paseo is a complete range of compact linear LED fixtures suitable to illuminate outdoor architectural elements or used as pathway lighting thanks to the new Dark version (and the already available Opaline).
Its 0.9″ width makes Paseo one of the slimmest and most attractive products on the market.The new Paseo Dark adds outstanding style to the fixture when turned off, glowing to the requested color temperature when illuminated.
Fixture Body: Black, UV resistant Polycarbonate.
Mounting: Steel bracket (included).
Drive-over: Walk-Over only.
Dimensions/Weight: 23.4″ (0.88 lbs) – 46.3″ (1.98 lbs) – 57.8″ (3.09 lbs)
Driver: Remote (120-277V, Dimmable 0-10V or Non-Dim).
Wattages: 6W (23.4″) – 12W (46.3″) – 15W (57.8″)
Cable: Fixture comes with 0.82′ of cable (Power cable required, ordered separately).
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension protection)
systems.
IP rating: IP67 for temporary flooding up to 3.28′ depth for up to a maximum of 30 mins.
IK rating: IK 08
ETL Certification: ETL, wet location
Optics: Fixed, with General/Diffused distribution.
Color temperatures: 2700K – 3000K – 4000K.
CRI: 80+
Lumen Maintenance: L70 projections tested at Tj 65° C and Ta 25°.
Warranty: 5-year Limited Warranty on fixtures. 1-year Limited Warranty on Remote Drivers.
NOTE: Paseo Dark is not compatible with other Paseo products and can only be mounted with the brackets listed in its specific product data sheet.
Quickship Housings Available: add QS in front of part number

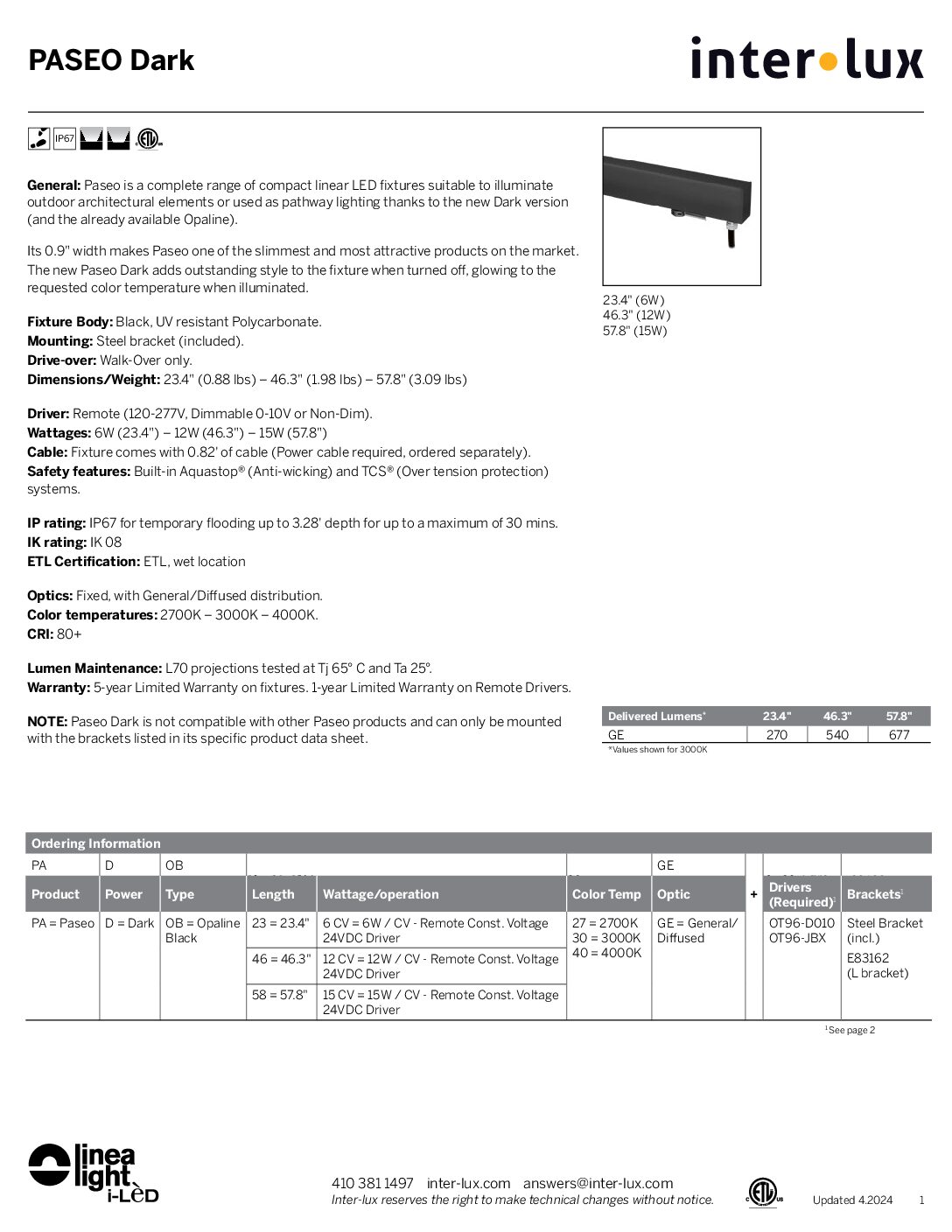

- Spec Page
-
