Mini Edgeless Cove + 20 Linear Direct

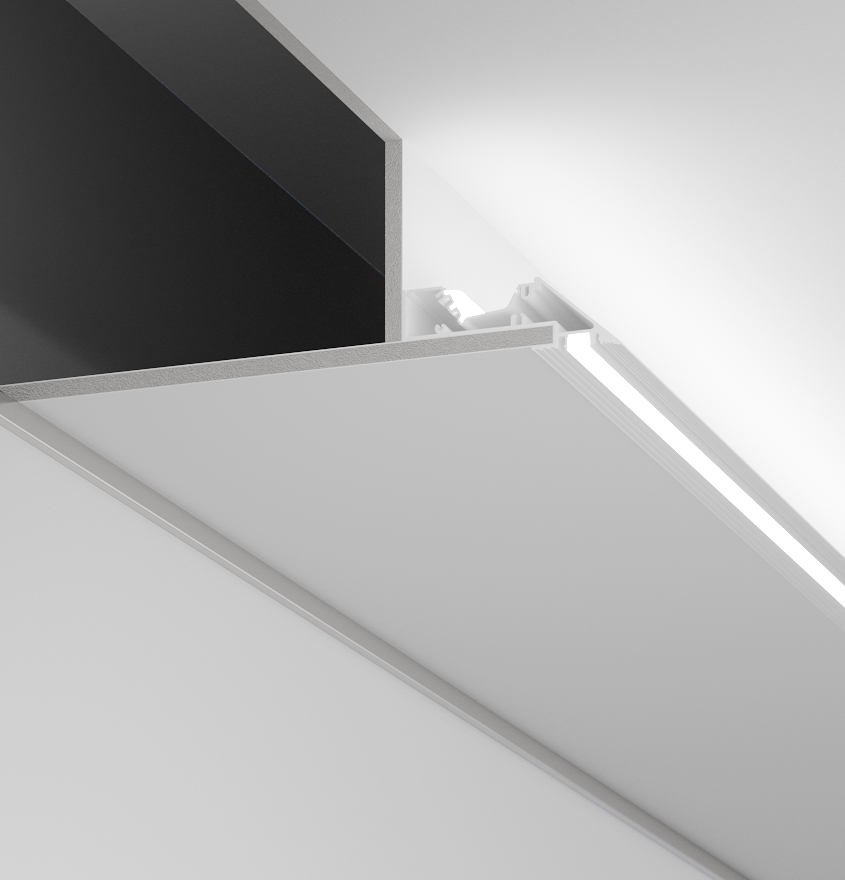

Continuous plaster-in knife edge cove system that delivers an even wash of directed light to the ceiling above, and redirected light to softly illuminate the back of the cove. 20 Linear provides a continuous line of light at the perimeter of the underside of the cove edge adding a layer of light to illuminate directly into the space.
- Continuous plaster-in knife edge cove system that delivers an even wash of directed light to the ceiling above, and redirected light to softly illuminate the back of the cove. Slim recessed line of light at the bottom edge of the cove to provide direct illumination and highlight the perimeter of the ceiling opening.
- Light source positioned for optimum vertical spread of illumination. Extruded aluminum housing, easily installed internal LED tray assembly. Remote driver. Field replaceable LED boards. Powdercoat painted.
- Satin clear diffuser for high efficiency and soft edge beam without striations for Indirect with flush, diffuse lens for Direct.
- Lengths and angles factory cut to exact field dimensions. Standard and custom corners.

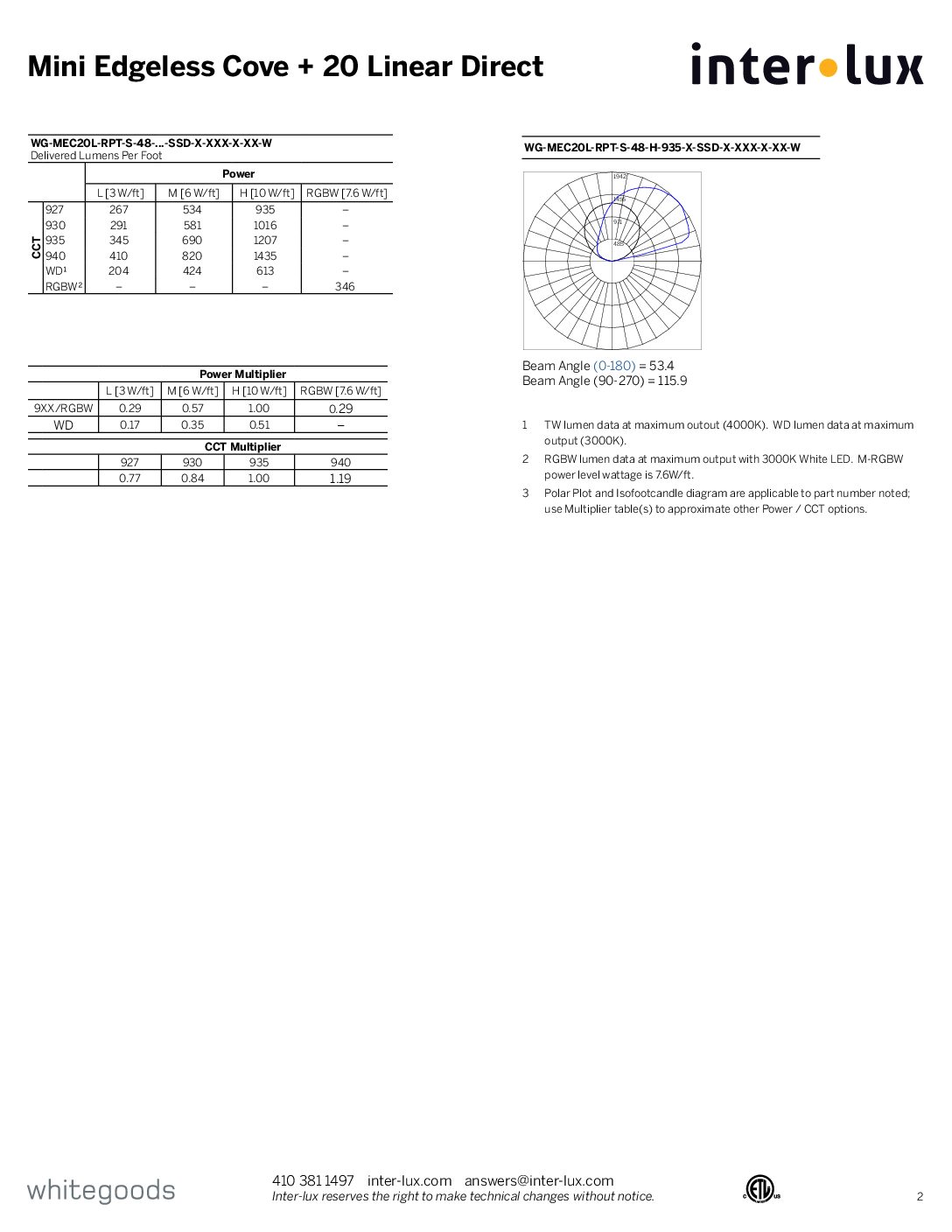

- Efficacy up to 102 (Indirect), 67 (Direct) lumens per watt (delivered) @ 3000K, see photometry page for details.
- 90+ CRI, 3 Step MacAdam (Static White).
- L70 (TM21 Projected 85ºC) Static White / RGBW 50,000 hours. Warm Dim 36,000 hours.
- ETL and ETL-C for dry and damp locations.
View Coves Perimeter Flipbook >
Selections download as one PDF

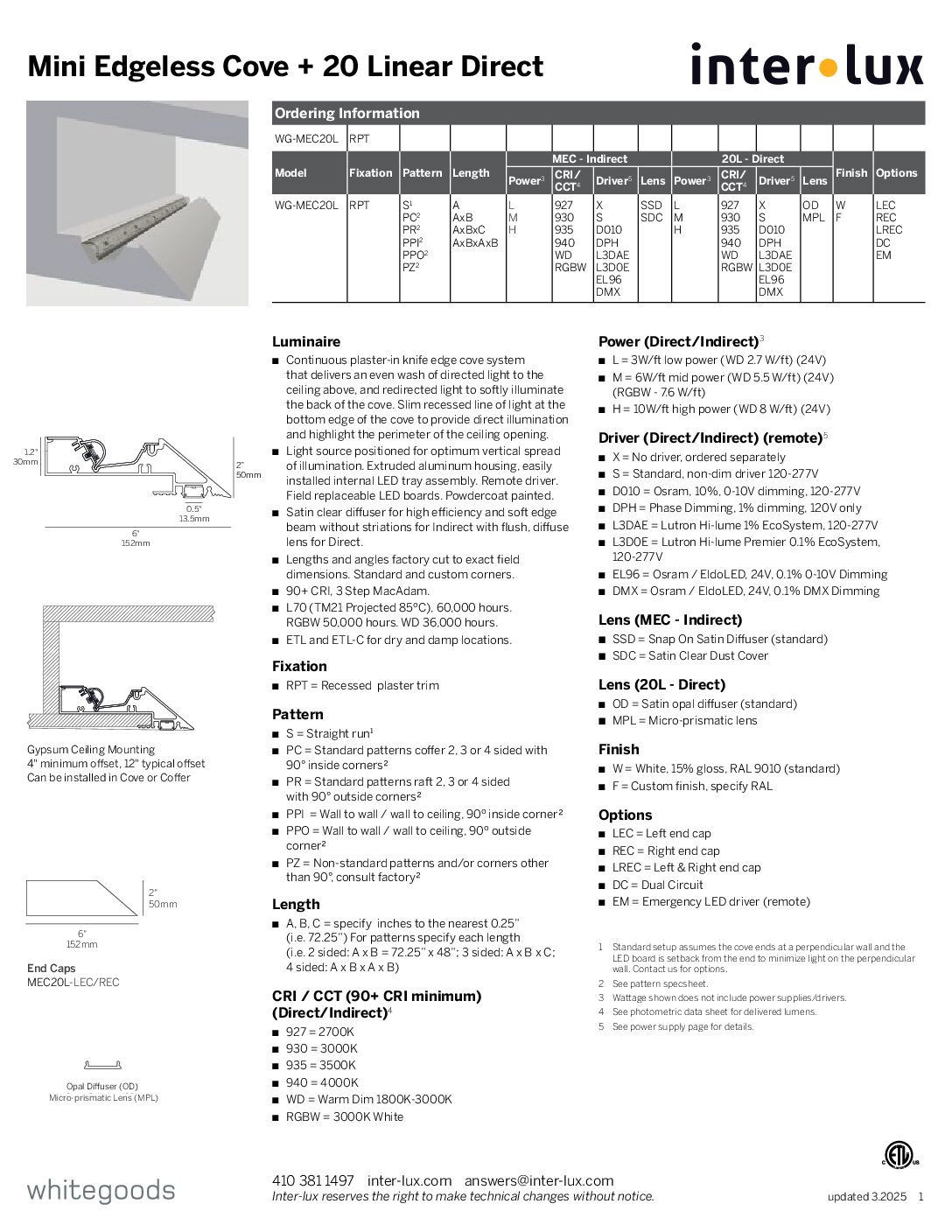

- Spec Page
-

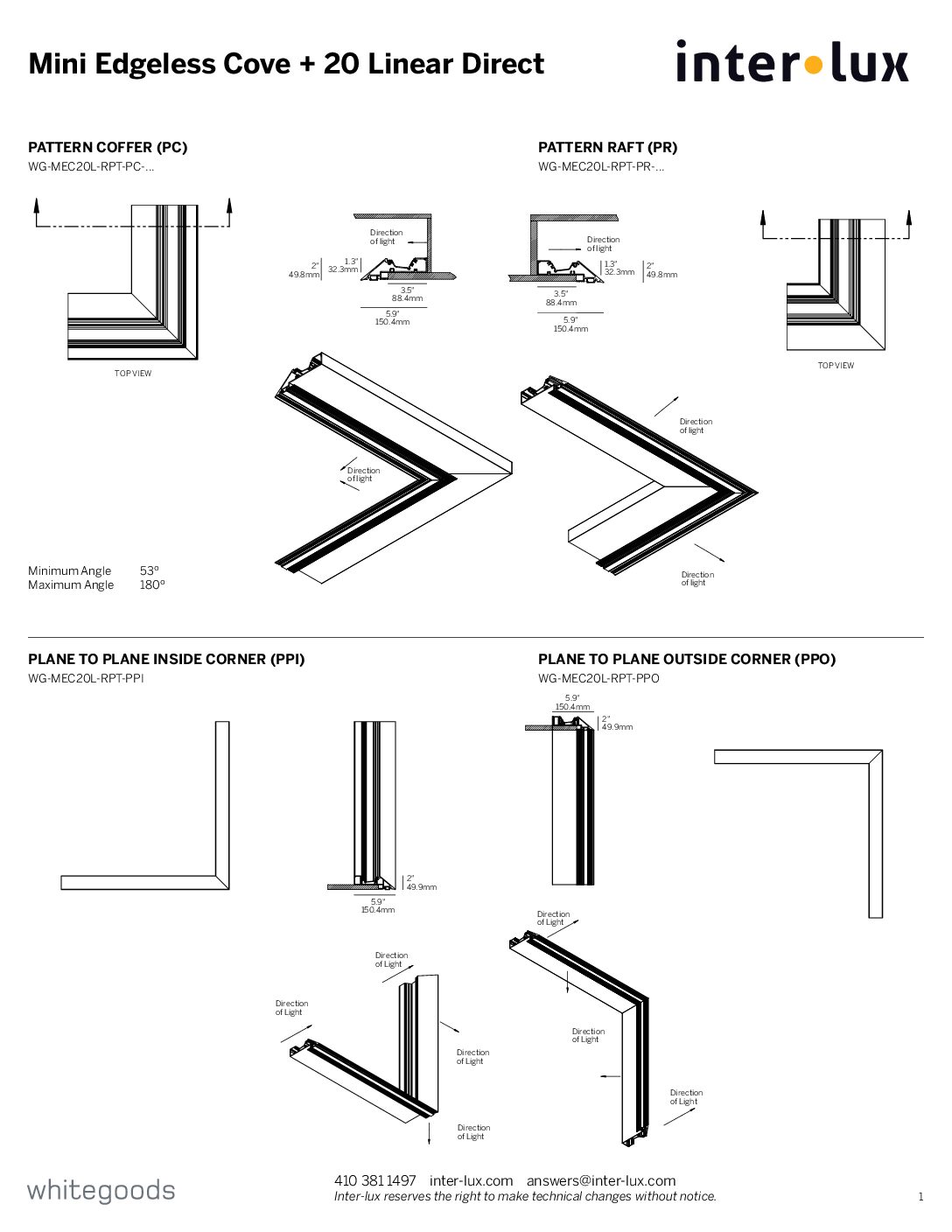

- Details
-
- Patterns
-
- Driver Information Constant Voltage
-
- CV1.3 LED
-
- Emergency Constant Voltage
-
