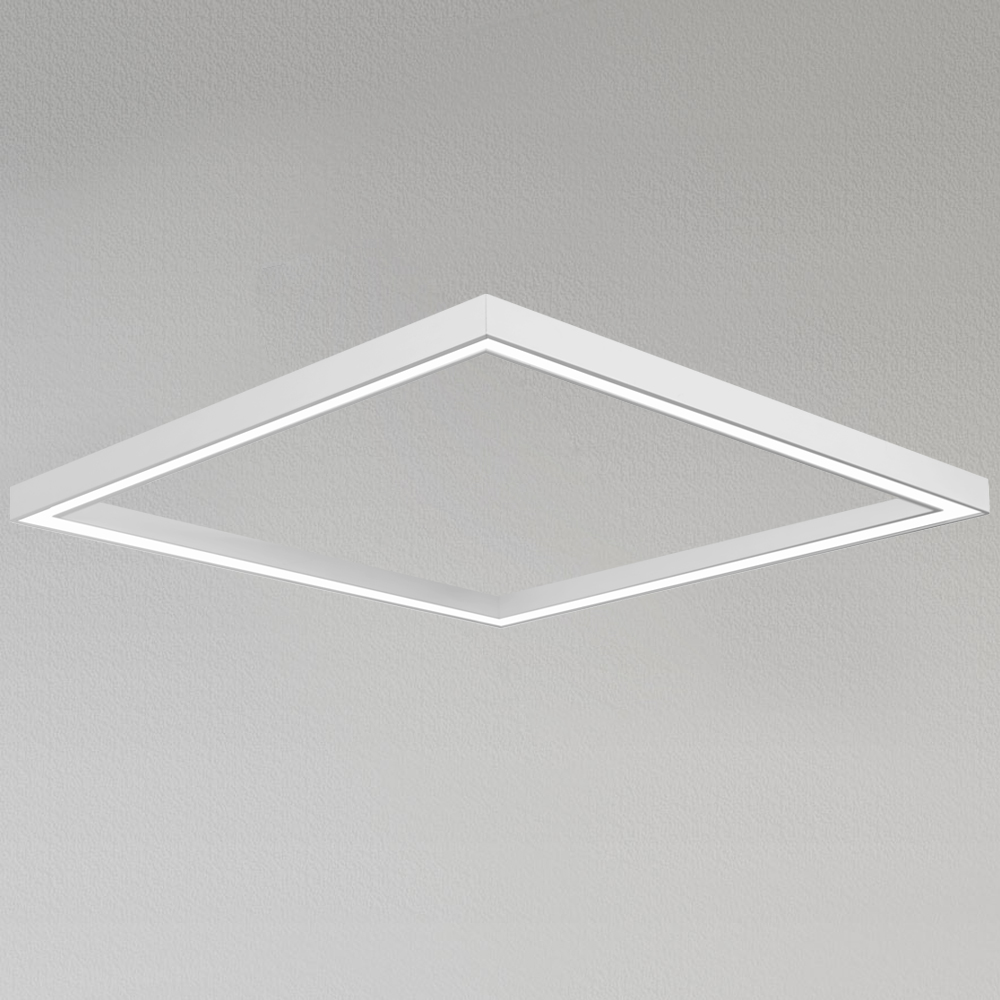

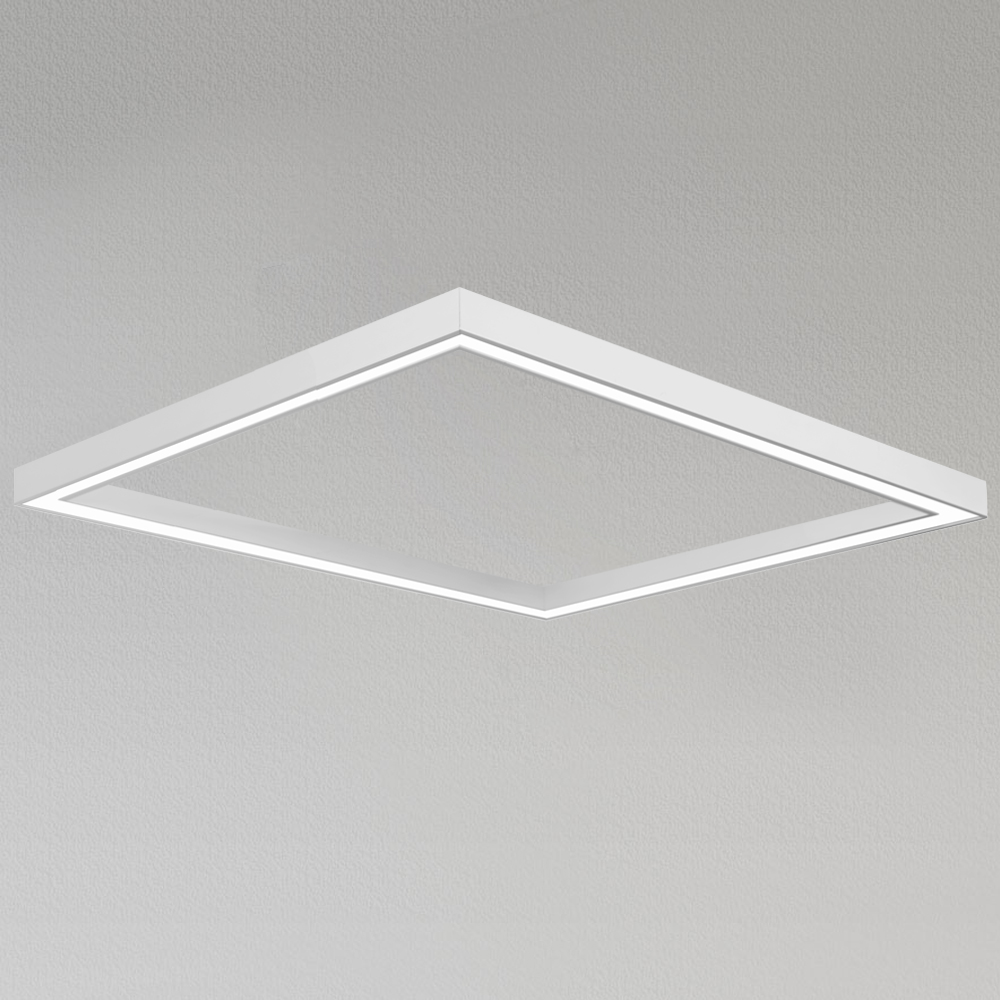

20 Linear Surface Frame Rectangle
Rectangular surface mounted luminaire, fits standard ceiling grids.
- Surface mounted fixture with very shallow depth for continuous mounting to any length (1/4″ increments), as well as standard grid multiples.
- Multiple lens options for diffuse, high efficiency and luminous effect.
- Extruded aluminum housing, easily installed. Field maintainable and upgradeable LED and driver without upsetting the ceiling.
- Efficacy up to 76 lumens per watt (delivered) @ 3000K, see photometry page for details.
- 90+ CRI, 3 Step MacAdam (Static White).
- L70 (TM21 Projected 85ºC) Static White 60,000 hours.
- ETL and ETL-C for dry and damp locations.
- Lengths and angles factory-cut to exact field dimensions. Standard and custom corners.
- Powdercoat painted.
View 20 Linear Flipbook >
Selections download as one PDF

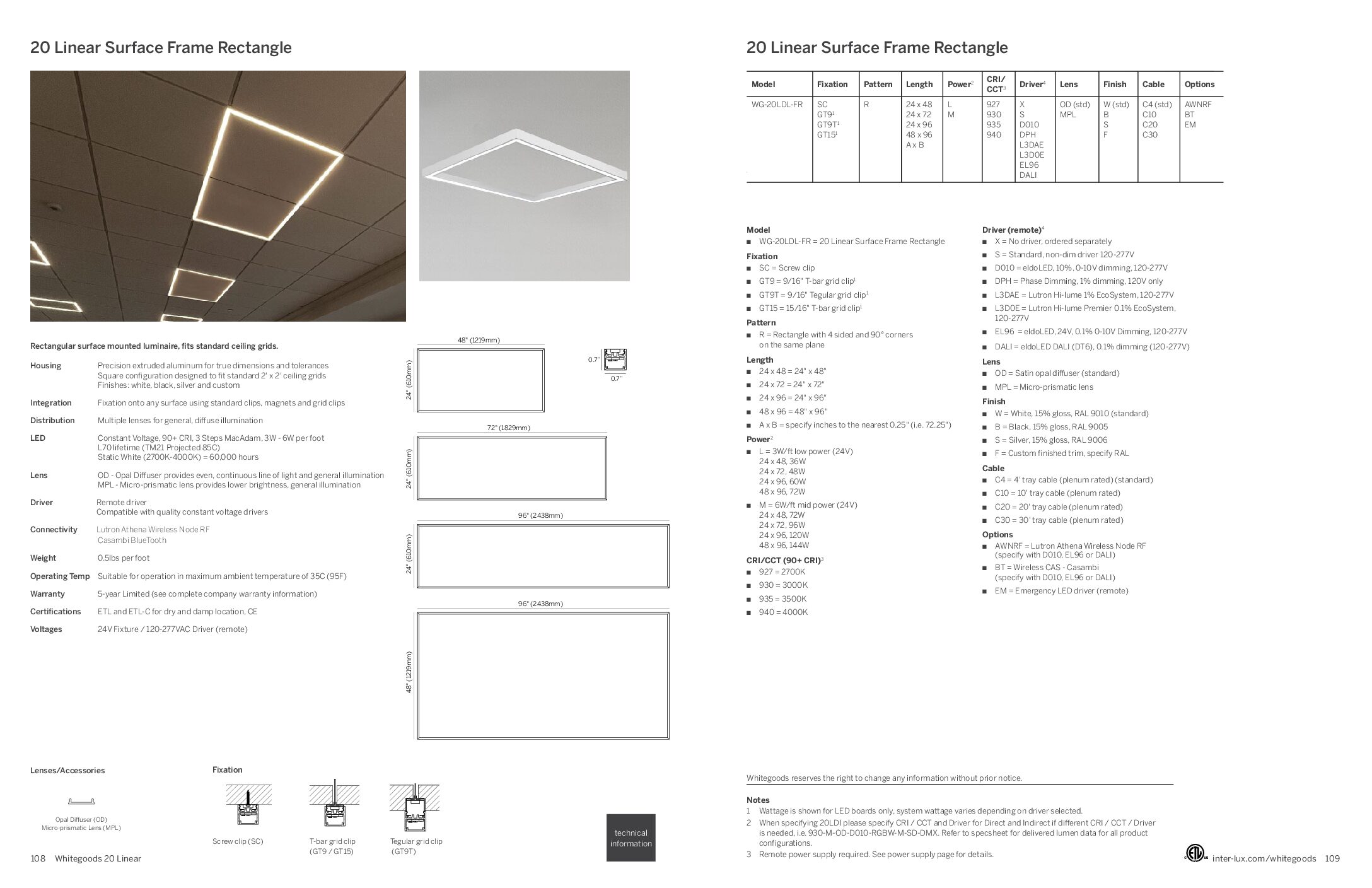

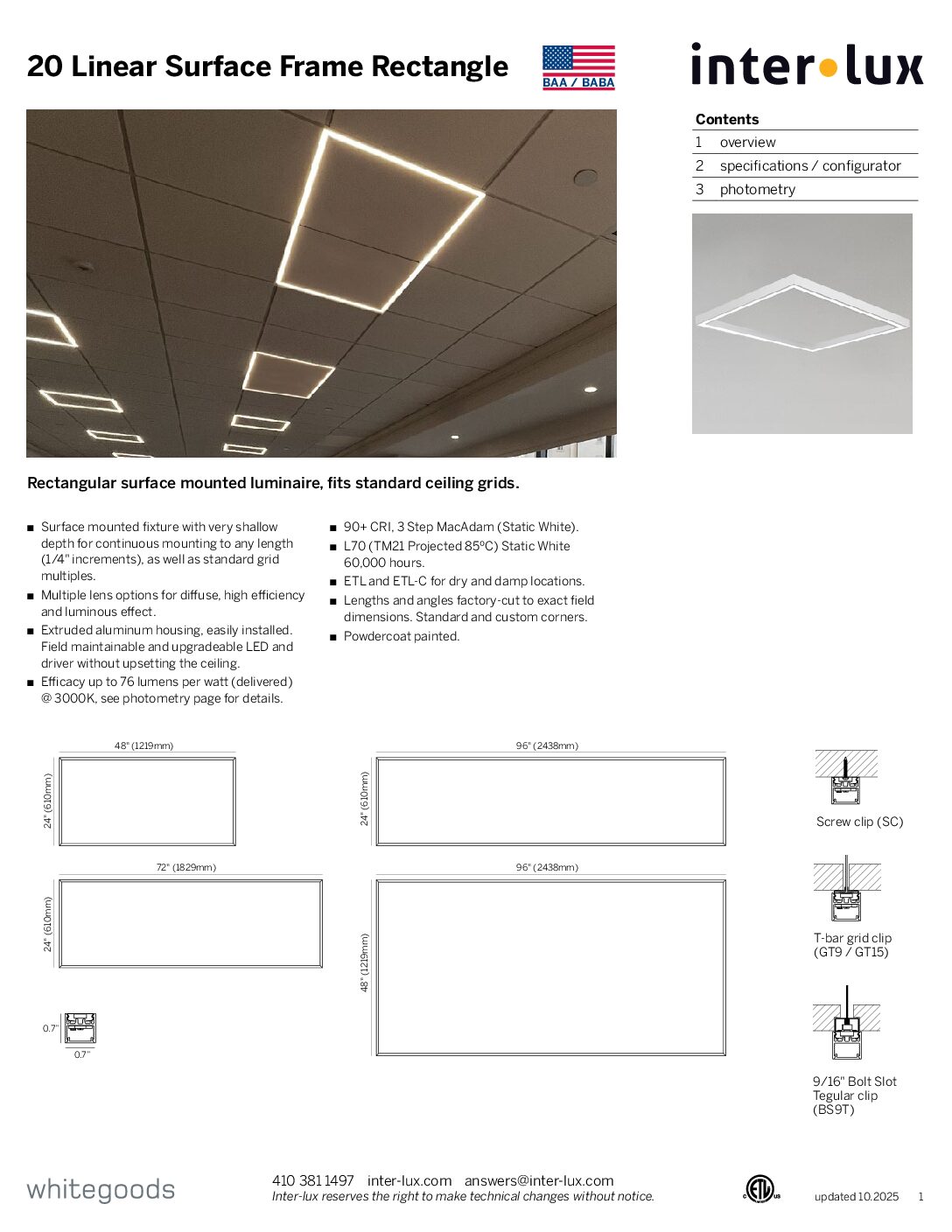

- Spec Page
-
- Drivers
-
- Emergency Constant Voltage
-
- CV1.3 LED
-
