Tour Pendant Round Direct -
Tour Pendant Round Indirect
-
Tour Pendant Round Direct-Indirect
-

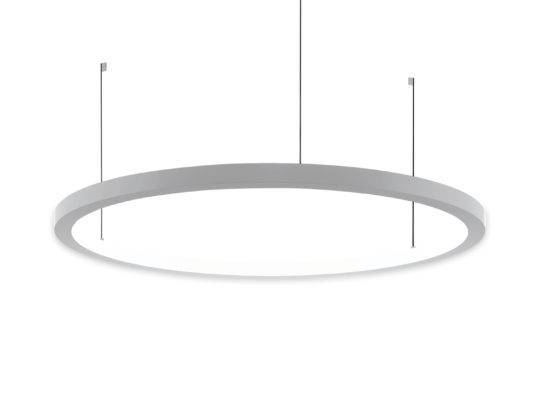

Tour Pendant Round Inside

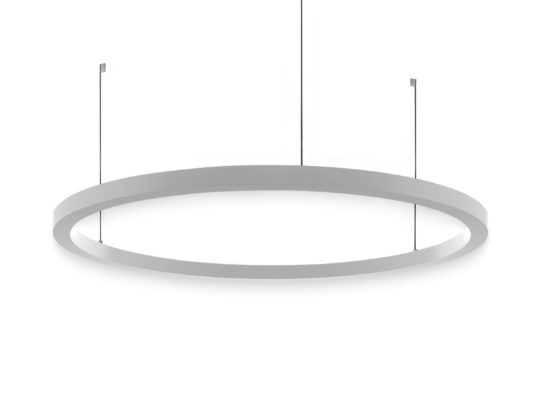

Tour Pendant Round Direct
Tour is a comprehensive family of large pendants created to become integral part of any architectural design. Tour is available in Round, Square or Rectangular shape, with multiple sizes to choose from, and several distributions (Direct, Indirect, Direct/Indirect, Inside). Lobby spaces, conference rooms, retail stores are just some of the many applications Tour could be the perfect fit for.
Fixture Body: Powder Coated Aluminum 6060 (superior corrosion resistance).
Diffuser: Opaline UV resistant Polycarbonate.
Mounting: Suspension.
Driver: 120-277V. Integral inside canopy (0-10V Dimming), or Remote (0-10V Dimming or Non-Dim).
Operation: Constant Voltage, 24V DC (CV).
Wattages: 37.5W (29.1″) – 45W (35.9″) – 70W (56.3″) – 114W (96.5″).
Suspension Cable Length: Max 196.9″.
IP rating: IP40.
ETL Certification: ETL, dry location
Optics: Fixed, Direct (Down Emission). General Illumination.
Color temperatures: 3000K – 3500K – 4000K.
CRI: 80+
- Spec Page
-

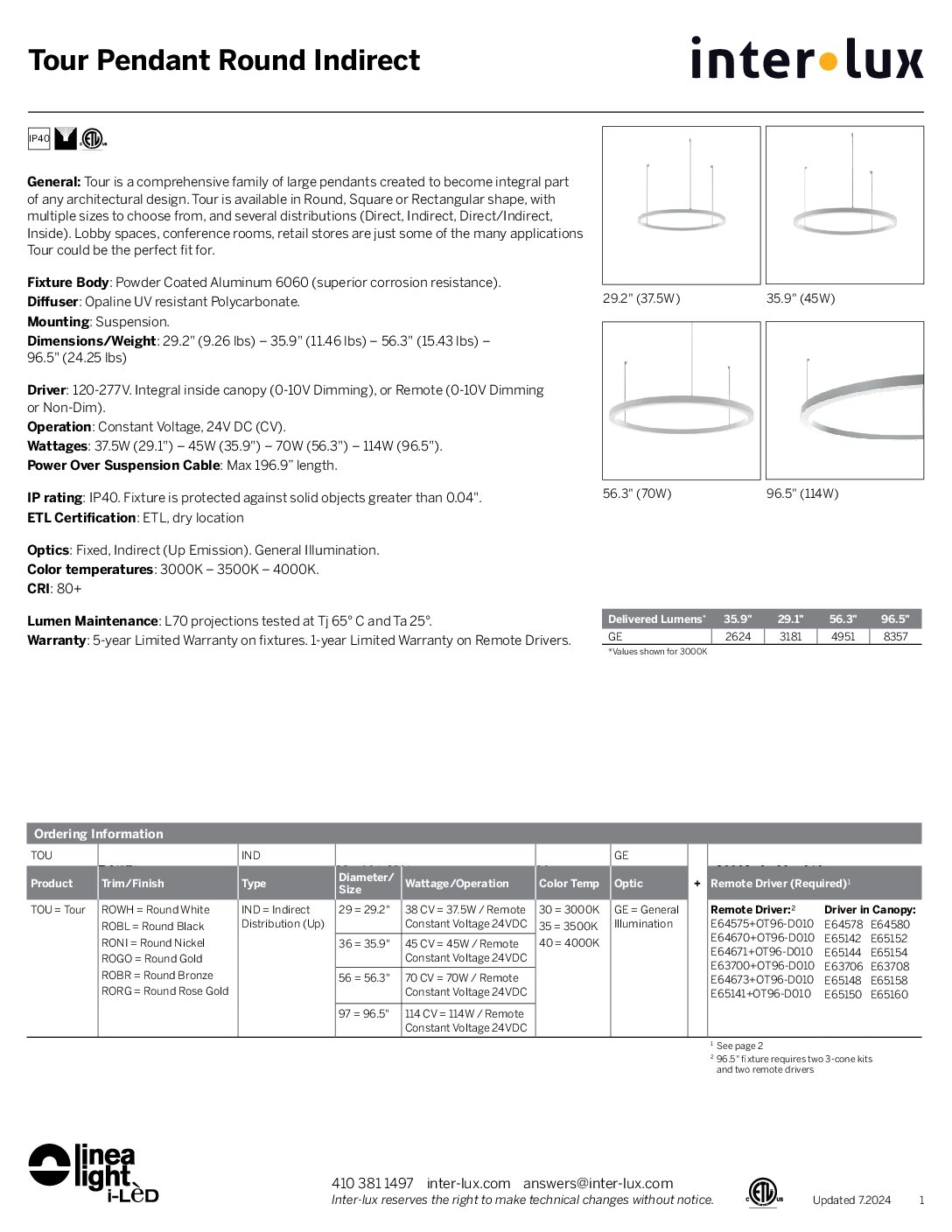

Tour Pendant Round Indirect
Tour is a comprehensive family of large pendants created to become integral part of any architectural design. Tour is available in Round, Square or Rectangular shape, with multiple sizes to choose from, and several distributions (Direct, Indirect, Direct/Indirect, Inside). Lobby spaces, conference rooms, retail stores are just some of the many applications Tour could be the perfect fit for.
Fixture Body: Powder Coated Aluminum 6060 (superior corrosion resistance).
Diffuser: Opaline UV resistant Polycarbonate.
Mounting: Suspension.
Driver: 120-277V. Integral inside canopy (0-10V Dimming), or Remote (0-10V Dimming or Non-Dim).
Operation: Constant Voltage, 24V DC (CV).
Wattages: 37.5W (29.1″) – 45W (35.9″) – 70W (56.3″) – 114W (96.5″).
Suspension Cable Length: Max 196.9″.
IP rating: IP40.
ETL Certification: ETL, dry location
Optics: Fixed, Indirect (Up Emission). General Illumination.
Color temperatures: 3000K – 3500K – 4000K.
CRI: 80+
- Spec Page
-
- Tour Pendant Round Indirect
-

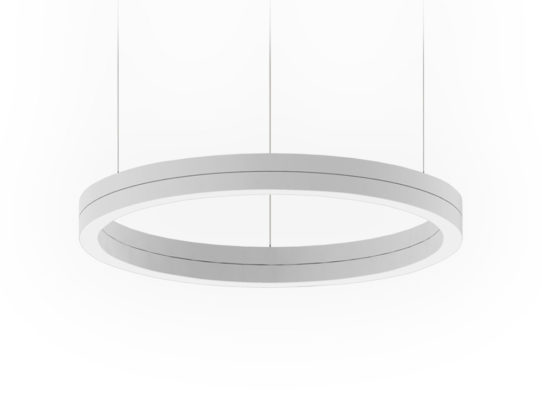

Tour Pendant Round Direct-Indirect
Tour is a comprehensive family of large pendants created to become integral part of any architectural design. Tour is available in Round, Square or Rectangular shape, with (Direct, Indirect, Direct/Indirect, Inside). Lobby spaces, conference rooms, retail stores are just some of the many applications Tour could be the perfect fit for.
Fixture Body: Powder Coated Aluminum 6060 (superior corrosion resistance).
Diffuser: Opaline UV resistant Polycarbonate.
Mounting: Suspension.
Driver: 120-277V. Integral inside canopy (0-10V Dimming), or Remote (0-10V Dimming or Non-Dim).
Operation: Constant Voltage, 24V DC (CV). Dual circuit provided to turn on down and up separately.
Wattages Down/Up: 37.5W/7.5W (29.1”) – 45W/9W (35.9”) – 70W/14W (56.3”) – 114W/23W (96.5”).
Suspension Cable Length: Max 196.9”.
IP rating: IP40.
ETL Certification: ETL, dry location
Optics: Fixed, Direct/Indirect (Down/Up Emission with a 5:1 ratio). General Illumination.
Color temperatures: 3000K – 3500K – 4000K.
CRI: 80+
- Spec Page
-
