Arcada

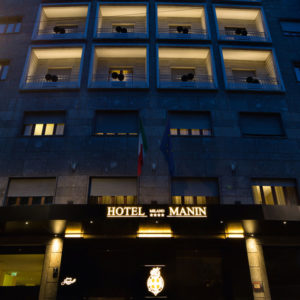

Arcada was designed to perfectly illuminate window frames, arches, doorways and sculptures. Its sharp blade of light creates a perfectly radial distribution, meant to emphasize architectural elements, making them visible from far away.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum.
Glass: Clear UV Resistant Polycarbonate.
Mounting details: The included back plate allows the fixture to be surface mounted directly onto J-boxes (provided by others).

Driver: Remote, Constant Current 120-277V Dimmable 0-10V.
Wattages/Size: 4.5W & 8W (6.4″)
Safety features Fixture is equipped with Electrostatic discharge protection (4 KV), Surge Protection (3.75 KV) and Acquastop (anti-wicking).

IP rating: IP65
ETL Certification: ETL, wet location

Optics: Fixed with Blade distribution (Radial).
Color temperatures: 2700K – 3000K – 4000K.


Arcada RGB

Arcada was designed to perfectly illuminate window frames, arches, doorways and sculptures. Its sharp blade of light creates a perfectly radial distribution, meant to emphasize architectural elements, making them visible from far away.

Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum.
Glass: Clear UV Resistant Polycarbonate.
Mounting details: The included back plate allows the fixture to be surface mounted directly onto J-boxes (provided by others).

Driver: Remote, Constant Current DMX 120-277V Dimmable.
Wattage/Size: 8W (6.4″)
Safety features: Fixture is equipped with Electrostatic discharge protection (4 KV), Surge Protection (3.75 KV) and Acquastop (anti-wicking).

IP rating: IP65
ETL Certification: ETL, wet location

Optics: Fixed with Blade distribution (Radial).
Color temperature: Color changing, RGB.

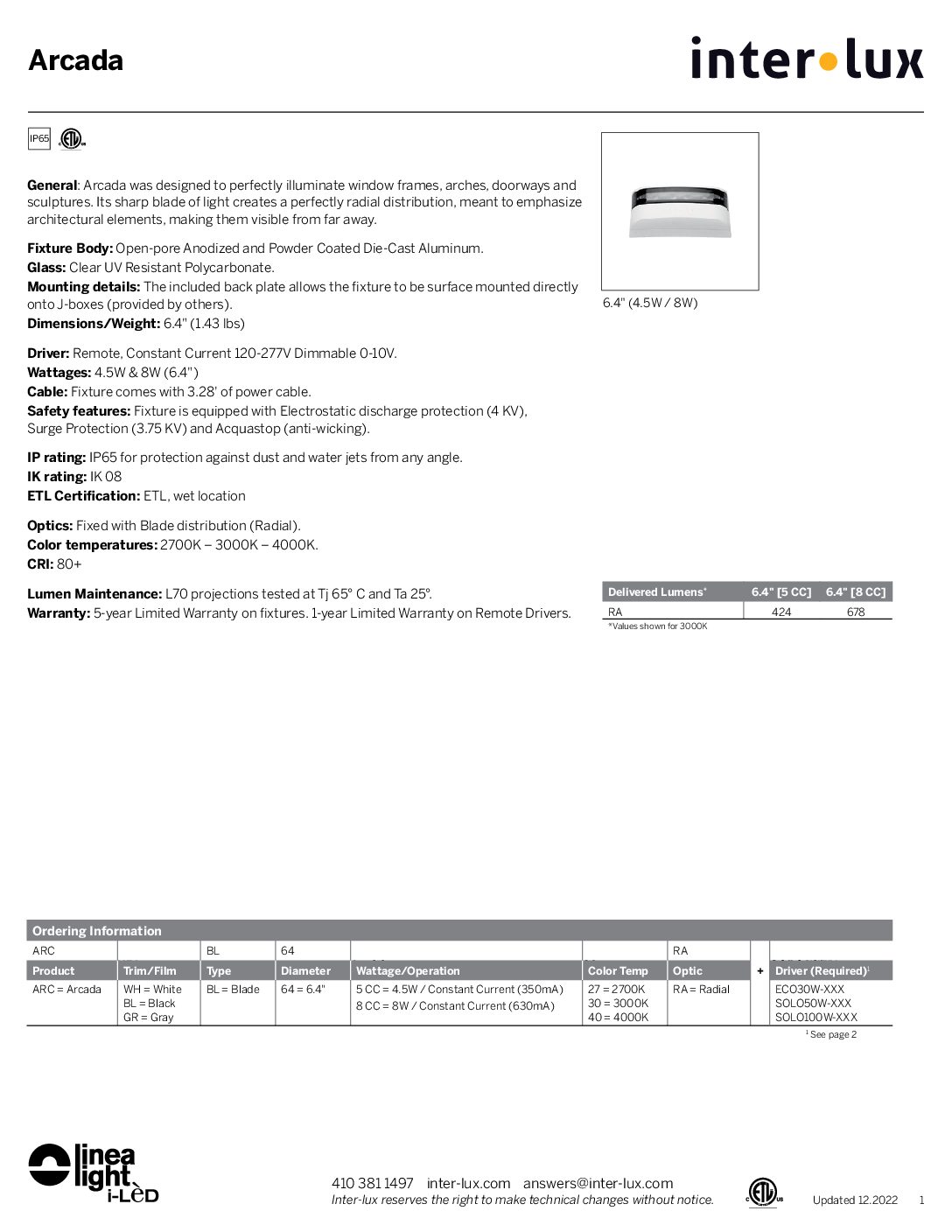

  • Spec Page
