ProTools 60 Linear Wall Graze
An extremely low brightness perimeter lighting system that delivers a narrow sheet of light to a feature wall from above the finished ceiling – integrated with the architecture to otherwise minimize intrusion to the space.
- 2.4″ aperture, integrated solution that is compatible with all ceiling types.
- Standard and tailored run lengths, including corners Graze to 30′ wall height. Soft Graze versions to vary light center from the wall.
- Extreme brightness control and the elimination of disturbing glare.
- Consistent LED technology throughout the Whitegoods product range.
- Easy to install housing allows the wall to continue above the finished ceiling.
- Flexible design allows exact wall-to-wall dimensions.
- Flicker-free full range dimming with standard driver (eldoLED).
- Efficacy up to 122 LPW (RLW) | 72 LPW (RLB) | 97 LPW (REO) (delivered) @ 3000K, see photometry page for details.
- L70 (TM21 Projected 85C) Static White / Tunable White = 50,000 hours.
- ETL and ETL-C for dry and damp location.

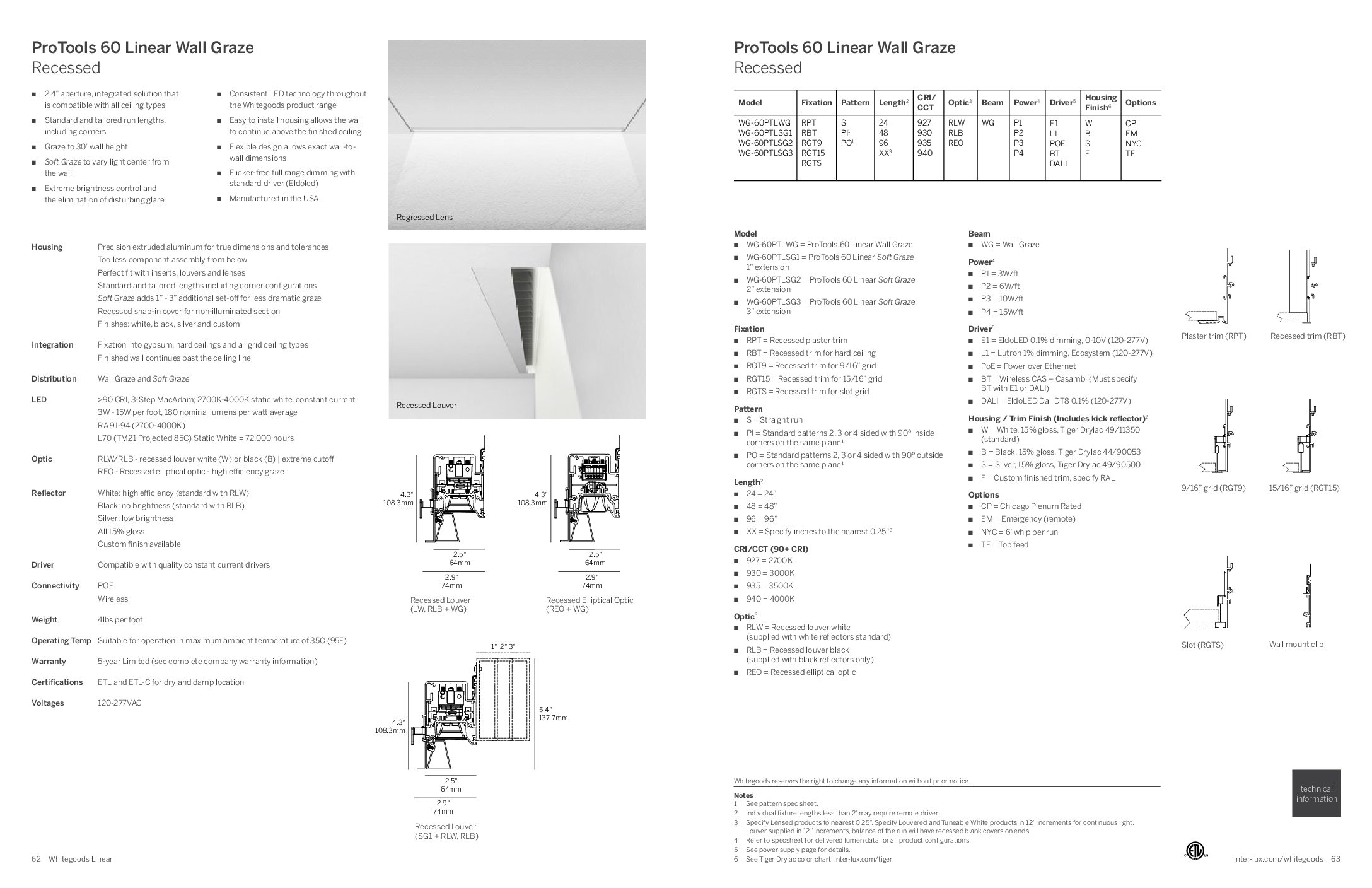

View Cove Perimeter Wallgraze Flipbook >
Selections download as one PDF

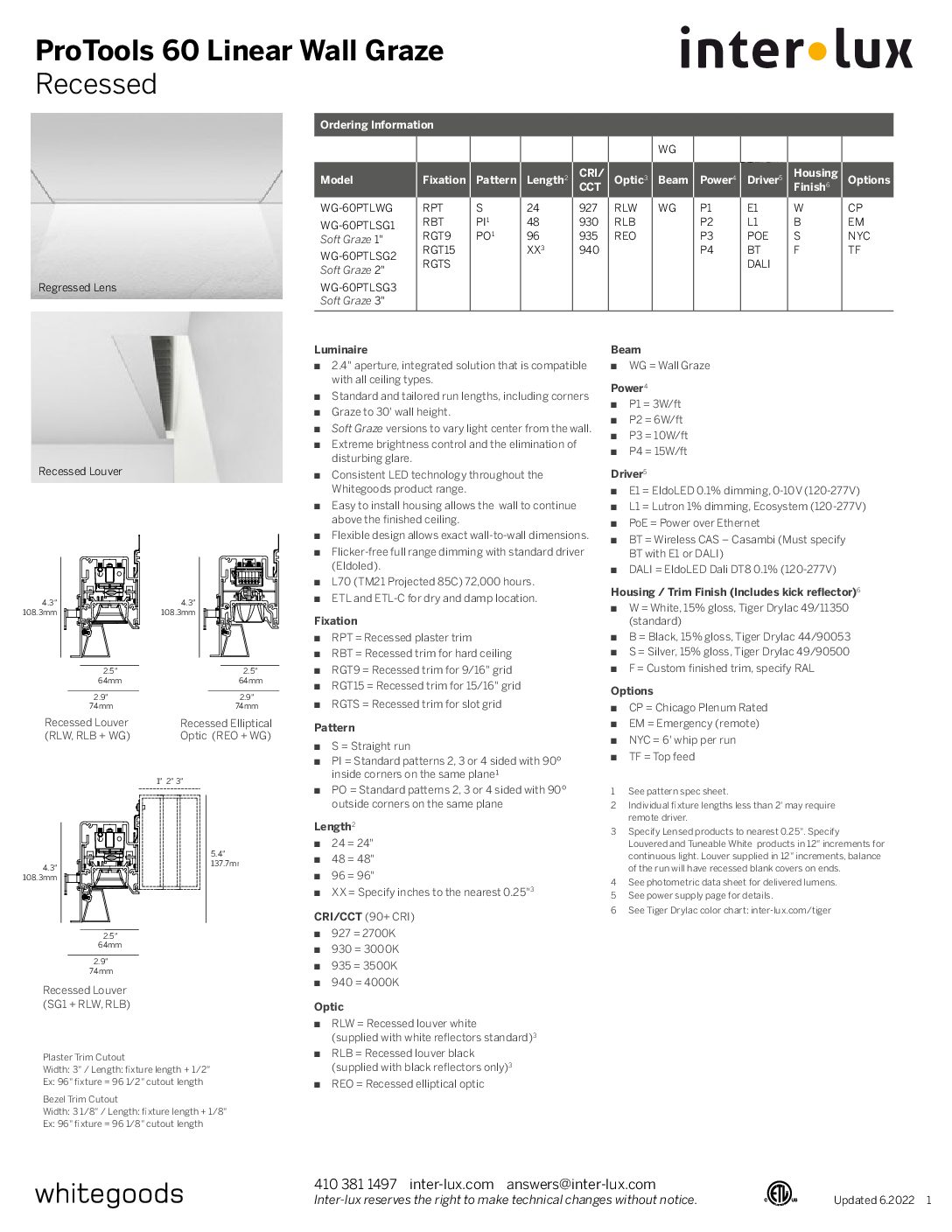

- Spec Page
-

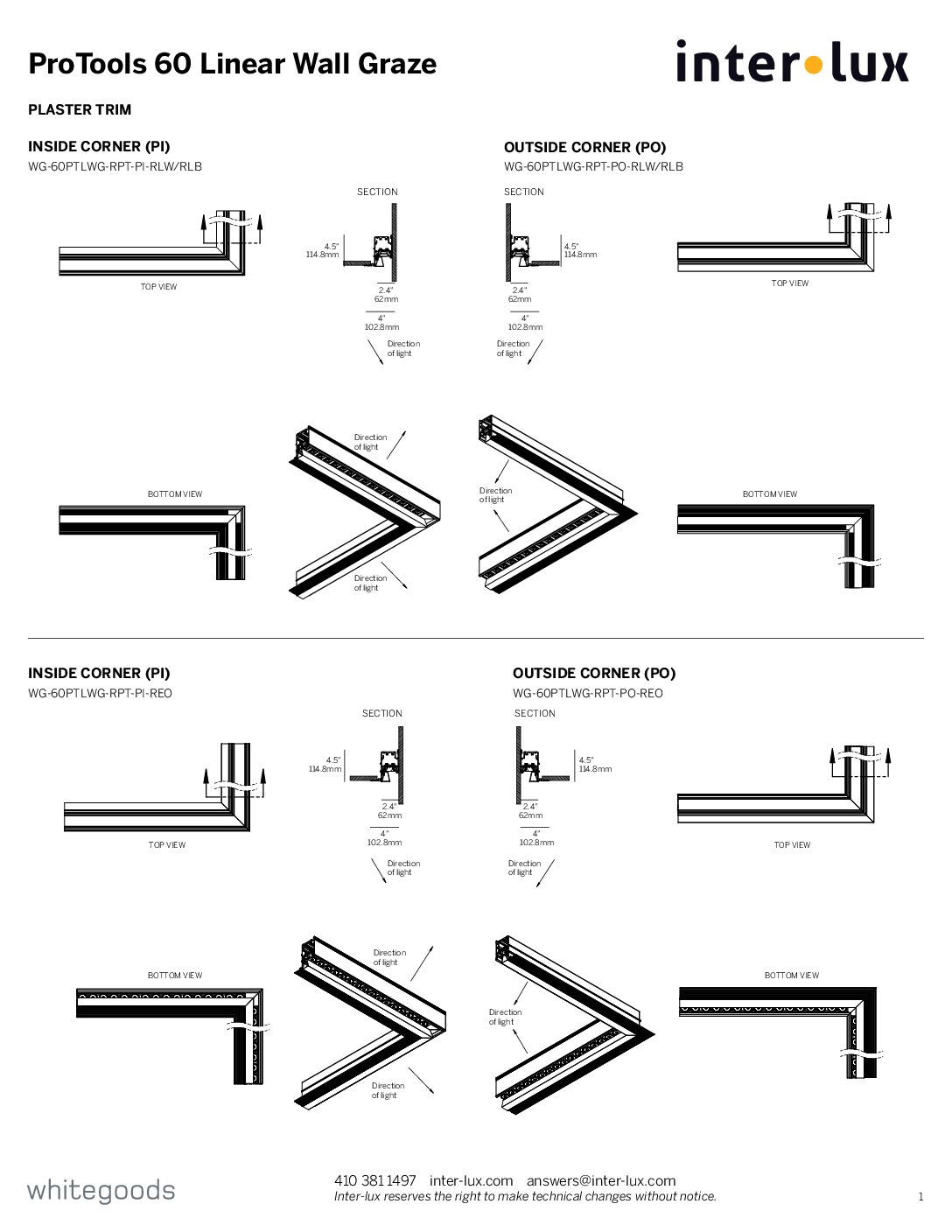

- Details
-
- Driver Information Constant Current
-
- Emergency Constant Current
-
- CC1.3 Static White LED
-
