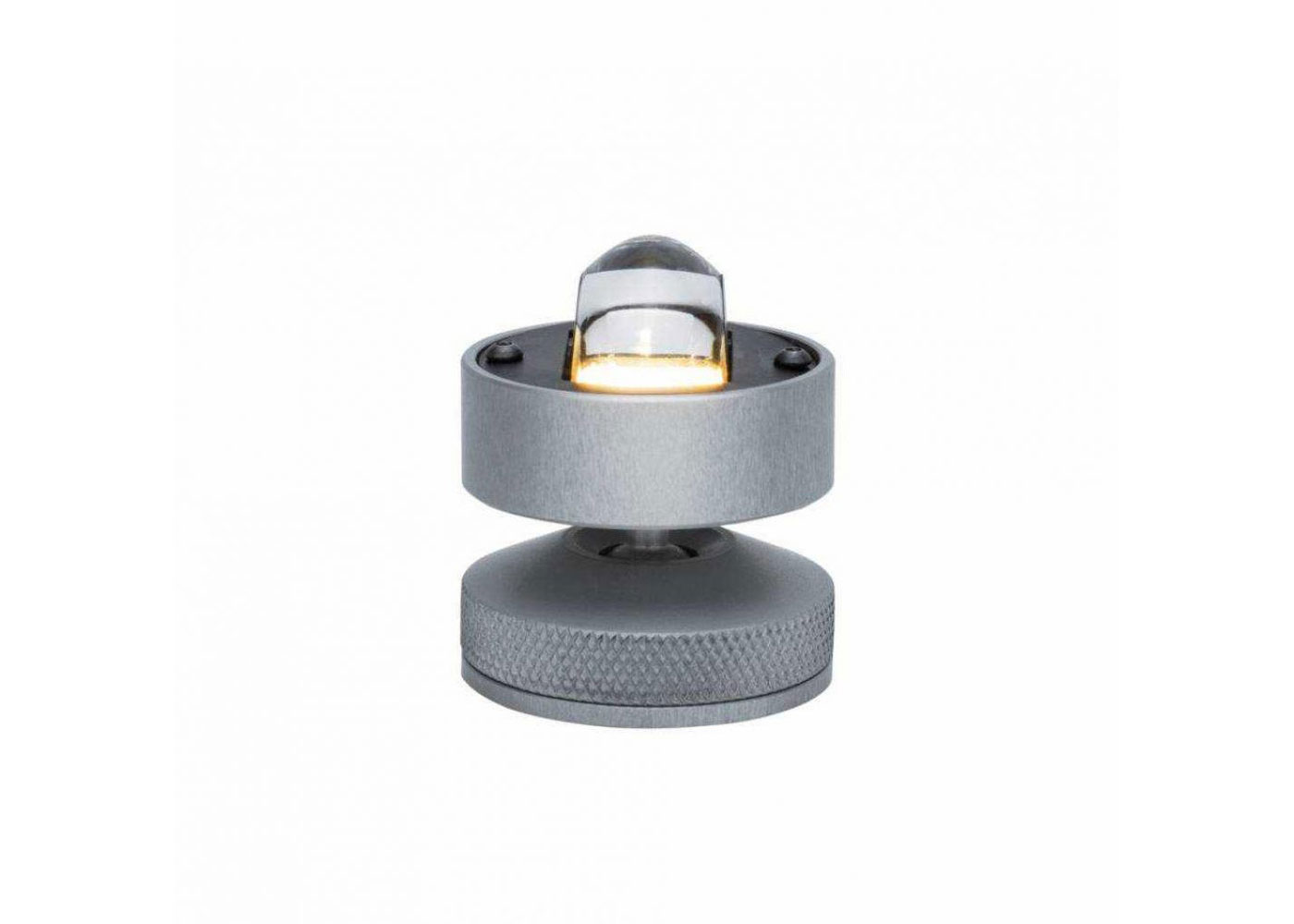

Niche

Miniature surface mounted fitting with a 9° x 113° beam. Curved optic designed to discreetly light archways and window reveals.

Materials: Aluminum
Lamp: MSL Star (1 x Osram Oslon Square)

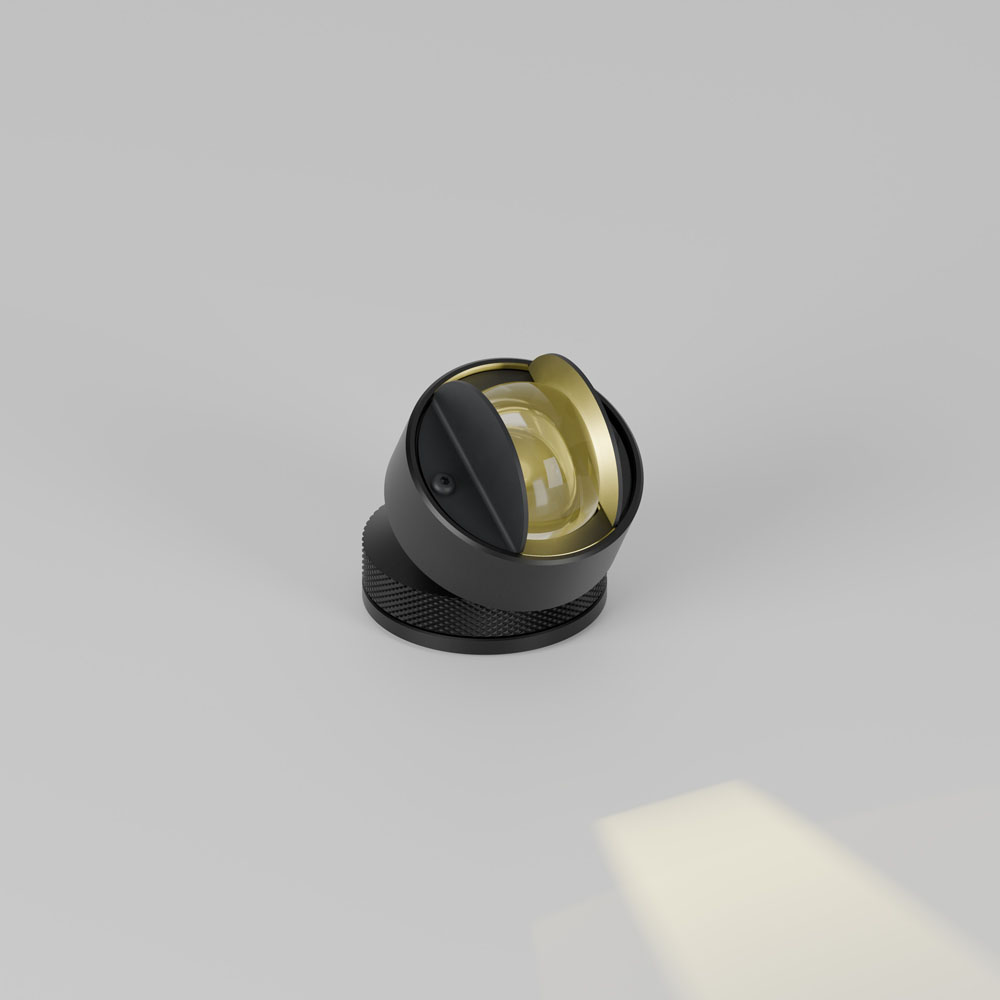

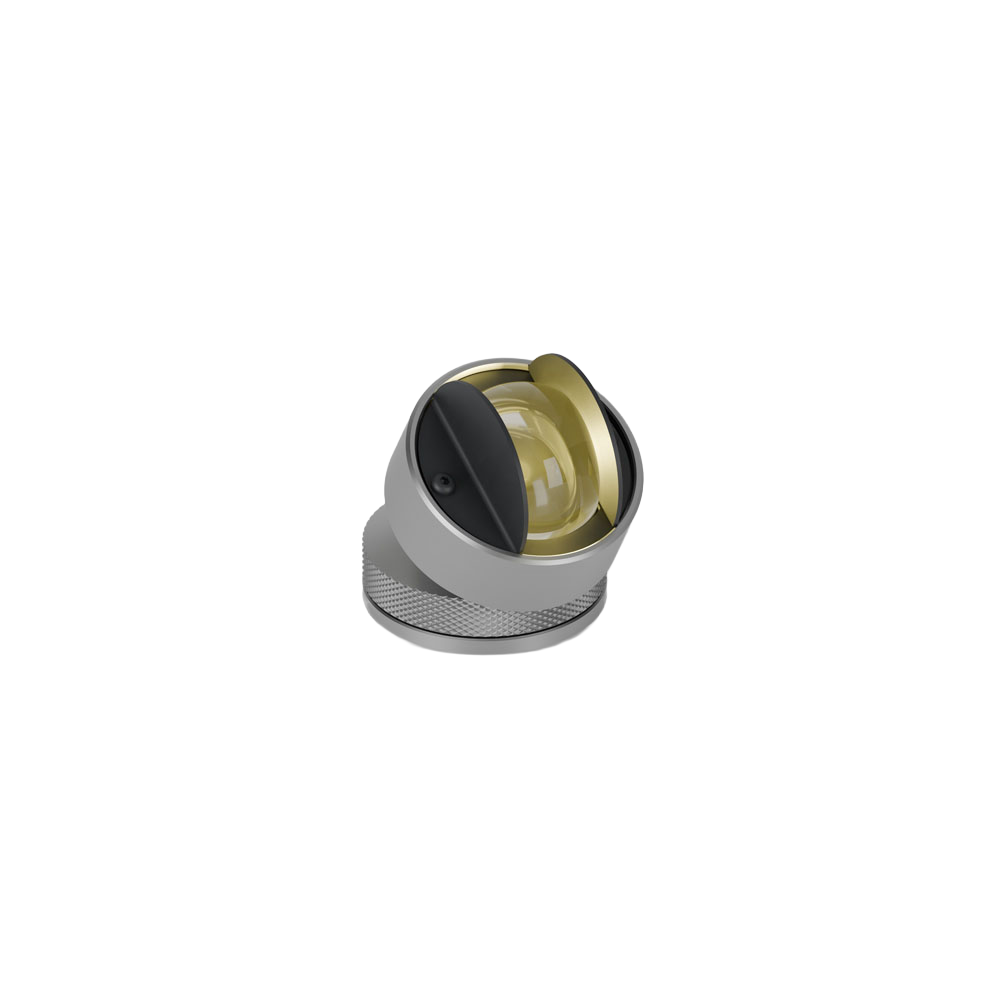

Finish: Anodized or painted any RAL color
Dimming: 1-10V, DMX, DALI, Mains or Wireless
Supply: Remote driver required, Allow 2W at 700mA
Locking: By hand using knurled base
Available tilt: ± 26° (360° rotation)
Weight: 0.1lbs (0.06kg)

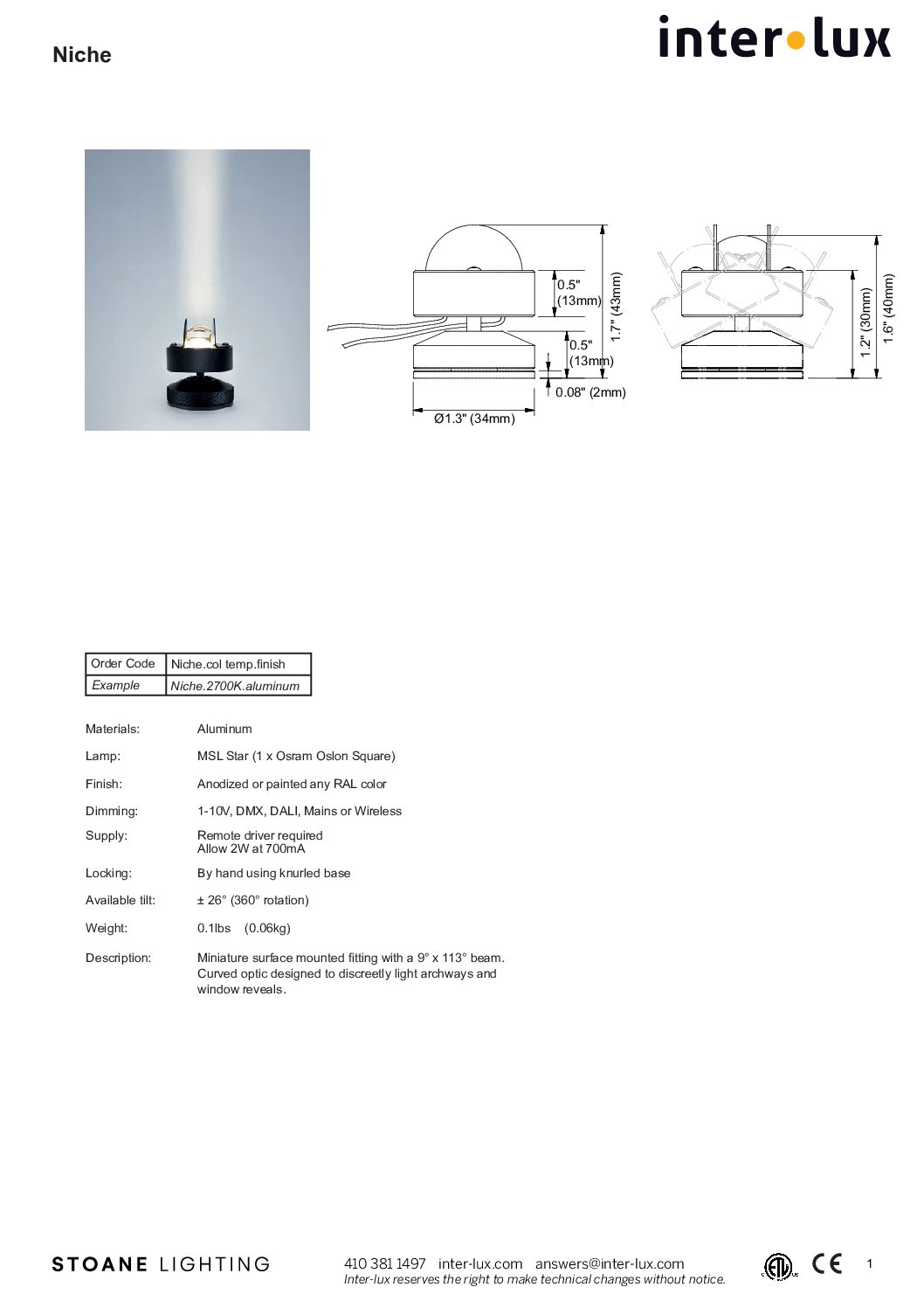

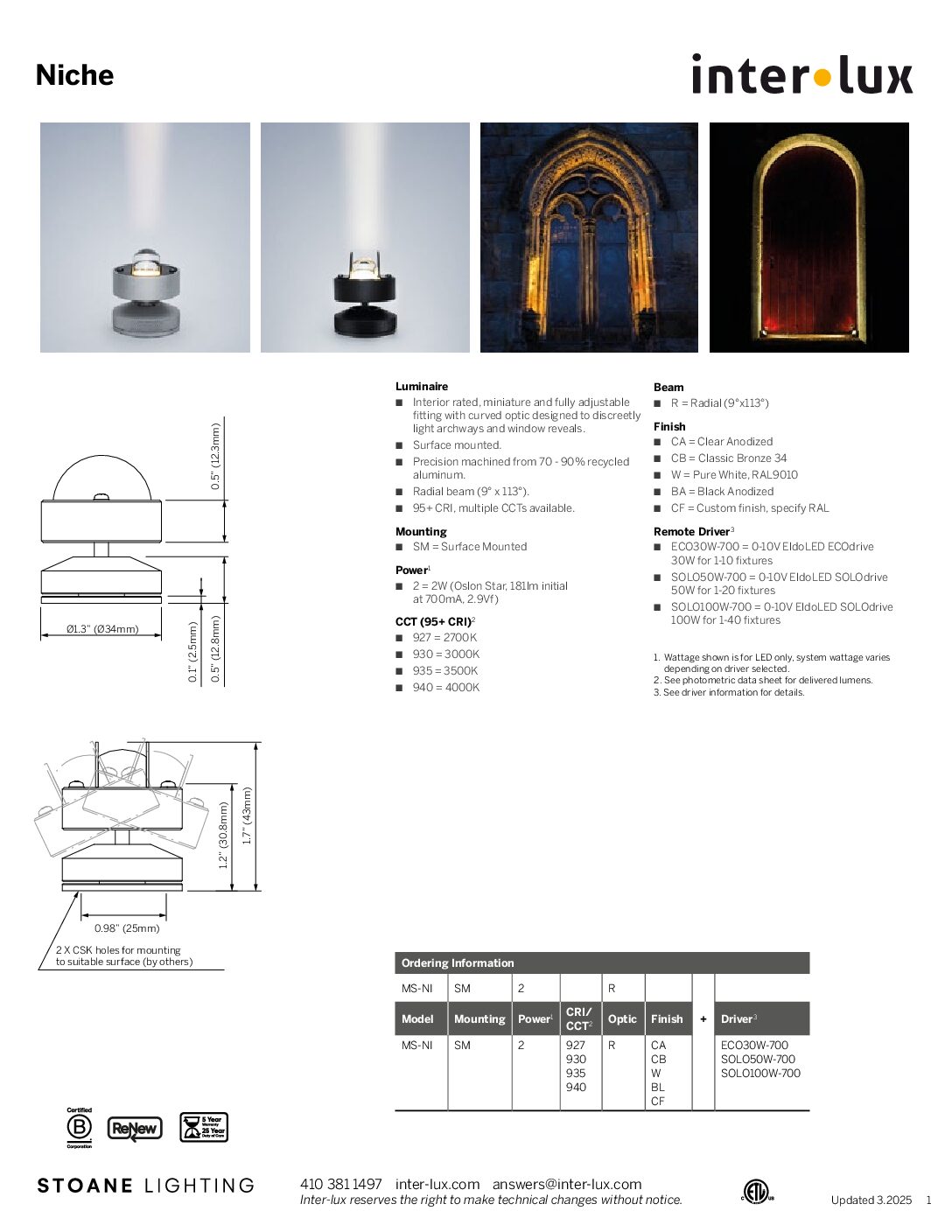

Spec Page
