20 Linear Recessed – Regressed
Miniature, recessed linear downlight with regressed lens for low brightness. Trimless and bezel trim for seamless integration into any drywall, wood and metal surfaces.
- Recessed fixture with fully regressed light for continuous mounting to any desired length (1/4″ increments), as well as standard grid multiples.
- Multiple lens options for diffuse, high efficiency and luminous effect.
- Extruded aluminum housing, easily installed. Field maintainable and upgradeable LED and driver without upsetting the ceiling.
- Efficacy up to 47 lumens per watt (delivered) @ 3000K, see photometry page for details.
- 90+ CRI, 3 Step MacAdam (Static White).
- L70 (TM21 Projected 85C) Static White 60,000 hours, RGBW / Tunable White 50,000 hours, WD 36,000 hours.
- ETL and ETL-C for dry and damp locations.
- Lengths and angles factory cut to exact field dimensions.
- Powdercoat painted.
- Lighting Made in USA. Lighting Made in Maryland.
- 5-year warranty.

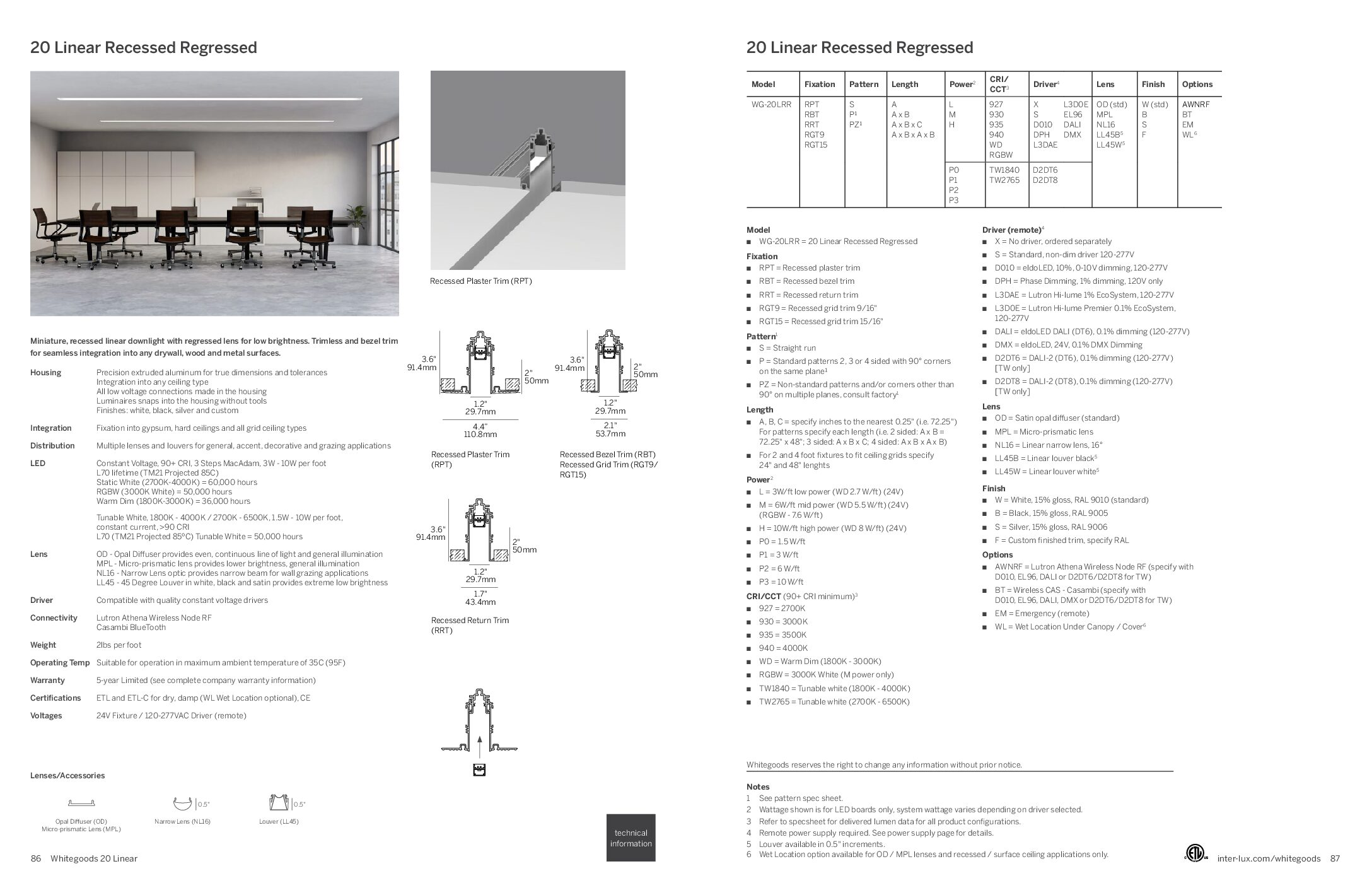

View 20 Linear Flipbook >
Selections download as one PDF
- Spec Page
-

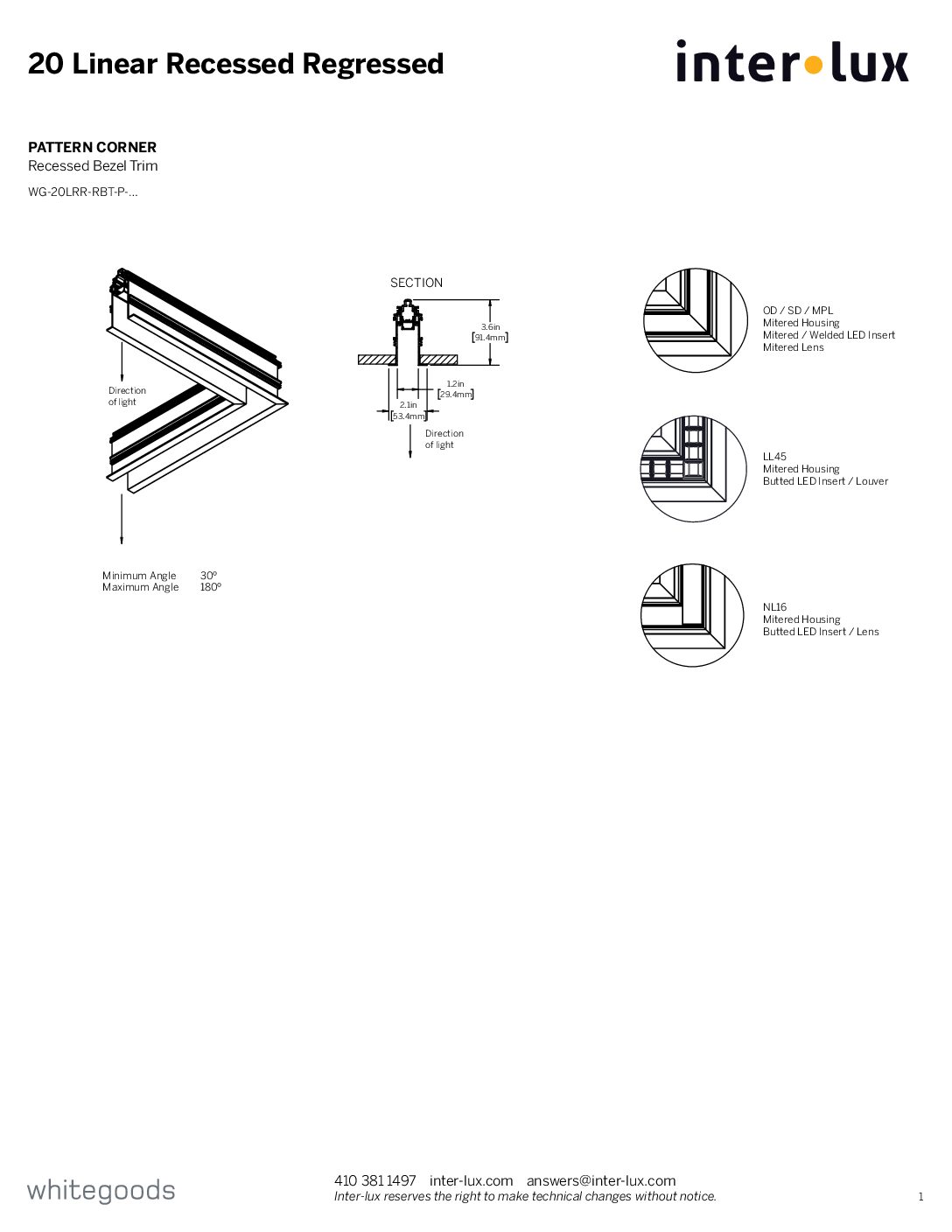

- Details
-
- Drivers
-
- Emergency Constant Voltage
-
- CV1.3 LED
-
- CC1.3 Tunable White LED
-
