Tour Pendant Square Direct
-
Tour Pendant Square Direct-Indirect
-
Tour Pendant Rectangular Direct
-
Tour Pendant Rectangular Direct-Indirect
-
Tour Pendant Vertical Square Inside

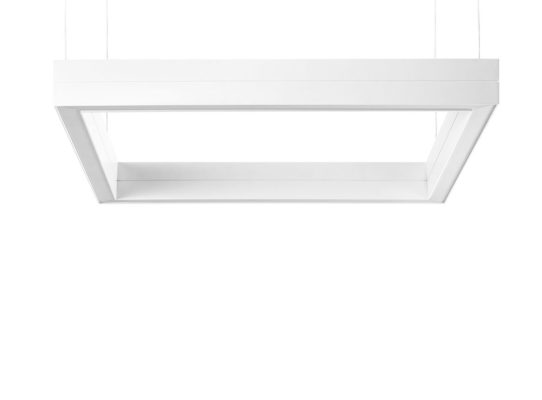

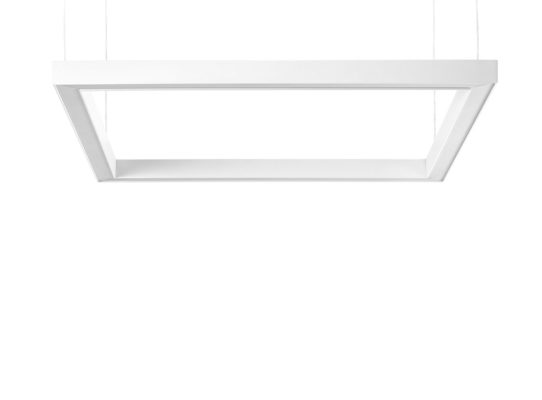

Tour Pendant Square Direct
Tour is a comprehensive family of large pendants created to become integral part of any architectural design. Tour is available in Round, Square or Rectangular shape, with multiple sizes to choose from, and several distributions (Direct, Indirect, Direct/Indirect, Inside). Lobby spaces, conference rooms, retail stores are just some of the many applications Tour could be the perfect fit for.
Fixture Body: Powder Coated Aluminum 6060 (superior corrosion resistance).
Diffuser: Opaline UV resistant Polycarbonate.
Mounting: Suspension.
Driver: 120-277V. Integral inside canopy (0-10V Dimming), or Remote (0-10V Dimming or Non-Dim).
Operation: Constant Voltage, 24V DC (CV).
Wattages: 45W (25.8″) – 73W (49.5″).
Power Over Suspension Cable: Max 196.9” length.
IP rating: IP40.
ETL Certification: ETL, dry location
Optics: Fixed, Direct (Down Emission). General Illumination.
Color temperatures: 3000K – 3500K – 4000K.
CRI: 80+
Tour Pendant Square Direct-Indirect
Tour is a comprehensive family of large pendants created to become integral part of any architectural design. Tour is available in Round, Square or Rectangular shape, with multiple sizes to choose from, and several distributions (Direct, Indirect, Direct/Indirect, Inside). Lobby spaces, conference rooms, retail stores are just some of the many applications Tour could be the perfect fit for.
Fixture Body: Powder Coated Aluminum 6060 (superior corrosion resistance).
Diffuser: Opaline UV resistant Polycarbonate.
Mounting: Suspension.
Driver: 120-277V. Integral inside canopy (0-10V Dimming), or Remote (0-10V Dimming or Non-Dim).
Operation: Constant Voltage, 24V DC (CV). Dual circuit provided to turn on down and up separately.
Wattages Down/Up: 36.5W/7.3W (25.9″) – 73W/15W (49.5”).
Power Over Suspension Cable: Max 196.9” length.
IP rating: IP40.
ETL Certification: ETL, dry location
Optics: Fixed, Direct/Indirect (Down/Up Emission). General Illumination.
Color temperatures: 3000K – 3500K – 4000K.
CRI: 80+

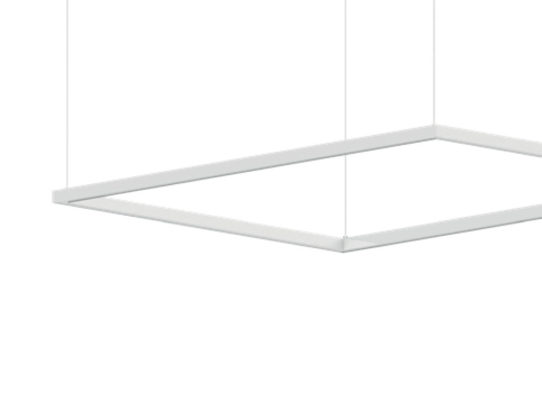

Tour Pendant Rectangular Direct
Tour is a comprehensive family of large pendants created to become integral part of any architectural design. Tour is available in Round, Square or Rectangular shape, with multiple sizes to choose from, and several distributions (Direct, Indirect, Direct/Indirect, Inside). Lobby spaces, conference rooms, retail stores are just some of the many applications Tour could be the perfect fit for.
Fixture Body: Powder Coated Aluminum 6060 (superior corrosion resistance).
Diffuser: Opaline UV resistant Polycarbonate.
Mounting: Suspension.
Driver: 120-277V. Integral inside canopy (0-10V Dimming), or Remote (0-10V Dimming or Non-Dim).
Operation: Constant Voltage, 24V DC (CV).
Wattages: 85W.
Power Over Suspension Cable: Max 196.9” length.
IP rating: IP40.
ETL Certification: ETL, dry location
Optics: Fixed, Direct (Down Emission). General Illumination.
Color temperatures: 3000K – 3500K – 4000K.
CRI: 80+

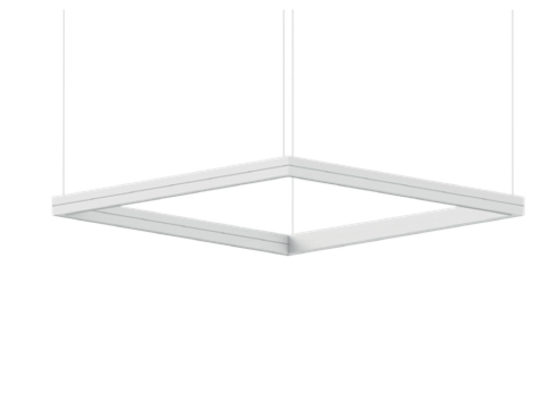

Tour Pendant Rectangular Direct-Indirect
Tour is a comprehensive family of large pendants created to become integral part of any architectural design. Tour is available in Round, Square or Rectangular shape, with multiple sizes to choose from, and several distributions (Direct, Indirect, Direct/Indirect, Inside). Lobby spaces, conference rooms, retail stores are just some of the many applications Tour could be the perfect fit for.
Fixture Body: Powder Coated Aluminum 6060 (superior corrosion resistance).
Diffuser: Opaline UV resistant Polycarbonate.
Mounting: Suspension.
Driver: 120-277V. Integral inside canopy (0-10V Dimming), or Remote (0-10V Dimming or Non-Dim).
Operation: Constant Voltage, 24V DC (CV). Dual circuit provided to turn on down and up separately.
Wattages Down/Up: 85W/17W.
Power Over Suspension Cable: Max 196.9” length.
IP rating: IP40. Fixture is protected against solid objects greater than 0.04″.
ETL Certification: ETL, dry location
Optics: Fixed, Direct/Indirect (Down/Up Emission). General Illumination.
Color temperatures: 3000K – 3500K – 4000K.
CRI: 80+

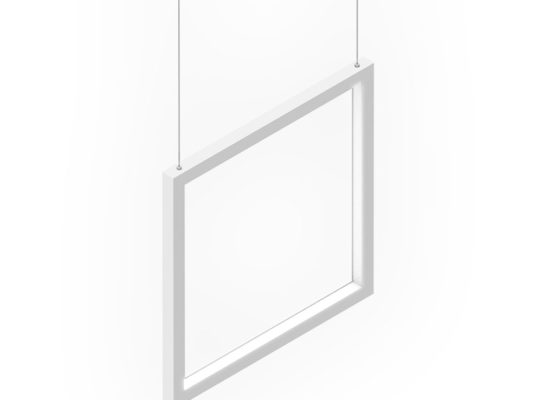

Tour Pendant Vertical Square Inside
Tour is a comprehensive family of large pendants created to become integral part of any architectural design. Tour is available in Round, Square or Rectangular shape, with multiple sizes to choose from, and several distributions (Direct, Indirect, Direct/Indirect, Inside). Lobby spaces, conference rooms, retail stores are just some of the many applications Tour could be the perfect fit for.
Fixture Body: Powder Coated Aluminum 6060 (superior corrosion resistance).
Diffuser: Opaline UV resistant Polycarbonate.
Mounting: Suspension.
Driver: 120-277V. Integral inside canopy (0-10V Dimming), or Remote (0-10V Dimming or Non-Dim).
Operation: Constant Voltage, 24V DC (CV).
Wattages: 45W (26.4” sq.)
Power Over Suspension Cable: Max 196.9” length.
IP rating: IP40.
ETL Certification: ETL, dry location
Optics: Fixed, Inside Emission. General Illumination.
Color temperatures: 3000K – 3500K – 4000K.
CRI: 80+
