4″ ProTools DL Adjustable Round Recessed Cone
Multiple Beam Options With Pan And Tilt Adjustment From Regressed Source
- 4″ round downlight with 2″ light aperture.
- 0.7″ regressed aperture / lens position provides good glare control.
- Beam Angle: Various, Cut Off: 35°.
- Open aperture, clear lens or high transmission diffuser.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 40º, rotation 365º, 144 step.
- Wet Location as standard option (WL).
- Multiple luminaire configurations for plaster trim.
- Available 2700 to 4000 K (492 to 1483 lm).
ProTools Configurator
Downloads
Specsheets

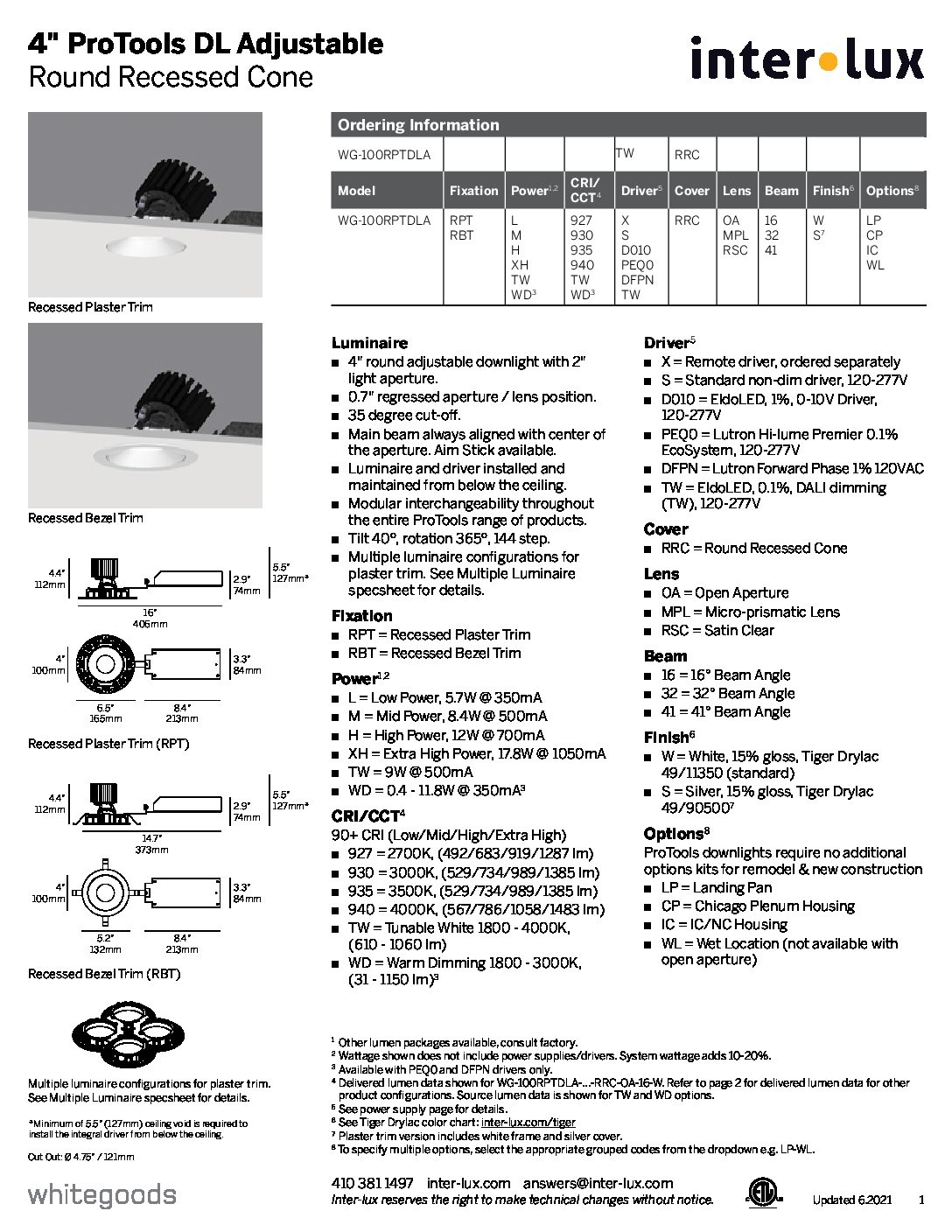

- 4″ ProTools DL Adjustable Round Recessed Cone Specsheet

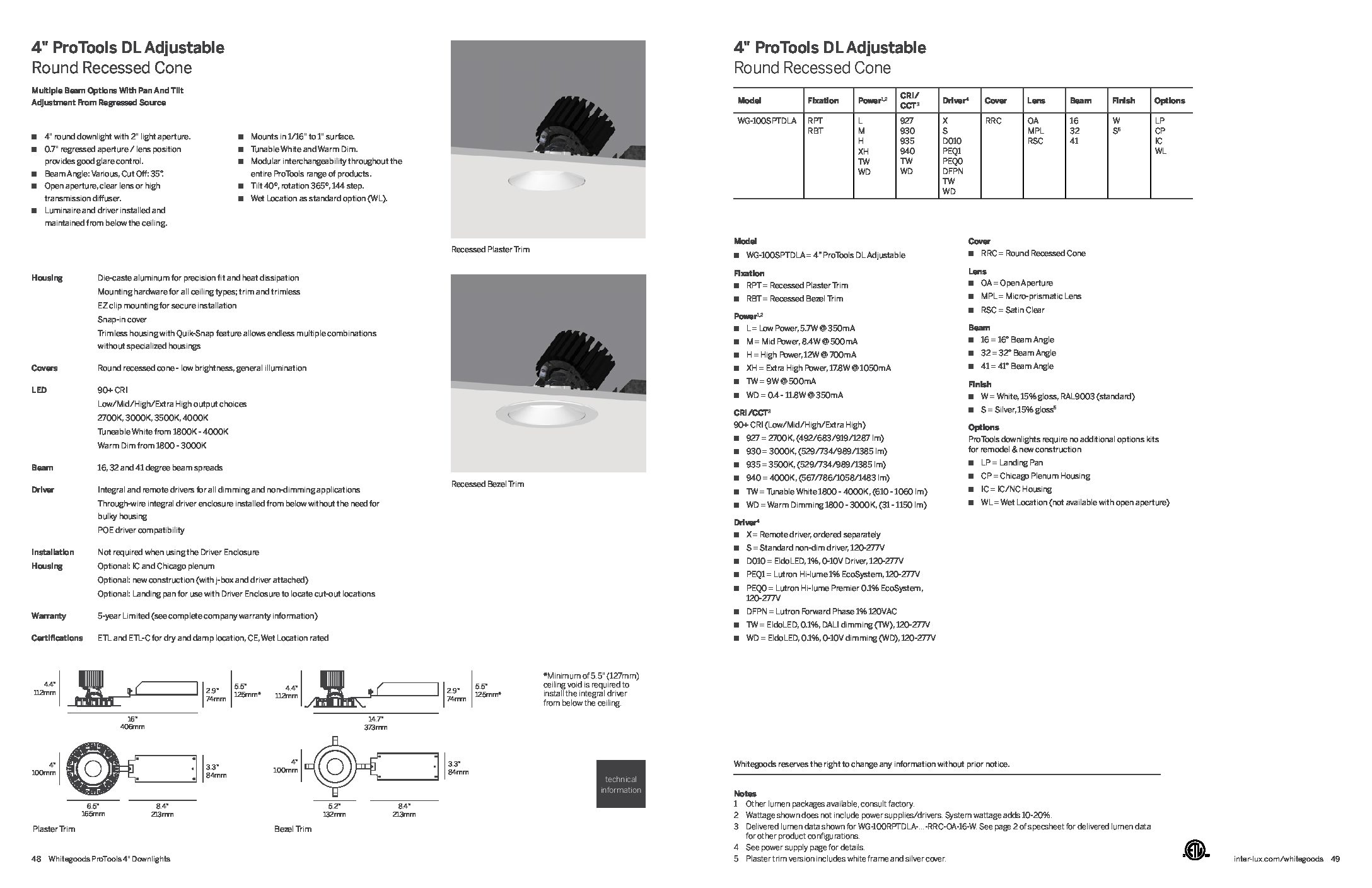

- 4″ ProTools DL Adjustable Round Recessed Cone Catalog
- 4″ ProTools Downlight Multiple Luminaire Configurations
Application Guides
Installation Instructions
- ProTools DL Round Plaster Instructions
- ProTools DL Round Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools DL Adjustable Round Asymmetric Cone
Asymmetric Cone For Minimum Beam Clipping With Wider Angle Optics And Higher Angle Focusing
- 4″ round downlight with 2″ light aperture.
- 0.7″ regressed aperture / lens position provides good glare control.
- Beam Angle: Various
- Asymmetric cone to minimize beam clipping when tilted.
- Open aperture, clear lens or high transmission diffuser.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 40º, rotation 365º, 144 step.
- Wet Location as standard option (WL).
- Multiple luminaire configurations for plaster trim.
- Available 2700 to 4000 K (501 to 1510 lm).
ProTools Configurator
Downloads
Specsheets

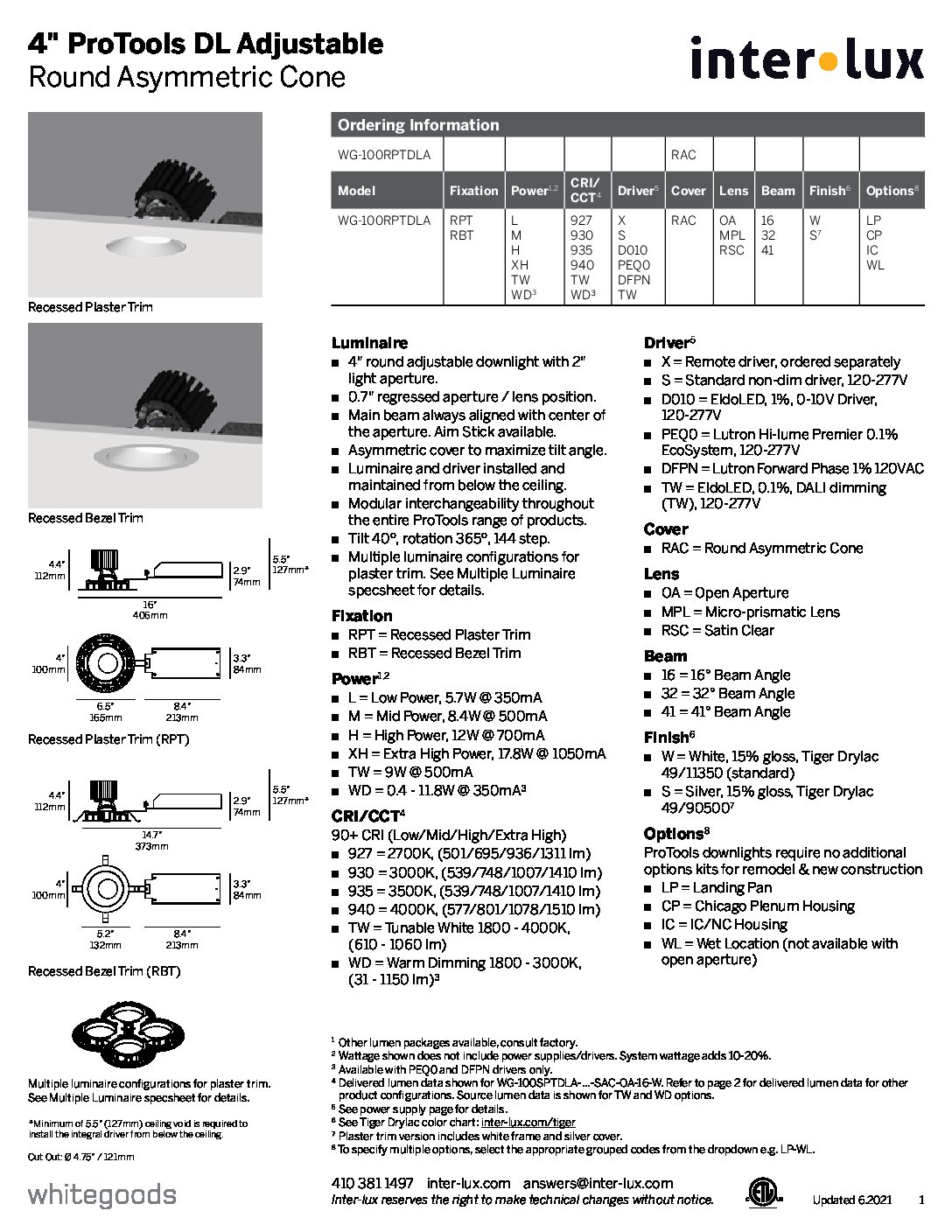

- 4″ ProTools DL Adjustable Round Asymmetric Cone Specsheet

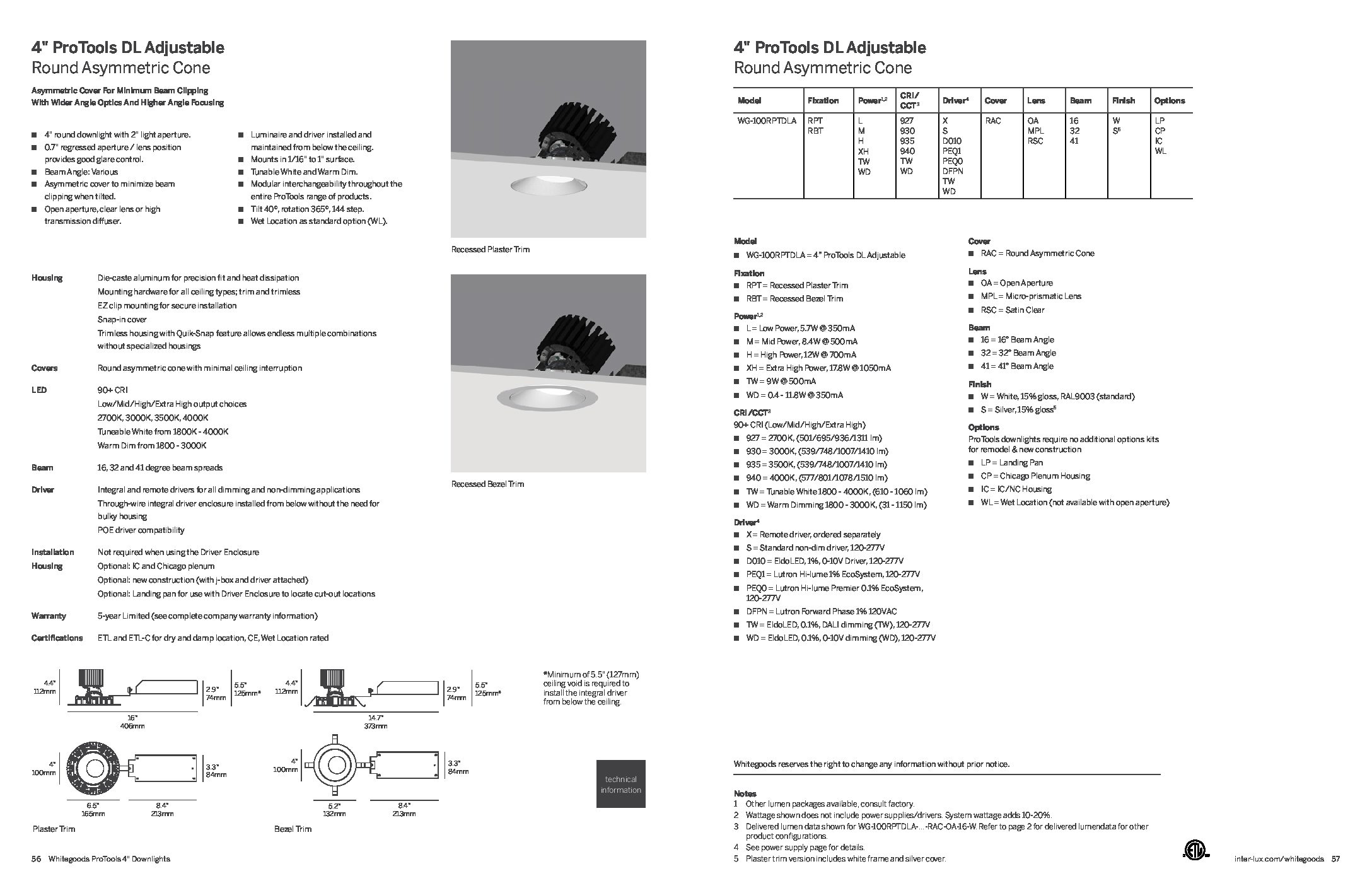

- 4″ ProTools DL Adjustable Round Asymmetric Cone Catalog
- 4″ ProTools Downlight Multiple Luminaire Configurations
Application Guides
Installation Instructions
- ProTools DL Round Bezel Instructions
- ProTools DL Round Plaster Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools DL Adjustable Round Regressed Pinhole
Multiple Beam Options With Pan And Tilt Adjustment From Regressed Source
- 4″ round downlight with 2″ light aperture.
- 1/2″ regressed aperture / lens position provides good glare control.
- Beam Angle: Various, Cut Off: 35°.
- Open aperture, clear lens or high transmission diffuser.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 40º, rotation 365º, 144 step.
- Multiple luminaire configurations for plaster trim.
- Available 2700 to 4000 K (492 to 1483 lm).
ProTools Configurator
Downloads
Specsheets
- 4″ ProTools DL Downlight Round Regressed Pinhole Specsheet

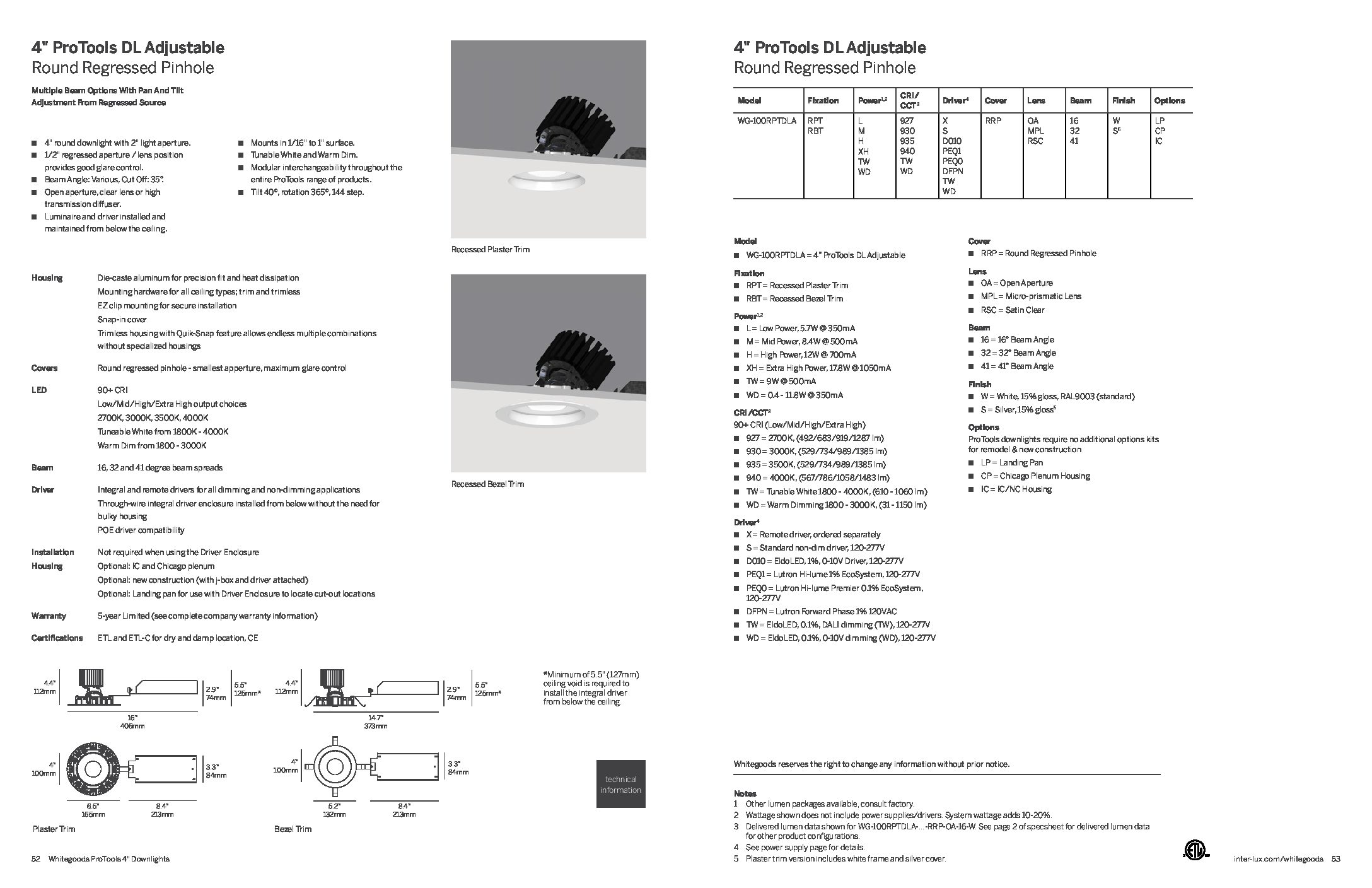

- 4″ ProTools DL Adjustable Round Regressed Pinhole Catalog
- 4″ ProTools Downlight Multiple Luminaire Configurations
Application Guides
Installation Instructions
- ProTools DL Round Plaster Instructions
- ProTools DL Round Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools DL Adjustable Square Recessed Cone
Multiple Beam Options With Pan And Tilt Adjustment From Regressed Source
- 4″ square downlight with 2″ light aperture.
- 0.7″ regressed aperture / lens position provides good glare control.
- Beam Angle: Various, Cut Off: 35°.
- Open aperture, clear lens or high transmission diffuser.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 40º, rotation 365º, 144 step.
- Wet Location as standard option (WL).
- Multiple luminaire configurations for plaster trim.
- Available 2700 to 4000 K (552 to 1664 lm).
ProTools Configurator
Downloads
Specsheets

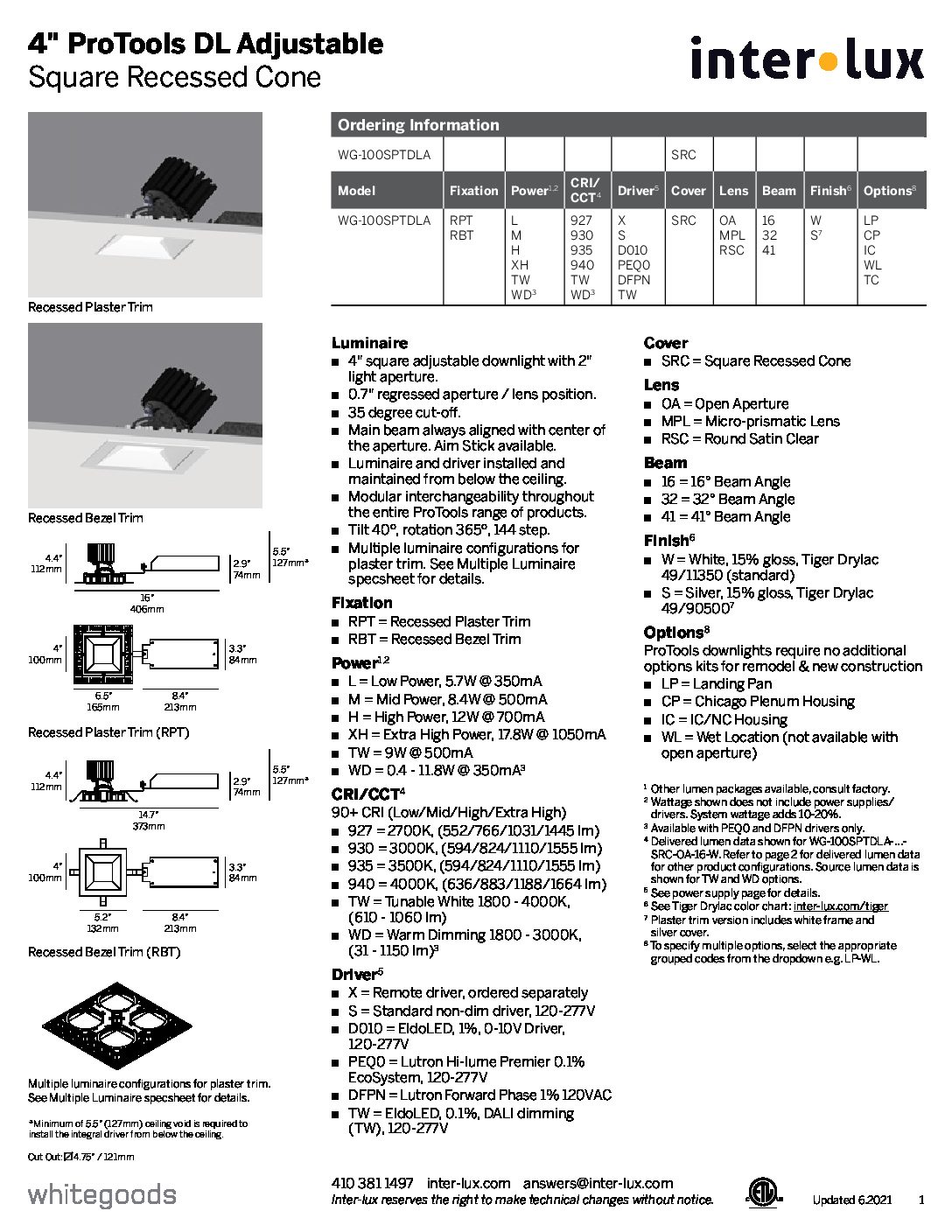

- 4″ ProTools DL Adjustable Square Recessed Cone Specsheet

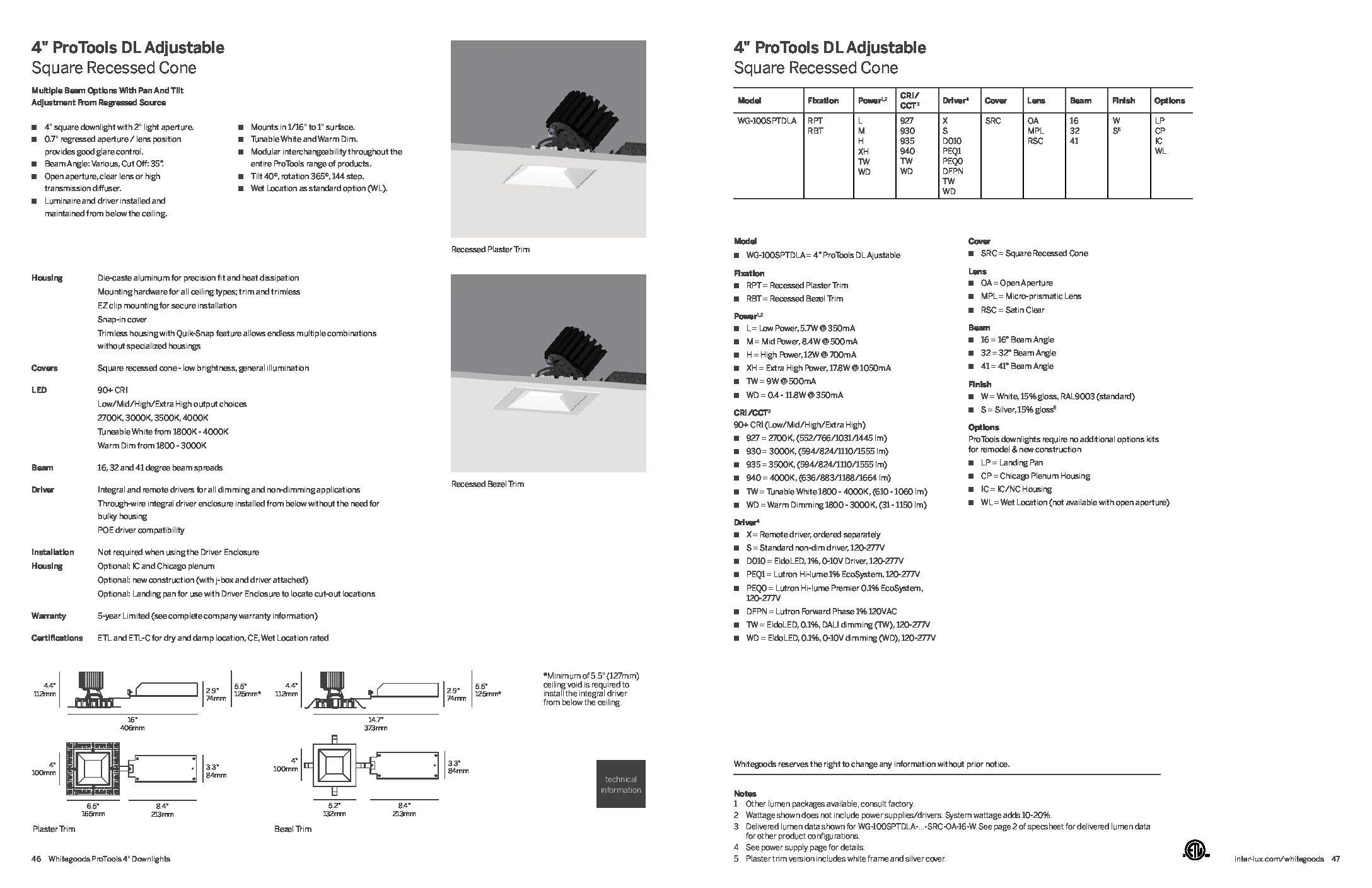

- 4″ ProTools DL Adjustable Square Recessed Cone Catalog
- 4″ ProTools Downlight Multiple Luminaire Configurations
Application Guides
Installation Instructions
- ProTools DL Square Plaster Instructions
- ProTools DL Square Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools DL Adjustable Square Asymmetric Cone
Asymmetric Cone For Minimum Beam Clipping With Wider Angle Optics And Higher Angle Focusing
- 4″ square downlight with 2″ light aperture.
- 0.7 regressed aperture / lens position provides good glare control.
- Beam Angle: Various
- Asymmetric cone to minimize beam clipping when tilted.
- Open aperture, clear lens or high transmission diffuser.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 40º, rotation 365º, 144 step.
- Wet Location as standard option (WL).
- Multiple luminaire configurations for plaster trim.
- Available 2700 to 4000 K (447 to 1347 lm).
ProTools Configurator
Downloads
Specsheets
- 4″ ProTools DL Adjustable Square Asymmetric Cone Specsheet
- 4″ ProTools DL Adjustable Square Asymmetric Cone Catalog
- 4″ ProTools Downlight Multiple Luminaire Configurations
Application Guides
Installation Instructions
- ProTools DL Square Bezel Instructions
- ProTools DL Square Plaster Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
Downloads
Add To My Favorites
4″ ProTools DL Adjustable Square Regressed Pinhole
Multiple Beam Options With Pan And Tilt Adjustment From Regressed Source
- 4″ square downlight with 2″ light aperture.
- 1/2″ regressed aperture / lens position provides good glare control.
- Beam Angle: Various, Cut Off: 35°.
- Open aperture, clear lens or high transmission diffuser.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 40º, rotation 365º, 144 step.
- Multiple luminaire configurations for plaster trim.
- Available 2700 to 4000 K (494 to 1489 lm).
ProTools Configurator
Downloads
Specsheets
- 4″ ProTools DL Adjustable Square Regressed Pinhole Specsheet

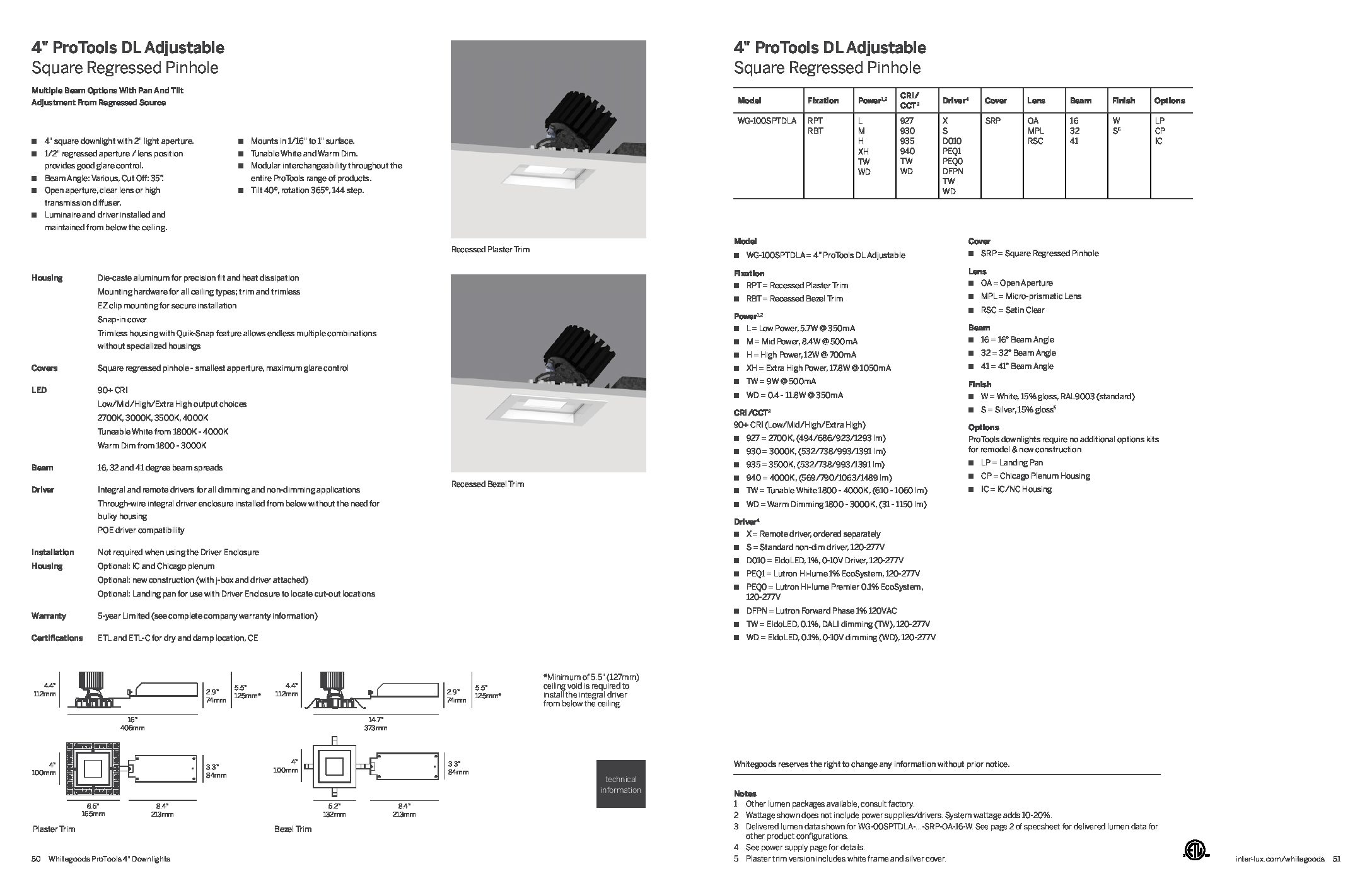

- 4″ ProTools DL Adjustable Square Regressed Pinhole Catalog
- 4″ ProTools Downlight Multiple Luminaire Configurations
Application Guides
Installation Instructions
- ProTools DL Square Plaster Instructions
- ProTools DL Square Bezel Instructions
- New Construction Housing Ins. Remote
- Landing Pan Installation Instructions
- Chicago Plenum Ins. Integral
