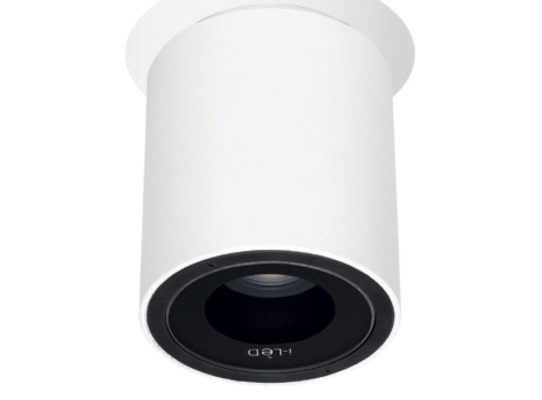

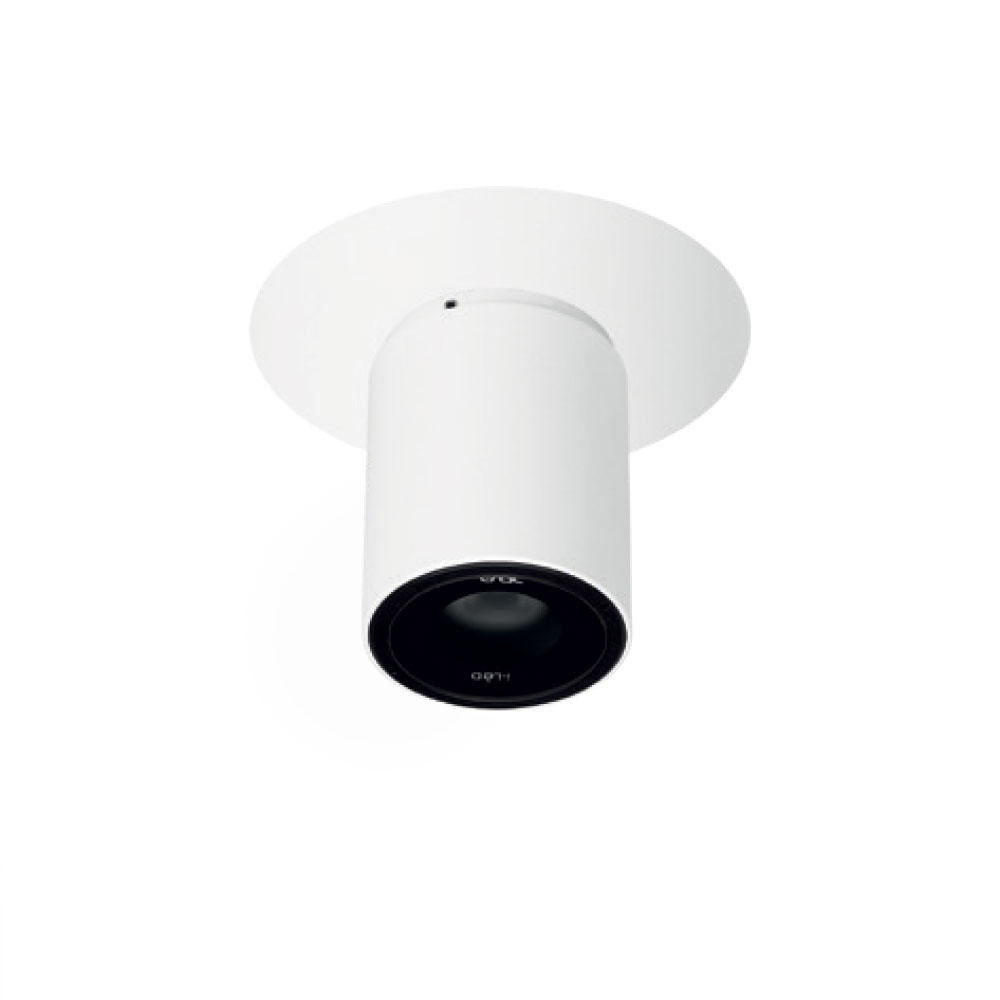

Portik

Portik is a family of outdoor LED surface mount down lights designed for both residential, hospitality and commercial applications. Available in round or square, different sizes, output and finishes. A polycarbonate lens combined with optical components that have different levels of opacity guarantees a clean beam and optimal efficiency throughout the entire Portik family.

Fixture Body: Open pore anodized and Powder Coated Die-Cast Aluminum. Available in White, Black, Grey and Dark Brown.
Glass: Extra-clear, Tempered glass. Available in Black, Grey and White finish.
Mounting: Surface mounted.

Square: 2.8” (1.49 lbs) – 4.0” (3.20 lbs) – 5.9” (6.17 lbs)
Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim (2.8” & 3.9”). Integral 120/277VAC Non-Dim (7.1” & 5.9”).
Wattages/Sizes: 6.5W (2.8”) – 12W (3.9” & 4.0”) – 28W (7.1” & 5.9”) – 39W (7.1” & 5.9”)

IP rating: IP65 for protection against dust and water jets from any angle.
ETL Certification: ETL, wet location

Optics: Fixed. Available in Spot – Flood – Wide Flood.
Color temperatures: 2700K – 3000K – 4000K.

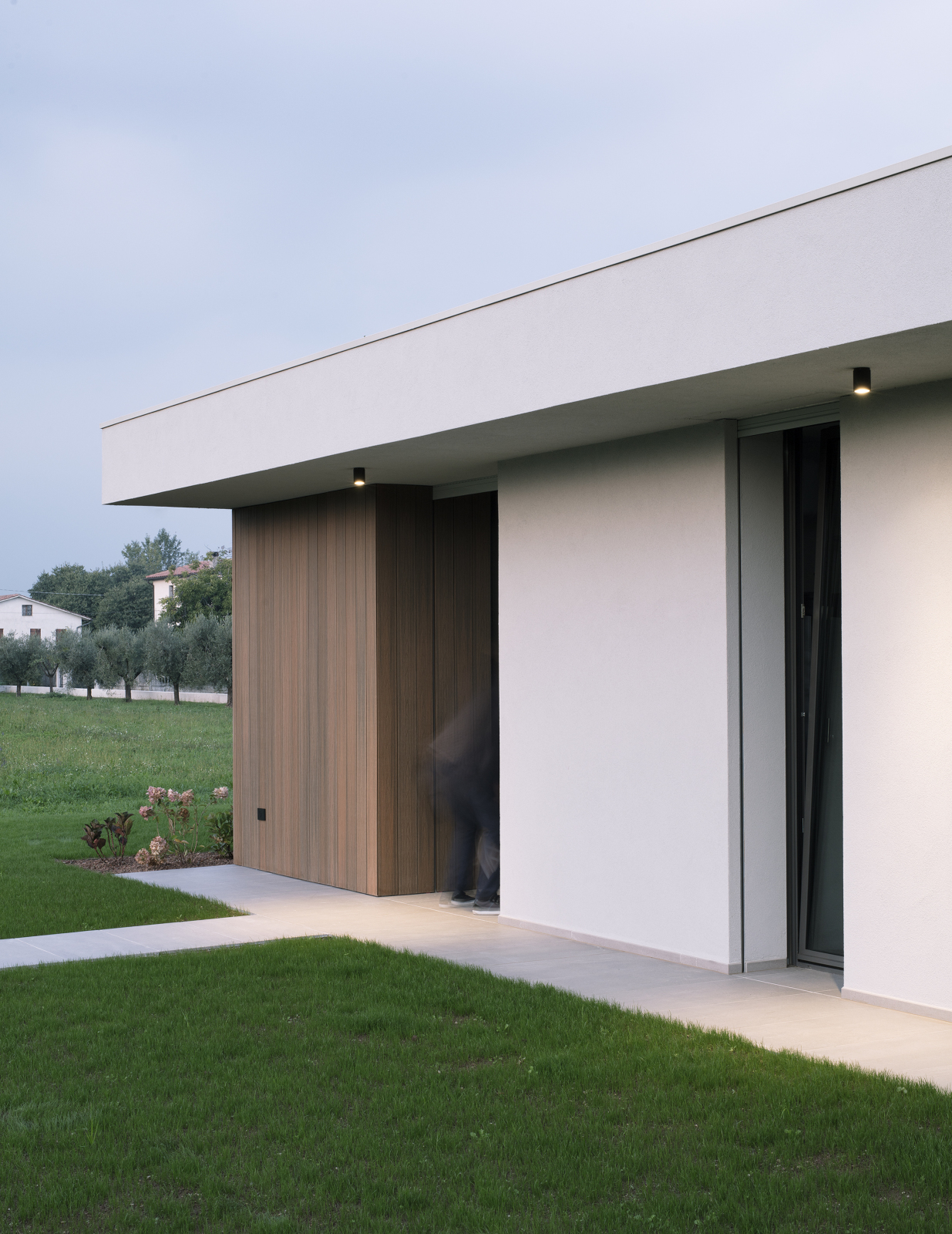

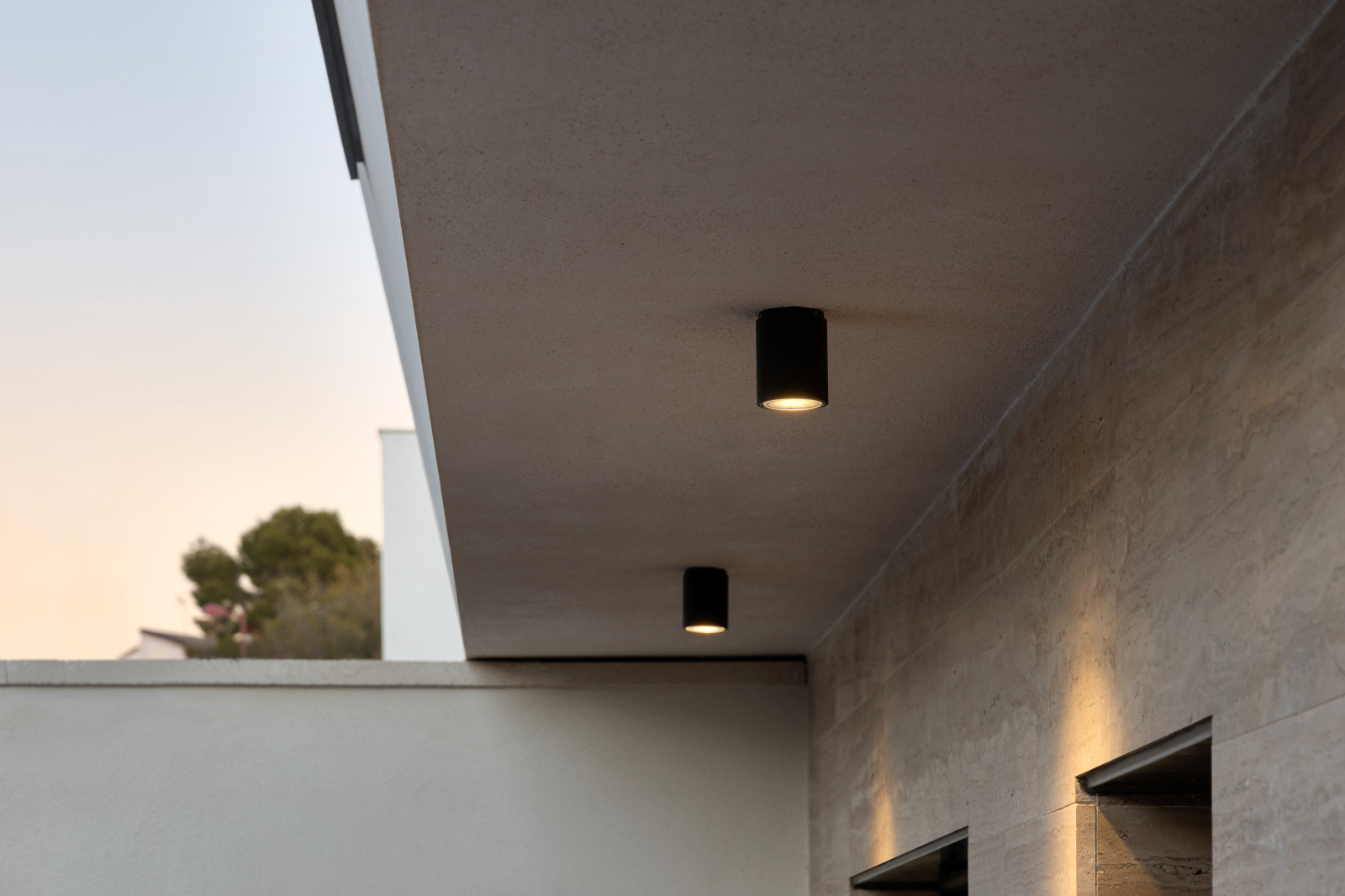

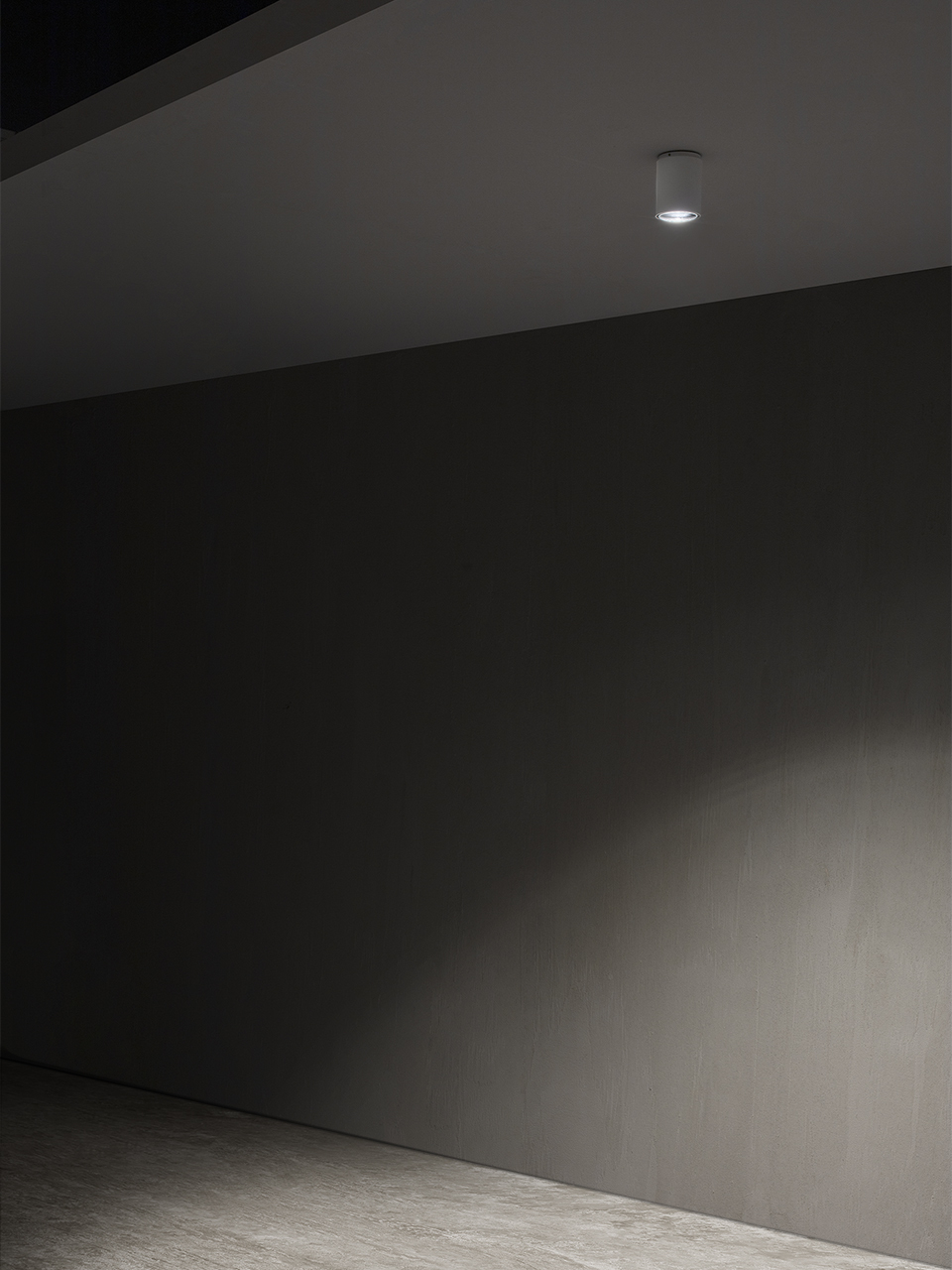

Photos
